No crank, no lights.....nothin

Scoop

Member
Joined
Aug 8, 2018
Messages
13
Reaction score
0
Hello.

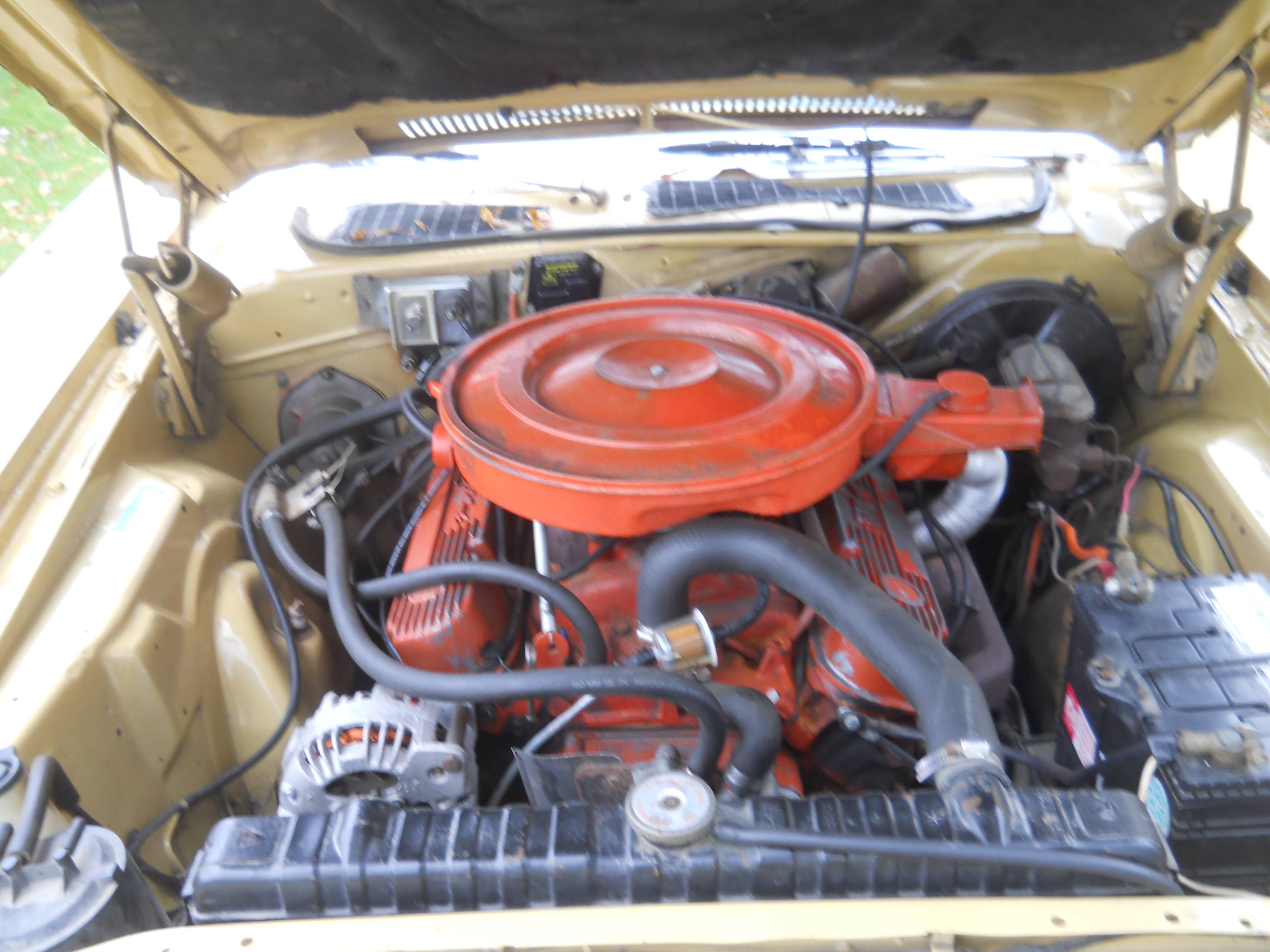

I have a 1974 Challenger with a 340. I went to start the car today and it would not turn over. I then realized I had no lights....no dome lights, no head lights...nothing. I changed the battery since the old one was very very old. Although, it was should 12.8 volts. New battery did nothing either. I checked....12 volts to the alternator and starter. Cleaned all the battery terminals. Last year I changed the distributor, coil, plugs, leads and the electronic ignition. Car was running great. Any suggestions or help would be appreciated. Thanks in advance.

Scoop.

2015 Ivor and Mair 028.JPG


August 2021 Streetsville 2.jpg


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
1,024
Reaction score
399
Location
PA Flood city

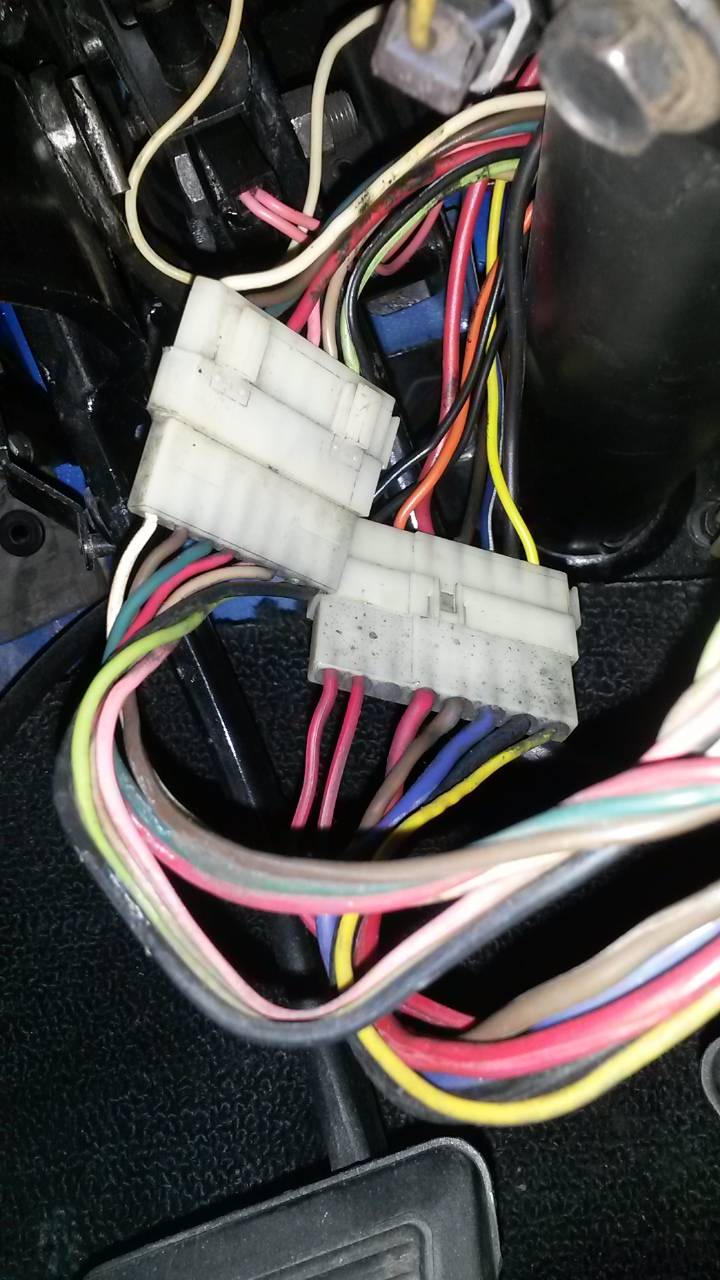

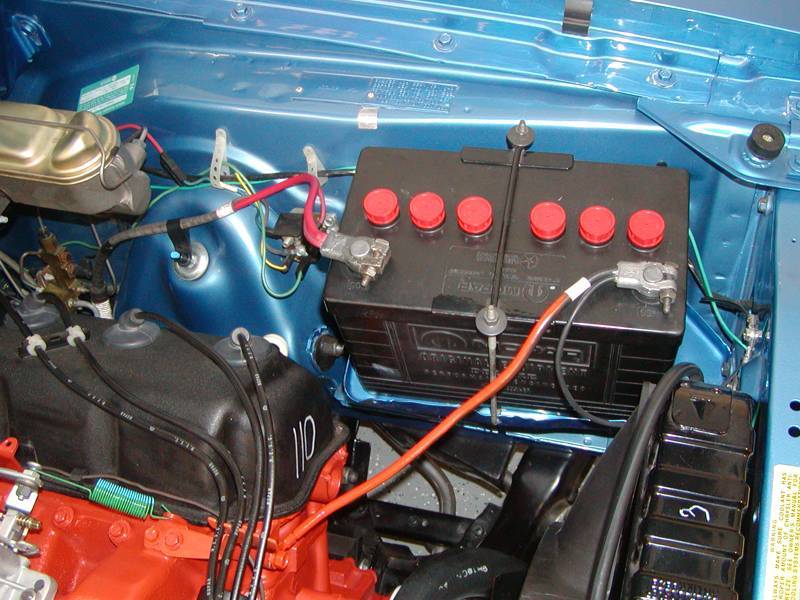

Check fuseable link by battery and bulkhead connection on fire wall.follow red wire on starter relay at battery. When did you checked....12 volts to the alternator and starter today? check both plugs under steering column. Yellow is battery feed,blue is the alt feed and red is the acc feed from ing switch.





challenger E BODY ACC BATT ALT WIRES dots.jpg

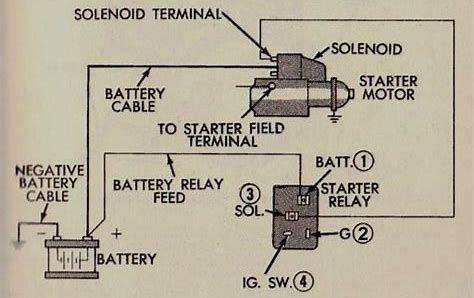

dodge challenger starter relay wiring diagram.jpg



Last edited:

Scoop

Member
Joined
Aug 8, 2018
Messages
13
Reaction score
0
Check fuseable link by battery and bulkhead connection on fire wall.follow red wire on starter relay at battery. When did you checked....12 volts to the alternator and starter today? check both plugs under steering column.

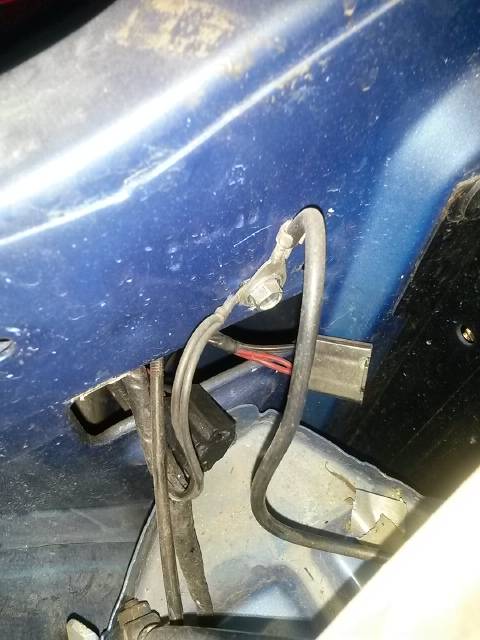

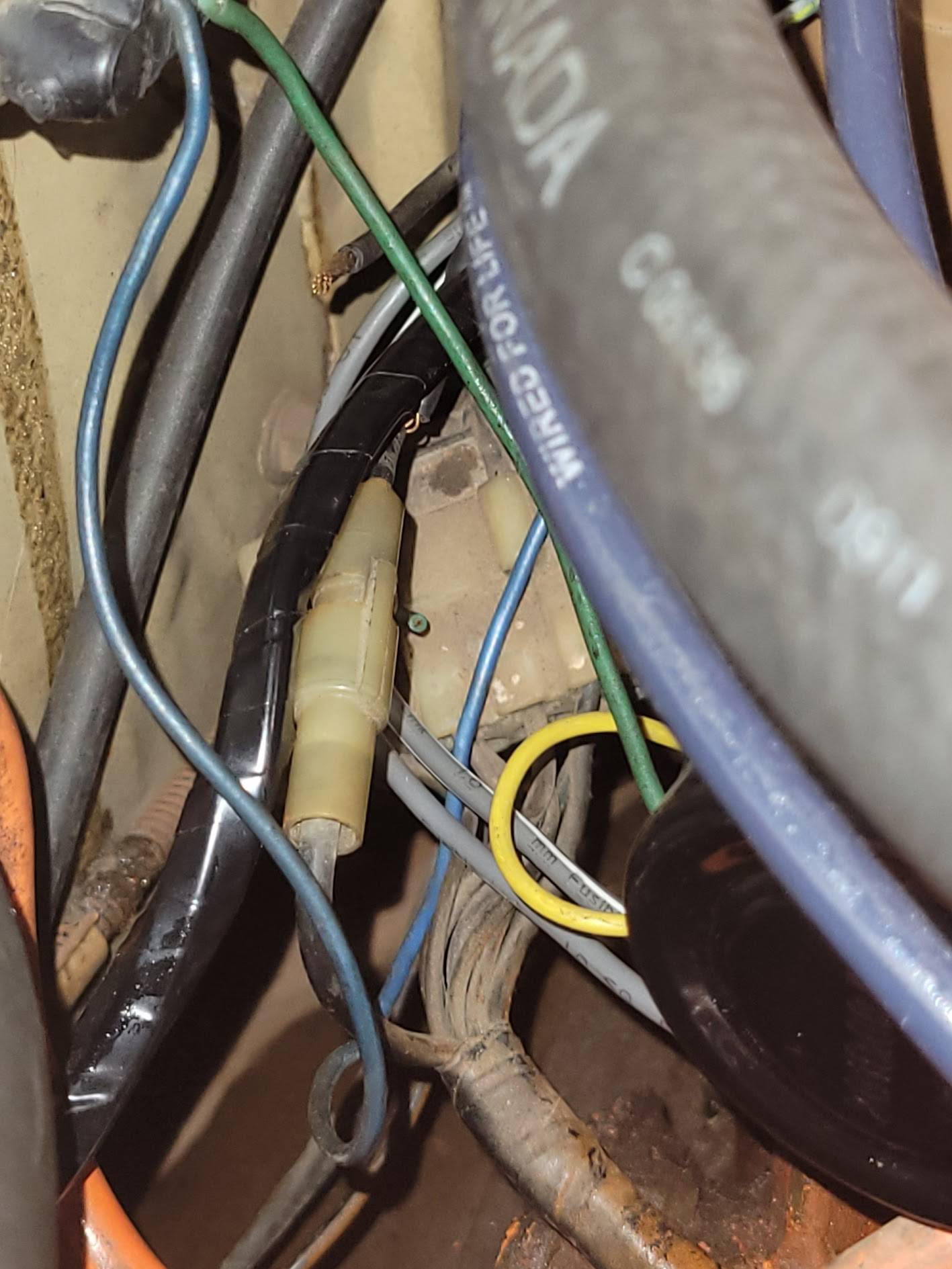

Thank you. The fuseible link, would it be connected to the alternator and go into the firewall? I have a picture of it below. Is there a root cause for the link to go...age, overloaded, heat? Do they get old and need replacing. I'm sure this is the original one. I have to check the connections under the steering column, but it was recently replaced. I appreciate your help.


Attachments

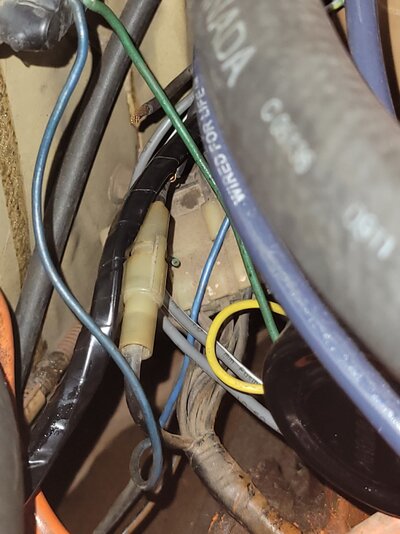

  • fusible linke.jpg
    fusible linke.jpg
    196.9 KB · Views: 18

Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
1,024
Reaction score
399
Location
PA Flood city
Thank you. The fuseible link, would it be connected to the alternator and go into the firewall? I have a picture of it below. Is there a root cause for the link to go...age, overloaded, heat? Do they get old and need replacing. I'm sure this is the original one. I have to check the connections under the steering column, but it was recently replaced. I appreciate your help.
The link that's being referred to is by the battery. and yes to your questions. Don't forget about the ground,just as important


Last edited:

MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
194
Reaction score
133

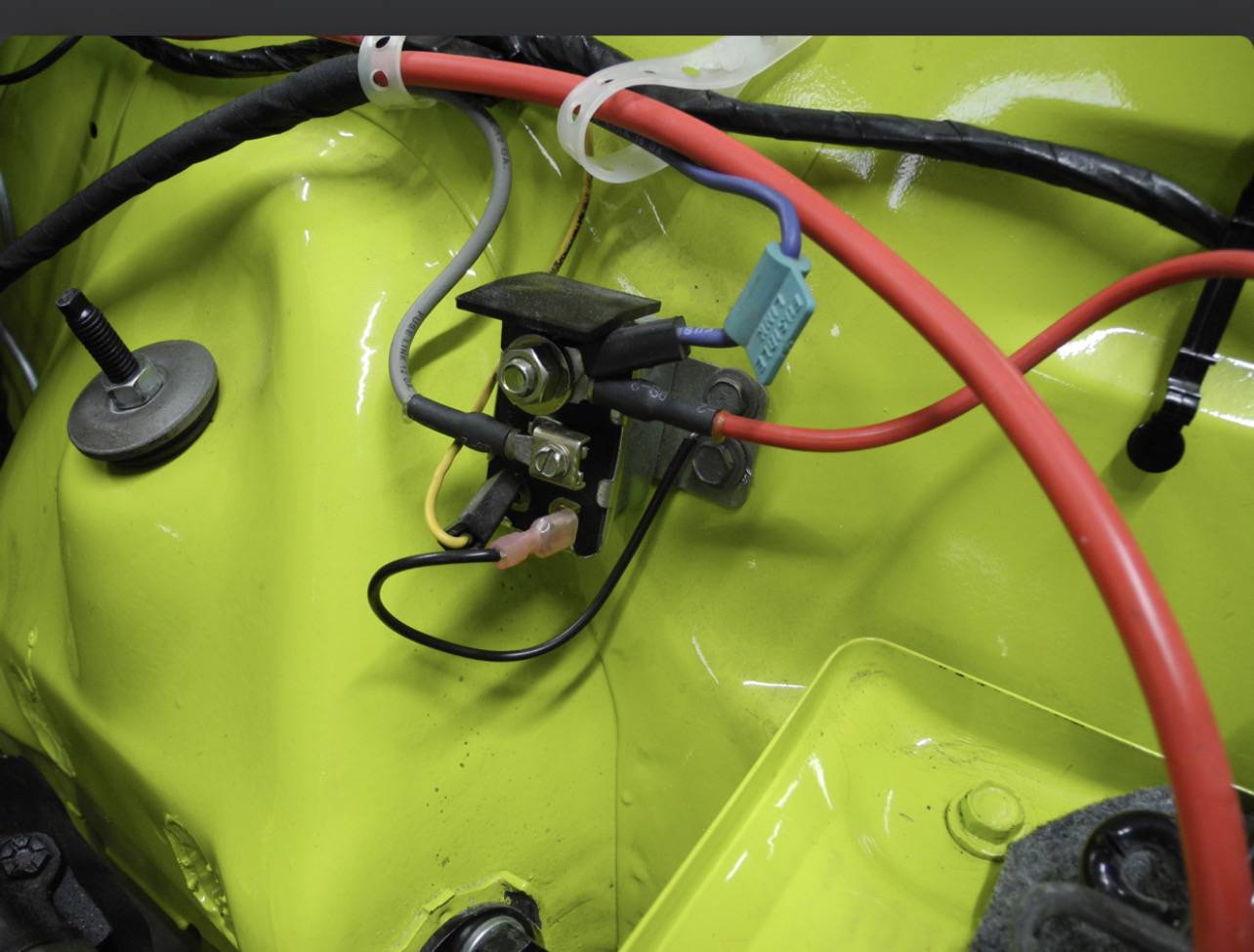

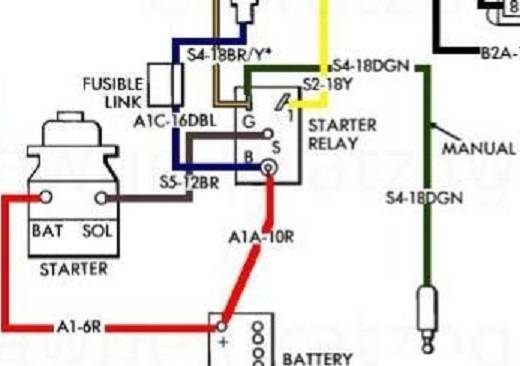

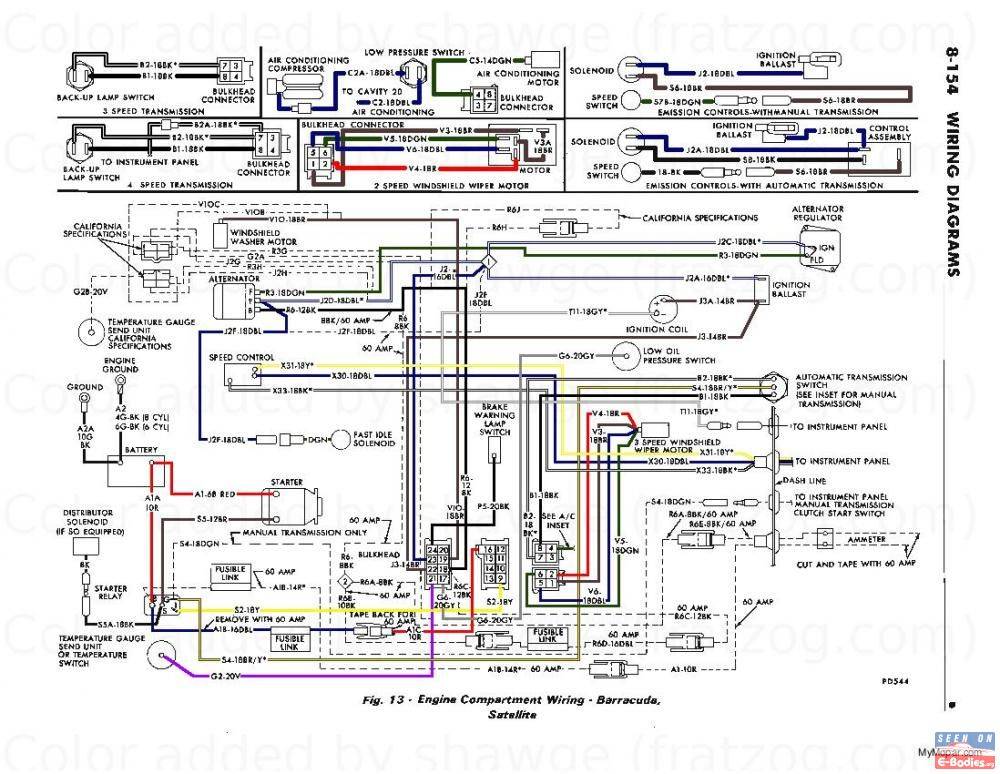

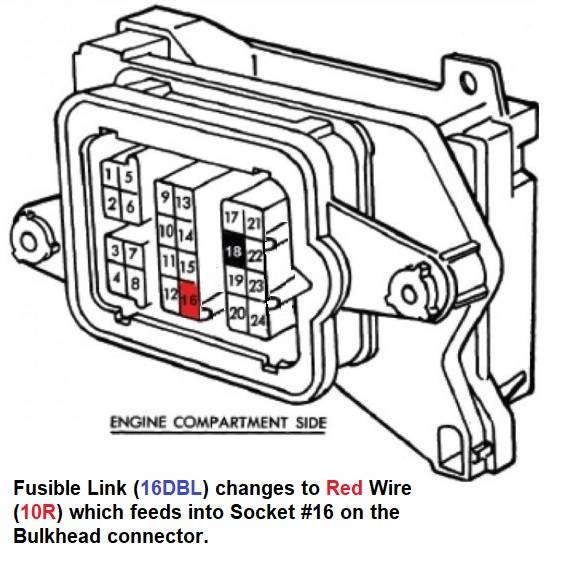

These may help you troubleshoot power. You can see the fusible link (Dark Blue labeled 16DBL) at the starter relay on the fenderwell. It connects to the 10R wire which feeds into the Bulkhead Connector at socket #16. If you have 12VDC at the 16DBL to 10R connector, check the bulkhead connector by removing the center "plug" and look at it for corrosion, then reseat it into the connector to make sure it is seated properly. There are a quite a few test points, starting with your battery and working toward the bulkhead connector.

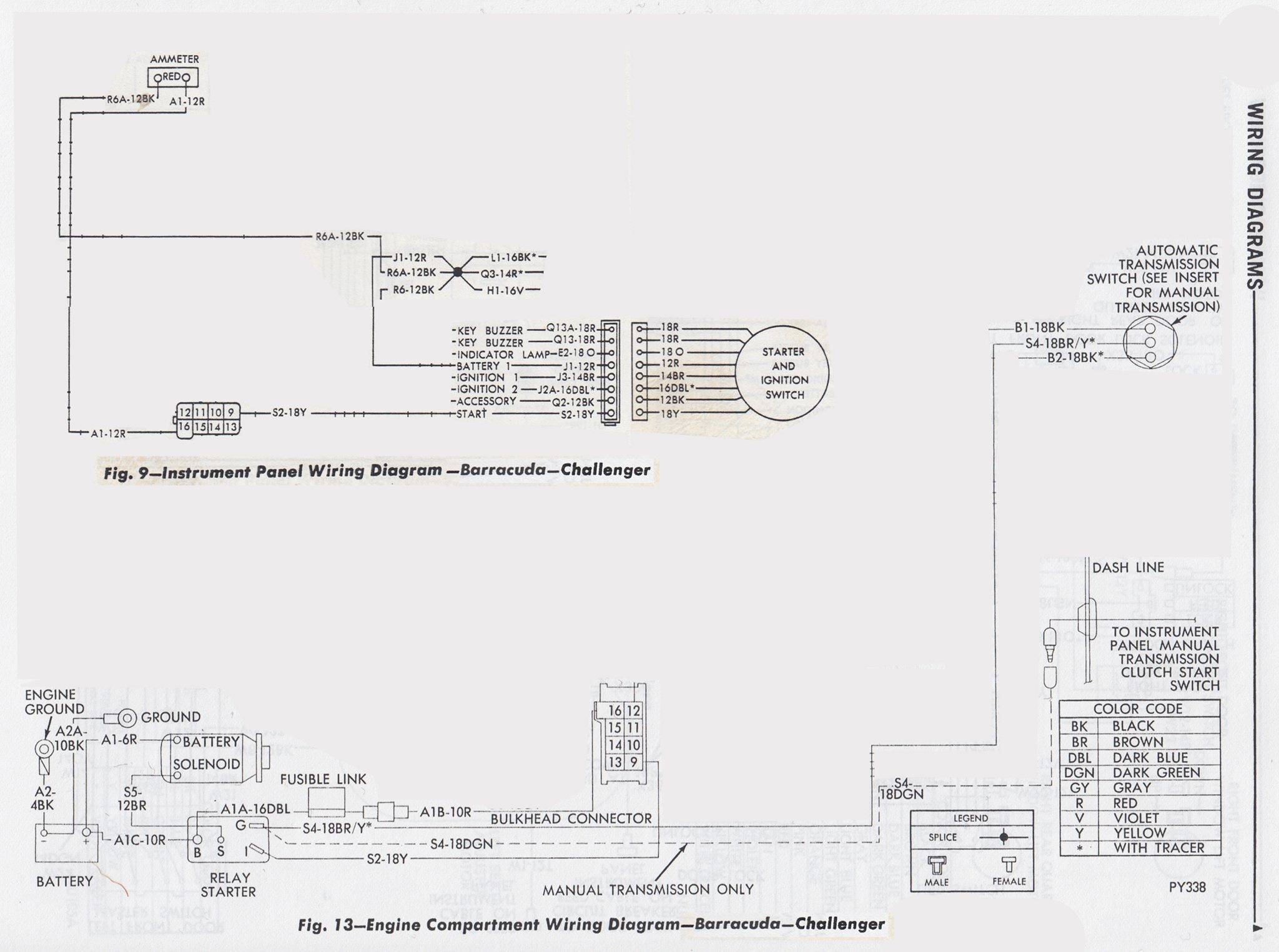

Ignition Switch and Steering column harness.jpg


Starter Relay Fusible Link 16DBL to 10R to Bulkhead Socket 16.jpg

Last edited:

Scoop

Member
Joined
Aug 8, 2018
Messages
13
Reaction score
0
Thank you very much for everyone's help. The wiring diagrams helped a lot. I'll let you know how everything works out.
