Trunk lid spring adjustment

Body Shop

  1. ProSport

    ProSport Well-Known Member

    Messages:
    48
    Likes Received:
    4
    Joined:
    Nov 26, 2016

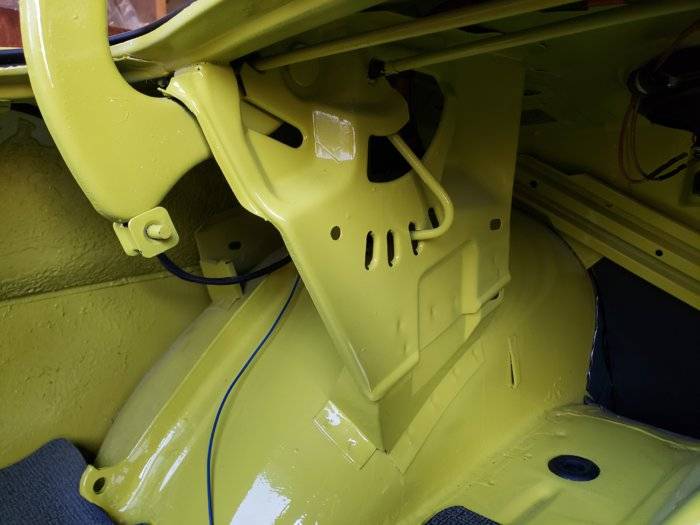

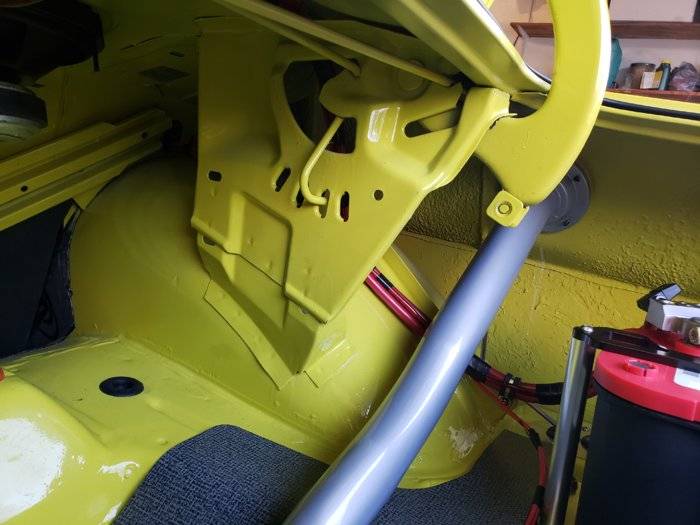

    The trunk lid on my '70 Challenger springs open really fast as soon as I turn the key. Where and how do I adjust that? Looks like the holes in these photos may do the trick?



  2. moparlee

    moparlee Well-Known Member

    Messages:
    1,159
    Likes Received:
    350
    Joined:
    Jul 25, 2011
    Location:
    Mid Michigan
    Yep, that's where you adjust the tension but I am not sure which direction. Just try it one way or the other to see what works. They may need to go in opposite direction from R to L. Be careful as the rods under a load.

    • Like Like x 1
  3. Adam

    Adam Well-Known Member

    Messages:
    1,013
    Likes Received:
    269
    Joined:
    Dec 25, 2012
    Location:
    Washington
    Correct. The torsion spring can be adjusted to reduce or increase tension. Some cars (70) have two springs, some (71-74) only have one, if I recall correctly...

    • Like Like x 1
  4. ProSport

    ProSport Well-Known Member

    Messages:
    48
    Likes Received:
    4
    Joined:
    Nov 26, 2016
    Thanks guys, is there a correct safe way to do this or do I just grab the ends of the rods and put them in a different hole?

  5. aussiemark

    aussiemark Well-Known Member

    Messages:
    906
    Likes Received:
    241
    Joined:
    Nov 29, 2014
    Location:
    Perth Western Australia
    Yes just watch you fingers and get someone to hold the trunk lid open when the trunk lid is open there's not that much tension on the springs. Your springs look to be unevenly adjusted the right side is in the second hardest position and the left side is in the second softest position maybe this is a way to get a half adjustment? I think there are multiple adjustments for different trunk mounted options like spoilers and luggage racks depending on the weight of these would determine the spring position that is a very nice looking trunk by the way.

    Last edited: Mar 13, 2019
    • Like Like x 1
  6. ProSport

    ProSport Well-Known Member

    Messages:
    48
    Likes Received:
    4
    Joined:
    Nov 26, 2016
  7. ProSport

    ProSport Well-Known Member

    Messages:
    48
    Likes Received:
    4
    Joined:
    Nov 26, 2016
    Thanks guys, I moved the passenger side in 2 holes and it is perfect now. I turn the key and the lid pops up a few inches, lift it all the way up by hand and it easily stays.
    And yes the end of the spring rod scraped the paint off on it's way to each hole so I gotta touch that up lol.
