70 Cuda trunk vent lines

[oneof52]

Hello, would anyone have a diagram of the trunk gas tank vent lines? Where it ultimately ends and connections. Tied looking into the manual but did not find anything informative. These are the tubes that connect to the nipple of the gas tank on the right side, then through the frame, but that's where I get stumped. Any diagrams would be appreciated.



[EW1BH27]

I take it you're looking for under the trunk floor



[oneof52]

Thank you. Do you have the underneath pieces ? End to end



[oneof52]

Yup



[EW1BH27]

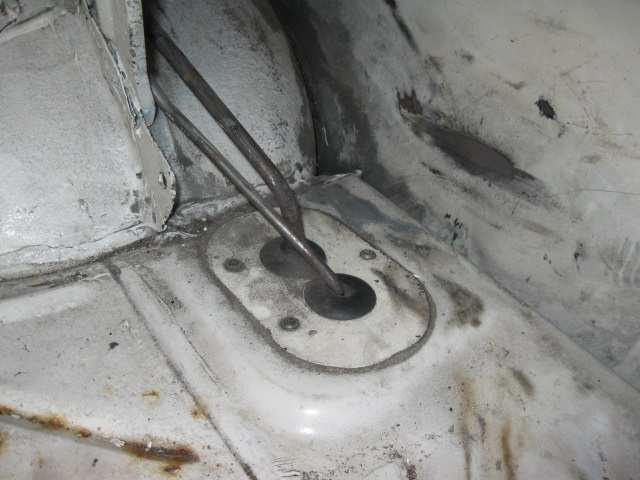

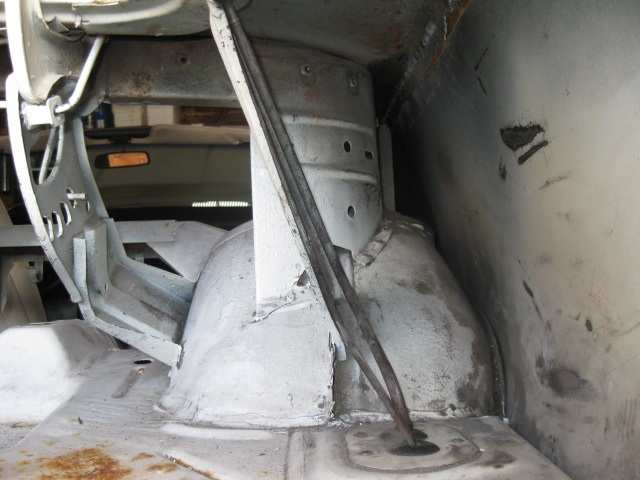

Here's under my car. Pretty sure this is correct because I never altered anything in this area since I bought the car in 1979



[oneof52]

Thank you, but there is another piece to the setup



[EW1BH27]

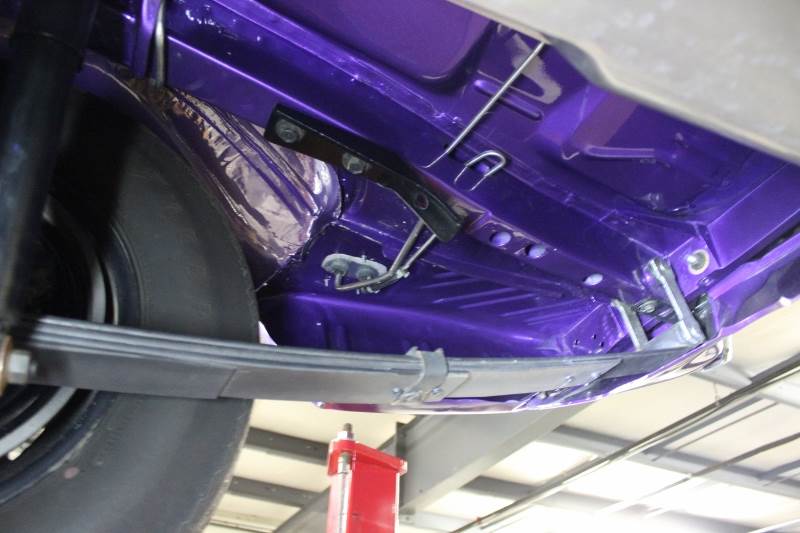

Not sure I know what that other “piece “ is that you’re talking about. My second pic is the black rubber hose clamped to the gas tank. Then it goes through the frame (near the top of that pic) and in the first pic it exits the frame opening then clamped to one end of the vent tube. Can you edit my pictures to show where that other piece could possibly be?



[oneof52]



[oneof52]

The tube that’s shaped like an S. I think it gets connected to the nipple with the rubber hose



[oneof52]

Correction, the trunk tube connects to the nipple and the larger tube connects to the s shaped tube



[EW1BH27]

Thanks, that’s a new one on me. I’ll have to investigate and research that. Hopefully someone on here can take a picture of their car with it.



[Ronbo73]

Does anyone else have any pictures? I need to install this also and I don't have a clue where the "S" shaped tube goes. I also had part my frame rail replaced and there is no hole for the lines to go through. So I need to figure that out also.



[MoparCarGuy]

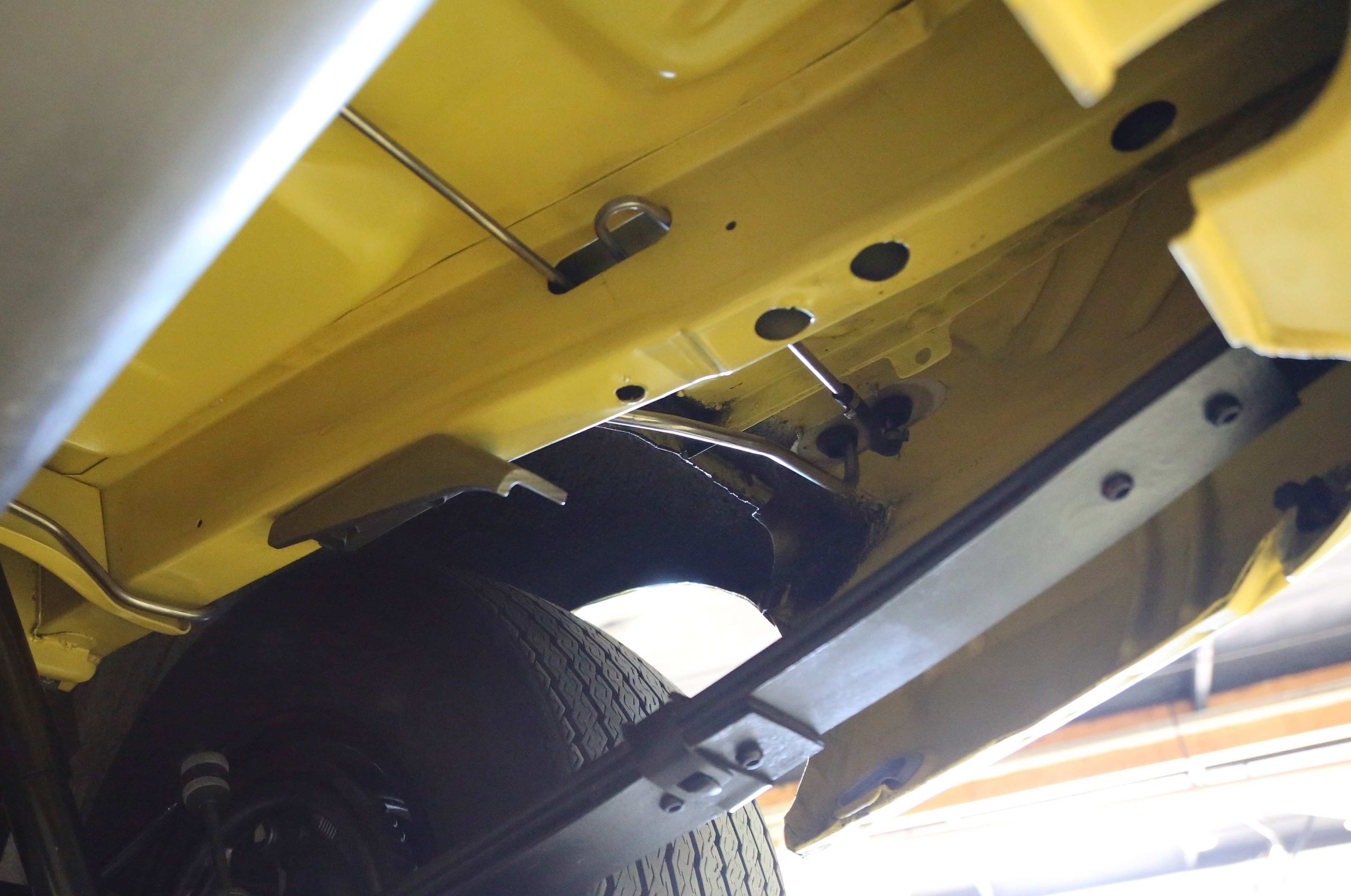

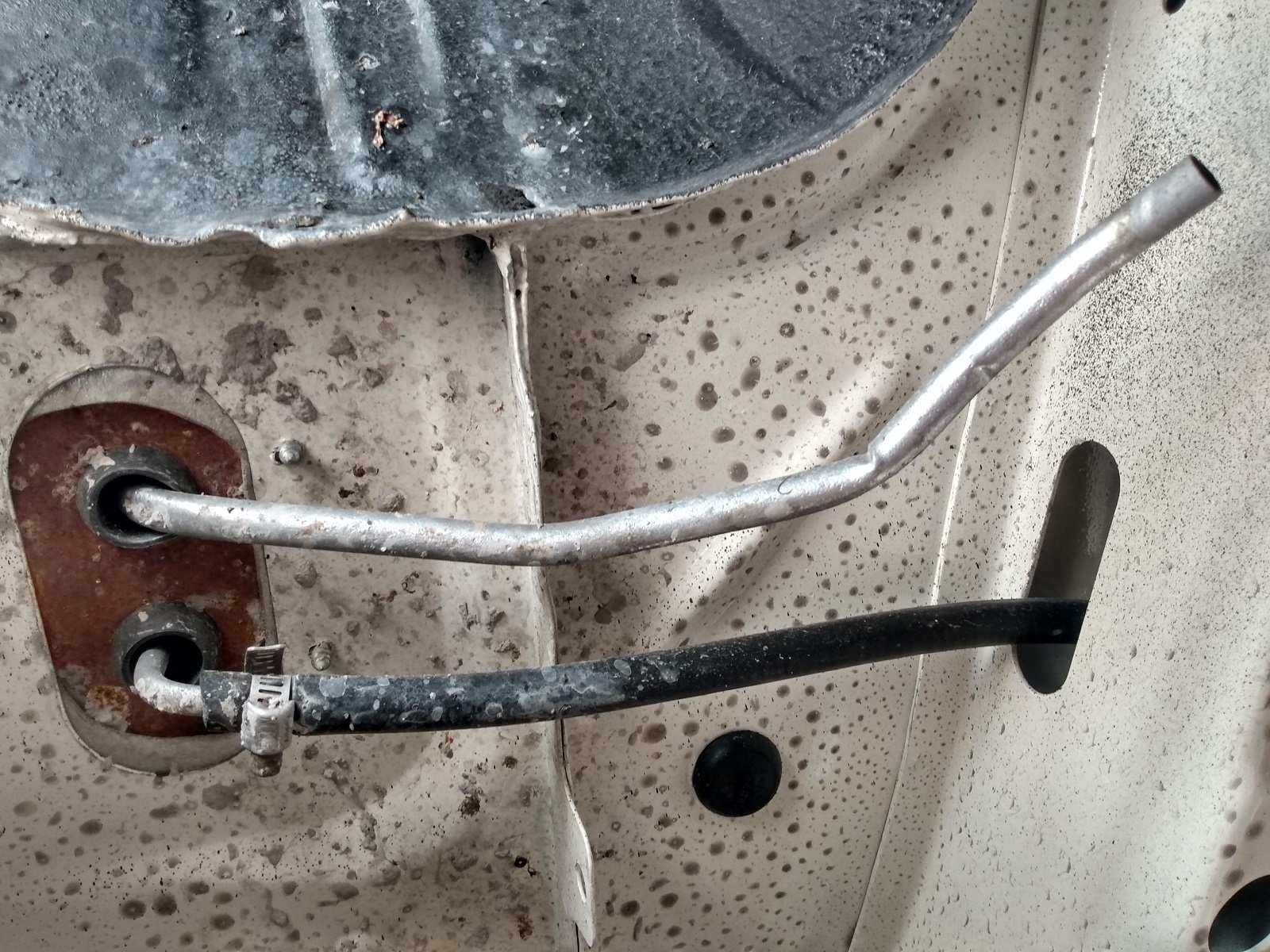

Looks like this when installed.



[Ronbo73]

@MoparCarGuy Thank you for the pictures. I couldn't figure out how that "S" shaped line went, now I know. Looks like I need that elongated hole in my frame rail. Thanks again.



[EW1BH27]

Yes, thanks for that picture. It would seem mine probably rotted out and was replaced with the rubber line as pictured in my previous post.
