Ballast resistor question

HYDRO

Member
Joined
May 6, 2022
Messages
15
Reaction score
2
Location
Alabama

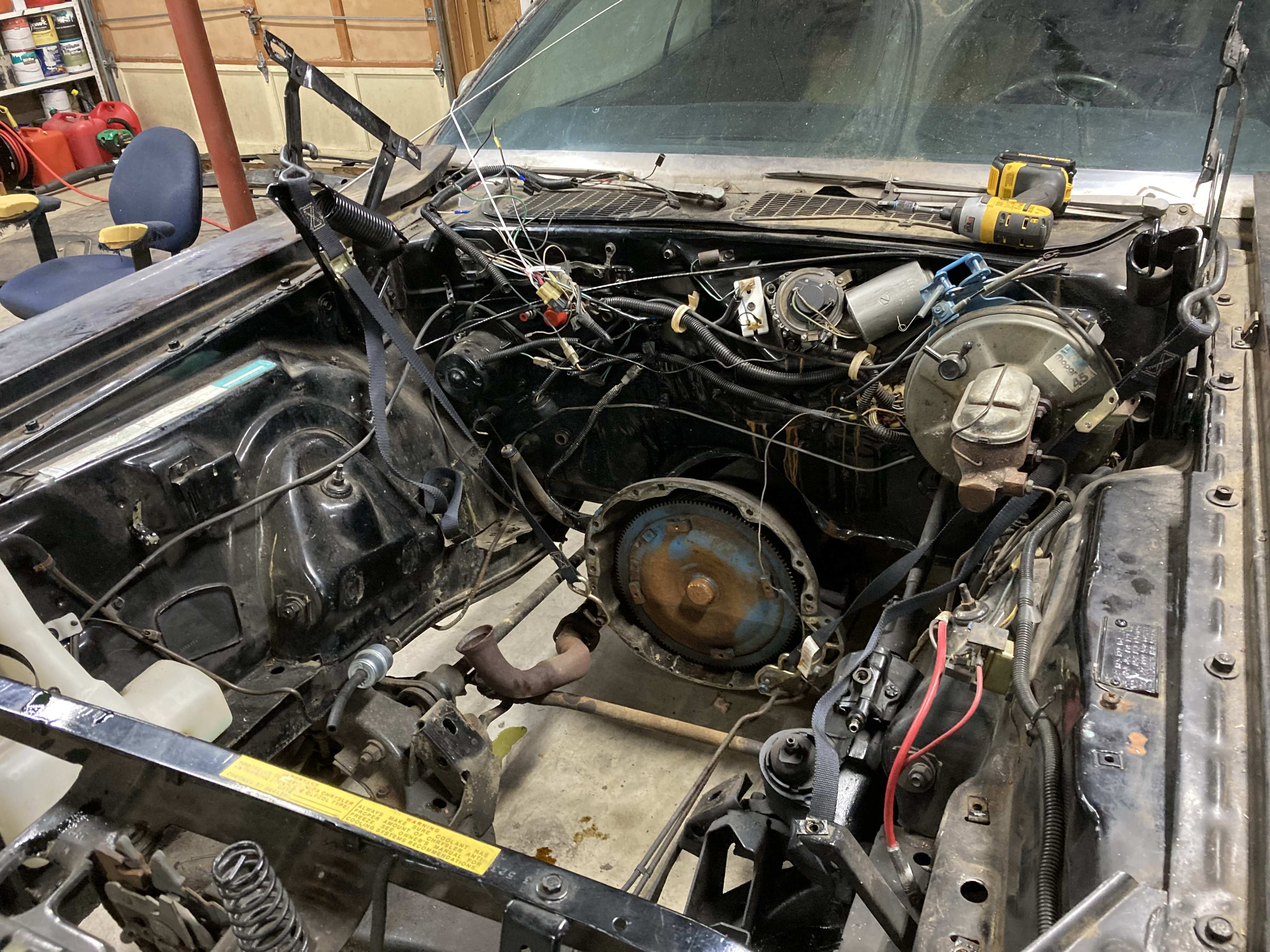

Installing new engine wiring harness not seeing the extra green wire from ballast resistor to what looks like a condenser or capacitor on the fire wall also do not see it in my shop manual wiring diagram trust someone can shed a little light and thank you in advance for any help



MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
636
Reaction score
518
You will likely have to reuse the condenser (capacitor) by adding it to your harness.


moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
6,997
Reaction score
1,793
Location
So. Cal. Riverside area Moreno Valley
There were several capacitors connected to the ignition system to combat radio interference. There was one on the coil, one behind instrument cluster to the voltage limiter, one inside the alternator.,


nervouswrecks

Member
Joined
Jun 15, 2021
Messages
10
Reaction score
2
Location
south carolina
I know my situation is not directly related to yours, but I bought a new ignition switch, suppodedly to fit a 1970-74 E body. It had an extra black wire, which my '70 car does not have.
