Disc Brake Caliper Position

[Challenger RTA]

I learned not to through out any thing. Wait! Now I get it! Does that explain why I have 3 houses 1 that is 2 story attic and basement with heat and lights as my shed. And 2 garages with stuff!



[340challconvert]

Man, that is clean. Thank you.

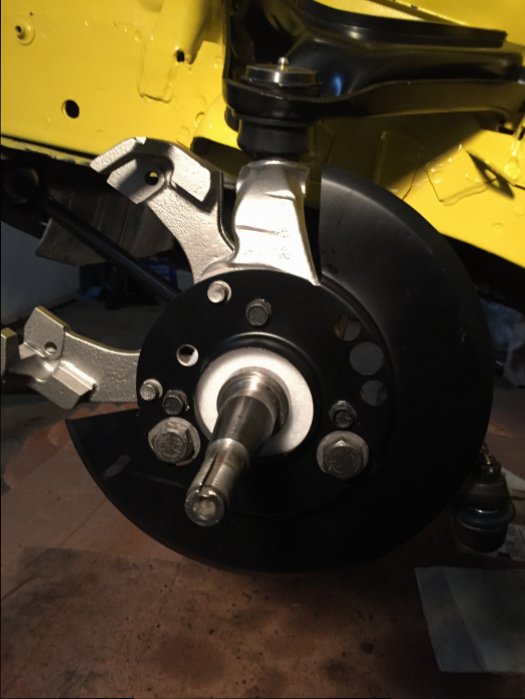

Pic of backing plate w new seal and caliper bracket
View attachment 124980

Thank you, all rebuilt w original lower control arm.



[BillJ]

Front as per Ehrenberg in the Mopar Action Disc-O-Tech article.
View attachment 124953

Sorry about the delay but I was having restoration work done on my eyes, kidneys and short arm. I am looking at the SM for 70 Belvedere, Fury, Barracuda and Valiant. In Figure 8 page 5-47 it looks like it is in the rear now that I see the tie rod. BUT it also looks like the brake line is in the front of the wheel. I'm going to put them on the front! Sorry for the ghosting...
