FOR SALE Hi Temp Battery Cables

[Dfr3604cuda]

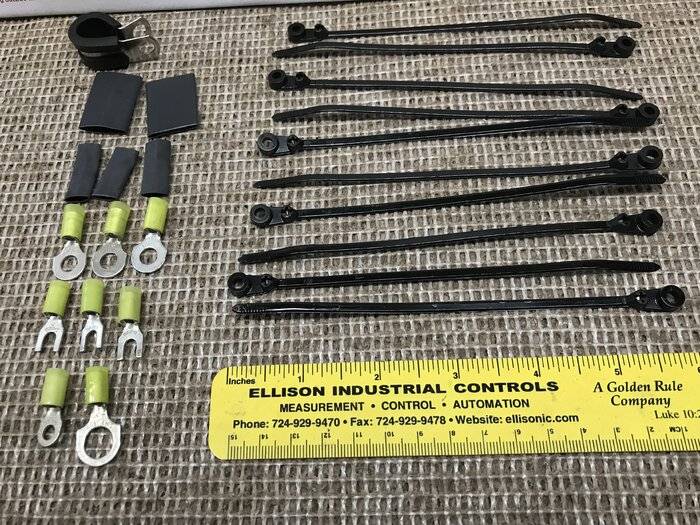

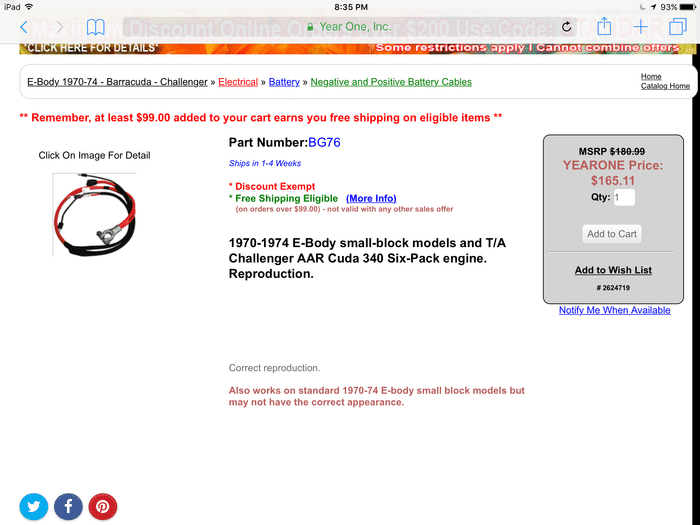

So, couple years ago I bit the bullet and bought Dougs headers. I'd had generic ones before. Figured I'd upgrade my starter cables too. I made everything out of SRML wire. This stuff is good for 200 degree Celsius, 392 F. Ampacity is a lot more too. It's $7+ per foot and the 10 gauge stuff is $2 per foot. Still a lot less than the "Discount Exempt" stuff from Year One. I made several extra sets. I have about $60 in a set. Add a USPS flat rate box for $15.05 and you're at $75. I'm asking $100 shipped from 15332. Included is connectors and heat shrink so you can customize yourself. I made all wires several inches longer than factory specs.



[Dfr3604cuda]

Cables



[Dfr3604cuda]

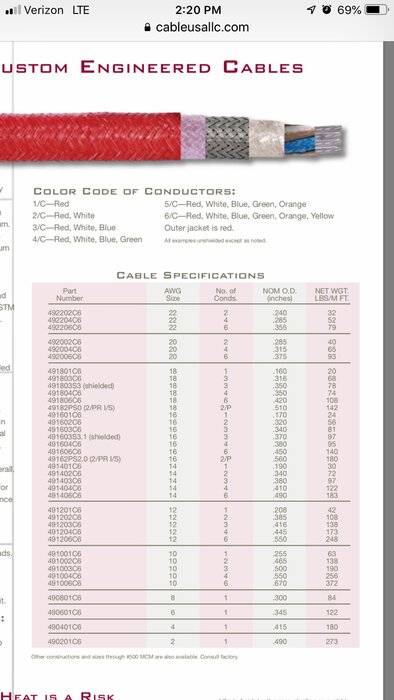

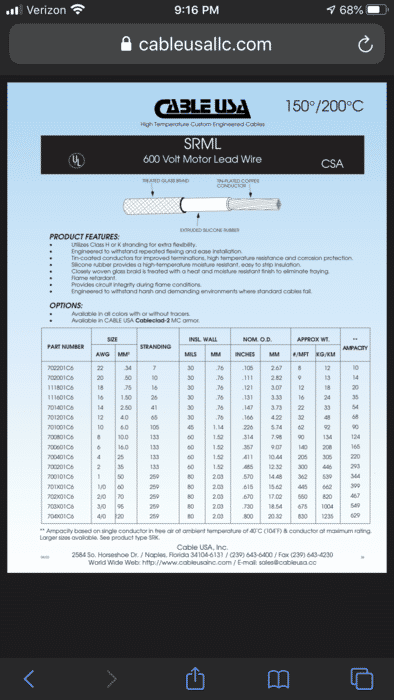

Here's the specs on SRML wire...
Notice 10 gauge... 90 amps
THNN is what we normally use... 10 gauge is 40 amps.
Also 105 strands makes it very flexible, like welding cable. THHN is 19 strands and 90 degree C.



[Dfr3604cuda]

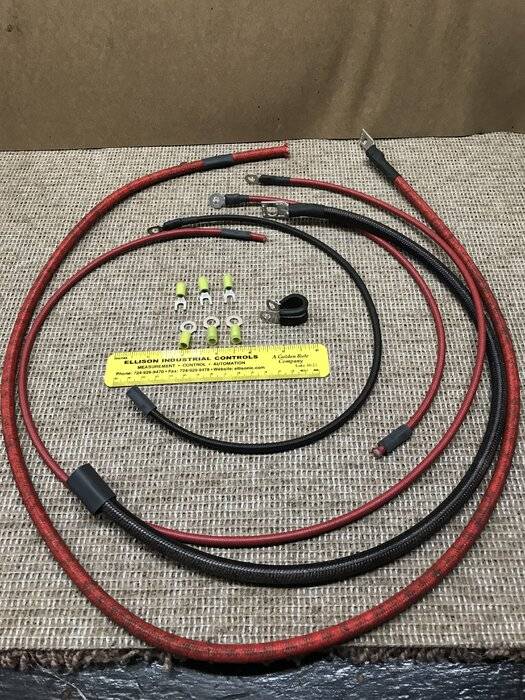

Here's what you get...
Black 2 gauge battery to block. Original 20".. Mine 24".
Black #10 battery to rad support. Original 15".. Mine 20".
Red 2 gauge battery to starter. Original 40".. Mine 48".
Red #10 battery to stater relay. Original 10".. Mine 15".
Red #10 starter relay to starter. Original 40".. Mine 48".
The red starter wire has a 5/16 lug for the starter.
The black ground has a 3/8 lug to ground on the driver side head.
My number one purpose for making these was to route any wires away from the headers

Thanx



[Dfr3604cuda]

$90 shipped from 15332
USA only



[Dfr3604cuda]

I have 30 sets



[Dfr3604cuda]

FBBO Benefit Auction for @moparedtn!

FBBO benefit auction going on now. I have a set up for bid.



[Dfr3604cuda]

$85 shipped from 15332



[Dfr3604cuda]

$84 shipped



[Dfr3604cuda]

$80 shipped



[Dfr3604cuda]

$79 shipped
