Hood emblem location 440 magnum

[rbbruno3]

I would like the layout where these emblems mount on the R/T hood. My original hood was junk so I tossed it. Now I need to know where to drill the holes for these emblems. thanks, Rick



[burntorange70]

I would like the layout where these emblems mount on the R/T hood. My original hood was junk so I tossed it. Now I need to know where to drill the holes for these emblems. thanks, Rick

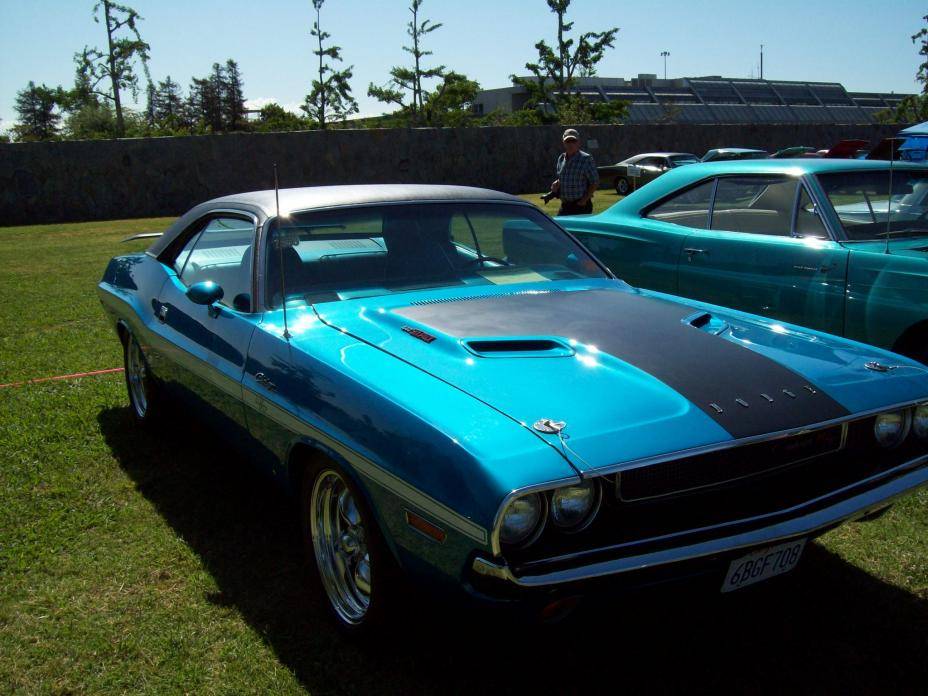

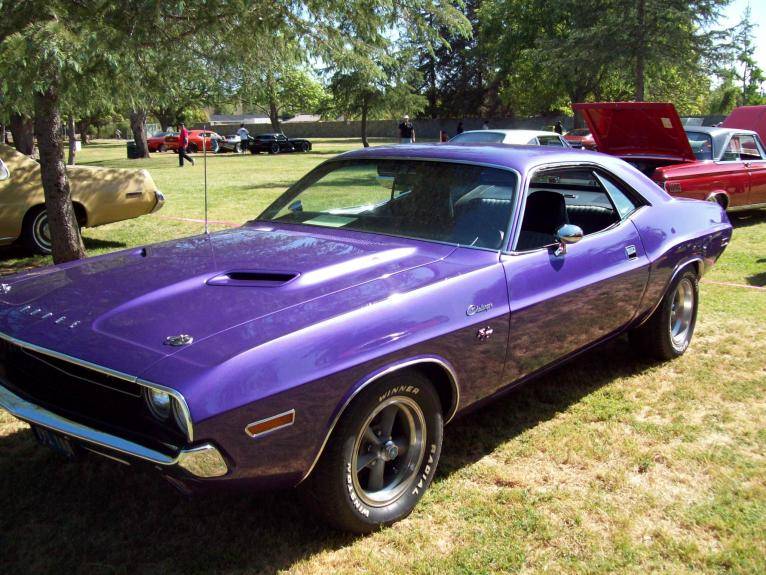

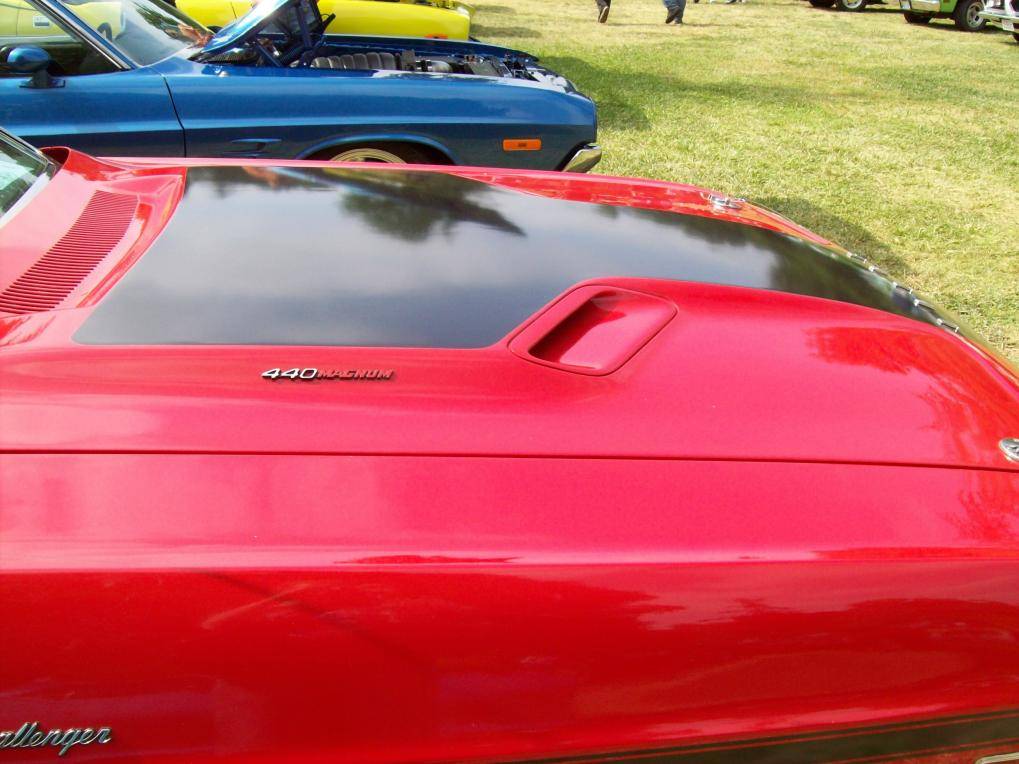

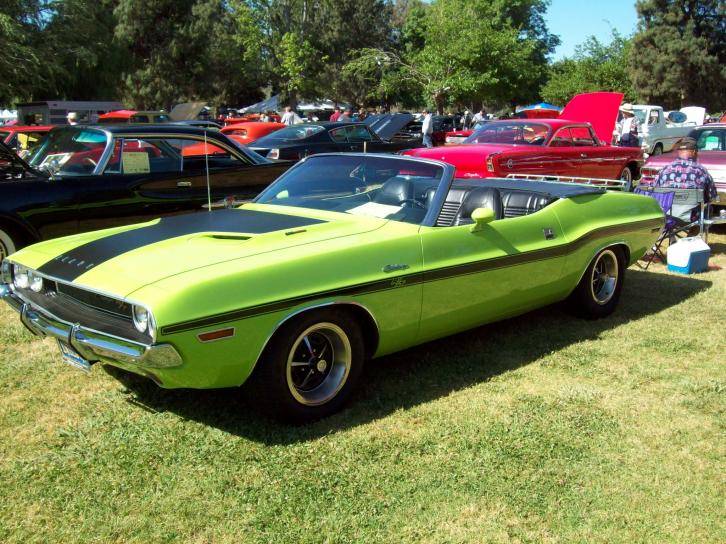

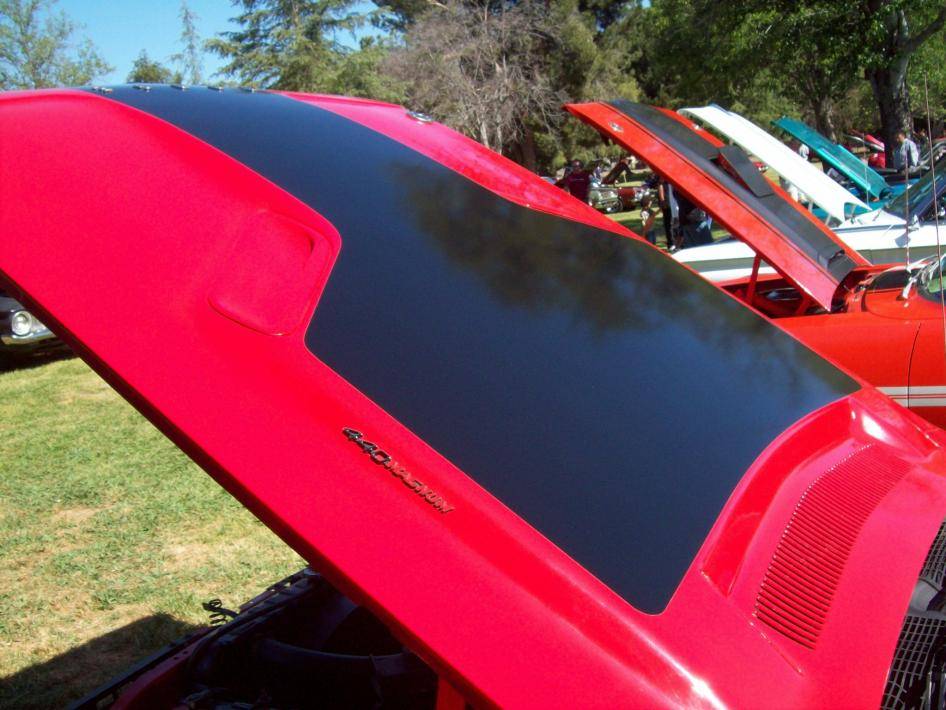

Don't have any measurements but do have some car show pics.



[rbbruno3]

Thanks Burntorange 70. I would really like some measurments. Someone must have a hood they could put a tape on for some numbers. Thanks, RB



[rbbruno3]

Anyone???



[hotwheels63r2]

Hi

I am working on a 73 440 clone, anyway this hood had no holes. The owner had a second car that I made a template from. Is it the same holes as your car?


I could photo how I lined it up and send you the template.



[rbbruno3]

Hi

I am working on a 73 440 clone, anyway this hood had no holes. The owner had a second car that I made a template from. Is it the same holes as your car?


I could photo how I lined it up and send you the template.

That would be great as my car is 99% ready for paint and would really like to drill all the holes before hand. Thanks so much, Rick
