Replacing Firewall on 72 Challenger

[TIBBY]

Anybody ever done this? Im a little nervous since I havent.
Im planning on welding a support bar across from the inside of the side cowl panel to the other, and I think I should weld in some temporary braces for up and down as well on both sides before starting to cut spot welds.....?

Any advise would be greatly appreciated!



[Shelbydogg]

Chamged firewall and cowl.

Did it on my convertible here: Weld up a bunch of braces first, to hold it all together.

http://www.cuda-challenger.com/cc/index.php?topic=44869.150

I had a used one that fit better than the new one, but went with the new metal anyway.



[TIBBY]

Thanks for the input Shelby!



[DetMatt1]

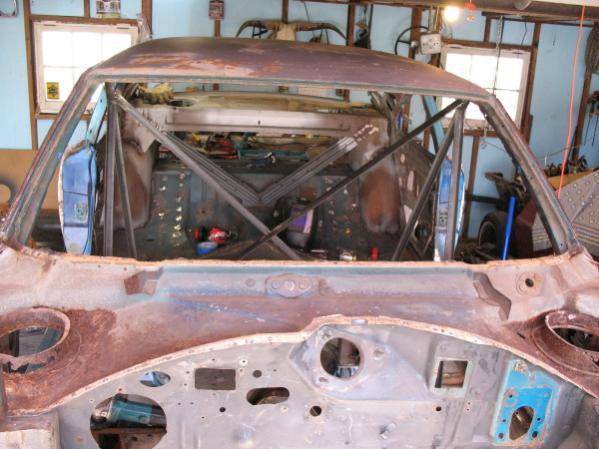

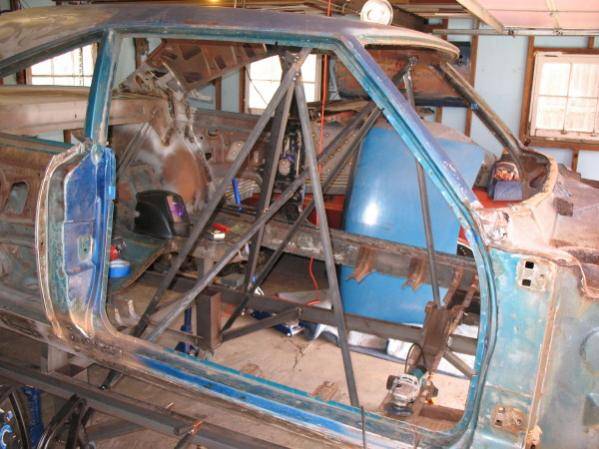

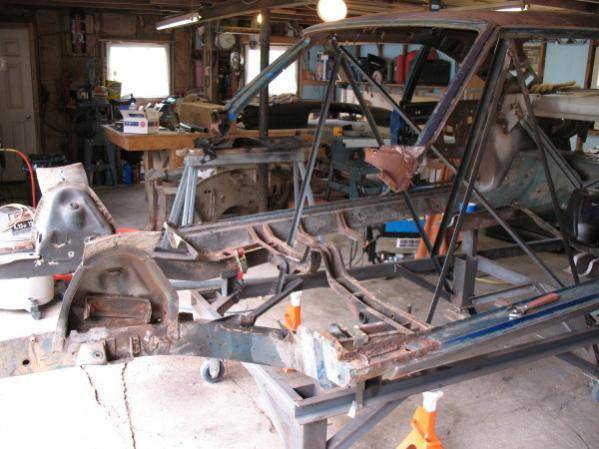

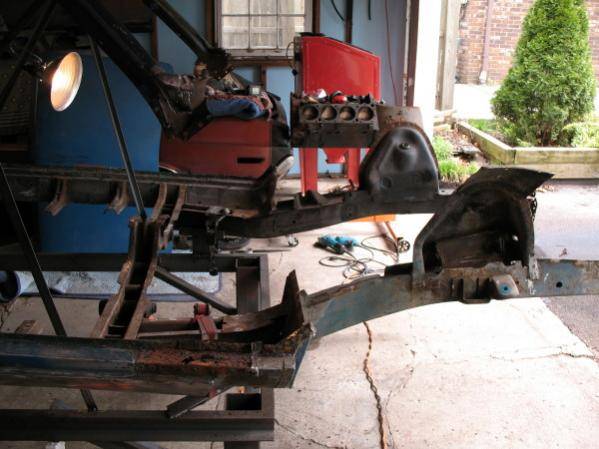

I replaced the entire cowl section on my `68 Road Runner including the A-pillars fom the tops of the rockers to the base of the windshield pillars. Here are a couple of pics of the bracing I welded up before cutting it out. Nothing moved even a little when cut the old out and the replacement went in as if it grew there.
