Tail panel stripping and hood paint.

Sublime383

Member
Joined
May 8, 2024
Messages
6
Reaction score
1
Location
California
So I could use a little help in this area. I have an original 383 four barell, sublime green rt. Does anyone have a diagram for the rear tail stripe and hood paint so I can make sure they get put back on correctly. What I'm looking for is the correct placment or som sort of a guide to give too my paint guy. Any help is welcome.


moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
6,964
Reaction score
1,763
Location
So. Cal. Riverside area Moreno Valley
Challenger ?
Introduce yourself at the welcome wagon.

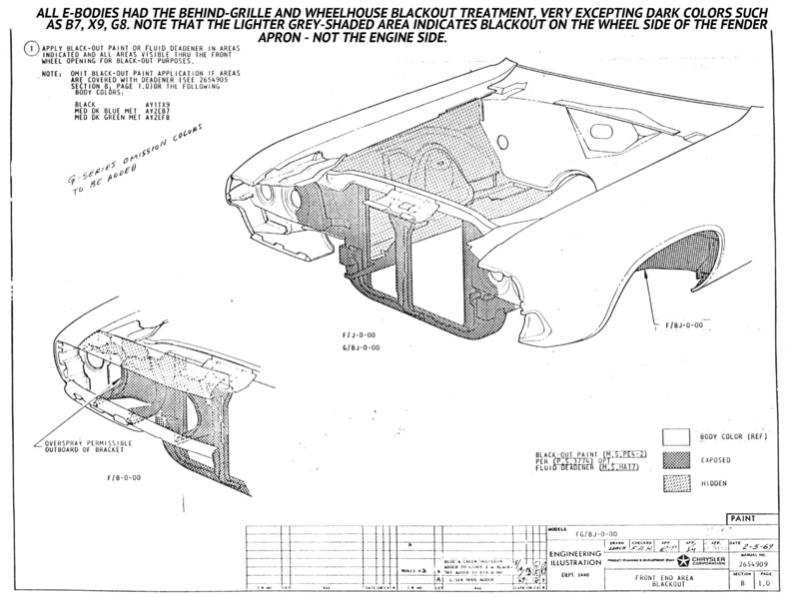

ebody front black out treatment.jpg

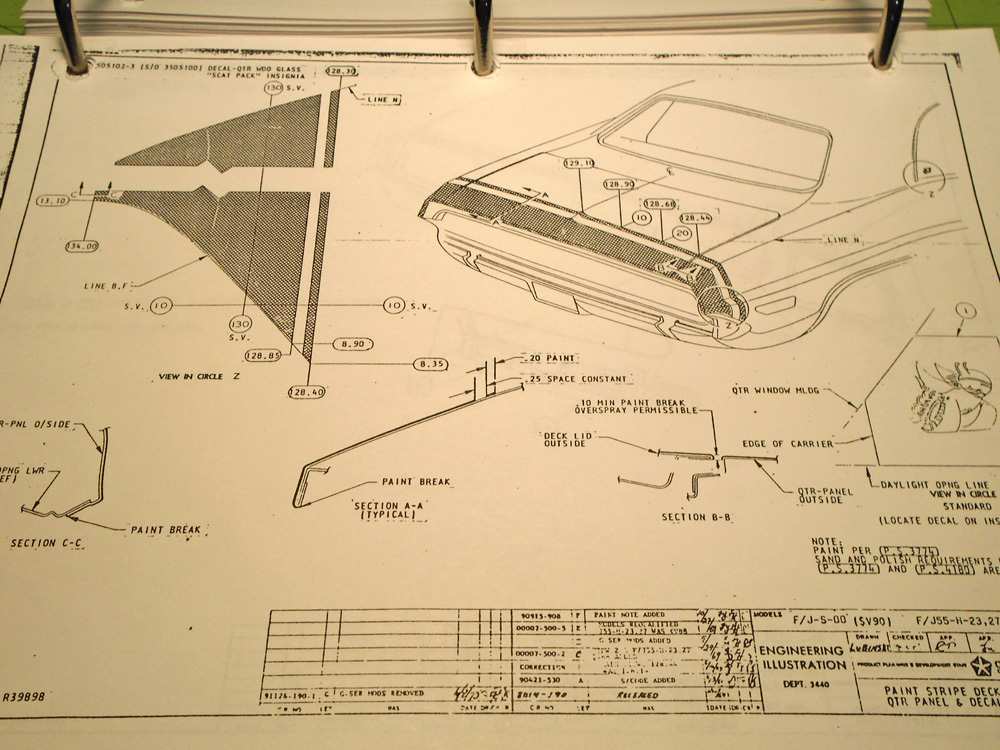

Challenger rear Bumble bee stripe detail.jpg


Sublime383

Member
Joined
May 8, 2024
Messages
6
Reaction score
1
Location
California
Good morning. I should have specified erlyer, 1970 challenger sublime green 383.

Thanks for the diagram the rear tail stripe one is exactly what I need. I don't see any dimensions or I'm not understanding it. What I think I need is how thick is the pin stripe how large is the gap and how far do I take the the large stripe up the back of the trunk deck. I'm trying to make it as correct as possible.

I'm also looking for the top hood paint. I need some kind of a guide or template that outlines the the areas in-between the snorkels and how far back do I take it on the hood.

Thanks again for your help guys.


Xcudame

Well-Known Member
Joined
May 27, 2023
Messages
1,228
Reaction score
878
Location
Southeast Arizona
The dimensions are there in the drawing Moparleo supplied. Section A-A has the pin stripe as .20" wide and the gap at .25" wide. The width of the main stripe is encoded in detail Z - 134.00-128.85=5.15". They're not easy drawings to interpret until you've stared at them long enough.


Sublime383

Member
Joined
May 8, 2024
Messages
6
Reaction score
1
Location
California
I see it now in the diagram, you're right it's hard to see. Thank you.

As for the hood. Is it sacrilegious to paint the hood in. I didn't know better but I've seen it both ways. What is is the best path.


Xcudame

Well-Known Member
Joined
May 27, 2023
Messages
1,228
Reaction score
878
Location
Southeast Arizona
It's your car, you can do it how you want. I've never investigated it, but with all the big hood decals on the newer Challengers and Jeep Trailhawks, seems to me there's a lot of places that could install the hood decal for a good price.


mrmopar340

Well-Known Member
Joined
Dec 10, 2023
Messages
273
Reaction score
153
Location
Shawsville Virginia
I see it now in the diagram, you're right it's hard to see. Thank you.

As for the hood. Is it sacrilegious to paint the hood in. I didn't know better but I've seen it both ways. What is is the best path.
I painted the blackout hood on mine. I actually extended it to the back of the hood all the way to the cowl.


Sublime383

Member
Joined
May 8, 2024
Messages
6
Reaction score
1
Location
California
Good afternoon guys. I ordered the hood decal for the 1970 RT/ se challenger. The one I thought I ordered was all black and the "Dodge" emblems would be spelled out on the front of the hood. The one they sent me has the "R/T" cut out on the front instead. I was under the impression that the hood with, "R/T" cut out was for 1971, or did it also come on a 1970?

Second question out of curiosity did any challengers in 1970 come out of the factory with a Bumblebee stripe and a Gullwing? I've seen so many pictures and I can't make heads or tails.
