1971 R/T Stripe Measurements

R/T 71

Active Member
Joined
Aug 18, 2020
Messages
34
Reaction score
9

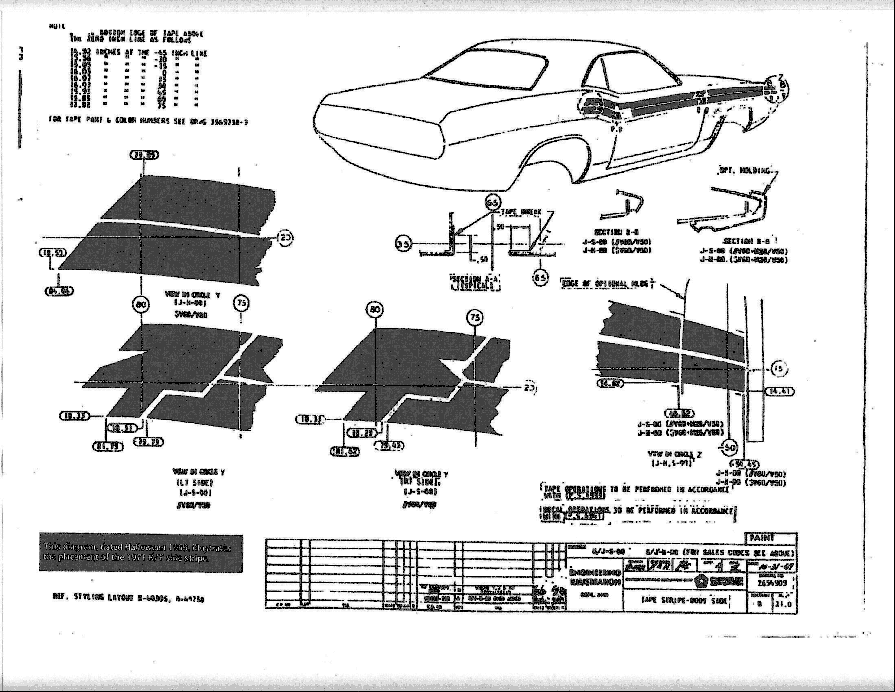

I want to install these R/T stripes, but not in the wrong place. Does anyone have a measurement from top of stripe to door body line. I have looked at the engineering drawing for it, but cannot decipher it. "I'm a pharmacist, Jim. Not an engineer." Anyway, measurements for the door decal would be nice. The other two pieces would be easy after that. Thanks.


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
914
Reaction score
357
Location
PA Flood city

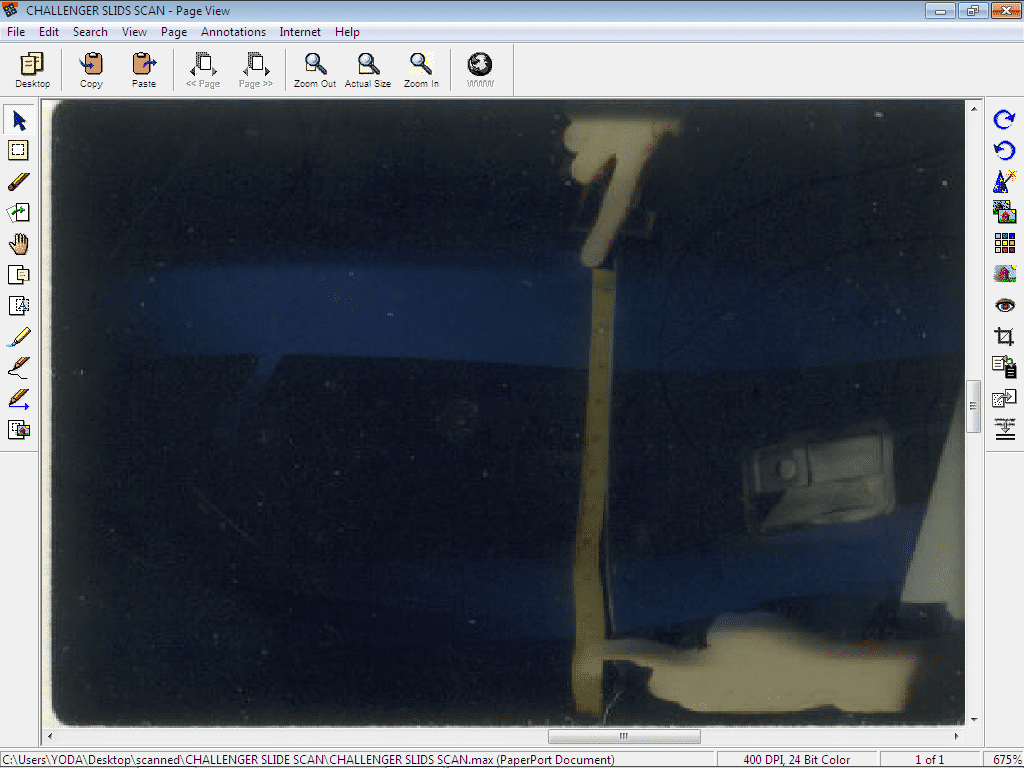

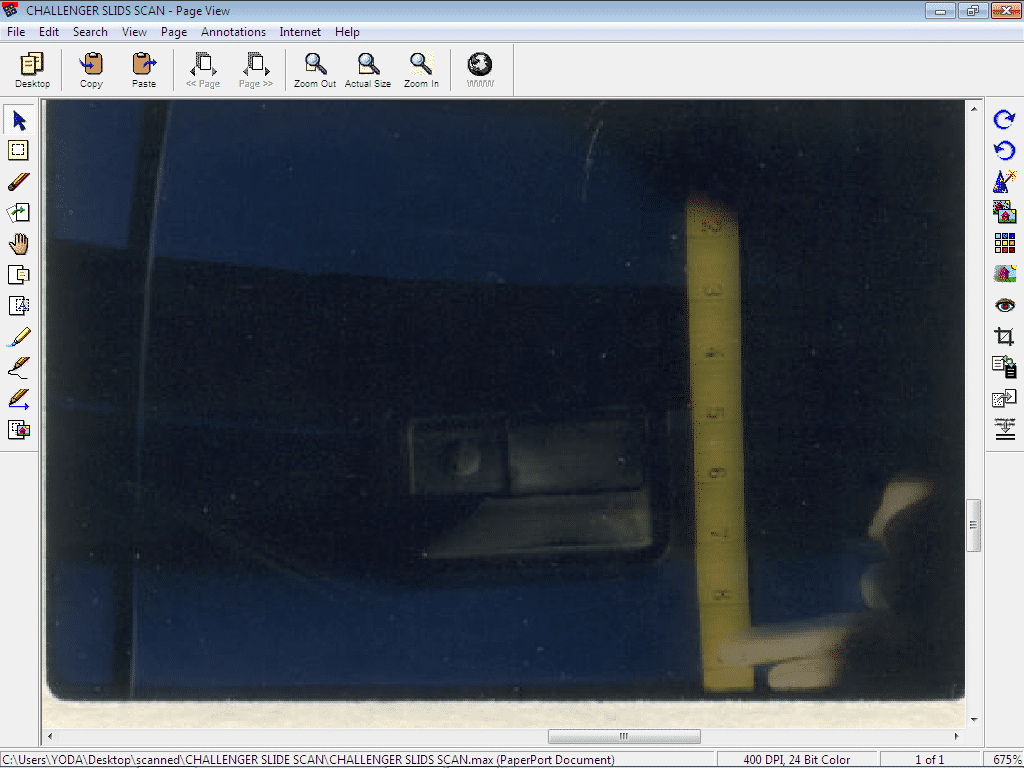

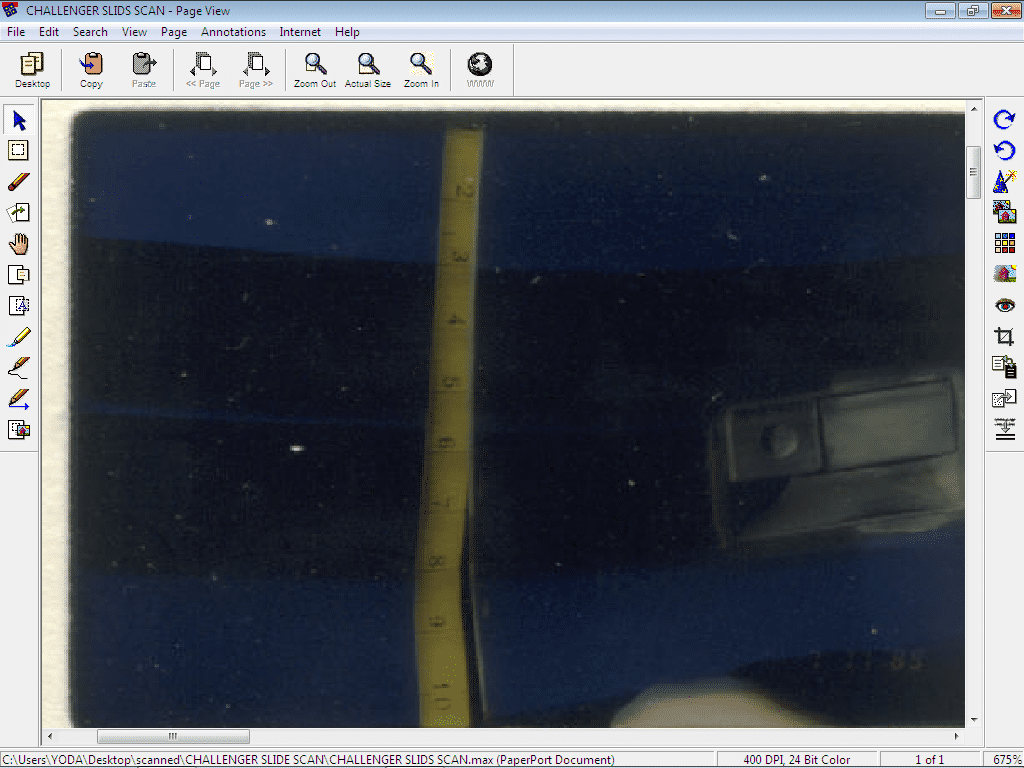

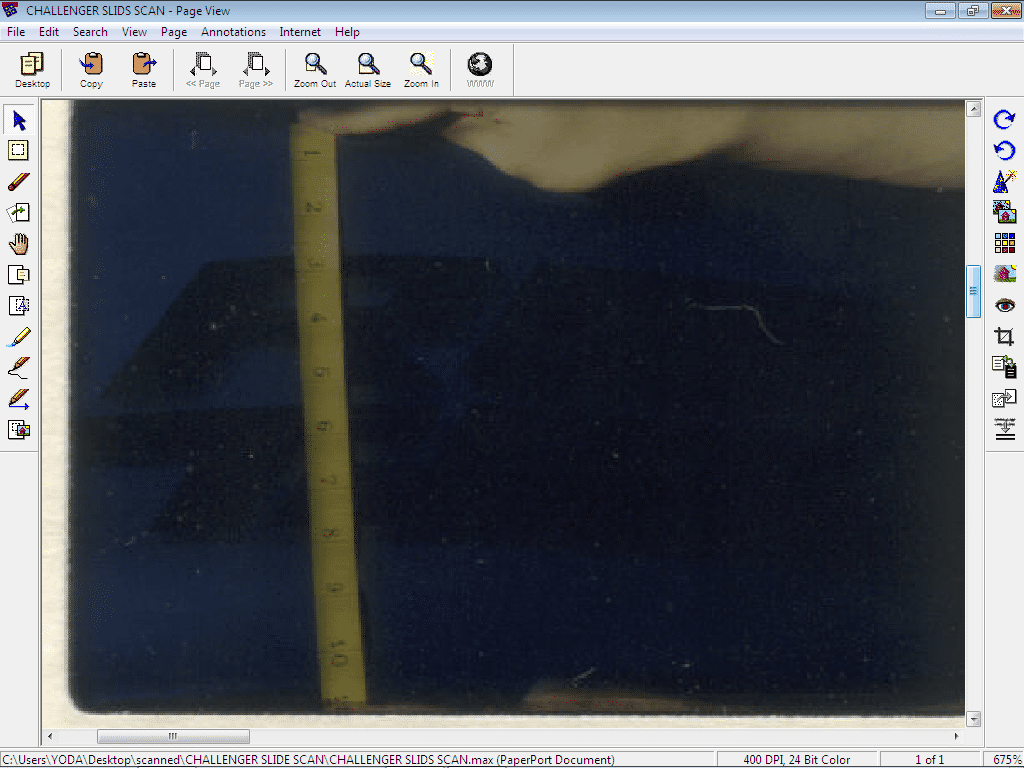

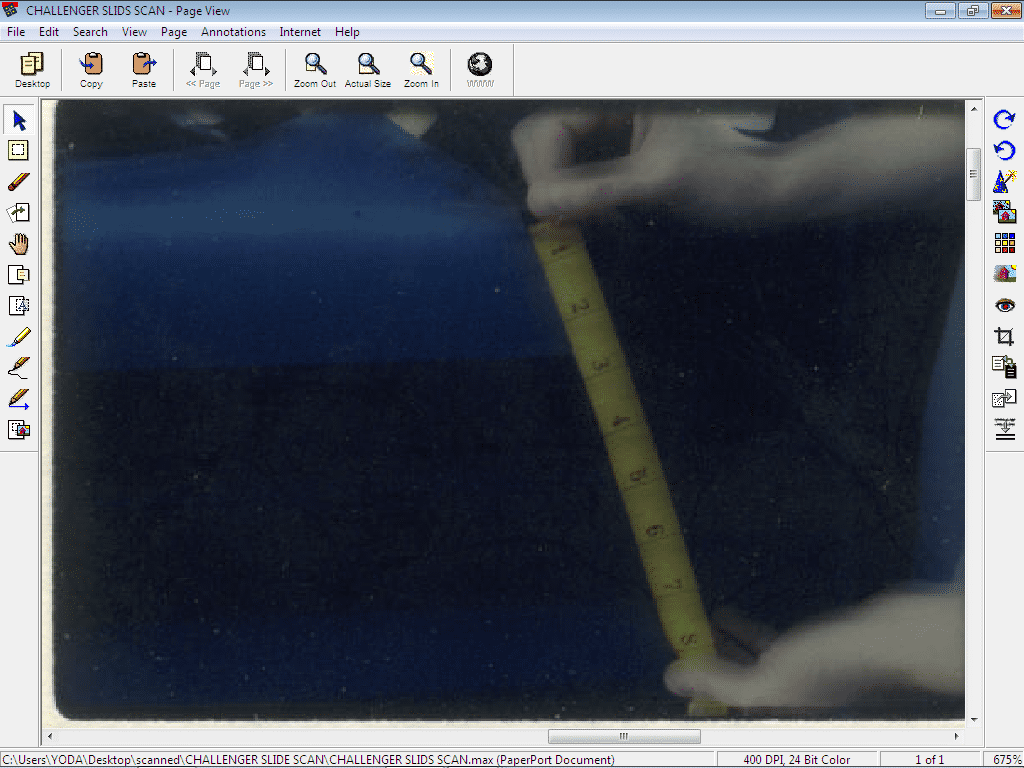

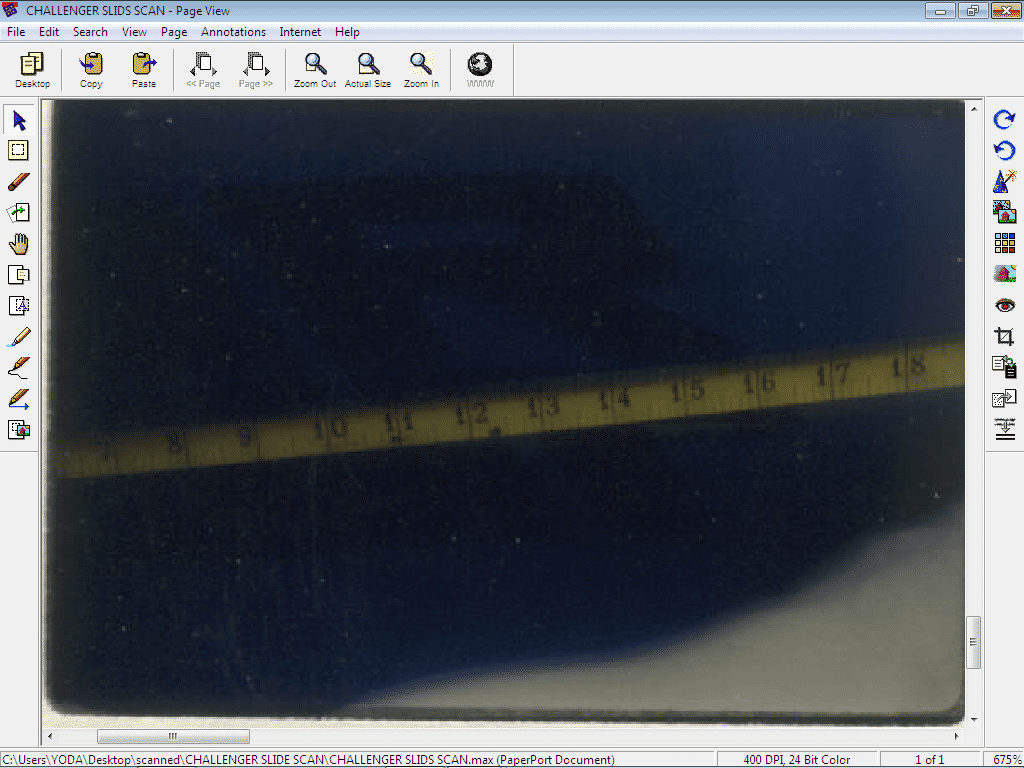

Had to use my way back machine to find this. Think it was in 88 couldn't stay long. Might have others. Have to re calibrate the way back machine to find them.

challenger rt strip decal.png


challenger driver side rt 2.png


challenger pass side door front png.png


challenger pass side door strip.png


challenger pass side rt.png




challenger rt strip p door  rear.png


challrnger rt pass side.png


Adam

Well-Known Member
Joined
Dec 25, 2012
Messages
1,546
Reaction score
607
Location
Washington
Take a close look at the stripe placement around the door handle on original car/pics; this is critical because everything will have to line up with that. Then mock up a stripe into place with some masking tape, make some adjustments so it looks right and take some measurements. When doing the install, put the door stripe on first.

Use new/fresh decals as old ones shrink when not installed and will never look right.
