Fuel line routing - 73 Challenger

Juan Veldez

Well-Known Member
Joined
Jan 1, 2011
Messages
181
Reaction score
5
Location
Nor Cal
Any chance someone could take a few pictures of how the fuel line runs from the tank to the fuel pump? I'm having a hell of a time figuring out the routing as I removed it about 8 years ago. Ugh.


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
76
Reaction score
26
Location
PA 15904

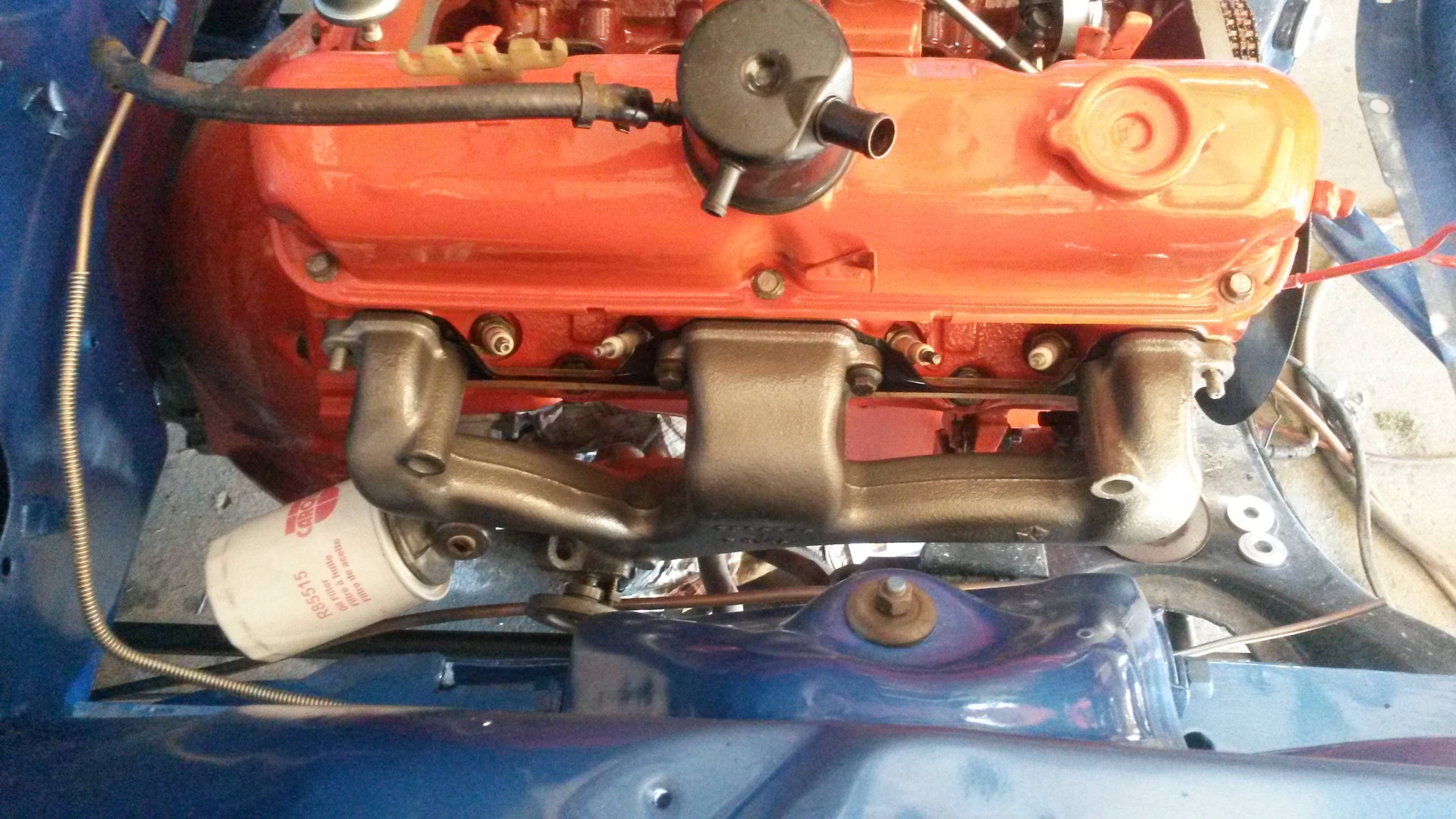

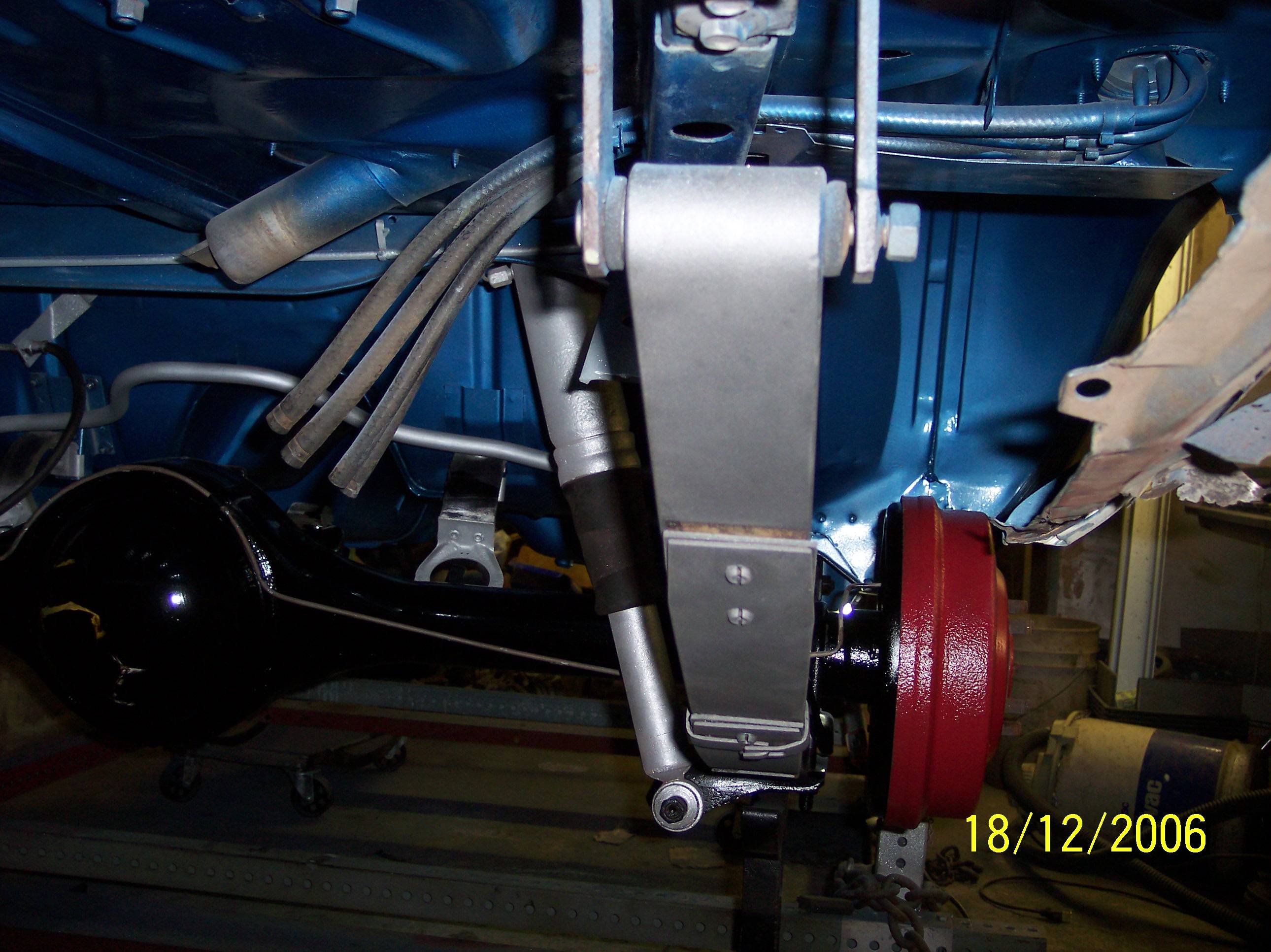

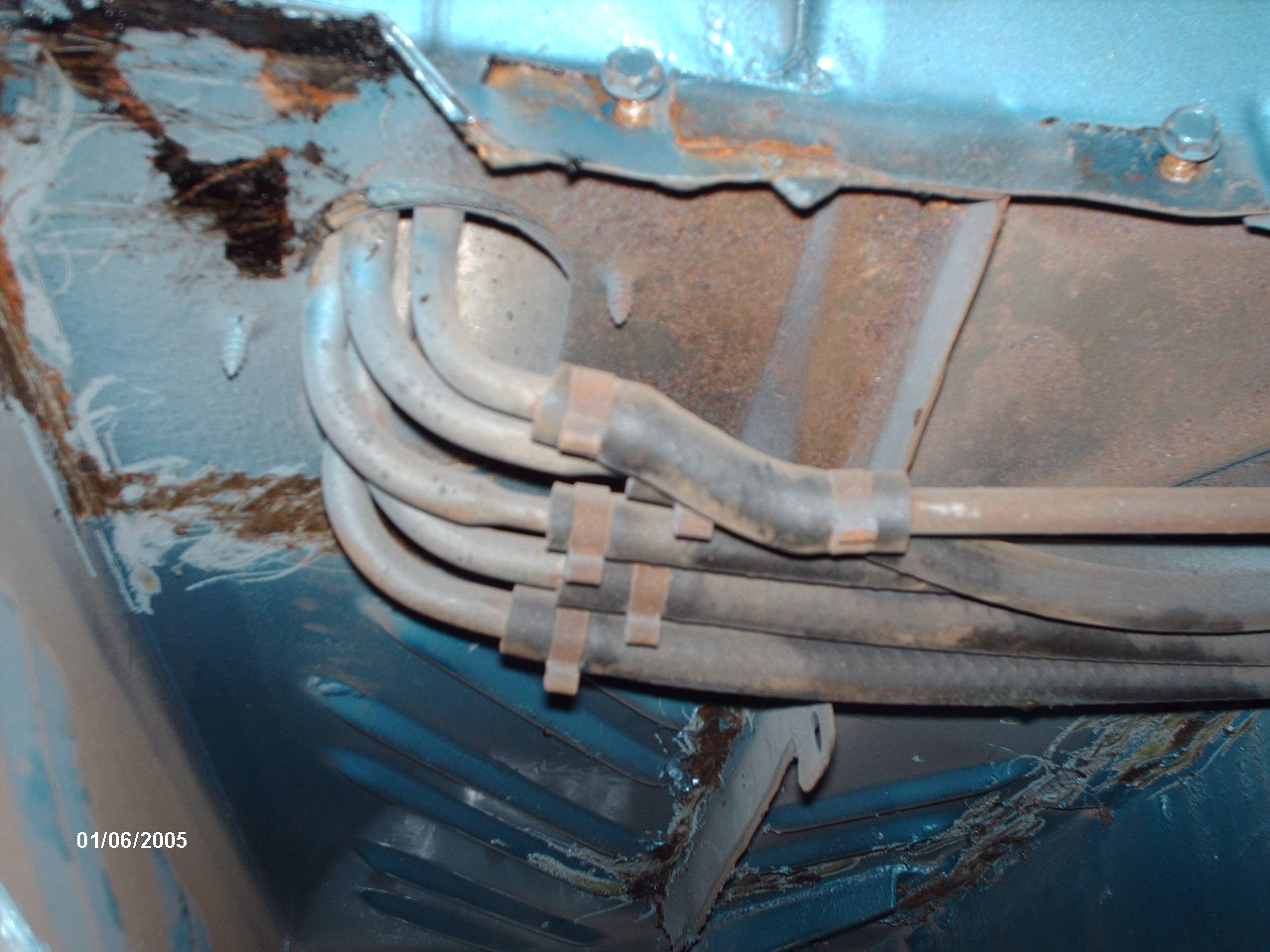

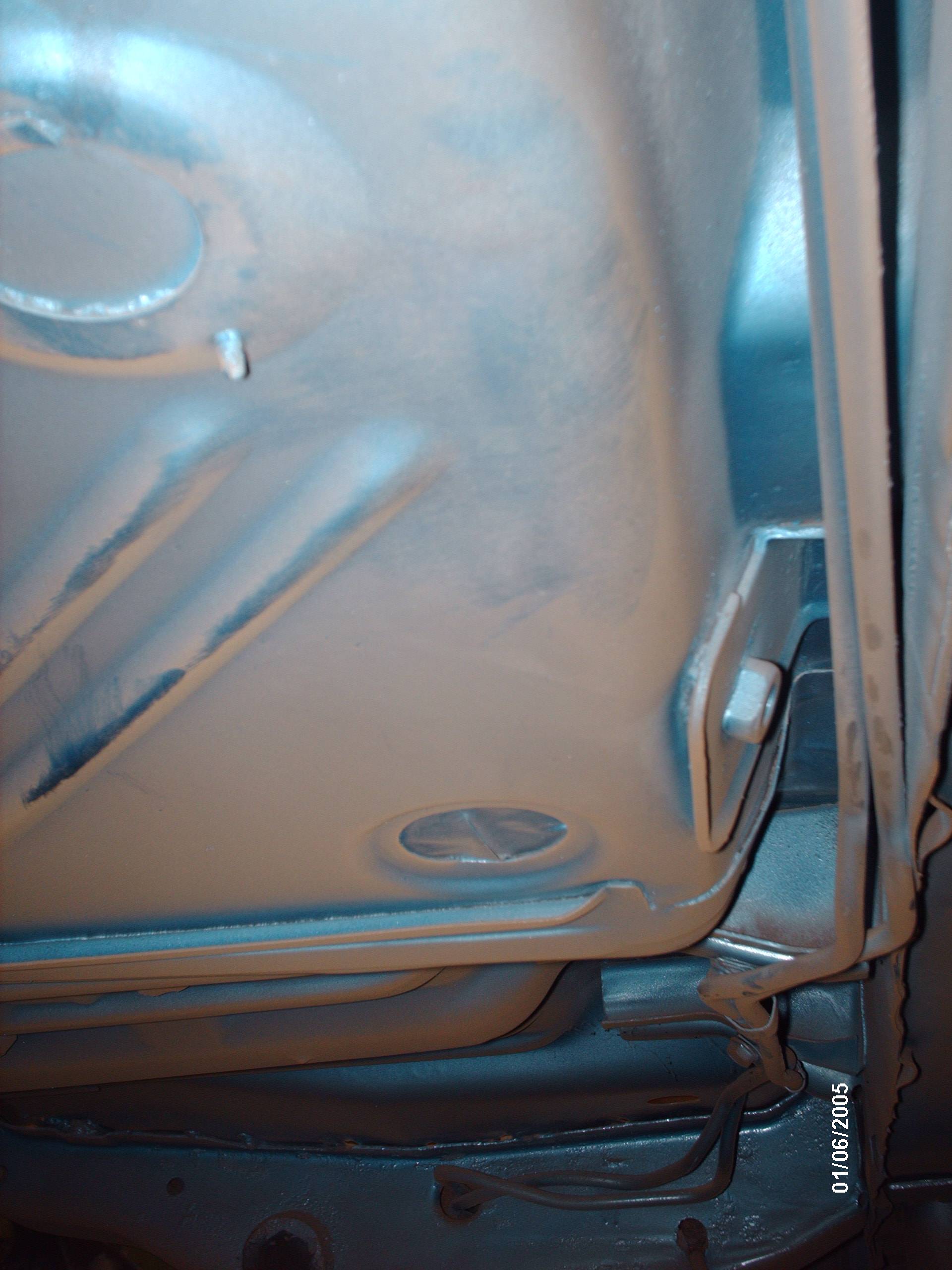

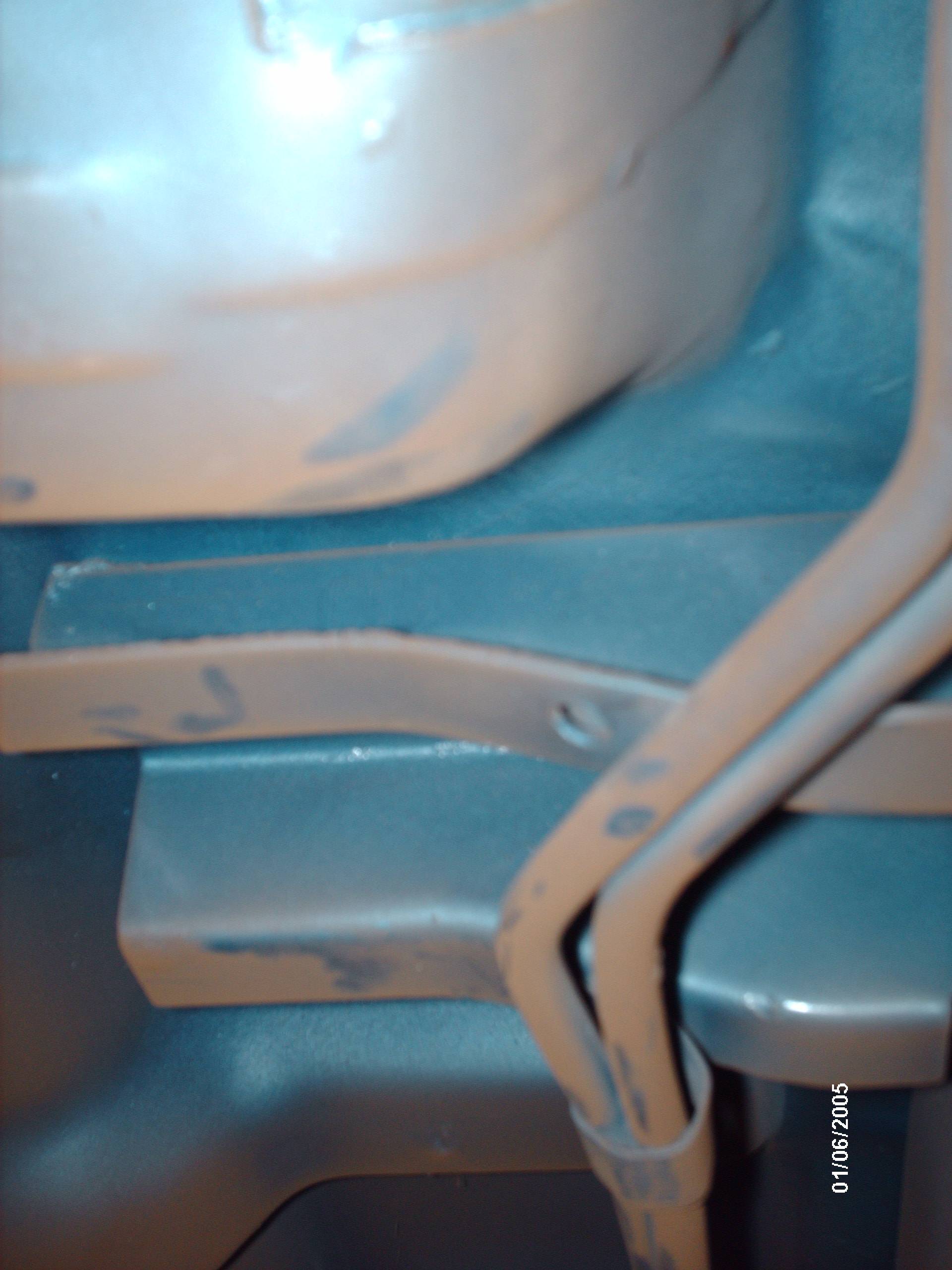

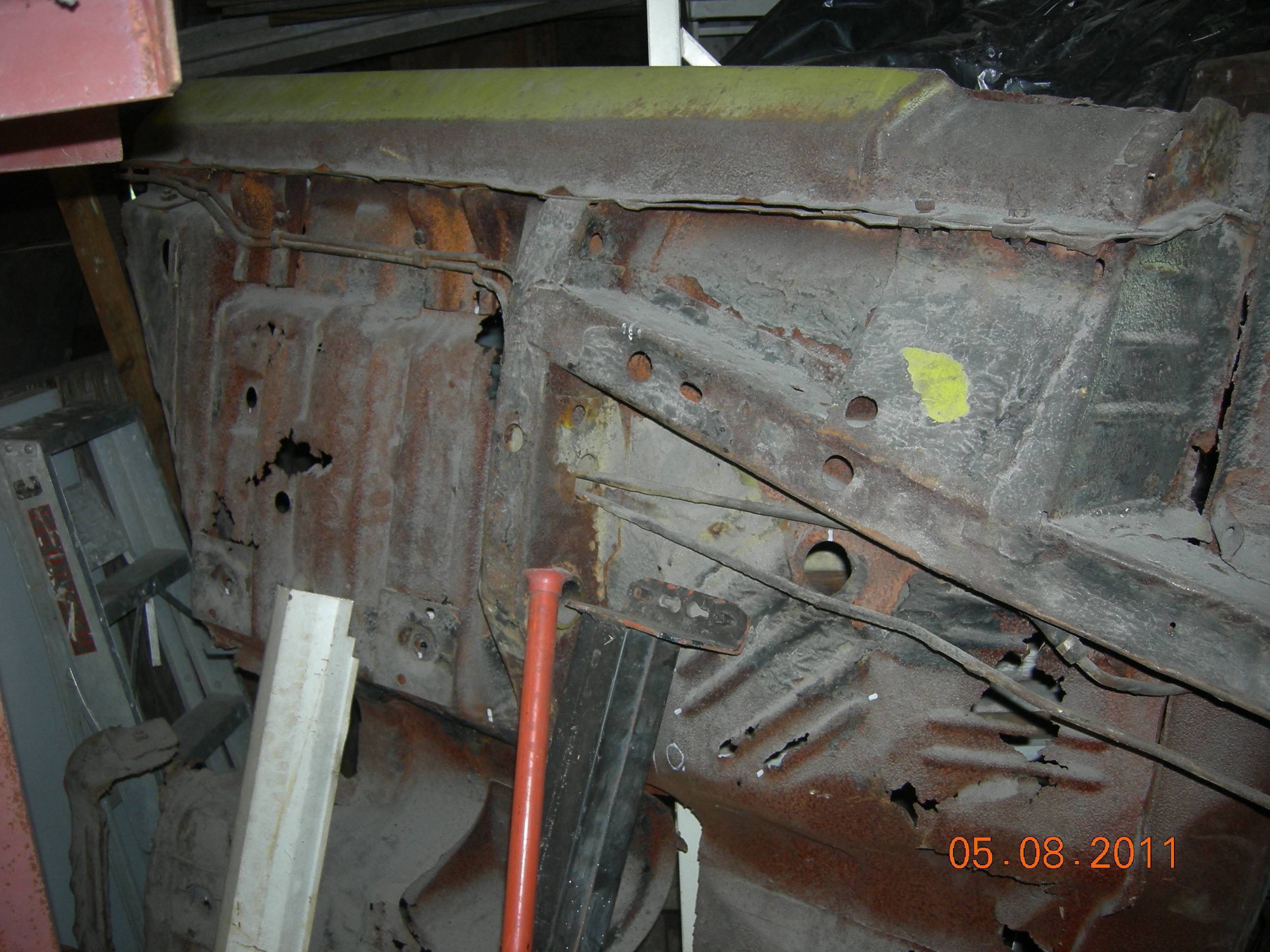

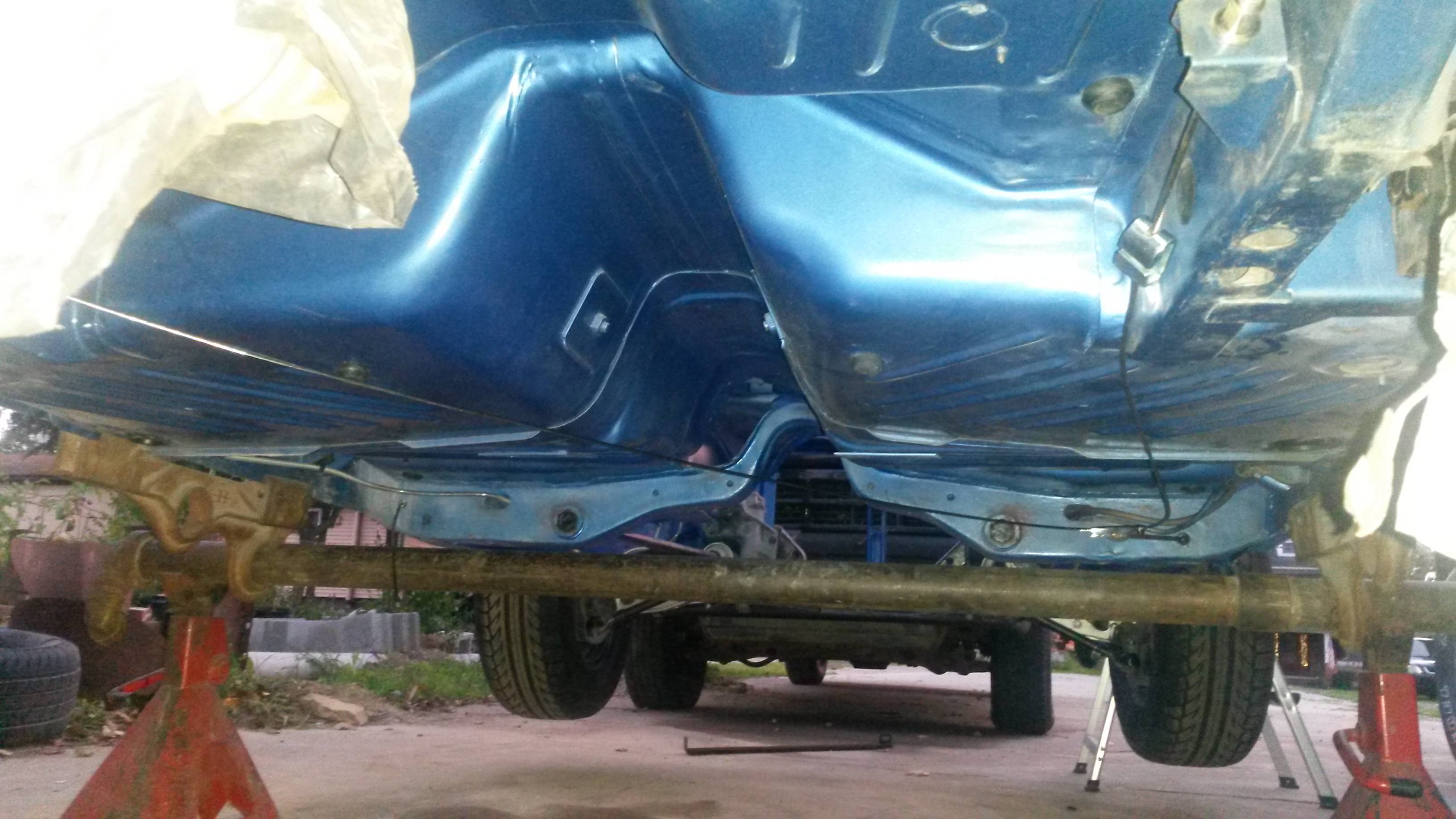

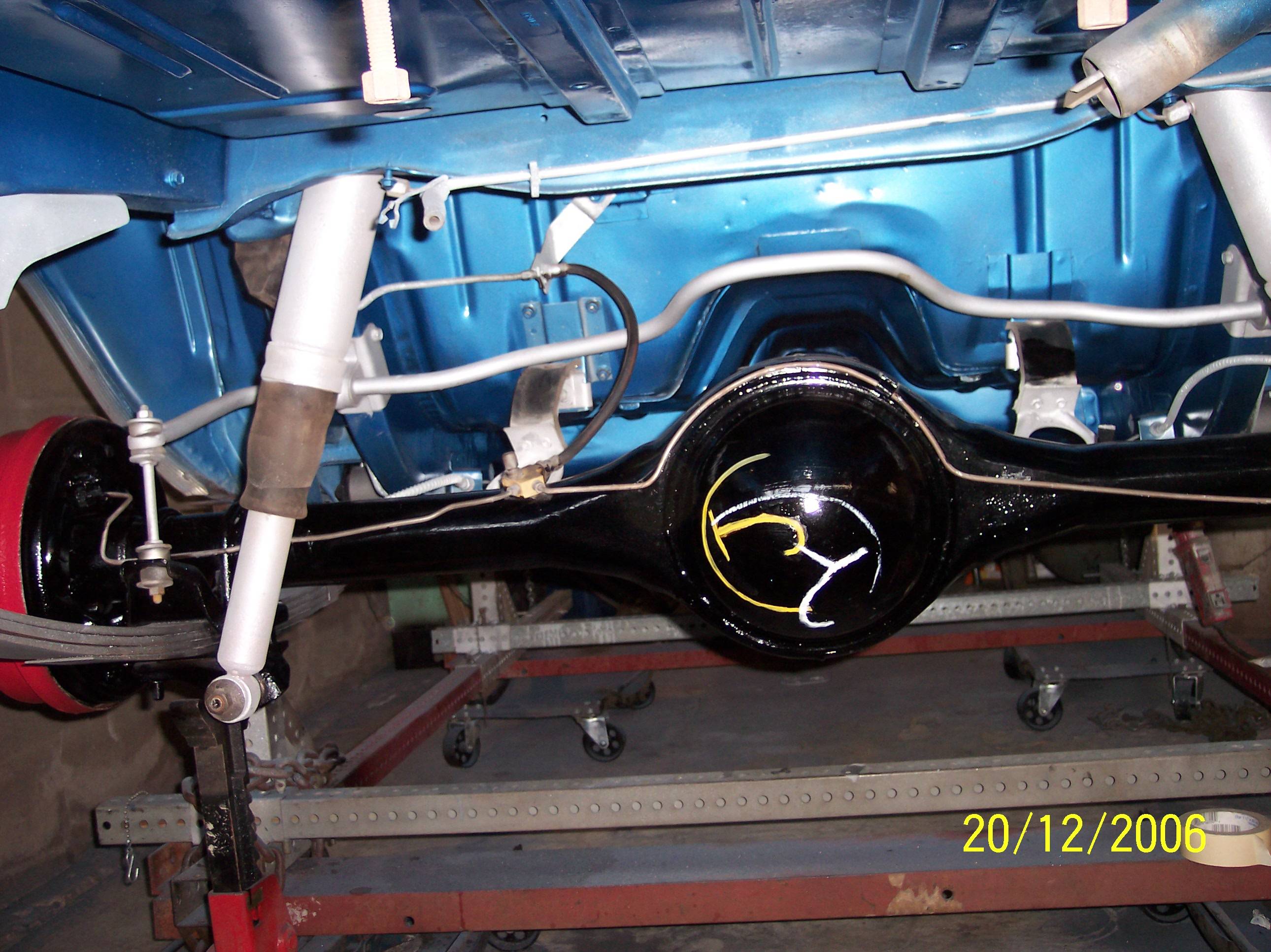

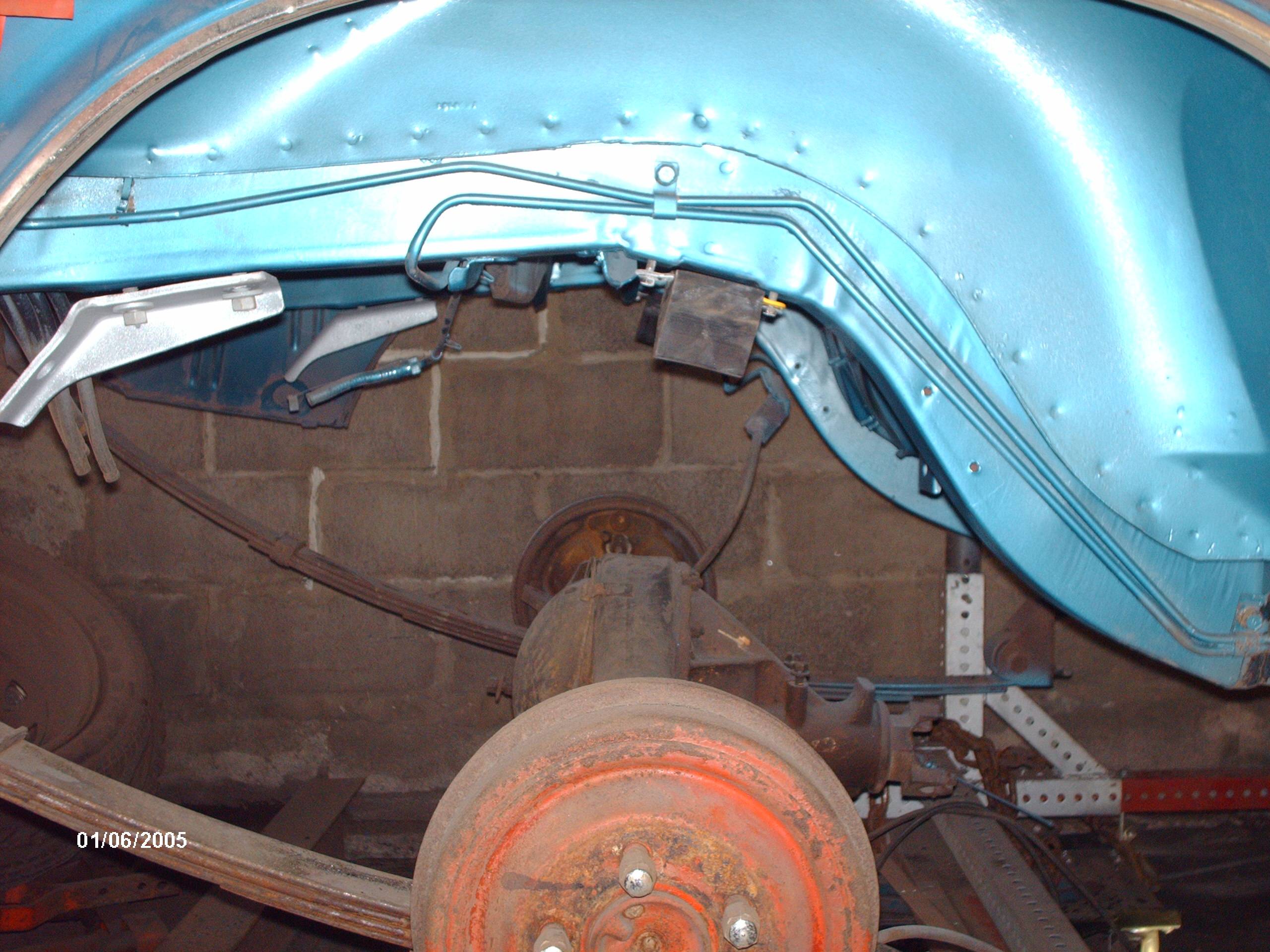

Show me yours I'll show you mine. reinstalled dash.I redid all connections under dash to firewall and steering column. I actually redid all connections on the car front to back,need a shot of wires from steering column to firewall and where speedometer heat control cables run. heat control cable over steering column or over cradled or where? pictures are of original fuel line before I installed 3/8 copper nickle line. I think 1 front line is missing.return line was broke off in front. in front line runs along frame .I'll post more pic when I find them. 1971 11-70 build



20050106 040.jpg






20050106 041.jpg


20050106 050.jpg


20050106  051.jpg









Last edited:

Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
76
Reaction score
26
Location
PA 15904
Wont let me load more then 10 pic. heres one from a 71 383 rt I had. better picture of rocker panel area.



front fuel line.jpg

Last edited:

Mike73Dodge

Active Member
Joined
Oct 8, 2013
Messages
35
Reaction score
10
Location
Bellevue WA

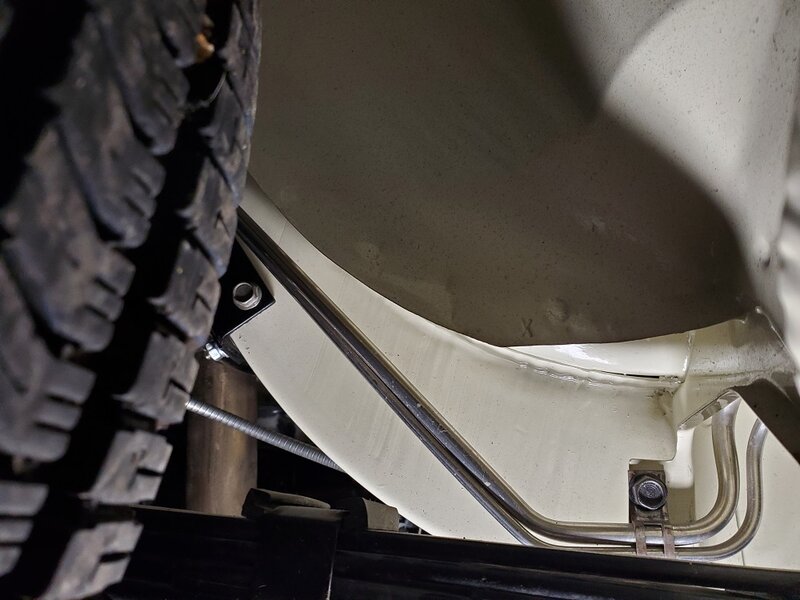

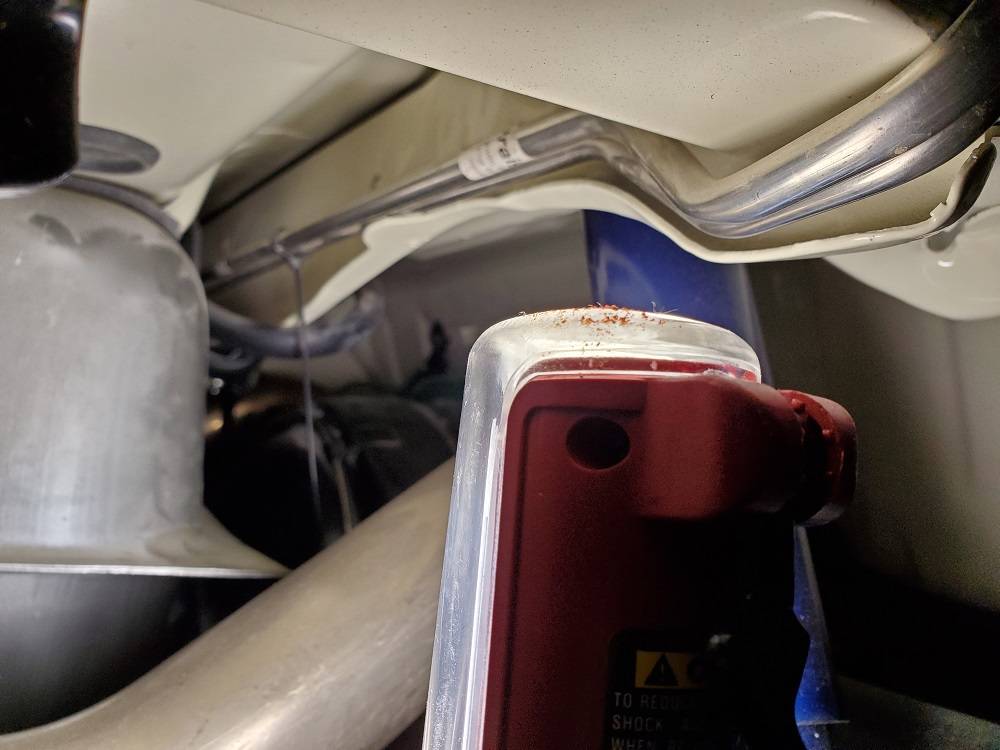

These are aftermarket stainless lines but route the same. The larger tube is the fuel line, the other is the tube running from the charcoal filter back to the tank. Starting from the tank, back side of shock mount beam, under the frame, on frame outbd side, then around fwd attach point for leaf spring, then fwd inbd of the rocker panel, jogs over and through hole in cross frame (mine has frame stiffeners) then fwd along inbd side of frame next to engine.


Attachments

  • 20210611_153145comp.jpg
    194.3 KB · Views: 8
  • 20210611_153210comp.jpg
    193.4 KB · Views: 8
  • 20210611_153300comp.jpg
    210.4 KB · Views: 8

Mike73Dodge

Active Member
Joined
Oct 8, 2013
Messages
35
Reaction score
10
Location
Bellevue WA

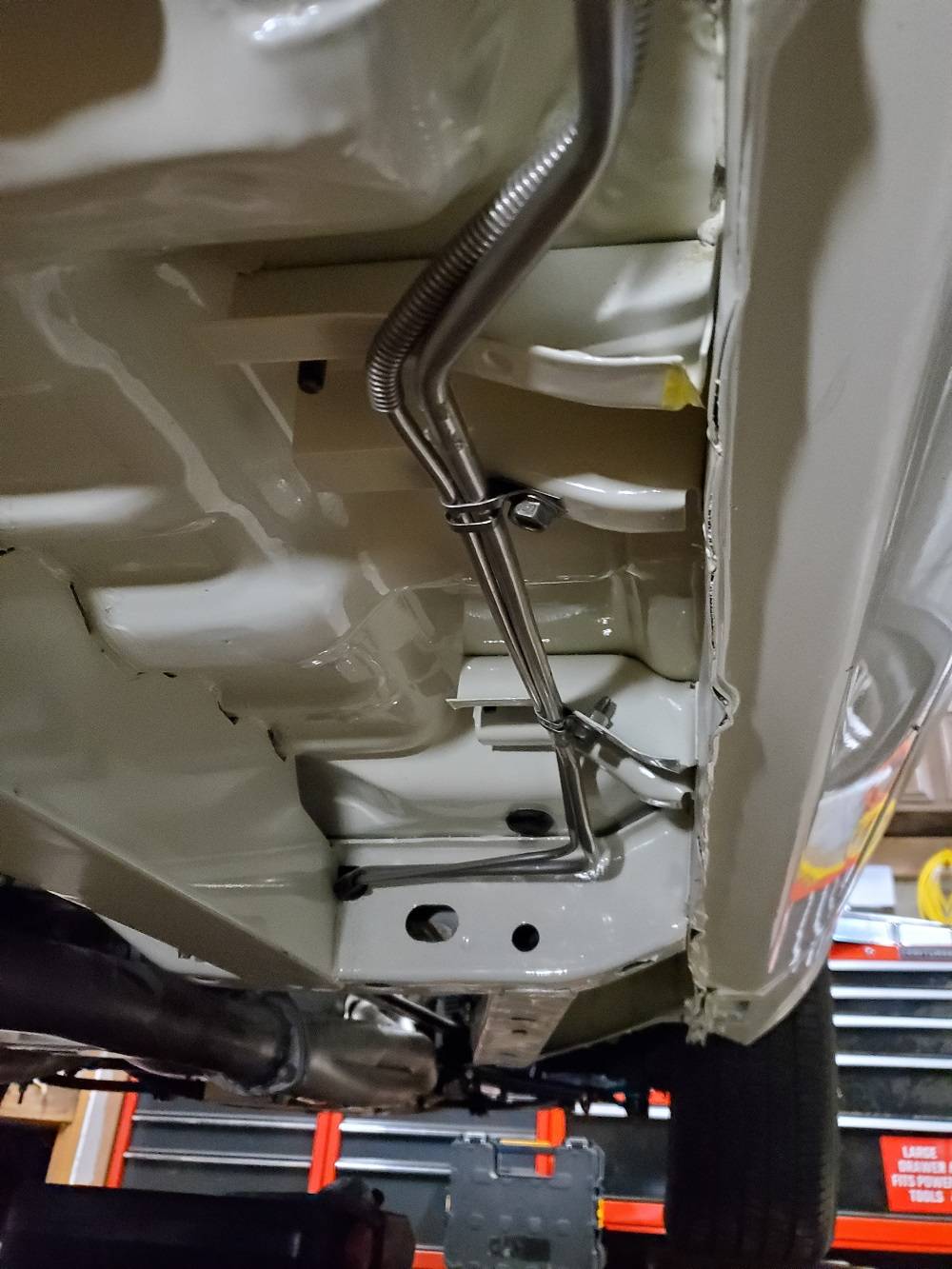

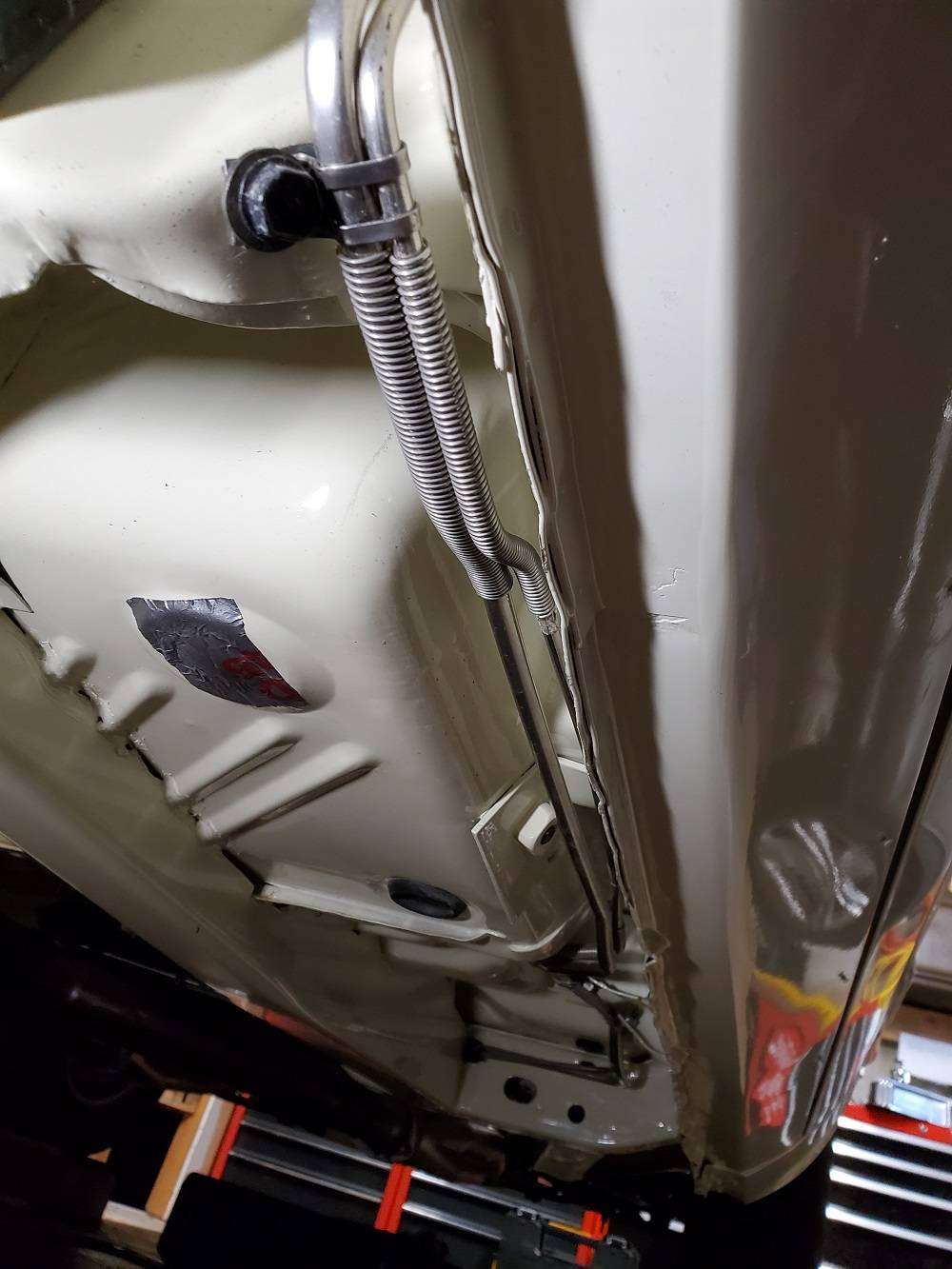

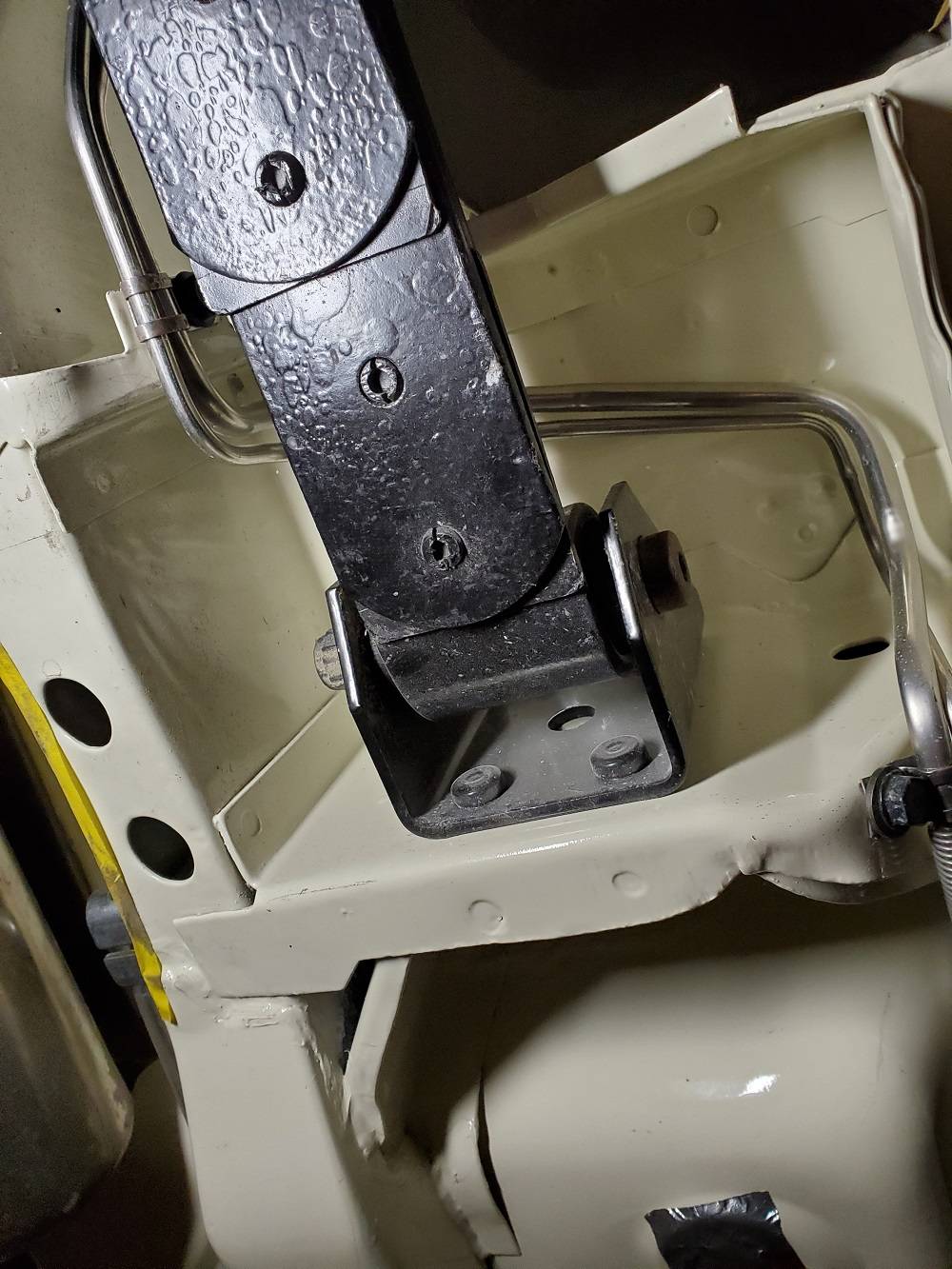

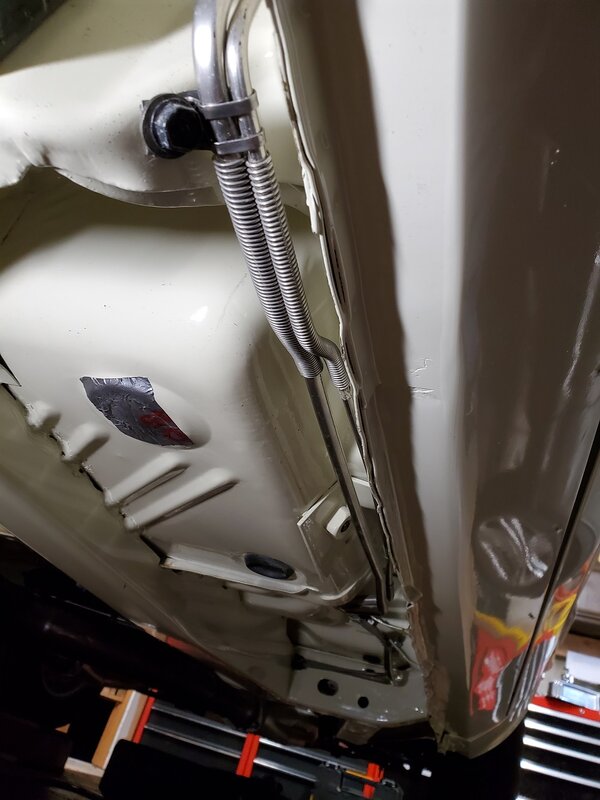

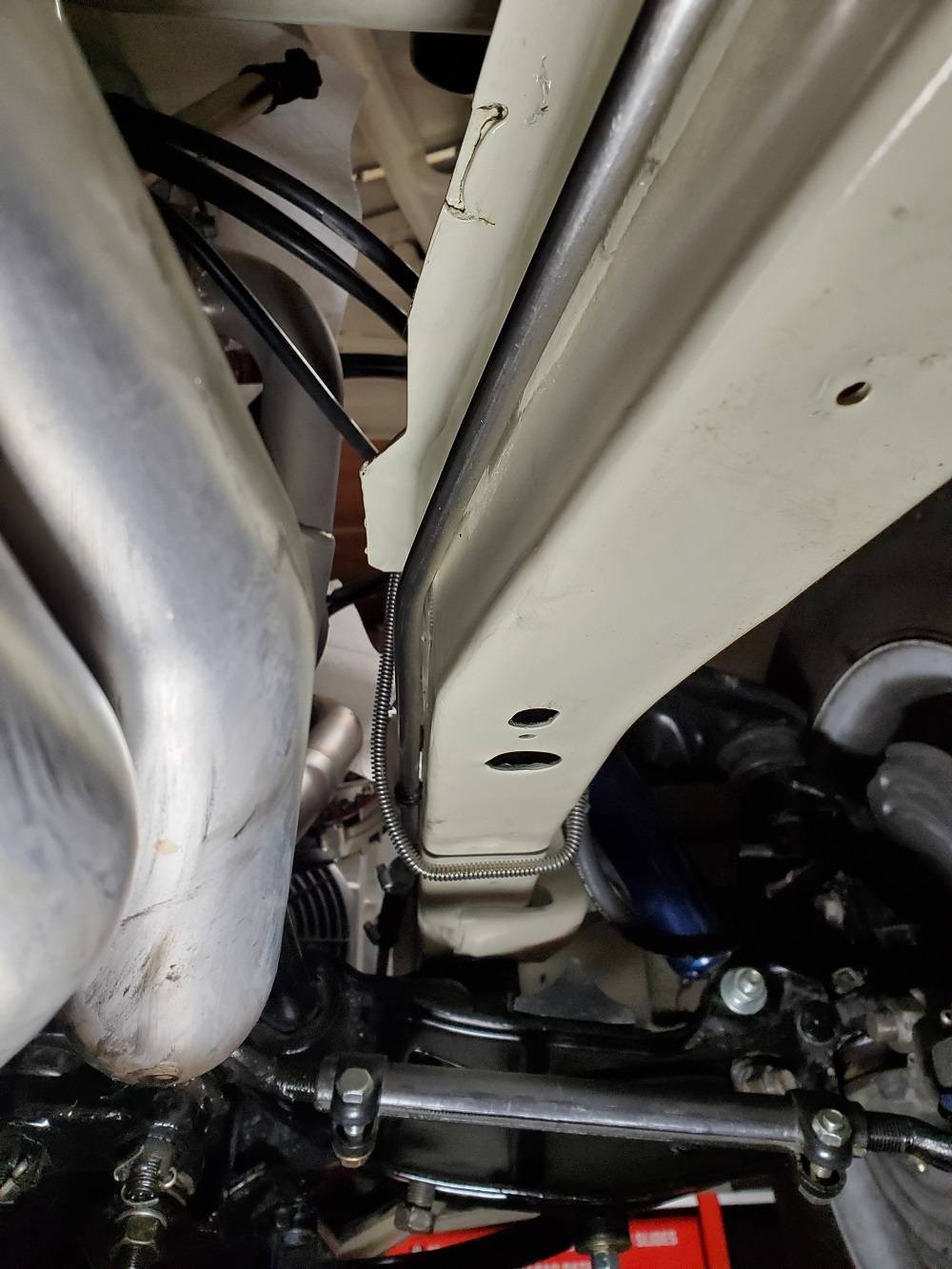

Continuing fwd.


Attachments

  • 20210611_153335comp.jpg
    421.6 KB · Views: 10
  • 20210611_153400comp.jpg
    287 KB · Views: 10
  • 20210611_153411comp.jpg
    426.7 KB · Views: 12

Mike73Dodge

Active Member
Joined
Oct 8, 2013
Messages
35
Reaction score
10
Location
Bellevue WA

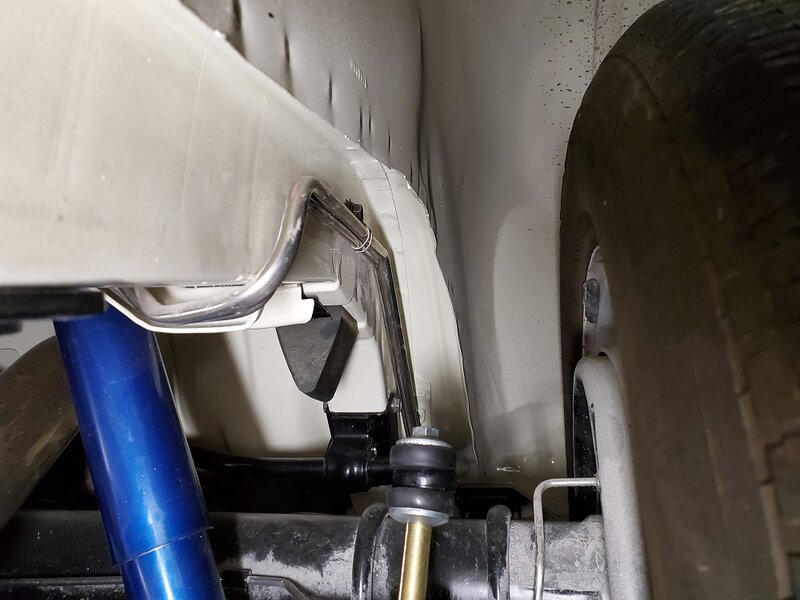

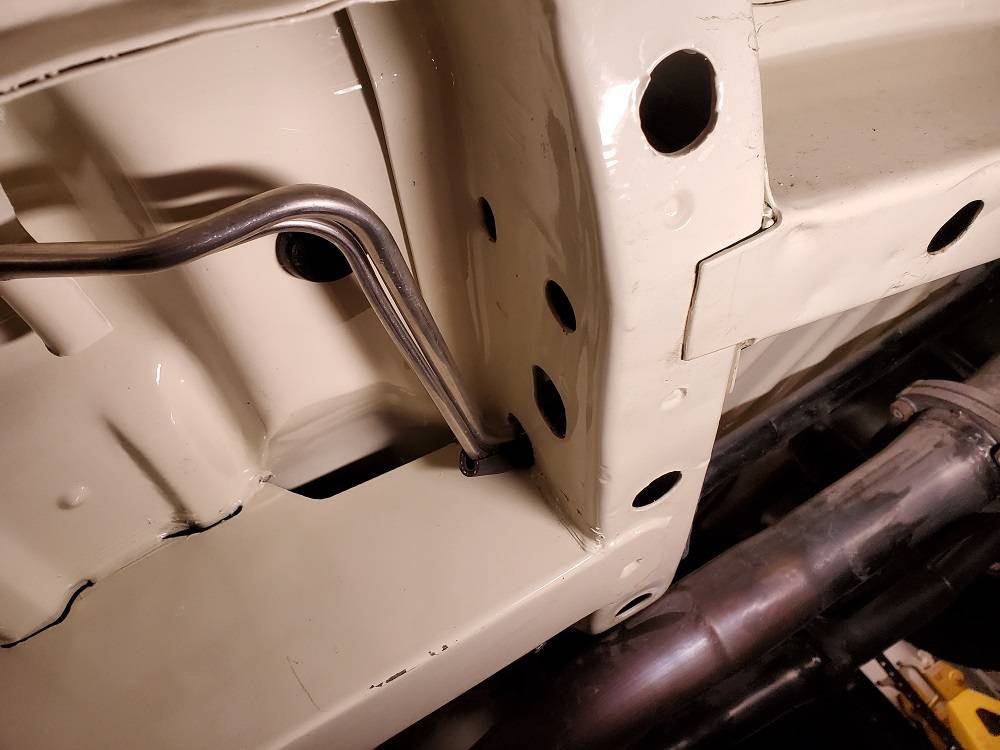

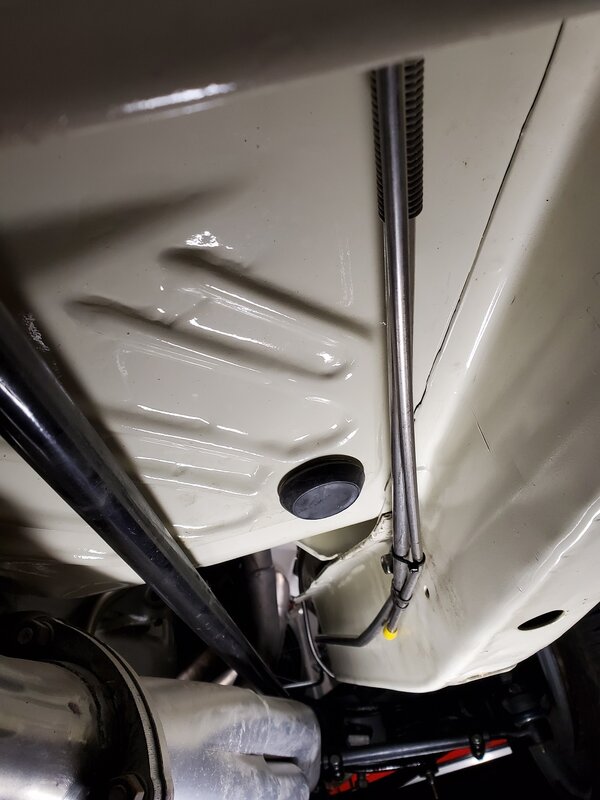

Second tube is capped off due to no charcoal filter, fuel line has rubber hose going to engine line


Attachments

  • 20210611_153447comp.jpg
    177.3 KB · Views: 8
  • 20210611_153512comp.jpg
    294.2 KB · Views: 8
  • 20210611_153607comp.jpg
    339.7 KB · Views: 8

Juan Veldez

Well-Known Member
Joined
Jan 1, 2011
Messages
181
Reaction score
5
Location
Nor Cal

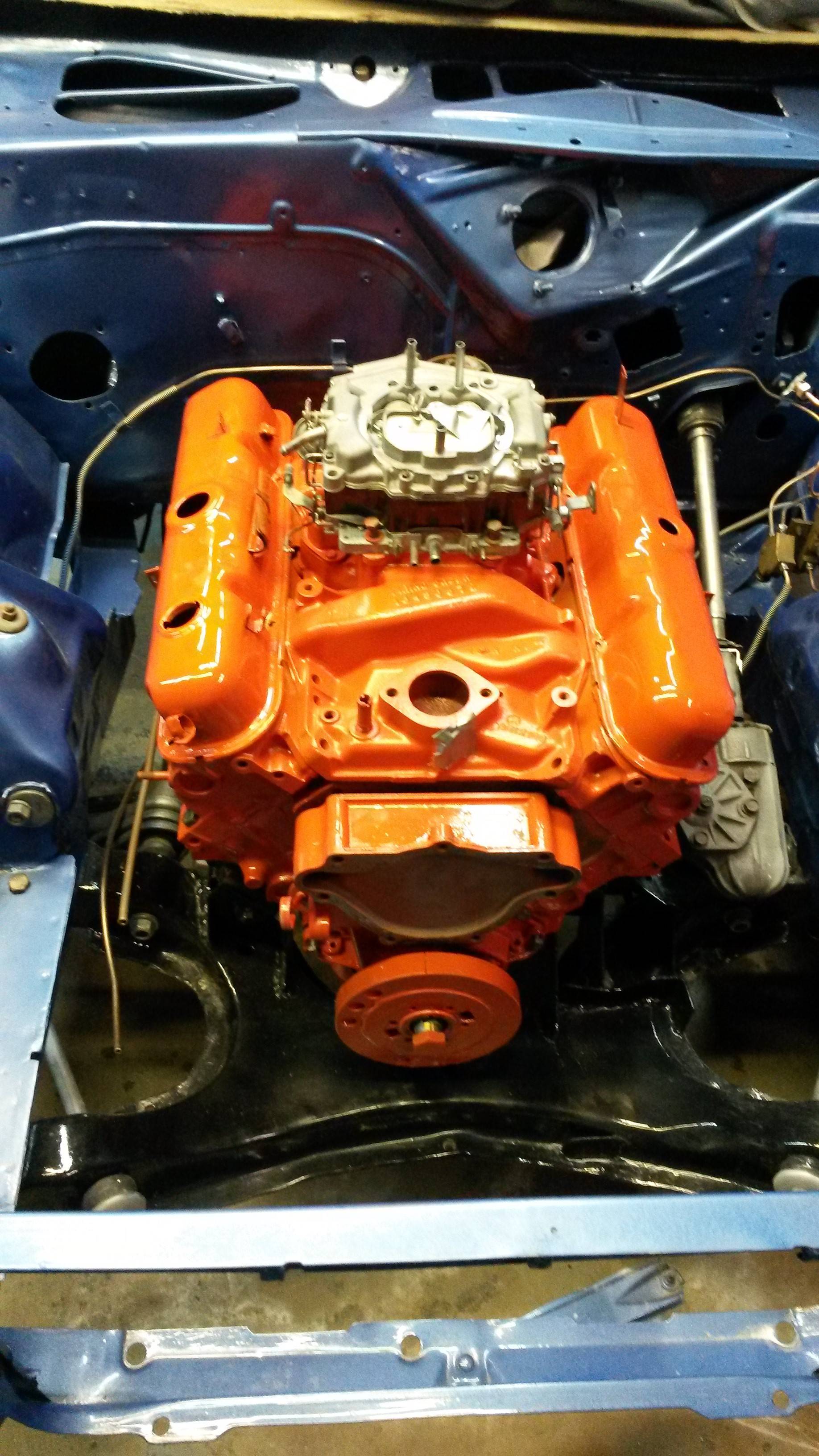

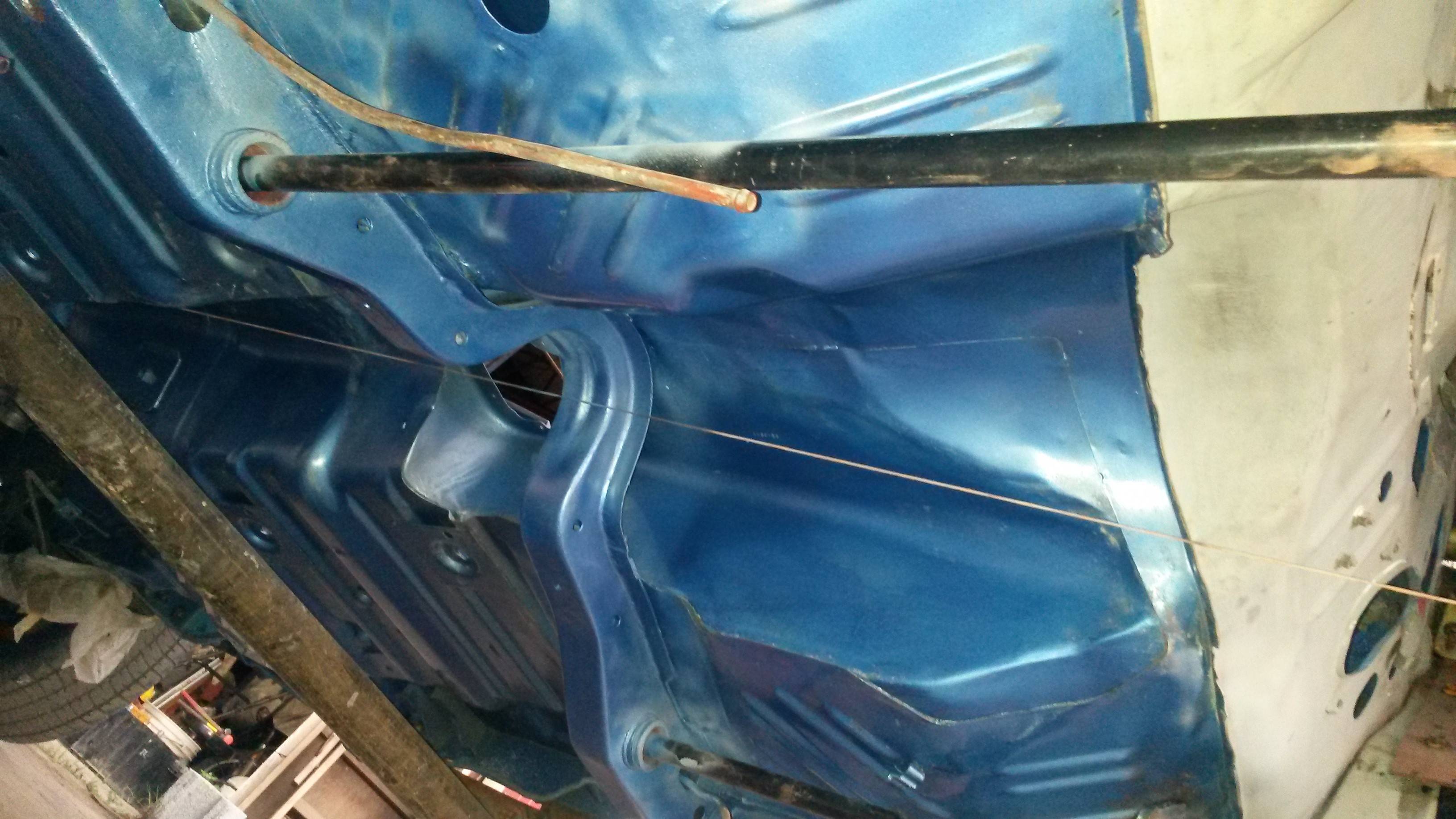

Show me yours I'll show you mine. reinstalled dash.I redid all connections under dash to firewall and steering column. I actually redid all connections on the car front to back,need a shot of wires from steering column to firewall and where speedometer heat control cables run. heat control cable over steering column or over cradled or where? pictures are of original fuel line before I installed 3/8 copper nickle line. I think 1 front line is missing.return line was broke off in front. in front line runs along frame .I'll post more pic when I find them. 1971 11-70 build



View attachment 83233

View attachment 83234

View attachment 83235

View attachment 83236

View attachment 83237

View attachment 83238

View attachment 83239

View attachment 83240

View attachment 83241

View attachment 83242
Thank you, these are PERFECT.


Juan Veldez

Well-Known Member
Joined
Jan 1, 2011
Messages
181
Reaction score
5
Location
Nor Cal
These are aftermarket stainless lines but route the same. The larger tube is the fuel line, the other is the tube running from the charcoal filter back to the tank. Starting from the tank, back side of shock mount beam, under the frame, on frame outbd side, then around fwd attach point for leaf spring, then fwd inbd of the rocker panel, jogs over and through hole in cross frame (mine has frame stiffeners) then fwd along inbd side of frame next to engine.
Thank you too, these were EXACTLY what I needed.
