My 70 Challenger has a low beam out. I looked at replacements and think I'd go with a Sylvania Ultra bright. NOT LED.
Question: Given the car has original wiring, could I expect an improvement in brightness with new lights?


Xcudame

Well-Known Member
Joined
May 27, 2023
Messages
891
Reaction score
647
Location
Southeast Arizona
Certainly the newer lights are a little brighter than the old original bulbs. Just don't expect modern headlight brightness. Of course, once the modern headlight plastic clouds up (like they do here in the desert), they're not so bright either.


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,368
Reaction score
2,015
Location
Panama
Adding relays really helps as well , this shunt the power directly from the battery instead of power going through the fire \wall , though the headlight switch , back through the firewall to the headlights , all modern cars are wired this way with relays so the headlights are significantly brighter .


EX P I

Member
Joined
Aug 2, 2023
Messages
23
Reaction score
6
Location
Delaware
My 70 Challenger has a low beam out. I looked at replacements and think I'd go with a Sylvania Ultra bright. NOT LED.
Question: Given the car has original wiring, could I expect an improvement in brightness with new lights?
Thank you!


EX P I

Member
Joined
Aug 2, 2023
Messages
23
Reaction score
6
Location
Delaware
Adding relays really helps as well , this shunt the power directly from the battery instead of power going through the fire \wall , though the headlight switch , back through the firewall to the headlights , all modern cars are wired this way with relays so the headlights are significantly brighter .
Thank you!


EX P I

Member
Joined
Aug 2, 2023
Messages
23
Reaction score
6
Location
Delaware
Adding relays really helps as well , this shunt the power directly from the battery instead of power going through the fire \wall , though the headlight switch , back through the firewall to the headlights , all modern cars are wired this way with relays so the headlights are significantly brighter .
Thank you!


72RoadRunnerGTX

Well-Known Member
Joined
Jan 8, 2013
Messages
188
Reaction score
111
Location
Shoreline. Washington
Adding relays really helps as well , this shunt the power directly from the battery instead of power going through the fire \wall , though the headlight switch , back through the firewall to the headlights , all modern cars are wired this way with relays so the headlights are significantly brighter .
Agreed, relays will improve any lighting type but with the factory charging system intact, the relay secondary power source should be from the alternator not the battery. All loads need to be on the alternator side of the ammeter as are all factory loads.


cv70chall

Well-Known Member
Joined
Feb 4, 2013
Messages
108
Reaction score
8
Thank you!
Hi,
I did the relay upgrade a while back. I've recently upgraded all the other exterior bulbs to LED, but want the headlights upgraded as well. Who makes the set that is durable and essentially plug & play?


72RoadRunnerGTX

Well-Known Member
Joined
Jan 8, 2013
Messages
188
Reaction score
111
Location
Shoreline. Washington
Otherwise, the next best bet is Halogen and modifying the plugs, correct?
H4/H1 based Hella E-codes Halogens. Several options for bulb wattage. Not to be confused with sealed beam Halogens.


Mopar Nut

Well-Known Member
Joined
Aug 10, 2014
Messages
1,319
Reaction score
1,023
Agreed, relays will improve any lighting type but with the factory charging system intact, the relay secondary power source should be from the alternator not the battery. All loads need to be on the alternator side of the ammeter as are all factory loads.
Is there a wiring diagram using the relay secondary power source running from the alternator?


Ricks72Chlgr440

Well-Known Member
Joined
May 2, 2023
Messages
134
Reaction score
82
Location
South Texas
Adding relays really helps as well , this shunt the power directly from the battery instead of power going through the fire \wall , though the headlight switch , back through the firewall to the headlights , all modern cars are wired this way with relays so the headlights are significantly brighter .
Do you know if anyone makes the headlight relay kits like CrackedBack does? I emailed him a month ago and no response. I know he is having physical issues so may no longer be doing the relay kits.


EX P I

Member
Joined
Aug 2, 2023
Messages
23
Reaction score
6
Location
Delaware
Agreed, relays will improve any lighting type but with the factory charging system intact, the relay secondary power source should be from the alternator not the battery. All loads need to be on the alternator side of the ammeter as are all factory loads.
Thank you.


72RoadRunnerGTX

Well-Known Member
Joined
Jan 8, 2013
Messages
188
Reaction score
111
Location
Shoreline. Washington

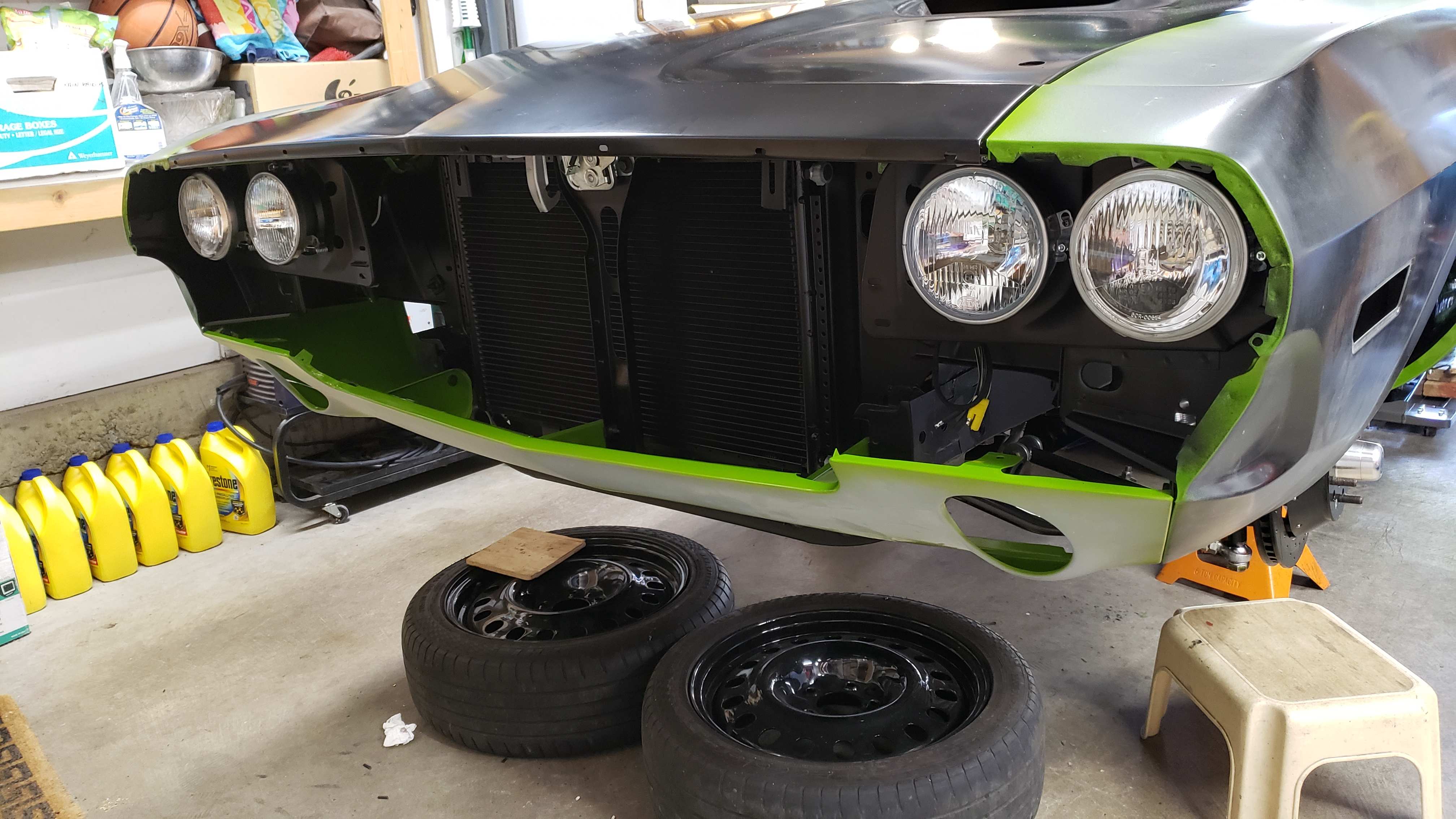

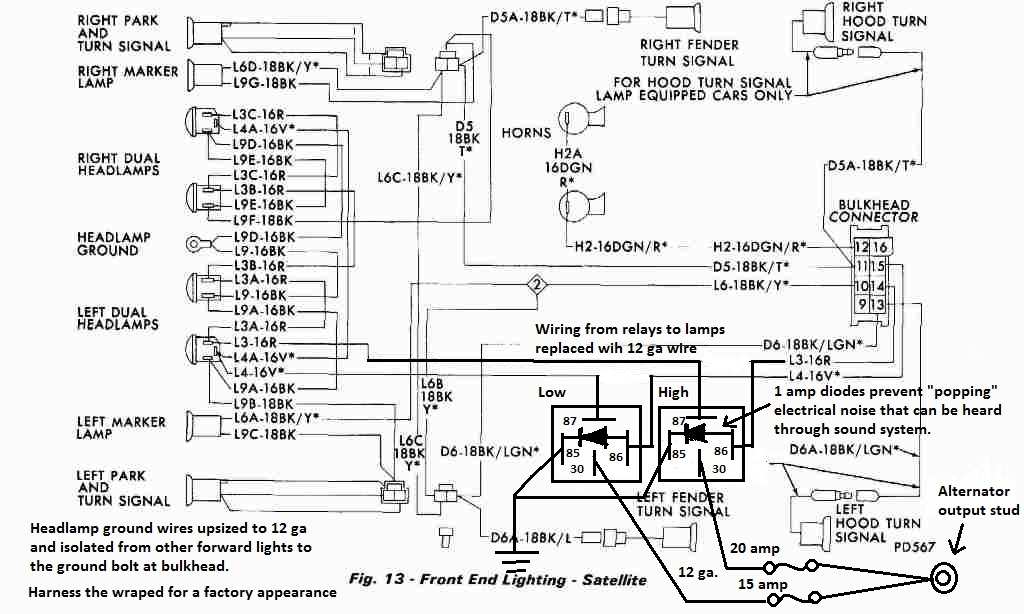

80/100-watt H4s, 100-watt H1 bulbs. Modifications? Relays for sure, the factory lighting circuit cannot handle the current draw, approaches 30amps with all four high beams on. Also, recommend the relay to lamps wiring be upsized as noted in the diagram above. Also, ceramic plugs on the H4s, they do generate a bit of heat. No physical modifications to fit the housings in the buckets, direct replacement. Compared to sealed beam halogens? Much more light output and a more precise and defined/wide light pattern. If you are still running a non-modified factory stock original charging system with an ammeter, be sure to draw your relay/lamp power from the alternator, not from the battery directly.

Last set I bought from Summit, housings and high wattage bulb set was about $275 IIRC. Housings include the 55/60-watt H4, 55-watt H1 bulbs.
