Help with engine wire harness install

Electrical and Ignition

  1. 340SHAKER

    340SHAKER Well-Known Member

    Messages:
    51
    Likes Received:
    11
    Joined:
    Feb 16, 2018
    Location:
    West Central Minnesota

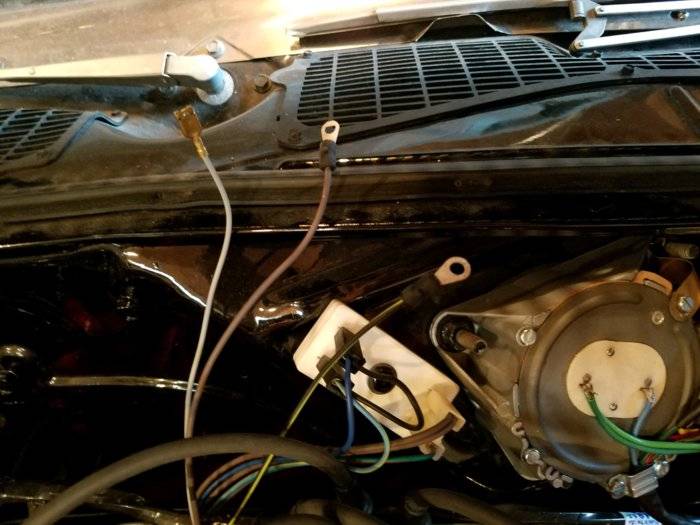

    Coil wires.jpg I'm looking for some guidance. The car was apart when I bought it so I'm not sure where some wires connect. I do have a wiring diagram but I am converting it to electronic ignition and some wires do not match. I have "most" of the engine wiring harness connected. However I'm a little concerned with the coil wires and the resistor wires. I have attached a picture that shows the wires on the resistor and three other wires. Two with eyelits and one with a spade connector. First do the resistor wires look to be installed correctly? The other 3 wires I assume connect to the coil and the oil pressure sensor. Can you tell me which one goes where? I assume the spade is for the oil pressure sensor. That leaves the two eyelits, positive or negative? Also do I need a condenser? If so, does it attach to the + or - on the coil? Thanks guys.

  2. Slotts

    Slotts Well-Known Member

    Messages:
    54
    Likes Received:
    62
    Joined:
    Feb 12, 2011
    To answer the three unconnected wires:
    Solid Gray w/ Female Packard Terminal - To Oil Pressure Sender
    Brown w/ Eyelet - To Positive Terminal On Coil
    Black w/ Yellow Tracer w/ Eyelet - To Negative Terminal On Coil

    I do see issues with the wiring on the ballast resistor. Where did this harness come from? Typically, a four terminal ballast resistor has only two double terminal connectors. One with a extension on the connector that is keyed to fit into a C cutout on the side of the ballast resistor on the right side of your picture.

    No, you do not need a condenser when converting to an electronic ignition setup.

    Also, noticed there is no insulation on the wiper gear box cover plate two terminals.

    Jim
