72 Challenger. When the high beams are on, I will drive for about 10 minutes and the headlights will start flickering on and off. If I turn the high beams off, no problems. I replaced the dimmer switch but that did not fix it. When the headlights go off, the running lights stay on. Seems like maybe something is getting hot and causing an intermittent connection.

Any ideas?


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
2,497
Reaction score
1,209
Location
PA Flood city

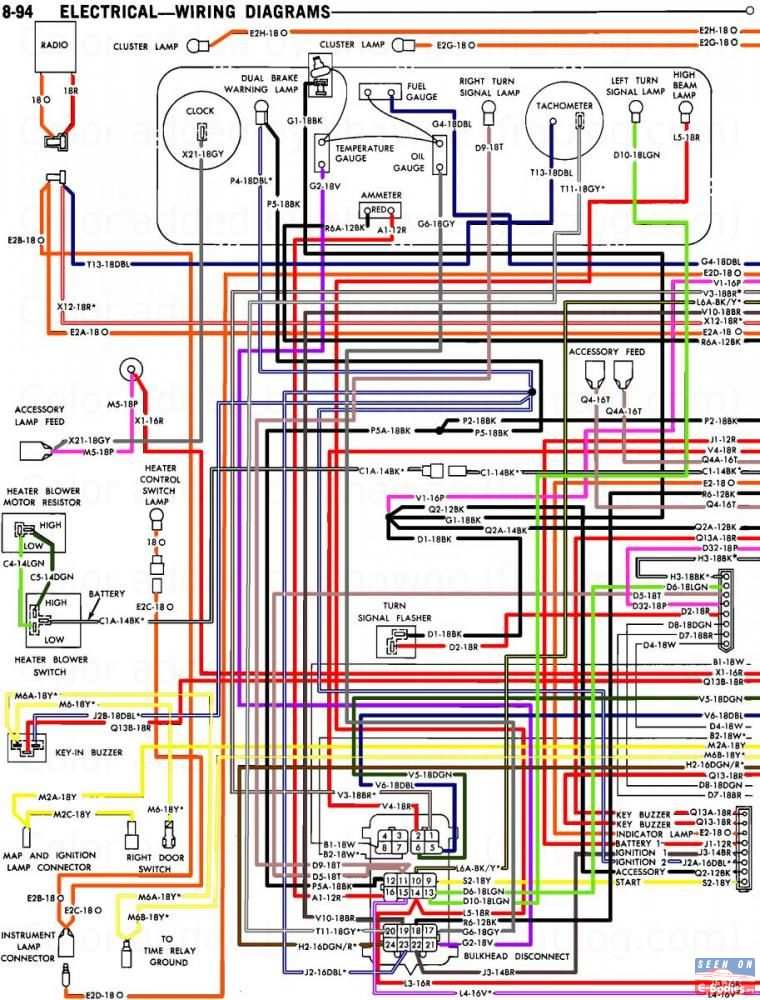

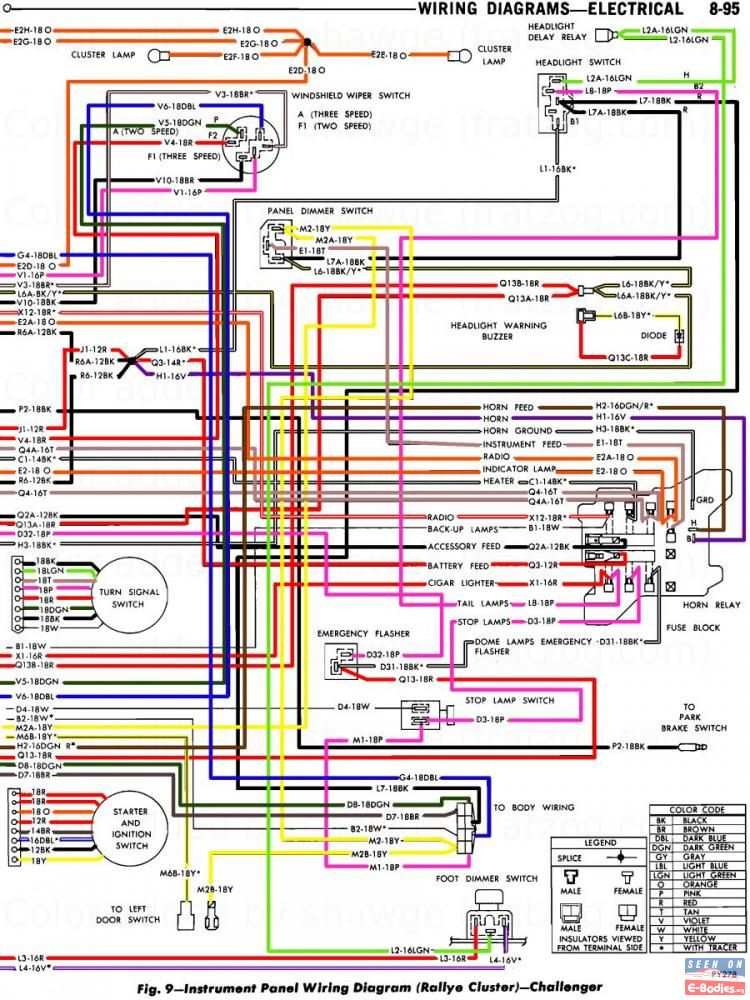

I would start by doing this. In general diagram.

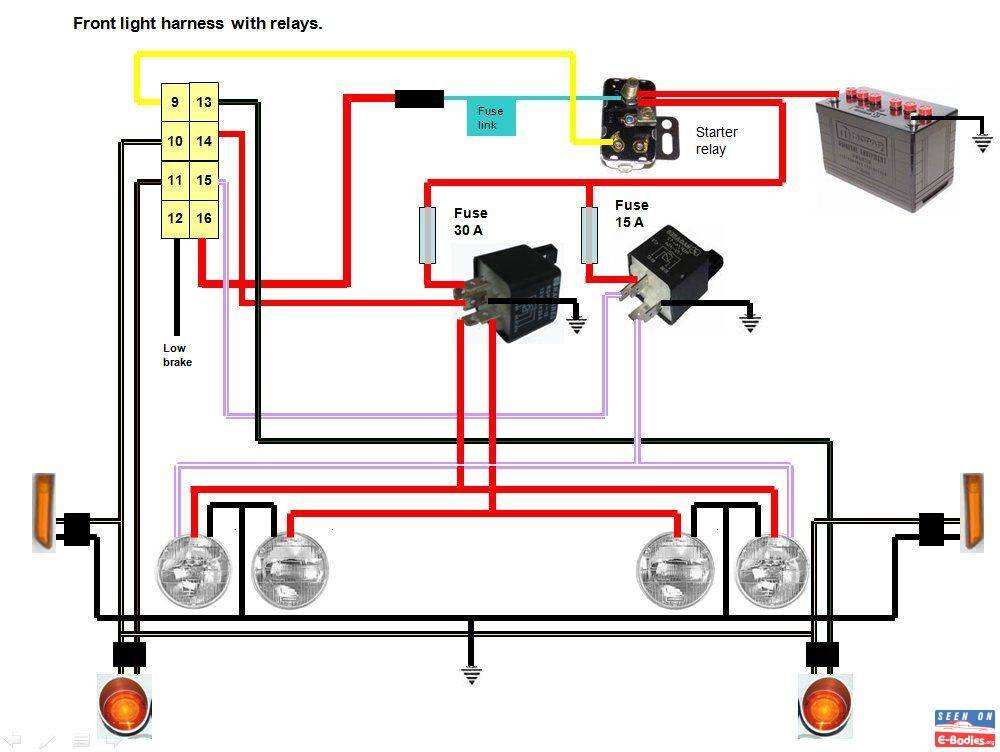

headlight Harness schematic.jpg

Last edited:

EW1BH27

Well-Known Member
Joined
Dec 31, 2021
Messages
454
Reaction score
196
Location
Canada
I had flickering headlights once, not with the high beams on either. Mine turned out to be the headlight switch. Problem went away when the switch was replaced with a used one I had kicking around.

I think I wrecked it by always flashing my headlights to let truckers know when they're clear to merge into my lane.


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,368
Reaction score
2,015
Location
Panama
I would do the relay upgrade , it takes the load away from the headlight switch & the bulkhead connection which are the 2 weak points & the headlights will be brighter also .


72RoadRunnerGTX

Well-Known Member
Joined
Jan 8, 2013
Messages
188
Reaction score
111
Location
Shoreline. Washington
Circuit breaker in the headlight switch is failing. Replace the switch or do the relay mod. For a factory charging system, pull the relay secondary power from the alternator, not the battery as indicated above. Running an ammeter, all loads need to be on the alternator side of the ammeter.

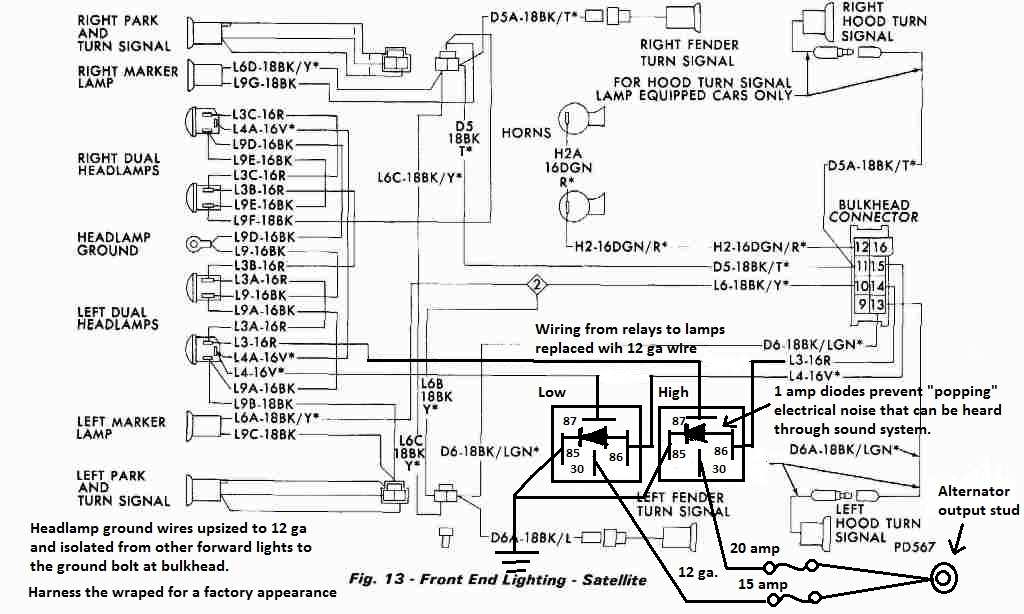

Headlamp Mod.jpg


Steve340

Well-Known Member
Joined
Sep 19, 2016
Messages
869
Reaction score
319
Location
New Zealand
The headlight switch circuit breaker may in fact be working correctly and protecting as it should.
You may have a high resistance joint, a faulty light socket, damaged wire etc.
You need to check the current draw and all the connections before replacing the switch.


72RoadRunnerGTX

Well-Known Member
Joined
Jan 8, 2013
Messages
188
Reaction score
111
Location
Shoreline. Washington
Replacement headlamps drawing more than stock current without relays would also cause a correctly calibrated headlight switch circuit breaker to trip as described. High resistance in the headlight circuit would reduce current flow through the headlight switch, should not trip a good breaker. Agree, need to measure the current draw of the lights to determine a correct course of action.

Last edited:

heminut

Well-Known Member
Joined
Dec 28, 2008
Messages
696
Reaction score
520
Location
Deming, New Mexico
I would do the relay upgrade , it takes the load away from the headlight switch & the bulkhead connection which are the 2 weak points & the headlights will be brighter also .
I agree, especially if you're running halogen headlamps. Those things draw a lot of current! I have LED headlamps, which draw hardly any current, and still did the relay conversion.


EW1BH27

Well-Known Member
Joined
Dec 31, 2021
Messages
454
Reaction score
196
Location
Canada
In case you weren’t aware member crackedback makes and sells a quality plug & play relay harness.


Ricks72Chlgr440

Well-Known Member
Joined
May 2, 2023
Messages
134
Reaction score
82
Location
South Texas
In case you weren’t aware member crackedback makes and sells a quality plug & play relay harness.
Yeah, I got one from him for my Duster. Also got the wire that goes from the alt to the starter relay to bypass all the current going thru the firewall connector.
