FOUND Need 70 Cuda 18.5 inch 7 blade fan / 70 440 Distributor

[Richard Hibbs]

need an original or repo of the 18.5 inch 7 blade fan. Part # 2863216. Also need a distributor for the 440. Points 3438224 or 3438222?
You can contact me at 70cuda@earthlink.net



[sixpactogo]

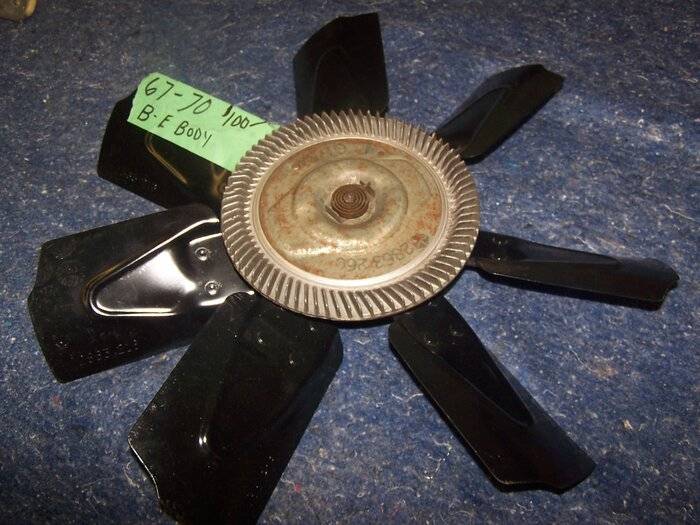

I have that fan. It has a thermo clutch in it but I saw some fluid weeping out of it a while back. I would sell the fan for $75.00 plus shipping. You can have the clutch if you want it but I think I would get a new one.



[Richard Hibbs]

I cannot make out the part number. Is it 2863216? I think I boo booed. I was looking in my parts interchange book and I think the 440 cuda came with an 18 inch 7 blade fan with part number 2863224. I need to do a better job researching this. I will get back to you in a couple of days to let you know what I find out. Thank you for your response.

Richard



[sixpactogo]

Yes, the one I have is 2863216. It was a very popular part used on B C & E cars with big block and A/C in between 67 and 70. I have a 70 parts book. I can check to see what other fans were used. Will report back with what I find.
OK here is what I can decipher from the parts book.
Your 70 Cuda could have used the 2863224 fan with 318, 360, 383 and 440 engine. It is a 7 blade direct drive fan used with non AC cars with 22" radiator and shroud # 2998328
If you have AC, you got the 26" radiator with shroud #2998326 and the 2863216 clutch fan.
If your car had 340 or 426 engine, you automatically got the 26" set-up.
What radiator core support do you have? 22" or 26"



[Richard Hibbs]

26 inch heavy duty It is a 440 4V 4sp car. Maybe that's where I got the number 2863216 from.
I will buy the fan anyway. I have a 69 Roadrunner conv with fact A/C that I will be restoring soon.
I live in Billings Montana .

Richard Hibbs
2514 Old Hardin Road
Billings, MT 59101.

How do you want paid?

Thank you for your research also. I appreciate it.

By Chance do you know anyone who has engine photos of an original 440 4 barrel for reference. i am almost complete and using a 440 6 pac photos. They are close.



[sixpactogo]

I will PM you.



[70gtx440dana]

I have a 3438222 distributor. Will need to be restored. $150 + shipping. PM me for more details. Joe
