Parking / Emergency Brake Electrical Connection - Question

[Cav73]

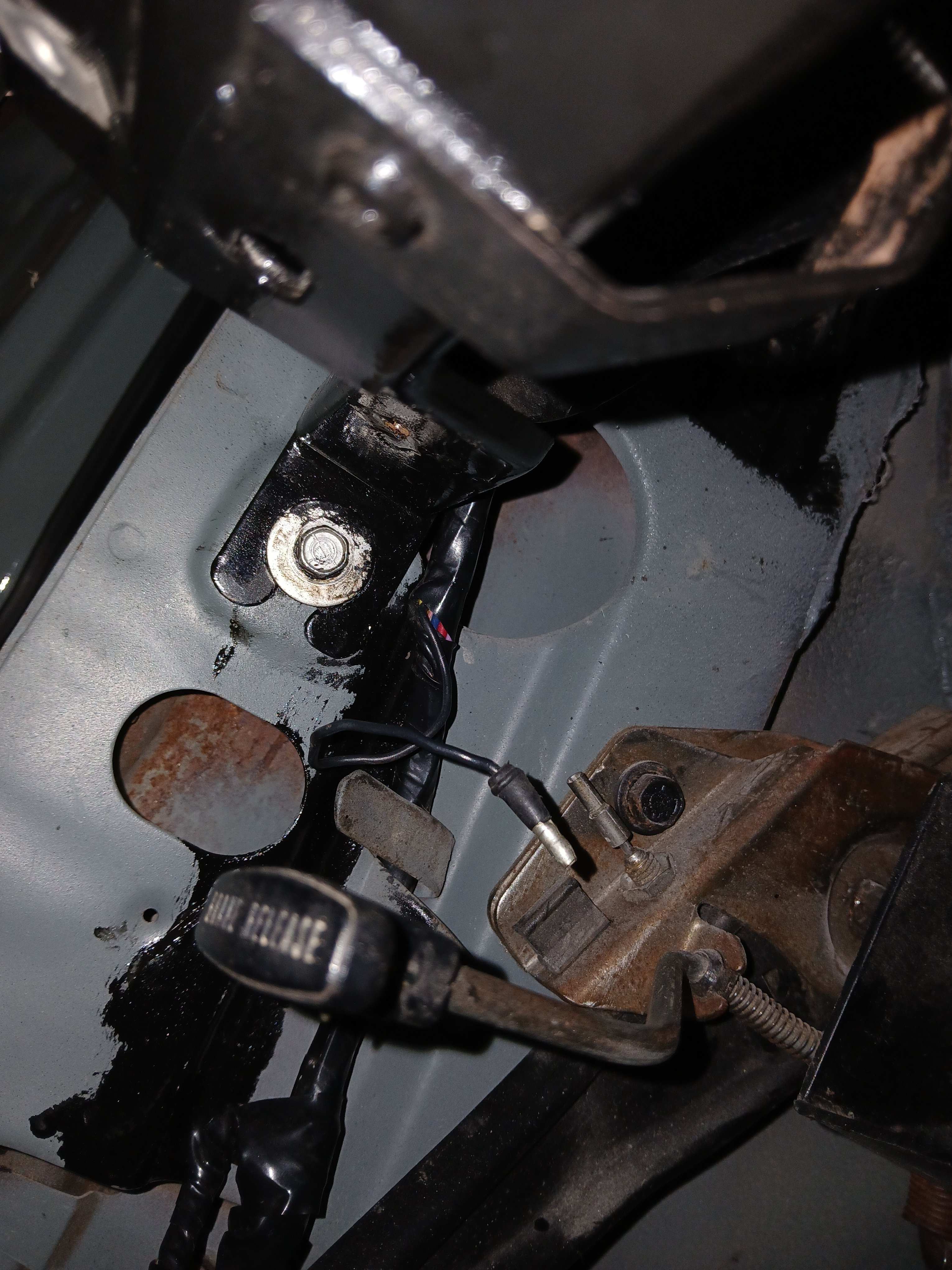

Hi, my first question on the forum. I am about to reconnect my parking brake switch and wire for the first time in probably 20 years. The photo shows the switch at the center and what I believe is the correct black wire and male connector, looking at parking brake assembly with switch from under the dash. A previous thread is helpful in identifying the correct wire, but does the male connector just insert into the hollow tube at the top of the switch? Or is there something I might be missing? I don't want to break anything while trying to jam the connector in.

Thanks!



[Ricks72Chlgr440]

Hi, my first question on the forum. I am about to reconnect my parking brake switch and wire for the first time in probably 20 years. The photo shows the switch at the center and what I believe is the correct black wire and male connector, looking at parking brake assembly with switch from under the dash. A previous thread is helpful in identifying the correct wire, but does the male connector just insert into the hollow tube at the top of the switch? Or is there something I might be missing? I don't want to break anything while trying to jam the connector in.

Thanks!

View attachment 141266

Yes, just plug that male wire into the connector. When the brake handle is pulled the socket makes contact & is grounded thus completing the circuit. It should activate the parking brake light on your dash.



[Cav73]

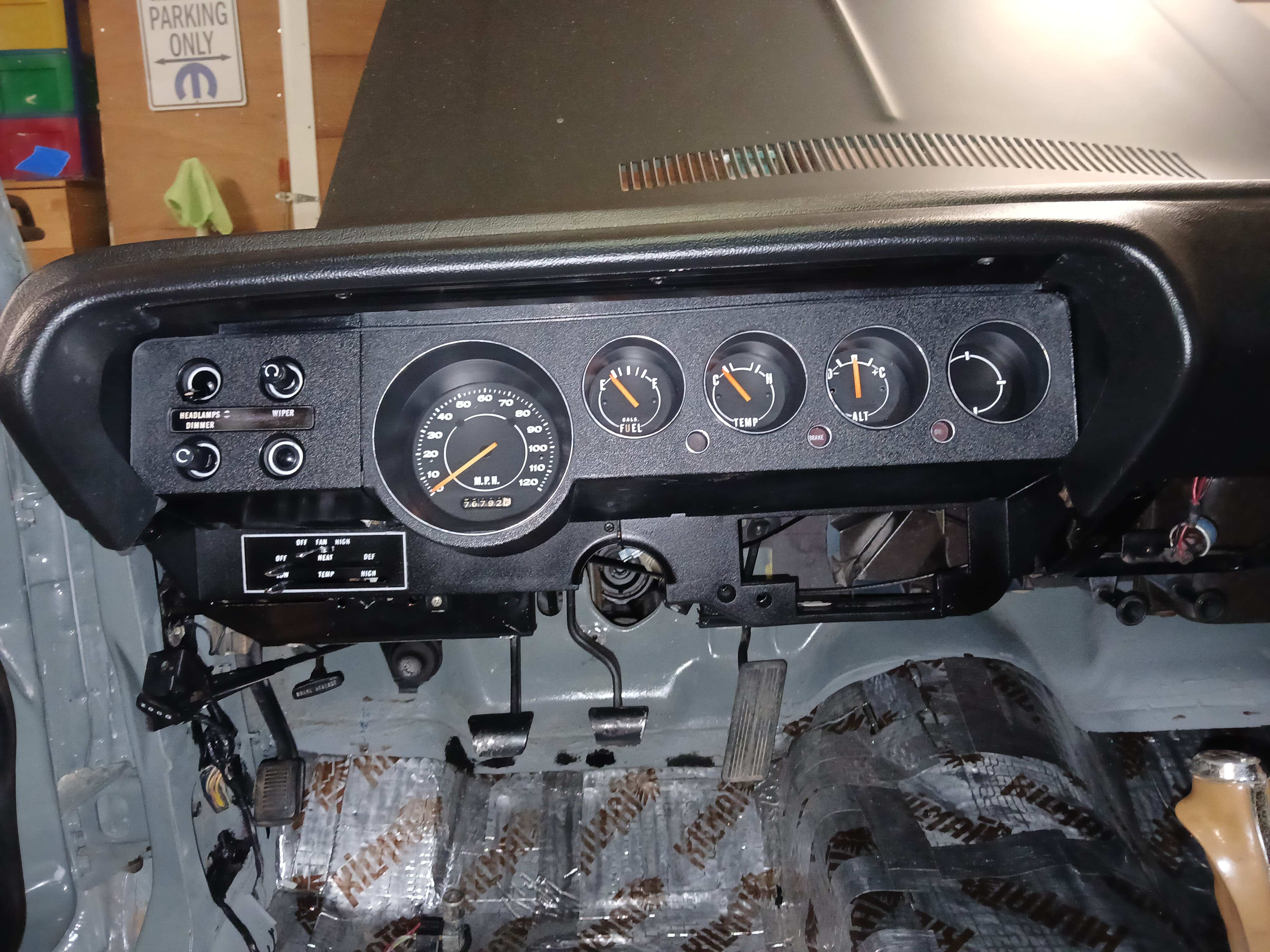

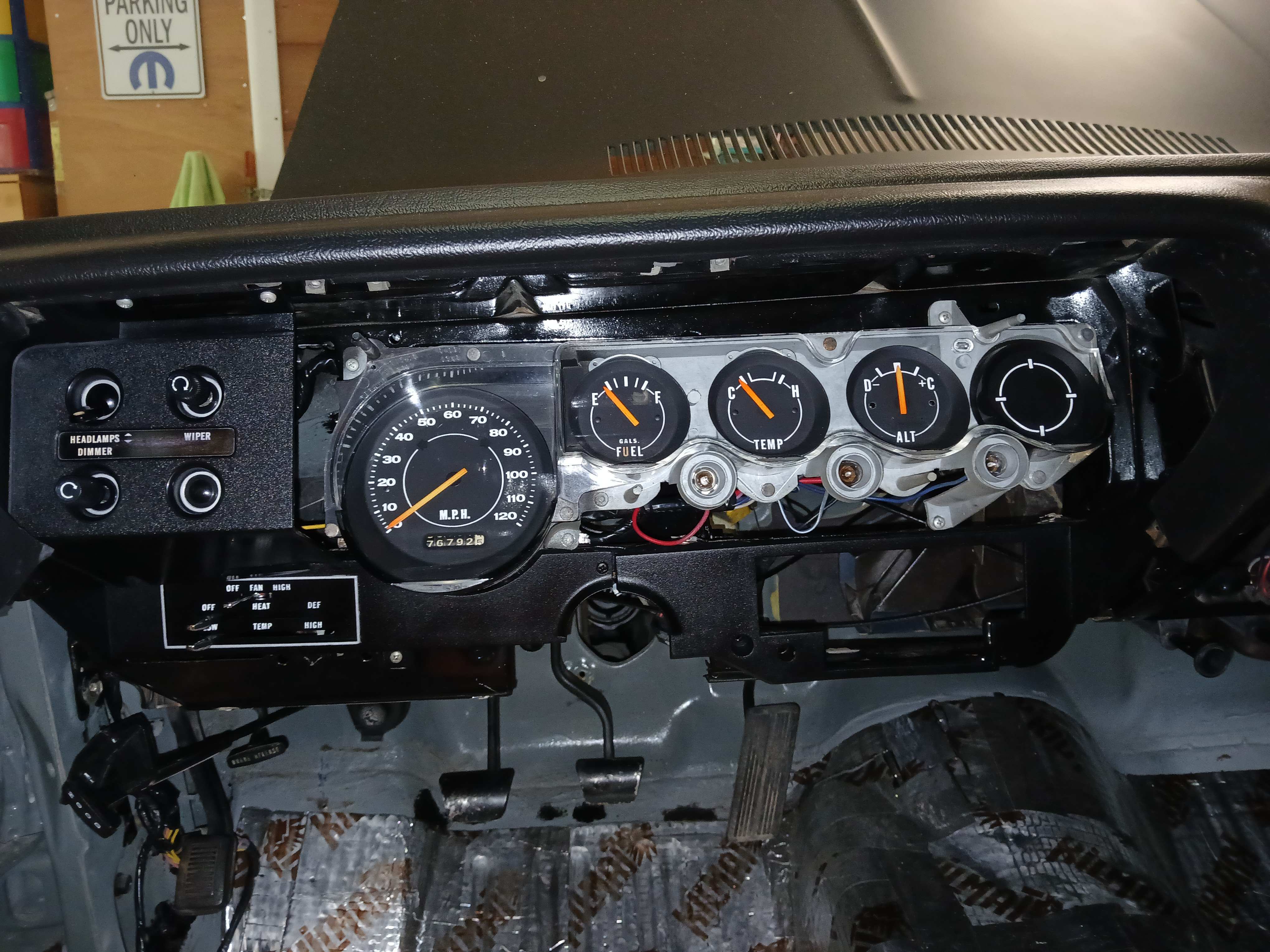

Great, thank you! Couldn't get to it today but should be able to tomorrow. Getting ready to reinstall the standard gauge cluster and switches after repairs and some refinishing.
