    I would be curious too about the advantages of a taller ball joint?
    Dino2 (1).gif

  3. i_taz

    i_taz Well-Known Member

    Messages:
    77
    Likes Received:
    24
    Joined:
    Jul 5, 2017
    Location:
    Pocono's PA
    • Like Like x 1
  4. 340challconvert

    340challconvert Well-Known Member

    Messages:
    3,096
    Likes Received:
    1635
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    The link was good, thanks.
    I also wanted to see some opinions on those ball joints you posted
    I considered the off set UCA bushing to improve alignment or the use of the adjustable tubular units.
    Went with the offset bushings when I rebuilt the front suspension.

  5. i_taz

    i_taz Well-Known Member

    Messages:
    77
    Likes Received:
    24
    Joined:
    Jul 5, 2017
    Location:
    Pocono's PA
  6. 340challconvert

    340challconvert Well-Known Member

    Messages:
    3,096
    Likes Received:
    1635
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    Yes, they worked out great. Offset the UCA and allowed more positive camber adjustment
    I picked up the same Moog offset bushing from Mancini


    Moog Offset Front Control Arm Bushings

  7. i_taz

    i_taz Well-Known Member

    Messages:
    77
    Likes Received:
    24
    Joined:
    Jul 5, 2017
    Location:
    Pocono's PA
    You could file this in the 'sorry I asked folder' but they have a point. How do you know the placement orientation in the control arm....???

    Offset upper control arm bushings

  8. 340challconvert

    340challconvert Well-Known Member

    Messages:
    3,096
    Likes Received:
    1635
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    The original bushings are concentric. (can be installed without attention to orientation).The "offset bushings" need to be installed in such a way as to give greater adjustment movement in the direction needed.
    The bushings, once installed, cannot easily be manipulated to change their orientation unless you press them out and re-install. So correct orientation at install is critical. Once they are installed, all fine tuning is done with the cams.
    These bushings were originally designed to provide additional camber to cars that were damaged or rotten. By installing them the opposite of the factory instructions, you can achieve more caster, which is a bigger influence on the feel of the car. I was told to follow mid 2000's Mustang alignment specs with these bushings.

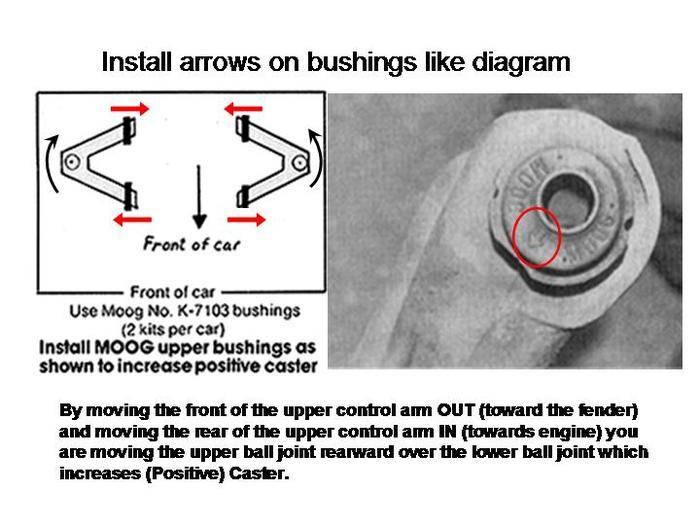

    I had saved this diagram as a reference

    Last edited: Oct 8, 2019
    • Thanks! Thanks! x 1
  9. Steve340

    Steve340 Well-Known Member

    Messages:
    322
    Likes Received:
    78
    Joined:
    Sep 19, 2016
    Location:
    New Zealand
    I would also not be to sure about the taller ball joint.
    I read a tech article that suggested putting washers between the spindle and the ball joint/steering arm.
    All it does is lengthen the bottom arm a bit. I did it and it seems to work well.
    This mod would tend to increase negative camber.
    If you read the Moog spec sheet the way they set the bushes it would only effect caster.

    • Agree Agree x 1
  10. i_taz

    i_taz Well-Known Member

    Messages:
    77
    Likes Received:
    24
    Joined:
    Jul 5, 2017
    Location:
    Pocono's PA
    Did you use 4 or 2...???

  11. Steve340

    Steve340 Well-Known Member

    Messages:
    322
    Likes Received:
    78
    Joined:
    Sep 19, 2016
    Location:
    New Zealand
    If I am understanding your question correctly? You use 4 washers or 2 per side.
    The tech article recommends using thick washers 1/8 inch thick.
    They must be the same thickness in all 4 positions.

  12. i_taz

    i_taz Well-Known Member

    Messages:
    77
    Likes Received:
    24
    Joined:
    Jul 5, 2017
    Location:
    Pocono's PA
    Not exactly... In the B-body blog link it's mentioned you can use 1. I'm guessing the rear one to offset the A-arm. That way it's similar to the way Hotchkis and others build their A frames...longer sections on the rear arm...???

  13. i_taz

    i_taz Well-Known Member

    Messages:
    77
    Likes Received:
    24
    Joined:
    Jul 5, 2017
    Location:
    Pocono's PA
    The diagram is self explanatory....
    but someone did mention that...

  14. Steve340

    Steve340 Well-Known Member

    Messages:
    322
    Likes Received:
    78
    Joined:
    Sep 19, 2016
    Location:
    New Zealand
    Do you want to affect caster or camber? More negative camber is what most people want.
    You could not use only one washer were I am talking about the component would not bolt up "square" with only one washer under the bolt on one side.

  15. 12sandwich

    12sandwich Active Member

    Messages:
    33
    Likes Received:
    13
    Joined:
    Mar 8, 2019
    So your talking about putting washers between the lower ball joint and spindle?

  16. Steve340

    Steve340 Well-Known Member

    Messages:
    322
    Likes Received:
    78
    Joined:
    Sep 19, 2016
    Location:
    New Zealand
    Yes that is correct.

  17. 12sandwich

    12sandwich Active Member

    Messages:
    33
    Likes Received:
    13
    Joined:
    Mar 8, 2019
    I always figured that area to be critical to the strength of the lower ball joint.
    I’ve never seen one broke in that area, so probably not really a weak area.
    I guess it’s a low buck solution for to much positive camber. Cool
