Removing SS Headlight Trim?

Sixpaksteve

Well-Known Member
Joined
Jun 12, 2014
Messages
57
Reaction score
17
Location
Maryland
Hi Guys,

I did a search here and didn't find this question previously asked so here goes....

I need to replace at least one of the stainless steel headlight surround pieces on my original 1970 Cuda bezel. How exactly is this trim piece held on? Just thought I'd ask hoping that someone here has 'been there, done that' and can advise me on how to safely remove it and install a new one so that I don't crack my bezel in the process.

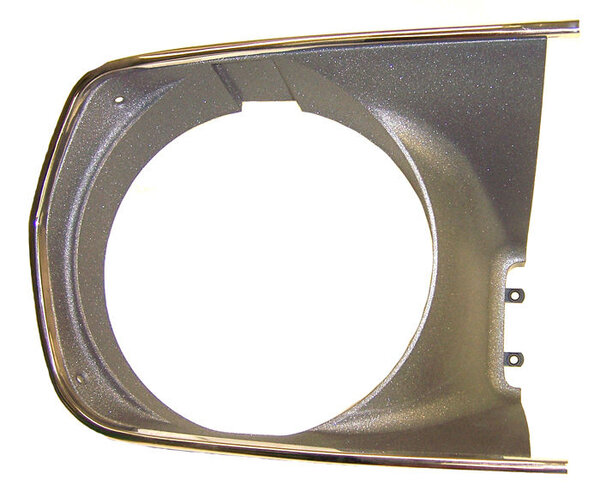

Here's a pic of the type of bezel I'm talking about, with the trim piece already attached.

Thanks!




moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
6,944
Reaction score
1,736
Location
So. Cal. Riverside area Moreno Valley
The trim snaps on . There are about 6 plastic tabs molded into the bezel and the trim just snaps over it. You can use a thin flat blade screw driver to pry the old one off. It doesn't take very much pressure so don't worry about breaking anything. Here is a picture of a bezel without the trim attached so you can see the little tabs I was talking about.
http://www.ebay.com/itm/371278388709?rmvSB=true

Last edited:

FY170T

Well-Known Member
Joined
Sep 25, 2014
Messages
81
Reaction score
12
Location
Florida
You can use 2 small pocket screwdrivers and pry the mld apart.works very well.
