Vacuum Issue

Joined
Jun 19, 2021
Messages
23
Reaction score
4
Location
Claxton Georgia
Got the heater box back in my 72 Challenger but having trouble with vacuum tube routing ! Especially one from engine compartment ? Any guide to vacuum routing diagrams and where vacuum originally came from engine??


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
812
Reaction score
321
Location
PA Flood city

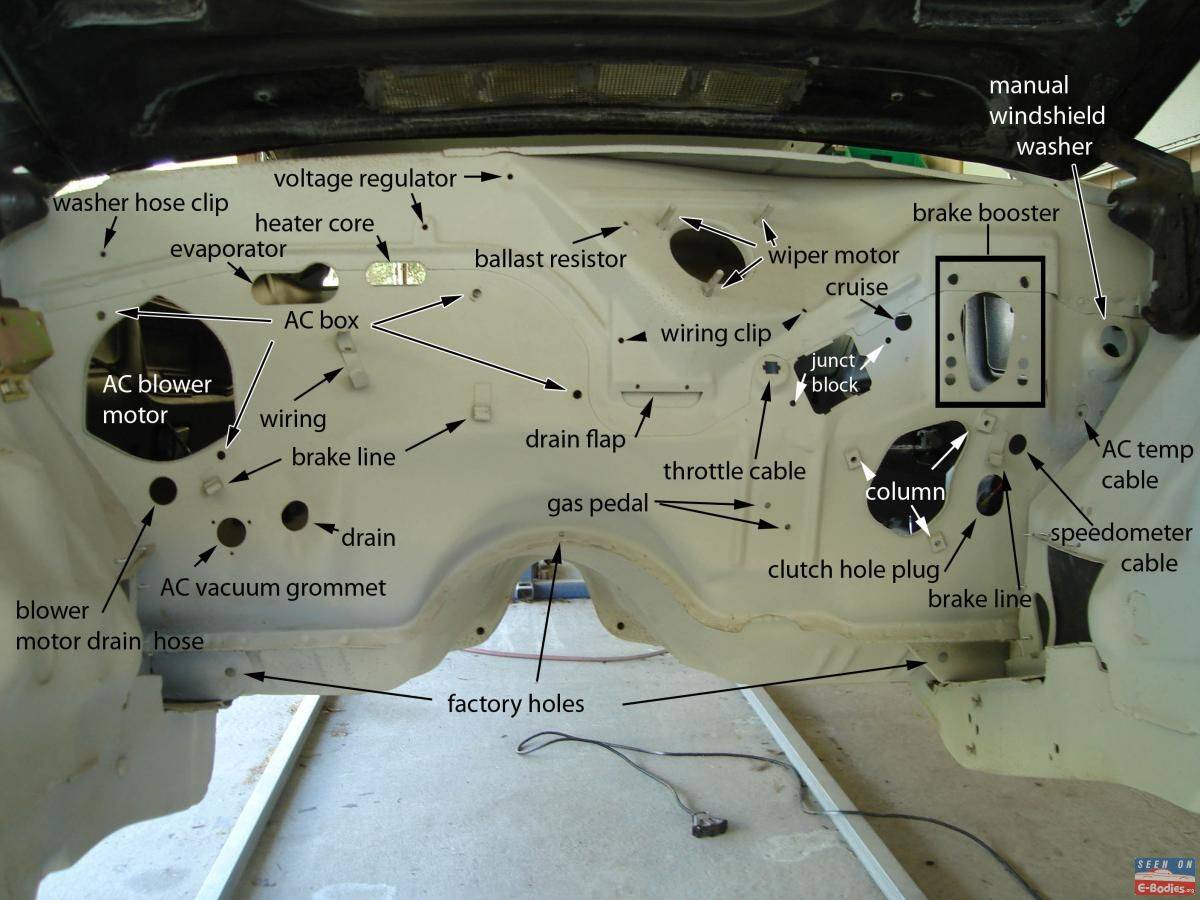

firewall holes


Attachments

  • proxy_014.jpg
    115.1 KB · Views: 93

moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
6,235
Reaction score
1,236
Location
So. Cal. Riverside area Moreno Valley

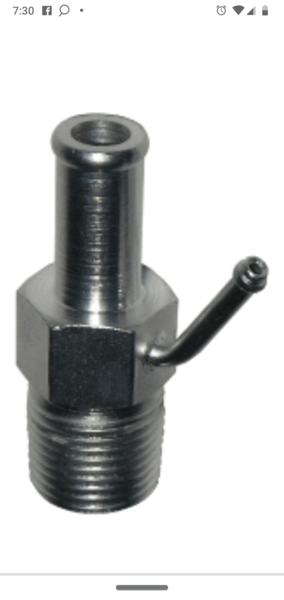

The nipple on the rear of the intake manifold that has 2 fittings . A large one for power brake booster vacuum and a very small on that id curved to point up that the small vacuum line attaches to. As for the rest, there is a diagram in your Factory Service Manual that has that info. You will usually find most answers in the Manual.
