voltage to instrument panel lights?

rogue

Well-Known Member
Joined
May 21, 2013
Messages
207
Reaction score
43
I'm assuming this is the result of a 50 year old dimmer... seems the most voltage i can get to the instrument panel bulbs is 9v... a fully functional dimmer switch should provide up to the full 12v right?


tonysrt

Well-Known Member
Joined
Mar 12, 2017
Messages
451
Reaction score
102
Dimmer switches on the Ebodies are garbage. I have one with broken metal tabs on it. There is a guy on here that rebuilds them, I can't remember who but if you search it may come up. The one in my car shorts out so out of 3 I have 1 good one. Of course they weren't made to last 50 years.


73-Cudah2

Well-Known Member
Joined
Sep 9, 2021
Messages
83
Reaction score
12
Location
Minnesota
I just bypassed mine to get by until I fix it or get another one so I have dash lights!


Attachments

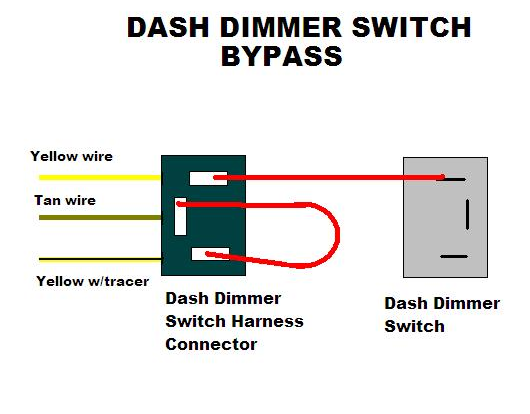

  • Dimmer-jumper-picture.png
    31.7 KB · Views: 113

rogue

Well-Known Member
Joined
May 21, 2013
Messages
207
Reaction score
43
thanks all... i'll probably just bypass it for now (good suggestion)... it's definitely not the supply voltage.


tonysrt

Well-Known Member
Joined
Mar 12, 2017
Messages
451
Reaction score
102
The dimmer switches in E bodies are pretty generic, not specific to the E bodies. They were used all across the Mopar line.
What other dimmer can we use if they're generic?


heminut

Well-Known Member
Joined
Dec 28, 2008
Messages
418
Reaction score
278
Location
Deming, New Mexico
its not generic, e body only
Uh, NO it's not E body only! Posting missinformation like this doesn't benefit anybody.

AMC as well as Chrysler used the switch all across model lines from 1960 up to at least 1980! Don't believe me? Go to the link below and click on 'Check the fit'. There well over 20 pages of vehicle listings that switch fits.



themechanic

Well-Known Member
Joined
Aug 16, 2019
Messages
209
Reaction score
53
Location
Moore, OK
Uh, NO it's not E body only! Posting missinformation like this doesn't benefit anybody.

AMC as well as Chrysler used the switch all across model lines from 1960 up to at least 1980! Don't believe me? Go to the link below and click on 'Check the fit'. There well over 20 pages of vehicle listings that switch fits.

The OP is talking instrument lights. There's a dimmer for them, too.


ted s

Well-Known Member
Joined
Sep 8, 2021
Messages
169
Reaction score
61
Location
ny
he isnt asking about the high beam switch


tonysrt

Well-Known Member
Joined
Mar 12, 2017
Messages
451
Reaction score
102
The bottom line is the E body instrument panel dimmer switch is E body only.


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
3,732
Reaction score
1,397
Location
Panama
JS Restorations rebuilds [or used to] E body dimmers switches , jumping the switch is an option , using LED bulbs is also an option but may be too bright requiring a dimmer or added resistance of some sort if the LED will even dim at all .


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
1,246
Reaction score
937
Location
Western Washington
I have resurrected a couple of them, if you take them apart you will see that there is a contact that slides over a ring of wrapped wire (ie rheostat) and typically those wires get tarnished as does the contact. You can clean them in a variety of ways but I use a solution of white vinegar and salt (soak it) and then rinse it in clean water.


Ele115

Well-Known Member
Joined
Jun 4, 2021
Messages
90
Reaction score
56
Location
S. Fla
Do what's posted directly above, or even use a copper scouring pad from the grocery store. Avoid LED's. Chances are half of them will die out in a week and you'll have to go back in there and start all over again. Keep the Chicoms out of your dash, you'll be a lot happier. Also, you don't really need 600,000 CP dash lights anyway


Ele115

Well-Known Member
Joined
Jun 4, 2021
Messages
90
Reaction score
56
Location
S. Fla
I can't remember when's the last time I've seen a Frisbee. Probably about the last time my vote counted
