Wide band vs narrow band

heminut

Well-Known Member
Joined
Dec 28, 2008
Messages
153
Reaction score
117
Location
Deming, New Mexico
Okay, I'm an old school guy and not very up to date on the new stuff, carburetors are more my speed than fuel injection. I am looking at trying using an air fuel gauge to tune my carb and I see both wide band and narrow band setups, with a considerable price difference between the two. My question is, will a narrow band setup work when used as a tuning aid for tuning a carb? I don't want to spend more than I need to to accomplish what I want. This is probably my last build and being retired, I'm on a somewhat limited budget but I don't want to buy something that's not going to let me do what I want. My headers already have O2 bungs so that's not an issue.


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
955
Reaction score
695
Location
Western Washington
Wideband Oxygen Sensors Vs. ... Wideband sensors were developed to more accurately measure A/F ratios over a broader range of operating conditions (hence the name). A narrowband sensor can measure only between approximately 14.0/15.0:1 air/fuel ratios to report a rich or lean condition, but a wideband is much more robust


heminut

Well-Known Member
Joined
Dec 28, 2008
Messages
153
Reaction score
117
Location
Deming, New Mexico
The narrow band gauge I'm looking at shows an A/F range of 10 to 20.

I still need to know if a narrow band O2 setup will work for tuning a carb.

Last edited:

Cratos

Well-Known Member
Joined
Sep 11, 2018
Messages
331
Reaction score
44
Location
Sunny Florida

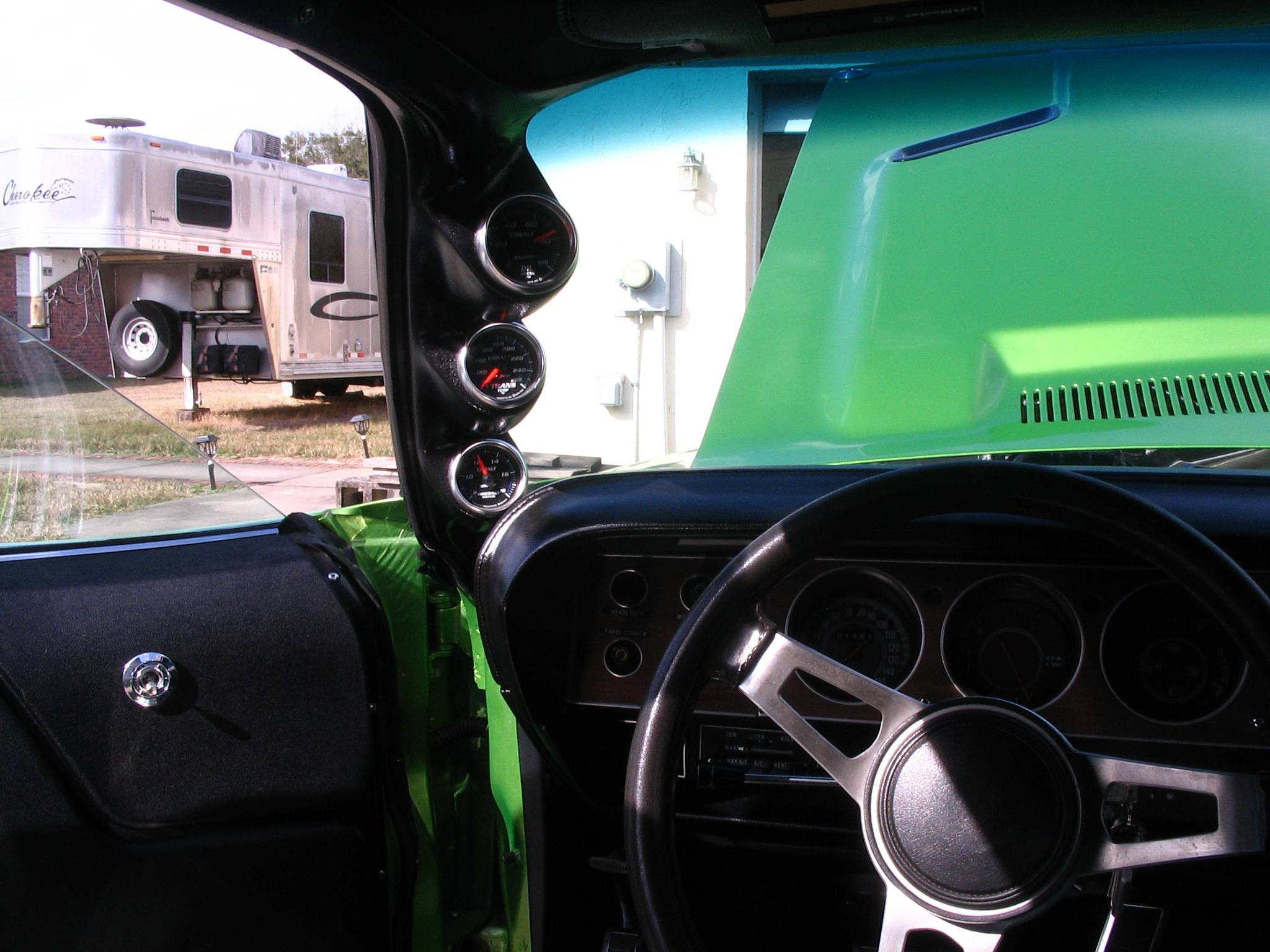

I use a wide band on mine. it measures in 10th so it is much more accurate.


Attachments

  • IMG_0477.JPG
    714.3 KB · Views: 12

70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
955
Reaction score
695
Location
Western Washington
The narrow band gauge I'm looking at shows an A/F range of 10 to 20.

I still need to know if a narrow band O2 setup will work for tuning a carb.
I think a narrow band would be better than nothing but I don't think it is going to get you where you actually want to be.


Steve340

Well-Known Member
Joined
Sep 19, 2016
Messages
461
Reaction score
95
Location
New Zealand
I did some research on this subject and the wide band is recommended. Can not exactly remember why.
I have an Innovate Motorsports wide band kit it works very well and I purchased it off Summit for around $175


Dodgeboy

Well-Known Member
Joined
Jun 23, 2017
Messages
106
Reaction score
27
Location
Winnipeg Manitoba, Canada
I went with a AEM wideband sensor and didigital gauge. It was expensive but makes it real easy. Use a vacuum gauge to set idle and do the rest with the a/f gauge. I didn't want a green/yellow/red light gauge (like edlebrock sells) for a/f ratio.
A narrow band sensor with a volt meter tester is the cheapest but you need a buddy to read the meter while your driving and then figure out what the volt readings mean. Narrow band sensors were used more for a on/off or rich/lean switch when fuel injection started out in the '80's.


Rons340

Well-Known Member
Joined
Jan 16, 2021
Messages
51
Reaction score
28
Location
Tennessee
From my 30+ years of carb. and fuel injection experience I learned that the narrow band O2 sensors were used as a more precise control for the fuel injection systems. The wide band systems were initially used by car manufactures in the early '80s to control CCC systems (computer control carburetor) and early fuel injection systems but as the EPA continued strangling the manufactures for more MPG and less emissions they were forced to develop the narrow band systems for a more precise control of fuel, always looking to attain that elusive 14.7:1 air/fuel ratio. The narrower the band the more precise the fuel control. The theory of operation explains this better but I won't get into that here.

With that short history lesson I would say that the wide band sensor is more usable for us as tuners or use on a Dyno. If you are running fuel injection then that's another conservation altogether. In my opinion, the broadband is better for tuning and the narrow band is better for control.


DaveBob

Well-Known Member
Joined
Jul 24, 2020
Messages
45
Reaction score
27
Okay, I'm an old school guy and not very up to date on the new stuff, carburetors are more my speed than fuel injection. I am looking at trying using an air fuel gauge to tune my carb and I see both wide band and narrow band setups, with a considerable price difference between the two. My question is, will a narrow band setup work when used as a tuning aid for tuning a carb? I don't want to spend more than I need to to accomplish what I want. This is probably my last build and being retired, I'm on a somewhat limited budget but I don't want to buy something that's not going to let me do what I want. My headers already have O2 bungs so that's not an issue.
I am using a wide band sensor (NGK, I recall) that reads out A/F ratio to two decimal places. I am tuning a Carter AVS, so I created a spreadsheet of all the primary jet and metering rod combinations with resulting open area to show richer vs leaner combinations. The jets are in 0.003 increments. The ideal primary jet ended up being 0.092, which I didn't have, (even though I had an AVS strip kit) but I did have a 0.089 jet, which I reamed to size. The external thread on the jet is a standard thread, so I drilled and tapped a hole in a .25 thick aluminum plate to hold the jet on the drill press table. The reamer, including non-standard sizes, like 0.092, are available from McMaster Carr. I used a vacuum gauge to select metering rod springs to eliminate hesitation. I used the old key reminder switch to power a relay that provides power to the stereo and the O2 sensor. That way, by just inserting the ignition key, I can preheat the sensor before starting the motor or listen to the stereo without turning the key to run or accessory.


heminut

Well-Known Member
Joined
Dec 28, 2008
Messages
153
Reaction score
117
Location
Deming, New Mexico
I am using a wide band sensor (NGK, I recall) that reads out A/F ratio to two decimal places. I am tuning a Carter AVS, so I created a spreadsheet of all the primary jet and metering rod combinations with resulting open area to show richer vs leaner combinations. The jets are in 0.003 increments. The ideal primary jet ended up being 0.092, which I didn't have, (even though I had an AVS strip kit) but I did have a 0.089 jet, which I reamed to size. The external thread on the jet is a standard thread, so I drilled and tapped a hole in a .25 thick aluminum plate to hold the jet on the drill press table. The reamer, including non-standard sizes, like 0.092, are available from McMaster Carr. I used a vacuum gauge to select metering rod springs to eliminate hesitation. I used the old key reminder switch to power a relay that provides power to the stereo and the O2 sensor. That way, by just inserting the ignition key, I can preheat the sensor before starting the motor or listen to the stereo without turning the key to run or accessory.
I am trying to tune a Carter AFB. I would definitely like to chat with you more as it seems you already have experience with these carbs!


Mopar Mitch

Well-Known Member
Joined
Aug 5, 2013
Messages
116
Reaction score
37
Location
NW Chicago Suburbs
I'd like to get this gauge (wide-band) to better tune my Six-Pack.... I wonder if just one unit is good enough (per one side of exhaust), or else get two units (one for each header at the collector areas). Advice?


heminut

Well-Known Member
Joined
Dec 28, 2008
Messages
153
Reaction score
117
Location
Deming, New Mexico
I would say that you only need to run a sensor on one side. The throttle body FI systems only run one sensor to calibrate on the fly.


Steve340

Well-Known Member
Joined
Sep 19, 2016
Messages
461
Reaction score
95
Location
New Zealand
If you have a dual plane manifold sensing in one pipe is at best giving you the average A/F of 4 cylinders.
That would generally be close enough IMO


ctaarman

Well-Known Member
Joined
Nov 8, 2016
Messages
80
Reaction score
17
I use the Innovate kit with the Bosch wideband. I made a portable version that I use on all my cars. Bung is welded into a 15" piece of 2.5 inch exhaust pipe. Made flapper for end that opens based on exhaust gas pressure. Hook it up to my cars exhausts using good old heavy duty aluminum foil. Put gauge in a small box. Power with a cheap battery box. The only thing I can't get as accurate as a permanent one is dynamic reading under load, but I can see power valve operation and get darn close on settings. Total cost under $200.
