1970 Barracuda Gran Coupe- Upper Peninsula Car!

Mopaholic426

Member
Joined
Jun 17, 2021
Messages
8
Reaction score
23
Location
Holland MI

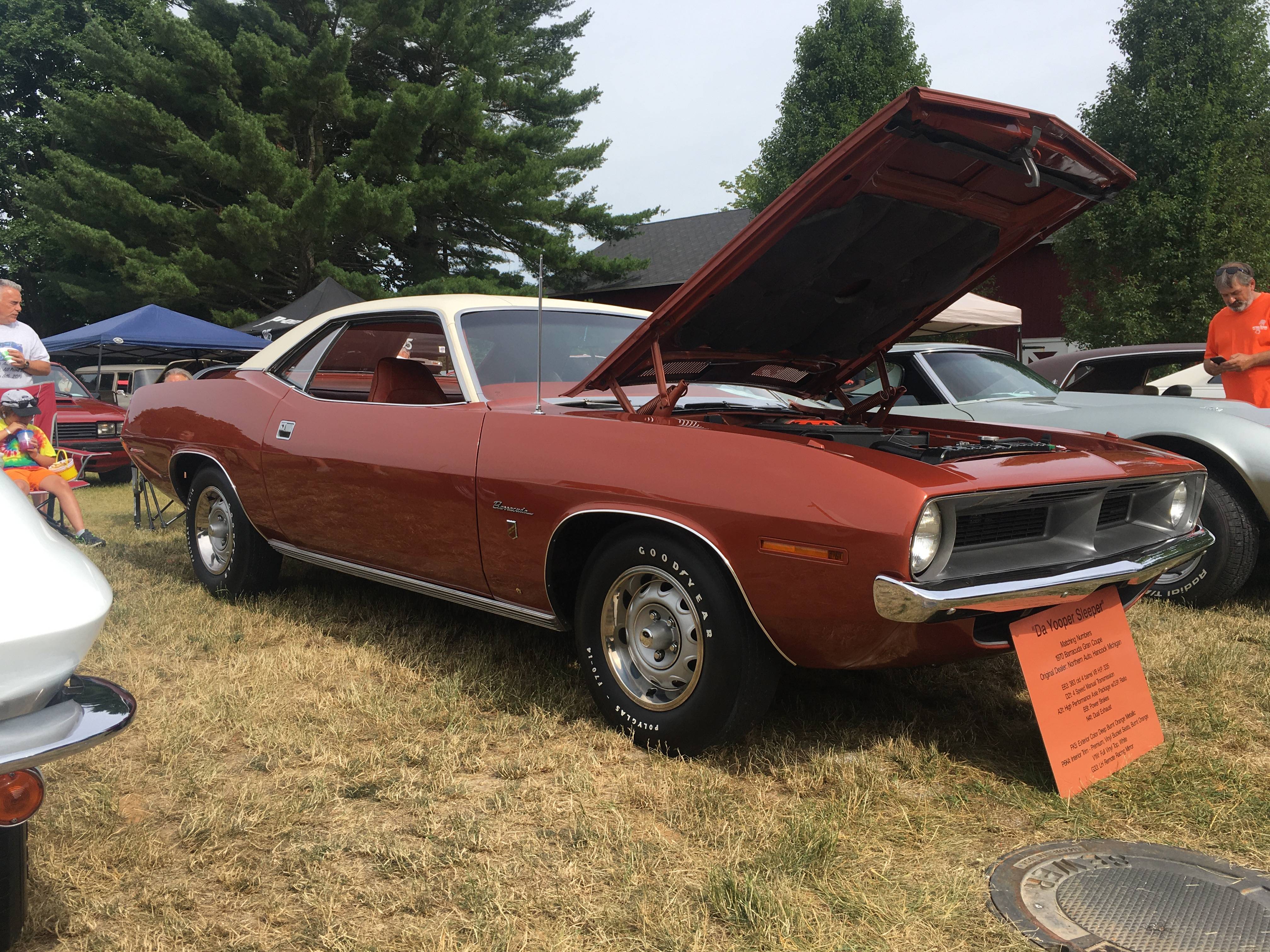

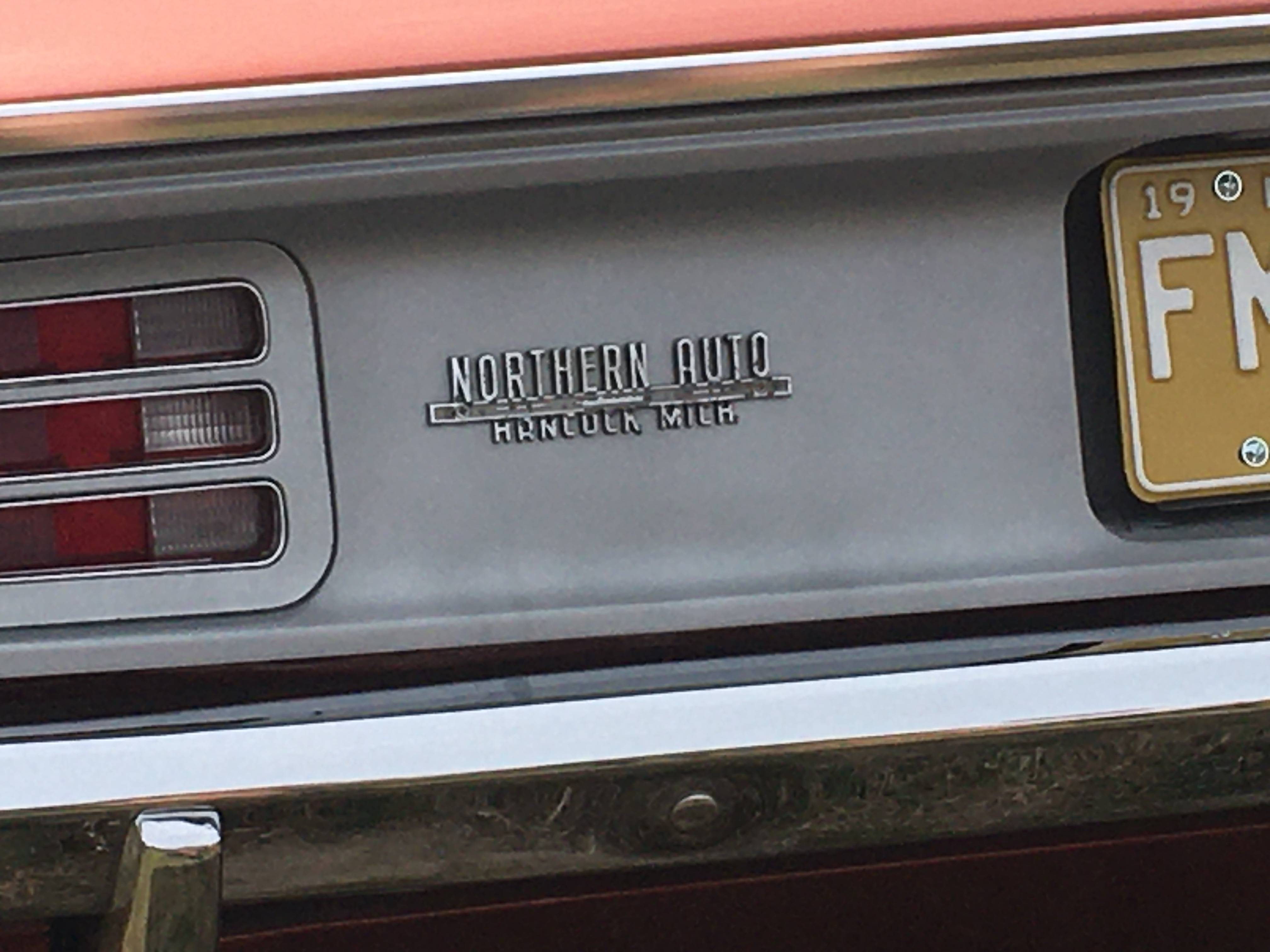

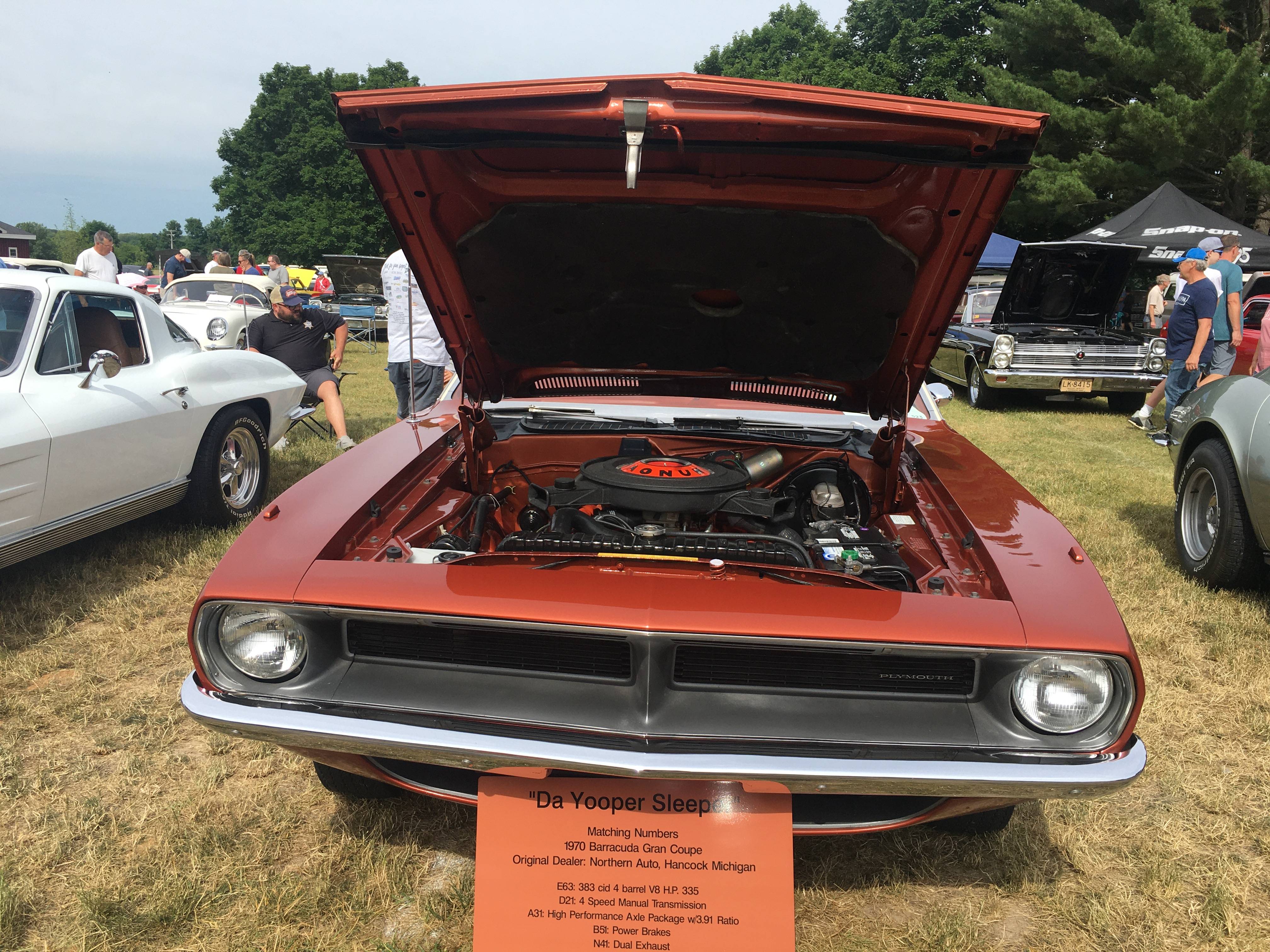

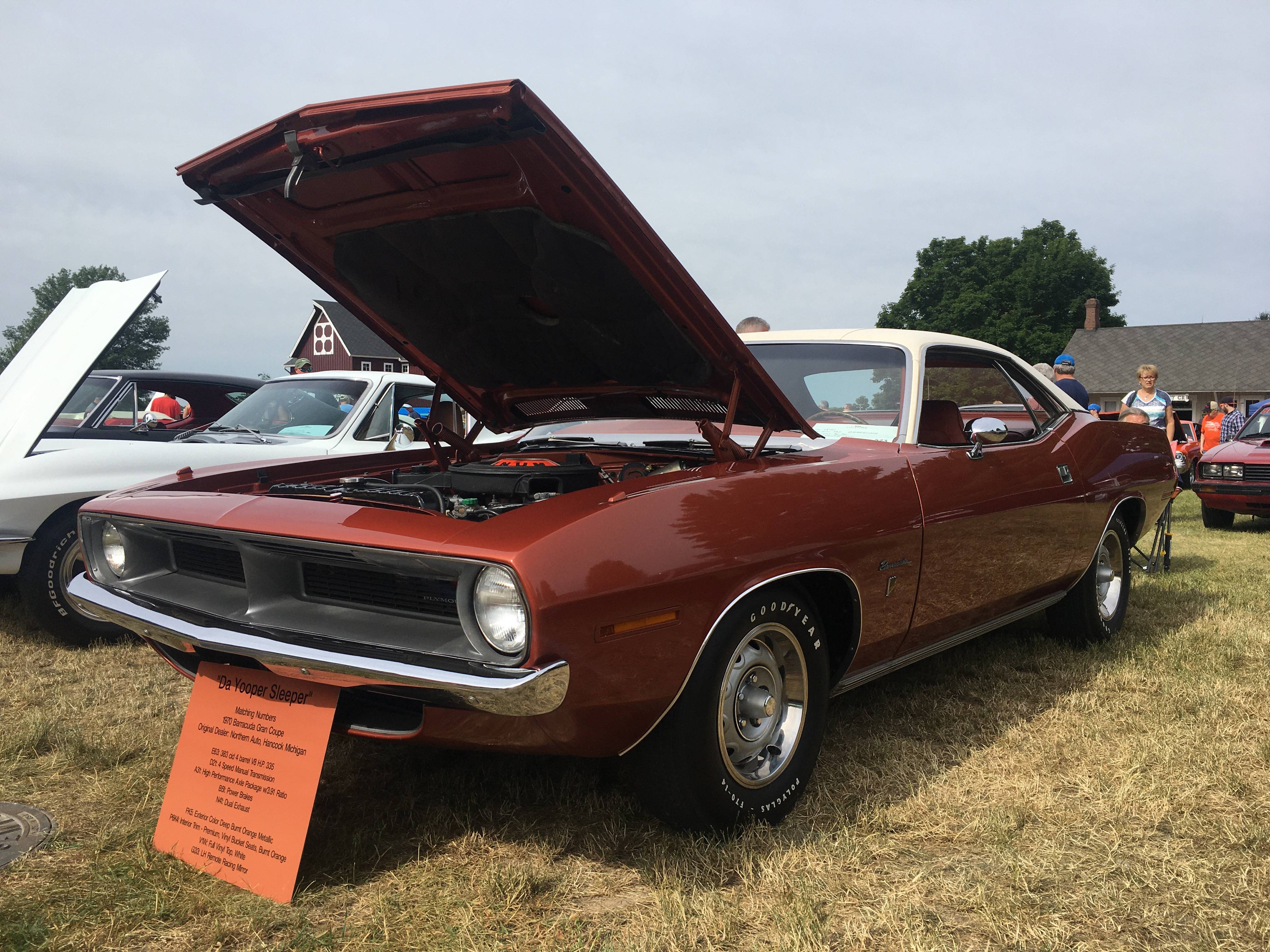

This is a legitimate 383 4 spd Gran Coupe. A lot of people debate the exhaust tips and the hood with the engine, but it’s all legitimate. After all, it is a Gran Coupe. It’s a Burnt Orange car, with Burnt Orange interior, and a white vinyl top. This car hits home, it’s from Northern Auto (Chrysler) in Hancock, MI, about thirty minutes from my grandparents’ place. Very cool car, one of my favorites in the show.


















Last edited:

Cuda Hunter

Well-Known Member
Joined
Dec 28, 2008
Messages
2,375
Reaction score
707
Location
Salida Colorado
Beautiful car! I dig that flat hood.

We have nothing to debate as we do not have a fender tag readout.

I can claim anything was on my car without the fender tag or build sheet.

That car should have come with a flat hood.
The tips can't be debated if they are on the fender tag.

However I am unfamiliar with that actual tip set up. Love to hear some more info on that.

The build sheet would shed some more light on the subject.

Otherwise, that is just an awesome example of that color! FK5


Cuda Hunter

Well-Known Member
Joined
Dec 28, 2008
Messages
2,375
Reaction score
707
Location
Salida Colorado
I wonder why the grill has no red bars. I thought all gran coupe's came with those.

@Mopaholic426 Does this look close?

L31 N41 R11 Y05 EN1
C16 C26 C55 H51 M21
V1W A01 A31 B51 G33
FK5 P6K4 000 --- -------
E63 D21 BP23N0B------


68GSS440

Active Member
Joined
Oct 5, 2016
Messages
26
Reaction score
5
Location
Naperville, IL

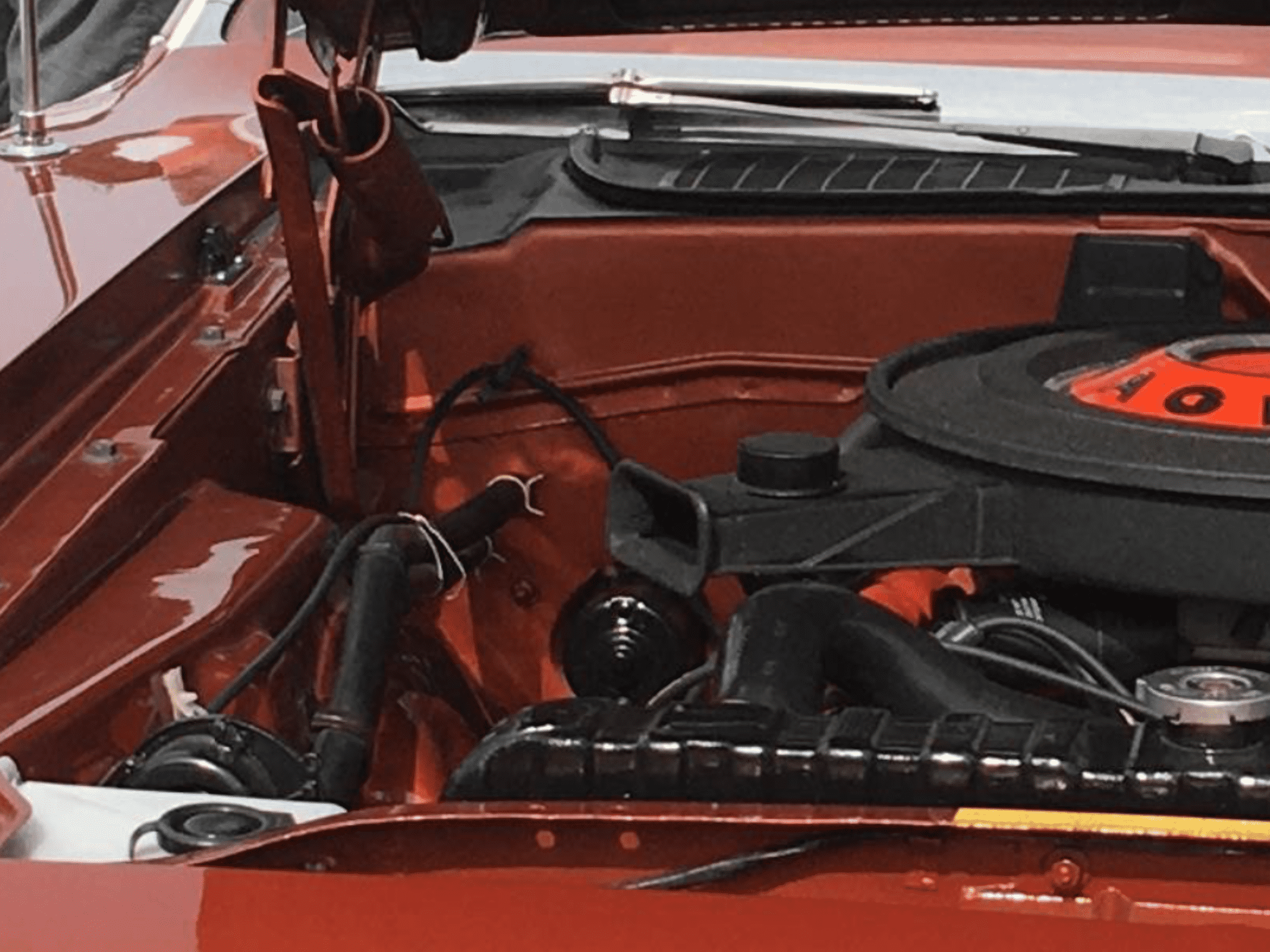

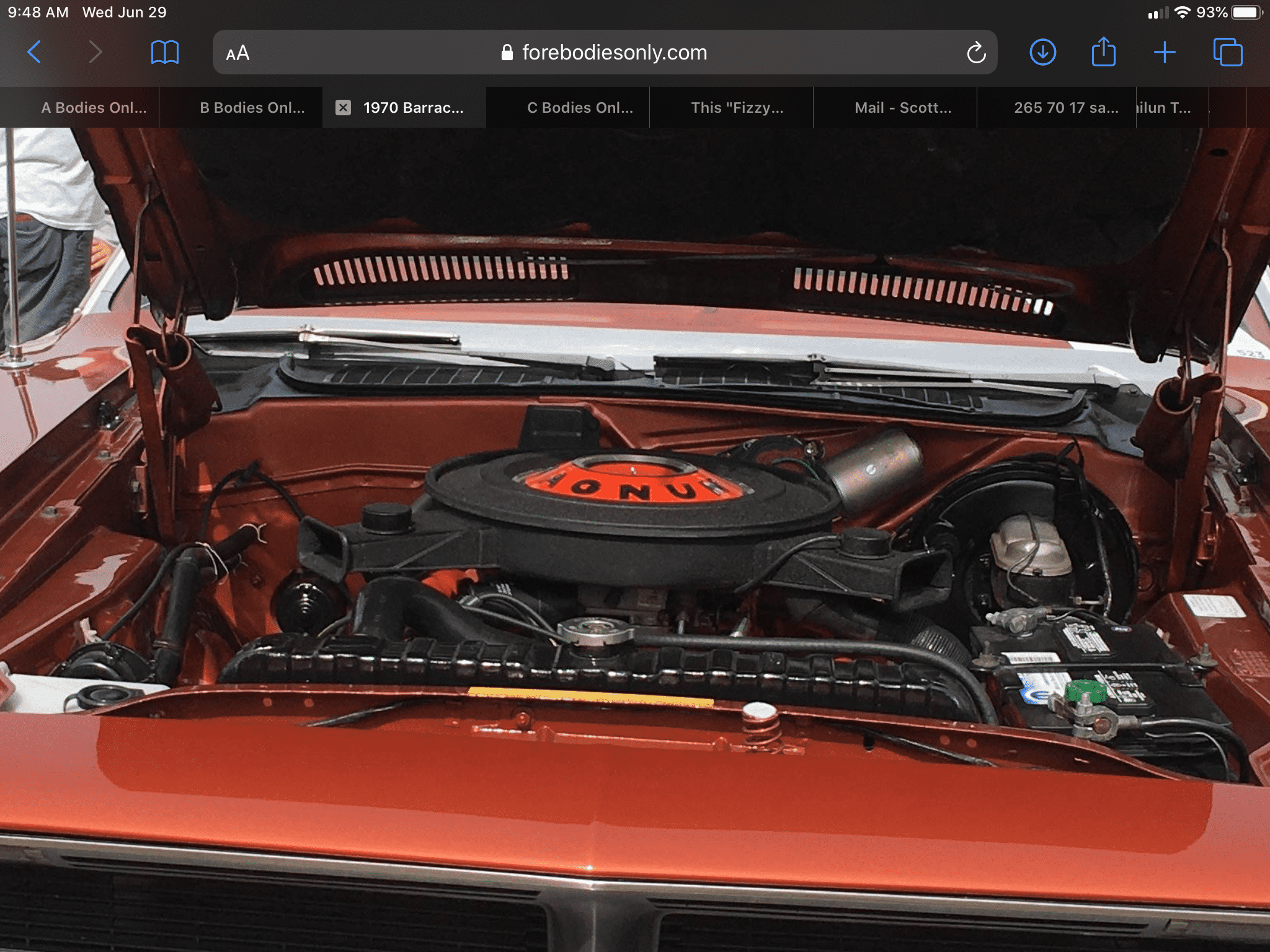

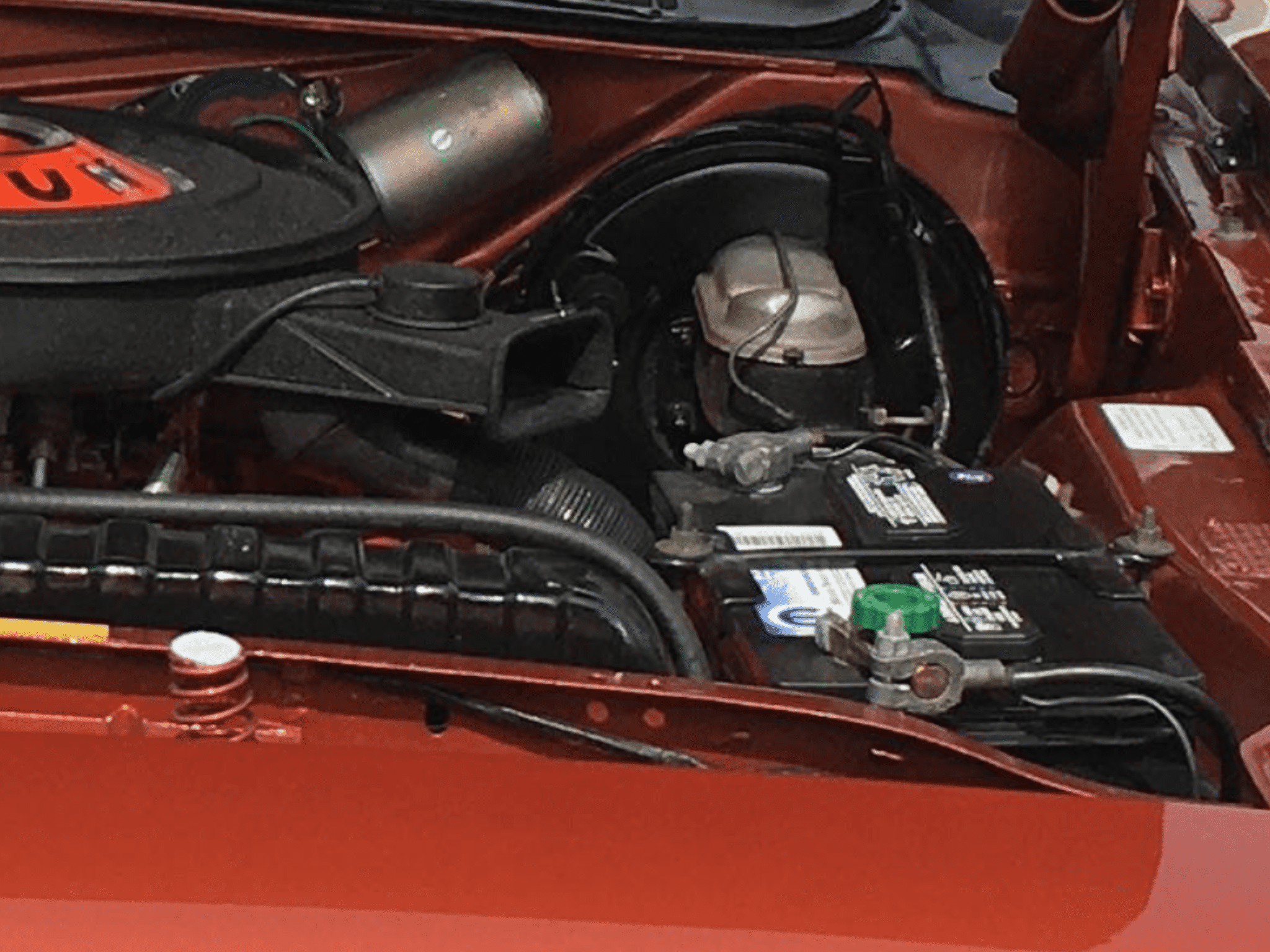

I see in picture of the engine that the fender tag is present, I wonder if someone got a close up of the tag?

Last edited:

68GSS440

Active Member
Joined
Oct 5, 2016
Messages
26
Reaction score
5
Location
Naperville, IL
I wonder why the grill has no red bars. I thought all gran coupe's came with those.

@Mopaholic426 Does this look close?

L31 N41 R11 Y05 EN1
C16 C26 C55 H51 M21
V1W A01 A31 B51 G33
FK5 P6K4 000 --- -------
E63 D21 BP23N0B------
from the top, the second and third lines should have 6 sets of letters / numbers. still hoping for a picture of the fender tag...


70 4715

Member
Joined
Jul 29, 2021
Messages
19
Reaction score
16
Location
Canada
The "red bars" are used only on 'cuda models, and M46 optioned cars. Gran Coupe grilles have the plastic chromed rectangular inserts identical to those on AAR cars.

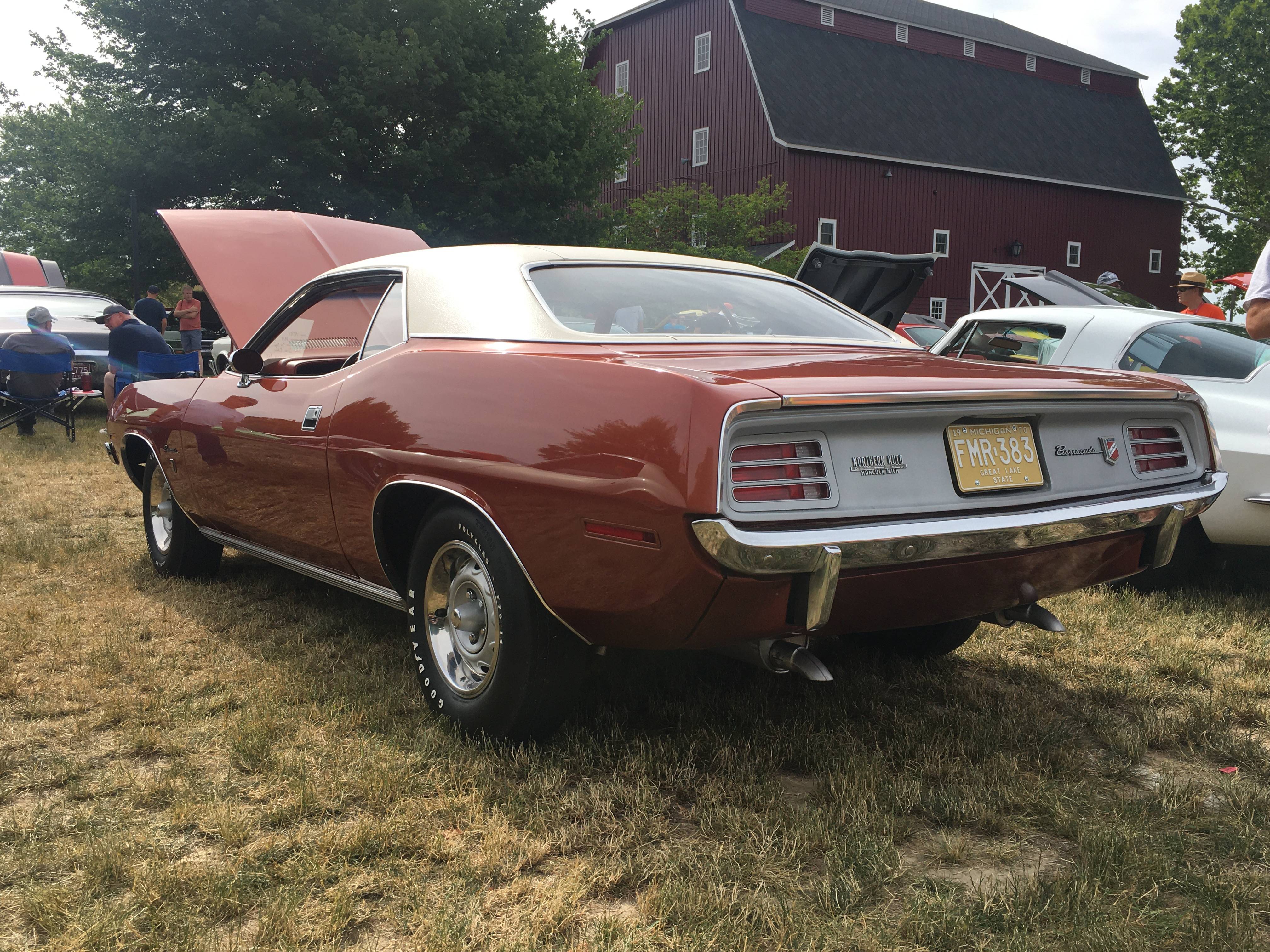

The tips and mufflers at the back of this car have been added, original ones would not show the way these do, and they only come as turn-downs, NEVER through the rear valence, which is a 'cuda thing only.


70 4715

Member
Joined
Jul 29, 2021
Messages
19
Reaction score
16
Location
Canada
The "red bars" are used only on 'cuda models, and M46 optioned cars. Gran Coupe grilles have the plastic chromed rectangular inserts identical to those on AAR cars.
The tips and mufflers at the back of this car have been added, original ones would not show the way these do, and they only come as turn-downs, NEVER through the rear valence, which is a 'cuda thing only.

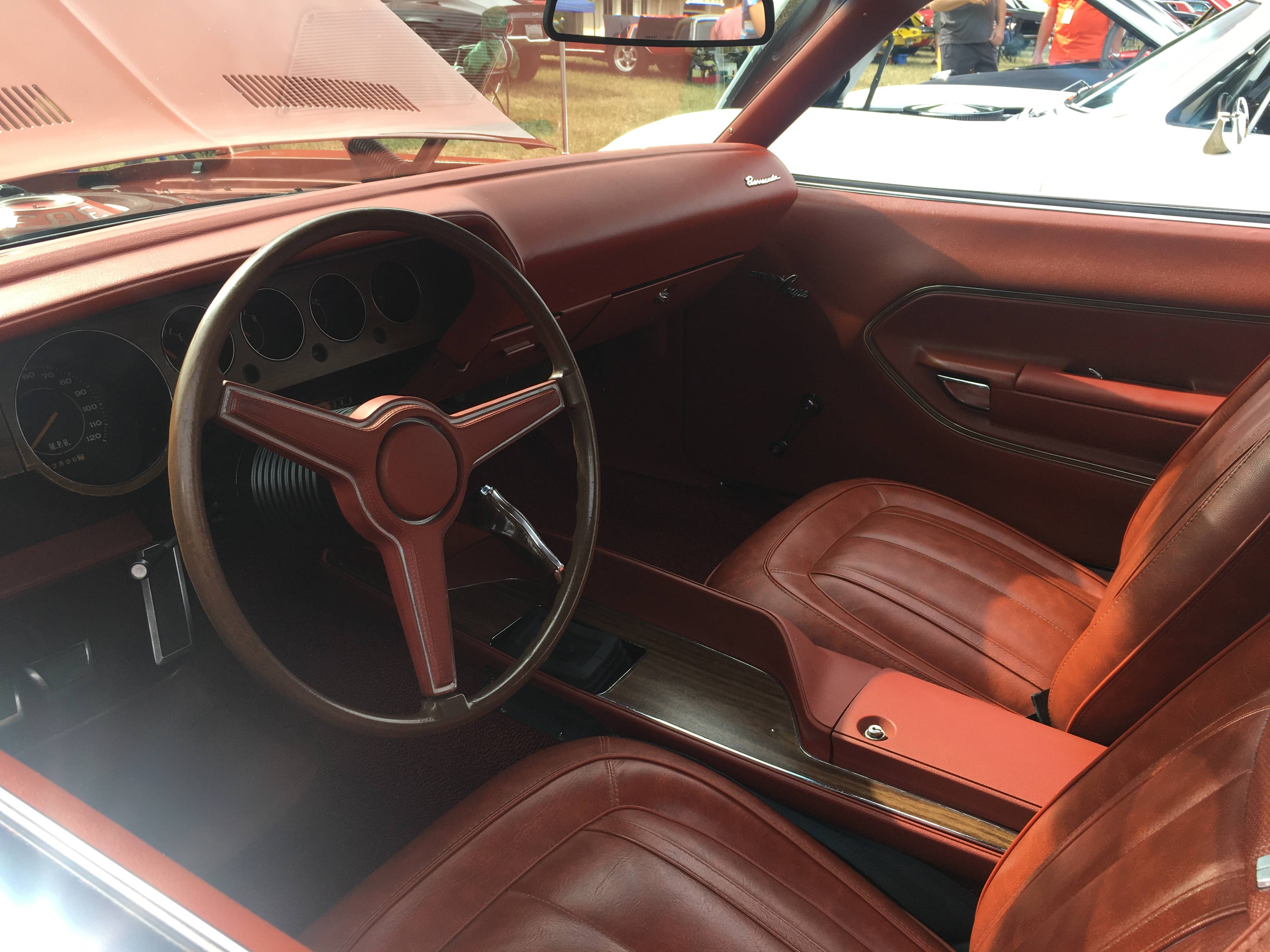

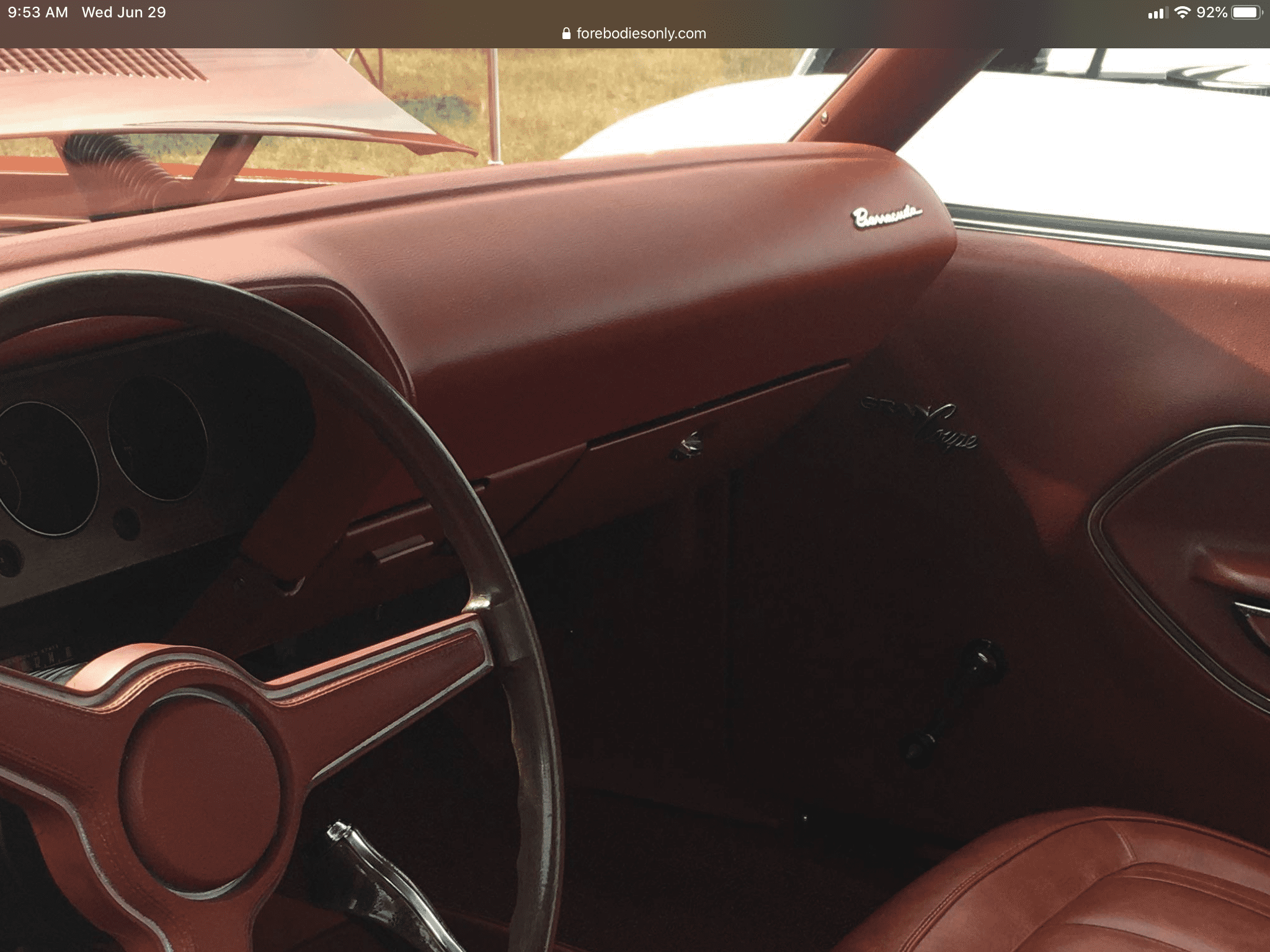

It’s been somewhat monkeyed with. Some or maybe all of the A/C is missing, there would always be a hose obscuring the fender tag, it is not there. The rectangular grille inserts are gone as well. Dash has been changed out, evident by the Barracuda script nameplate sitting on top of the dash pad, rather than recessed into it.

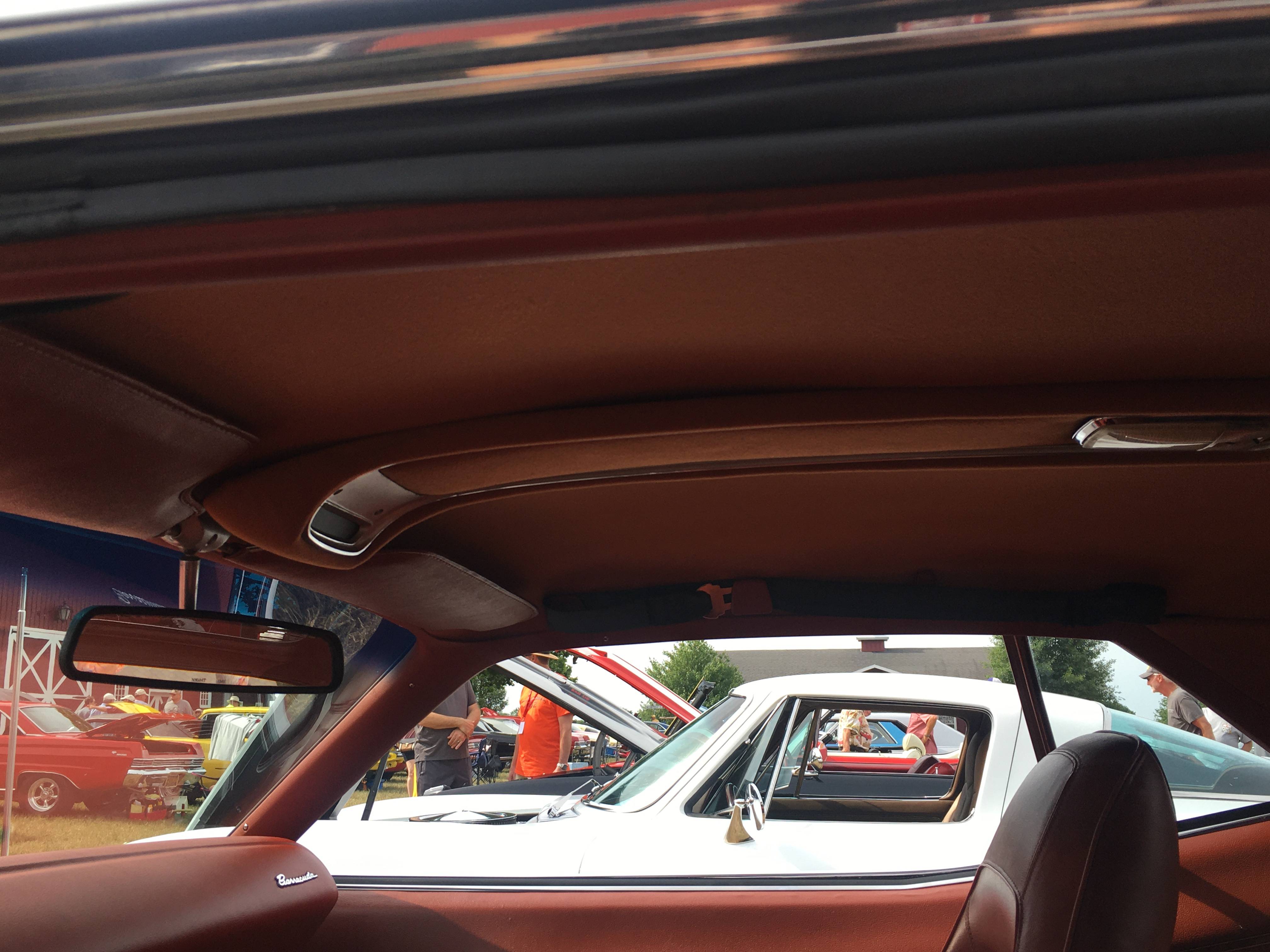

Gran Coupe Barracuda’s were the only Barracuda’s that you could get a burnt orange interior in, not available in any other models.


413

Well-Known Member
Joined
Mar 23, 2019
Messages
141
Reaction score
65
Why do we think this is an A/C car? Nothing A/C showing on this car. No underhood parts and no dash vents.









413

Well-Known Member
Joined
Mar 23, 2019
Messages
141
Reaction score
65

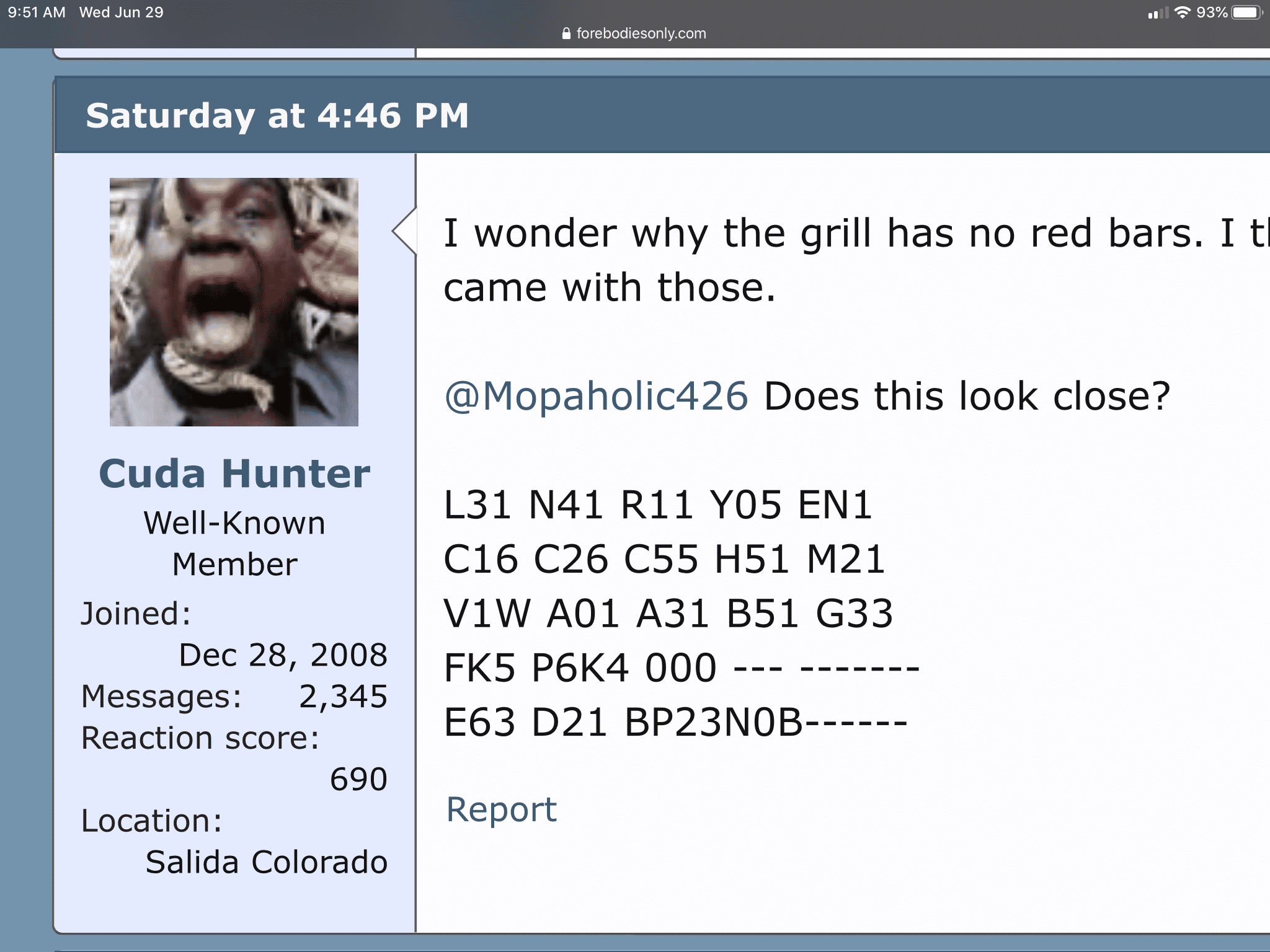

What fender tag? Where is the picture of it?
Do you mean this imaginary spoof tag?






70 4715

Member
Joined
Jul 29, 2021
Messages
19
Reaction score
16
Location
Canada
No one contributing to this thread said that it was or wasn't the tag for the car. I'm assuming it is. If it isn't someone should indicate as much.


413

Well-Known Member
Joined
Mar 23, 2019
Messages
141
Reaction score
65

70 4715

Member
Joined
Jul 29, 2021
Messages
19
Reaction score
16
Location
Canada
OK, noted. One thing that is interesting is the 26" radiator. It must be a max cooling radiator because of the rear end gear ratio. THAT is rare!


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
183
Reaction score
129
It’s been somewhat monkeyed with. Some or maybe all of the A/C is missing, there would always be a hose obscuring the fender tag, it is not there. The rectangular grille inserts are gone as well. Dash has been changed out, evident by the Barracuda script nameplate sitting on top of the dash pad, rather than recessed into it.
Gran Coupe Barracuda’s were the only Barracuda’s that you could get a burnt orange interior in, not available in any other models.
The Cuda Hunter draft of a possible fender tag should not have the H51 for A/C since this is definitely a non-A/C car. The dash is a correct repro for 1970 BH, BP, and BS models without A/C. The emblem is somewhat recessed and could be a little more recessed but that is the nature of repro dashes sometimes. Overall the car looks great. The turned down exhaust tips need to be corrected. They should not be that noticeable. We need to see the broadcast sheet and fender tag for this unique car to analyze what is original and what has been changed.

70 4715,
Can you clarify what you mean by "Gran Coupe Barracuda’s were the only Barracuda’s that you could get a burnt orange interior in, not available in any other models."?
Are you saying K4 - Burnt Orange interior was only available in a Gran Coupe Barracuda (BP) and not in a Barracuda (BH) or a Cuda (BS)?


Attachments

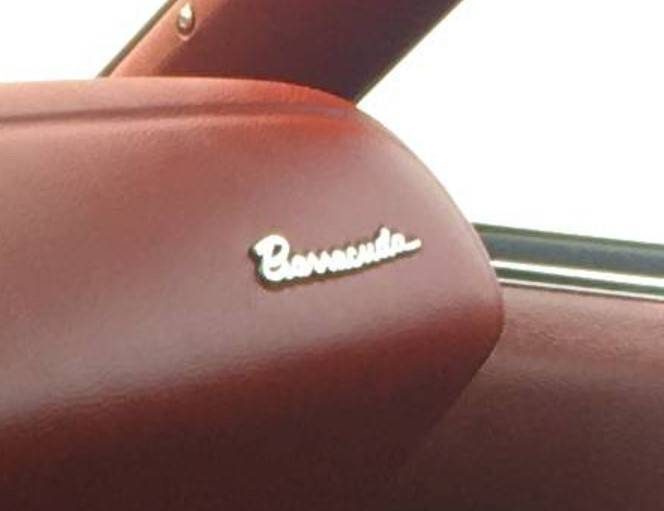

  • Recessed 1970 Dash Barracuda Emblem.JPG
    Recessed 1970 Dash Barracuda Emblem.JPG
    16.3 KB · Views: 11

70 4715

Member
Joined
Jul 29, 2021
Messages
19
Reaction score
16
Location
Canada
The Cuda Hunter draft of a possible fender tag should not have the H51 for A/C since this is definitely a non-A/C car. The dash is a correct repro for 1970 BH, BP, and BS models without A/C. The emblem is somewhat recessed and could be a little more recessed but that is the nature of repro dashes sometimes. Overall the car looks great. The turned down exhaust tips need to be corrected. They should not be that noticeable. We need to see the broadcast sheet and fender tag for this unique car to analyze what is original and what has been changed.

70 4715,
Can you clarify what you mean by "Gran Coupe Barracuda’s were the only Barracuda’s that you could get a burnt orange interior in, not available in any other models."?
Are you saying K4 - Burnt Orange interior was only available in a Gran Coupe Barracuda (BP) and not in a Barracuda (BH) or a Cuda (BS)?
Yes, it is an interior colour ONLY for a Gran Coupe in 1970. I’ll find some info. and get you a picture.


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
183
Reaction score
129
Also, the exhaust for B - Hamtramck assembled Gran Coupe (BP) would be single exhaust with turn down for an L-engine 383-2V and dual exhaust (N41) for an N-engine 383-4V with turn downs.
Those mufflers and turn downs need to be tucked up into the heat shields under the trunk floor for the correct look.

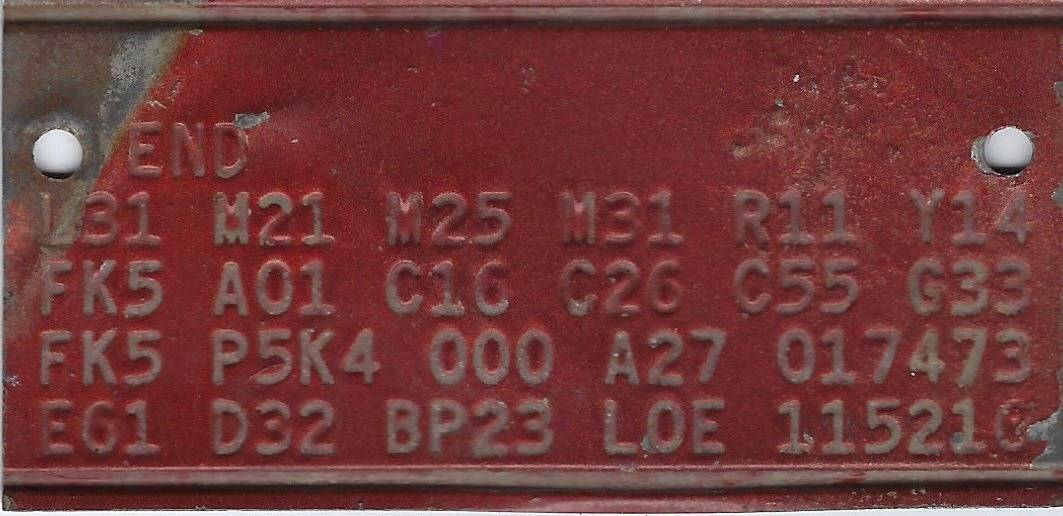

I have attached some 383 Gran Coupe fender tags to show the single and N41 - Dual Exhaust with no Bright Exhaust Tips (N42). Same setup as a California N95 car.


Attachments

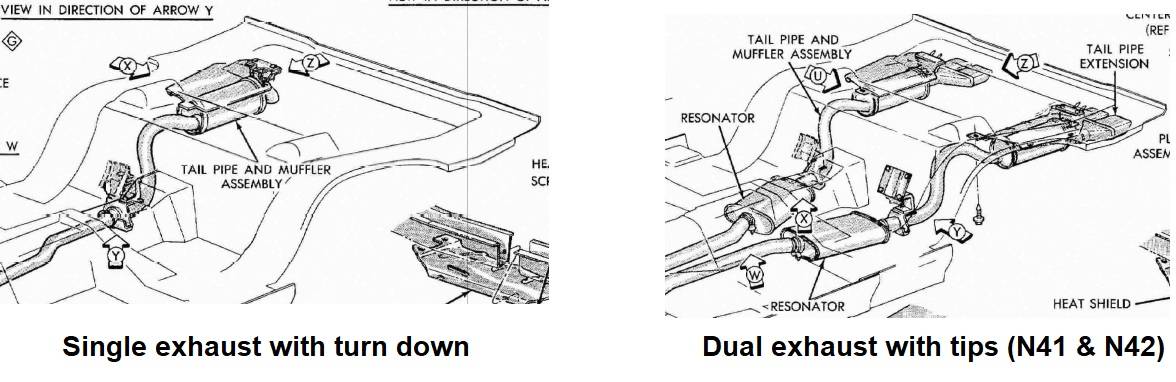

  • Single versus Dual Exhaust.jpg
    Single versus Dual Exhaust.jpg
    73 KB · Views: 23
  • BP23L0E115216.jpg
    77.6 KB · Views: 24

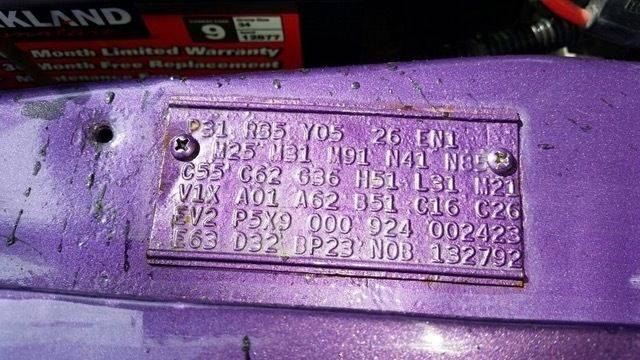

  • BP23N0B132792.jpg
    52.8 KB · Views: 22

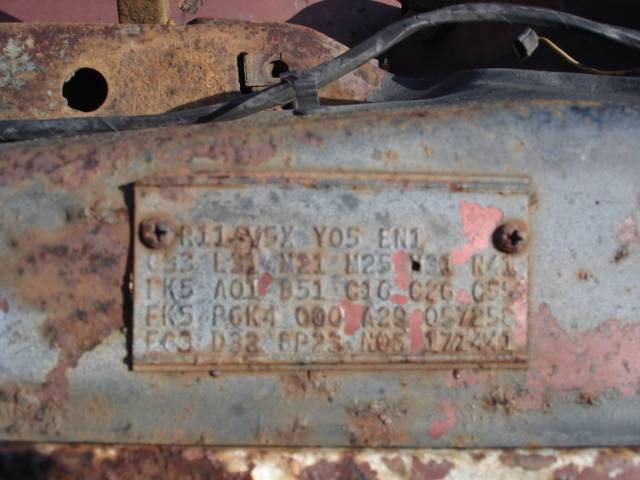

  • BP23N0B172441.jpg
    38.1 KB · Views: 23
