1971 Challenger 340 AC / Blower Motor Wiring

[Mighty Wez]

Hi everyone. I am in need of some help form the experts! First time asking a question on the forum so hoping you can help.

I have a 71 Challenger, built with 340 and factory air. I trying to piece back the wiring and function of the blower motor and AC after previous owner tore out the AC components and some wiring. I cannot determine where the dark green wire from the blower motor in the engine compartment goes? Same for the dark blue wire from the evap switch. I have the factory 1971 Plymouth wiring diagrams and in the main wiring diagram it shows just these two wires going through the firewall with a grommet. I can not find this hole in any pictures / posts (or on my car). In the manual's AC section it shows these two wires hooking the the bulkhead connector in slots 3 & 4. But on the interior side of the bulkhead connector of my car I have no wires going to these two slots.

So, the questions is, do these wires go to the bulkhead connector or through the firewall with a grommet? Does anyone have this set up that they could post a few pics?

Thx for the help. Jerry



[Challenger RTA]

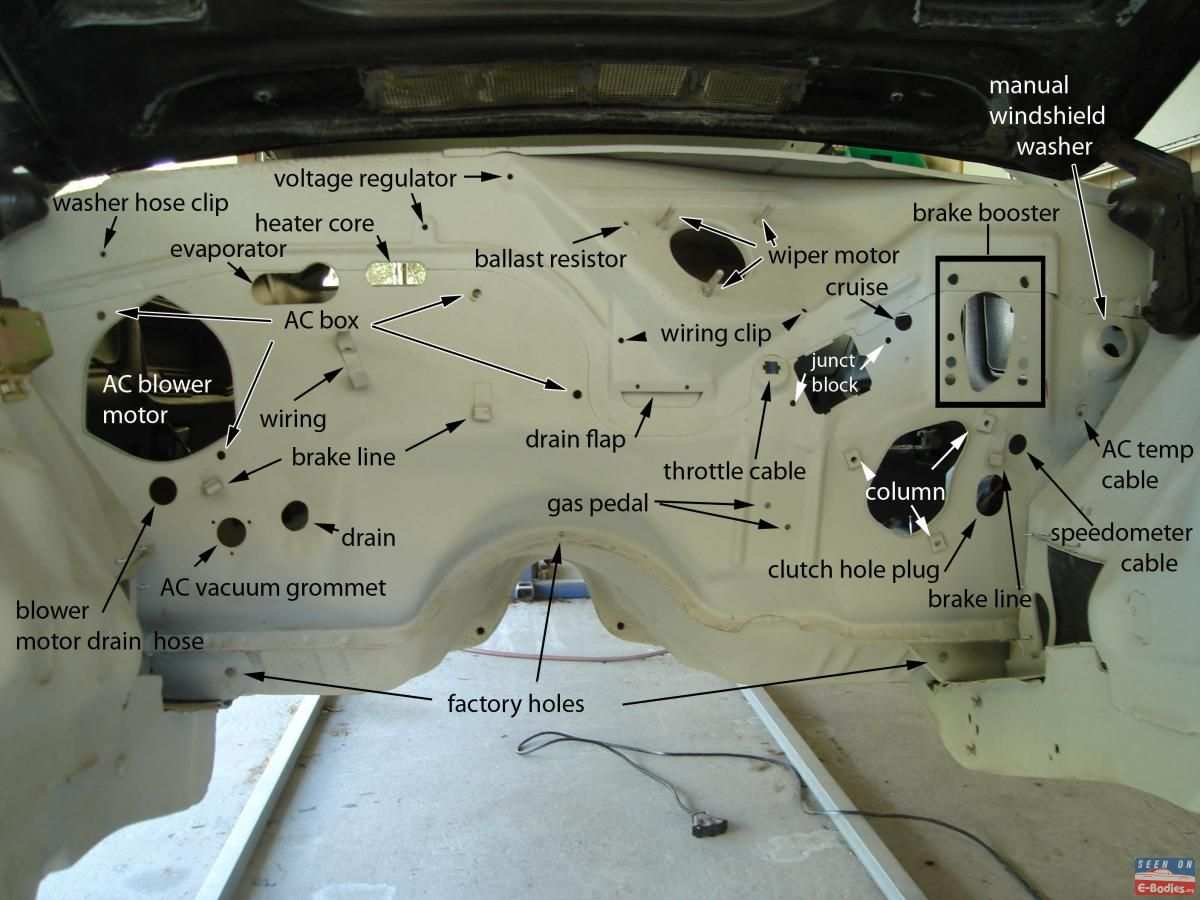

Firewall holes



[Challenger RTA]

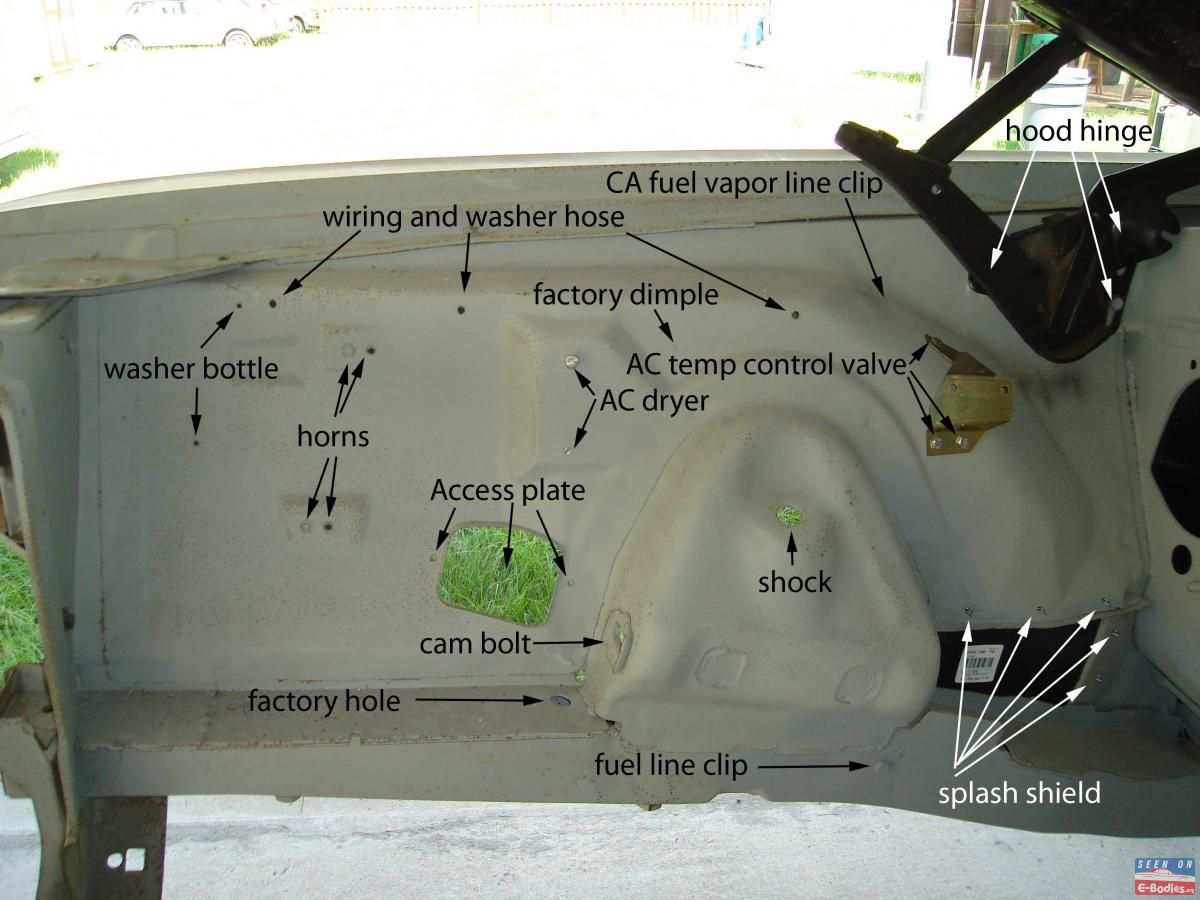

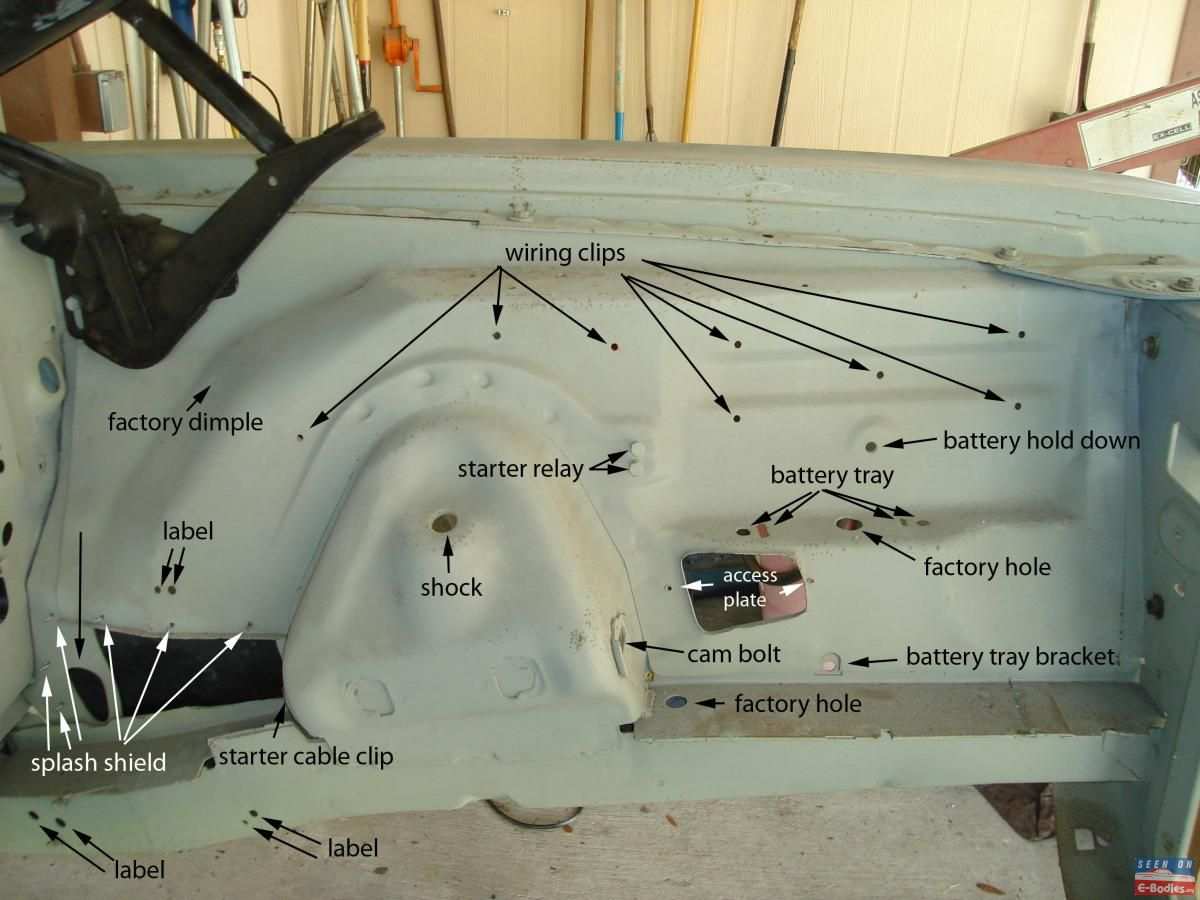

More ac holes.



[Challenger RTA]

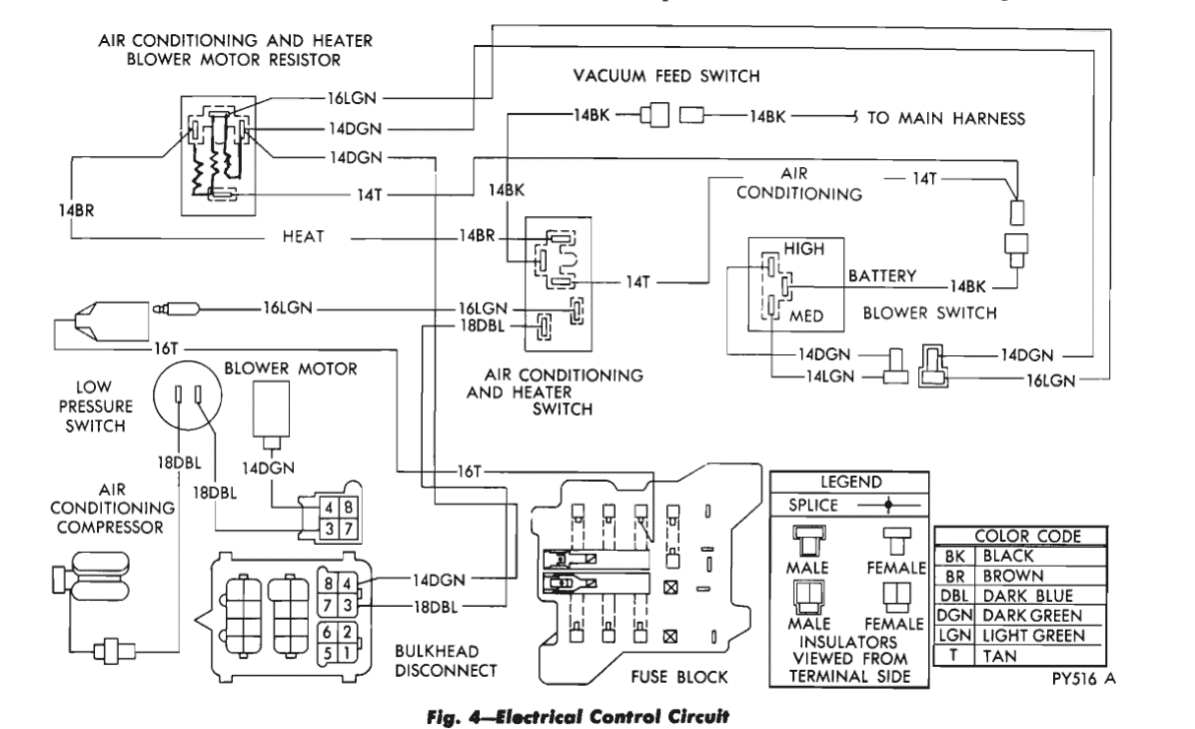

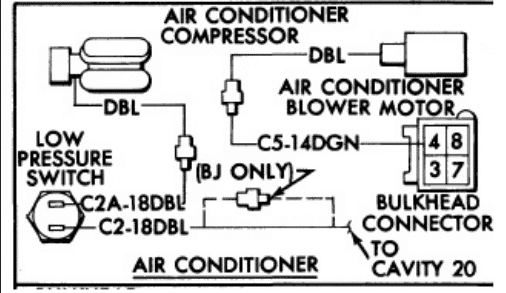

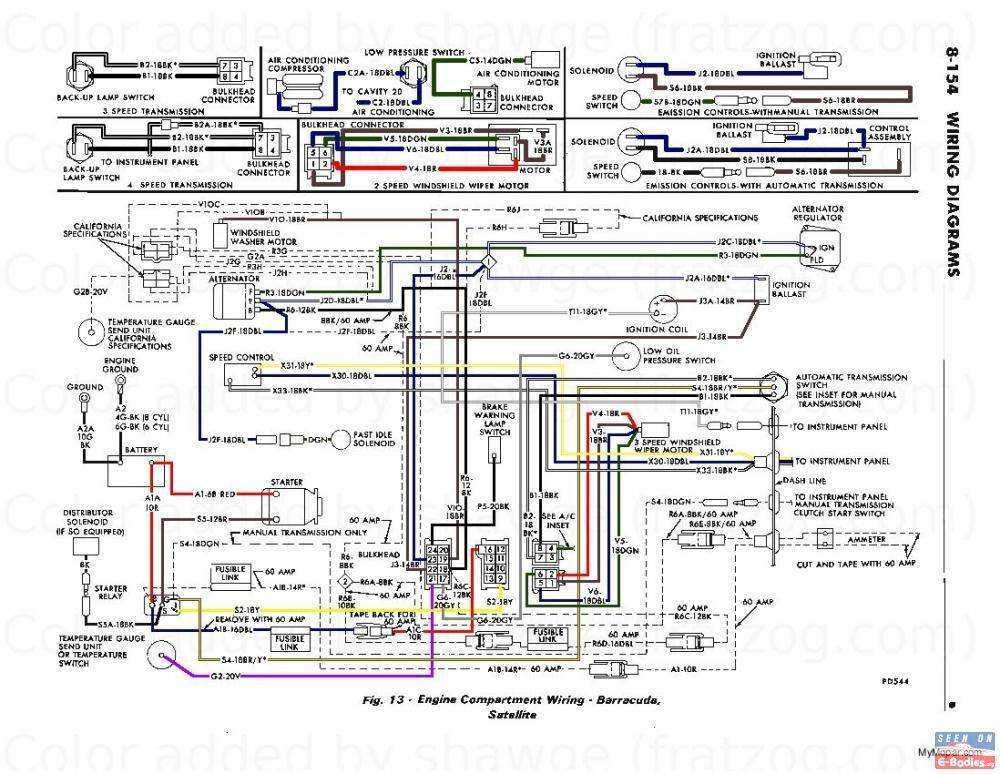

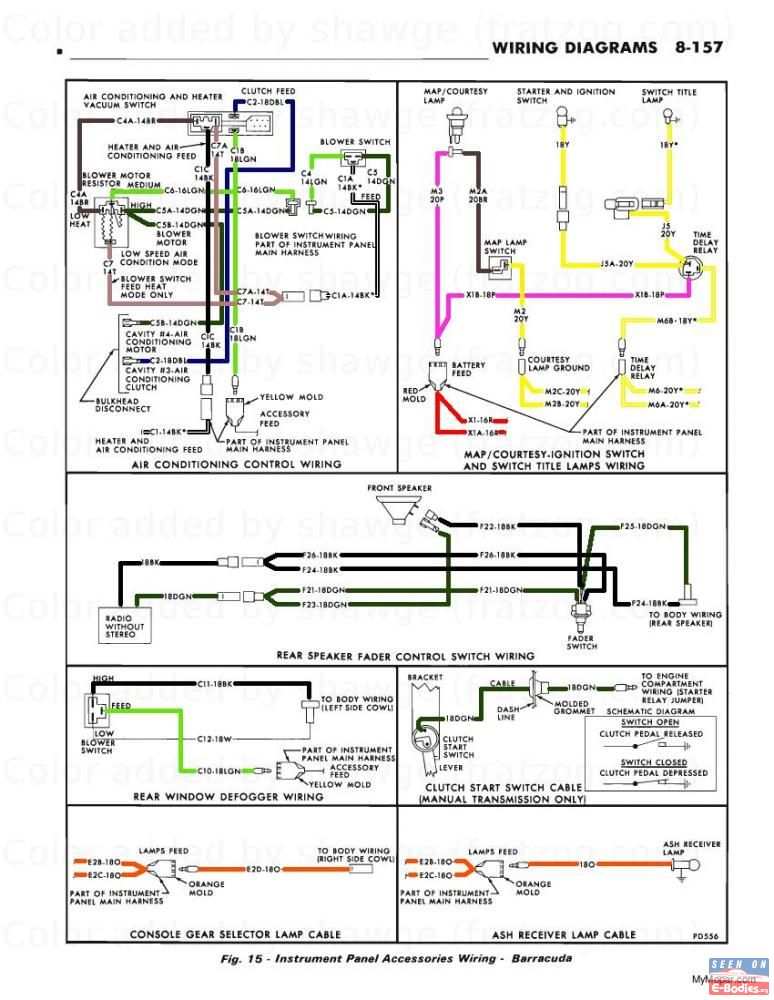

AC wiring

Bottom diagram. Middle top. Check your connection. Very sometimes from year to year and model. Or depending when built. Pretty much the same.



[Katfish]

They go through the bulkhead connector. Just hooked these up on my car.
AC harness should have the mating connection on the inside.

https://postimg.cc/BLzcjDR2][/url]



[Mighty Wez]

Excellent and thanks for all the info. My firewall is identical to the pics provided and with the same exact holes. Looks like the two wires do connect to #3 and #4 on the bulkhead connector. I guess I was double guessing it because on the interior side of the bulkhead connector I don't have any wires going to #3 and #4. Guess someone went to town under the dash as well. Typically people don't mess with things under there like they do under the hood.

Thanks for the help everyone!



[Katfish]

The AC portion of the harness inside the car is a separate piece. I replaced my main harness, had to buy the extra AC harness and plug that into the bulkhead.
