71 Challenger power Convertible question

Body Shop

  1. Jeff Ferrante

    Jeff Ferrante Member

    Messages:
    24
    Likes Received:
    16
    Joined:
    May 8, 2020
    I recently purchased a 71 challenger (like Yesterday) Did my intro in the Welcome Wagon, Thanks for all the kind words. Time for my first question / help request. My 71 has a power top, however when it was restored none of the power parts were put back in. It works very smooth manually but I would like to have the power working. I know I will need a pump, Actuators, and hose which are all available. My question is what else? does any one have some good pictures of there top assembly? A parts break down? Thanks for any help


    • Like Like x 2
  2. Rich G.

    Rich G. Well-Known Member

    Messages:
    270
    Likes Received:
    120
    Joined:
    Feb 7, 2019
    Do you have the switch in the dash and the harness that goes to the pump? Other then what you mentioned you’ll need the little brackets and pins that hold the cylinders in.

    • Like Like x 1
  3. Jeff Ferrante

    Jeff Ferrante Member

    Messages:
    24
    Likes Received:
    16
    Joined:
    May 8, 2020
    Sorry, Yes switch is in place, thank goodness, those suckers are expensive. Harness is still in.

    • Like Like x 1
  4. DetMatt1

    DetMatt1 Well-Known Member

    Messages:
    6,273
    Likes Received:
    1650
    Joined:
    May 13, 2009
    Location:
    Metro Detroit

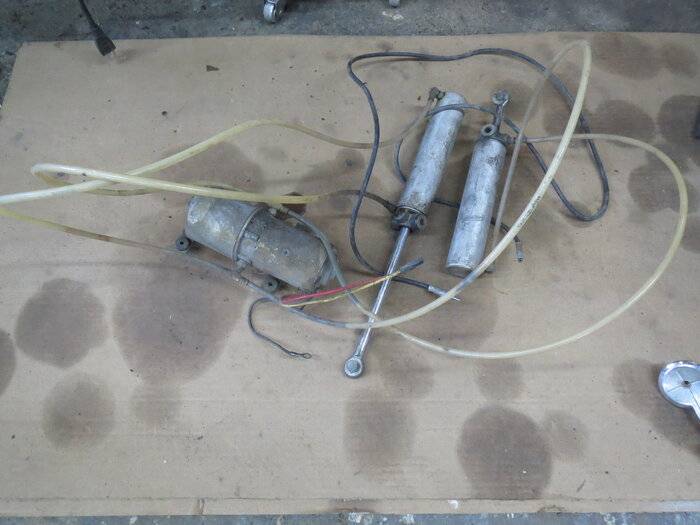

    I have a good used pump and cylinders available if you want to go that route and I also have both the chassis and the body service manual(not for sale but highly suggested) that I can get related info out of for you.

    • Agree Agree x 3
  5. Jeff Ferrante

    Jeff Ferrante Member

    Messages:
    24
    Likes Received:
    16
    Joined:
    May 8, 2020
    Some pictures from the manual would be great, need to see what these brackets look like and I found pins and bushings available on a convertible top parts website, there are lots of different sizes and it only listed by size not fitment, Thank You

  6. RJHJR

    RJHJR Well-Known Member

    Messages:
    103
    Likes Received:
    50
    Joined:
    Oct 14, 2013

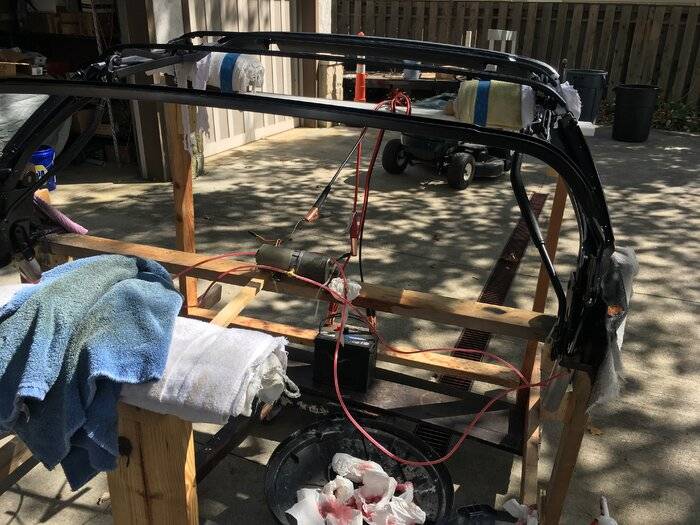

    Here's some shots which may be helpful. I built the wood fame and set it on a K-member dolly as I restored the frame and tack strips. I bought new cylinders, pump, frame tack strips and rear tack strips (they are hard to source) from Convertible Top Specialists.

    I have a lot of pictures of all the little pieces and clips if you need more help. Motors can be rebuilt but not cylinders. I cleaned up the motor in the pictures and was set to install it when I noticed it spotting. Not wanting to deal with it later I installed a seal kit.

    Dematt1 is absolutely correct you'll want/need the Service Manual.

    I recommend MCC Detroit's Fastener Guide - its full of pictures of almost all the fasteners in a E-body but its a little light on convertible stuff.

    AMK Products Inc in Winchester VA has the little red nut with the keps nut with the toothed washer which is rather hard to find.

    You'll need the washers that go on the stud that goes in the end of the ram cylinder on the ram, one is flat and the other has an engaged sleeve the slips on the stud.

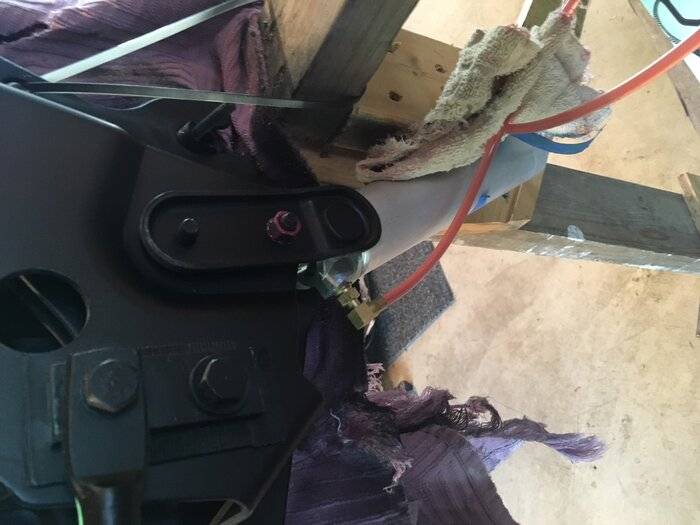

    top bracket.jpg



    • Like Like x 2
  7. DetMatt1

    DetMatt1 Well-Known Member

    Messages:
    6,273
    Likes Received:
    1650
    Joined:
    May 13, 2009
    Location:
    Metro Detroit

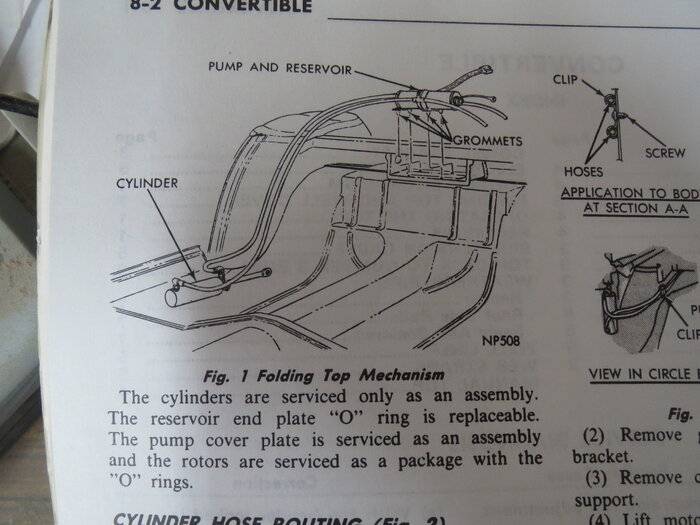

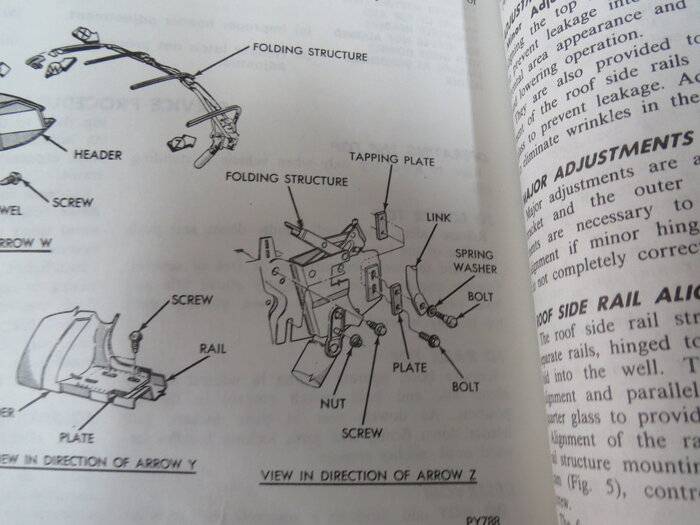

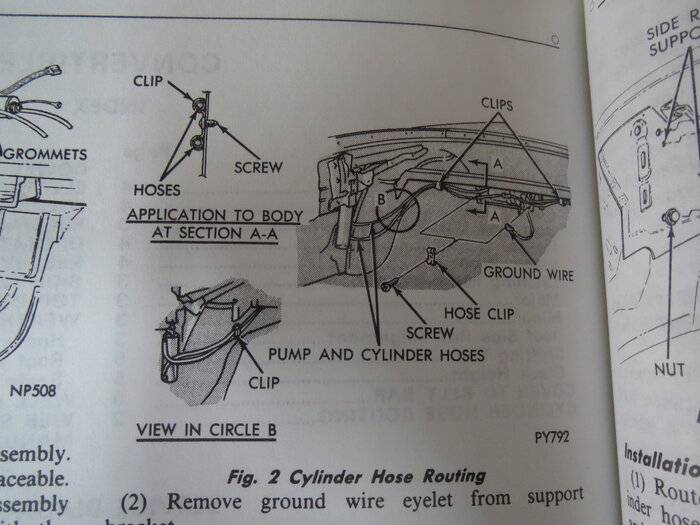

    The same pump system/parts was used on all Mopar convertibles of the era.
    F7B7FC74-926B-4871-B3EA-1376B054341D.jpeg 095DE35F-17F6-46BB-917F-5851A167B0B1.jpeg BA167FE3-5824-4D77-B739-4051572E7DD3.jpeg

    • Like Like x 2
  8. RJHJR

    RJHJR Well-Known Member

    Messages:
    103
    Likes Received:
    50
    Joined:
    Oct 14, 2013

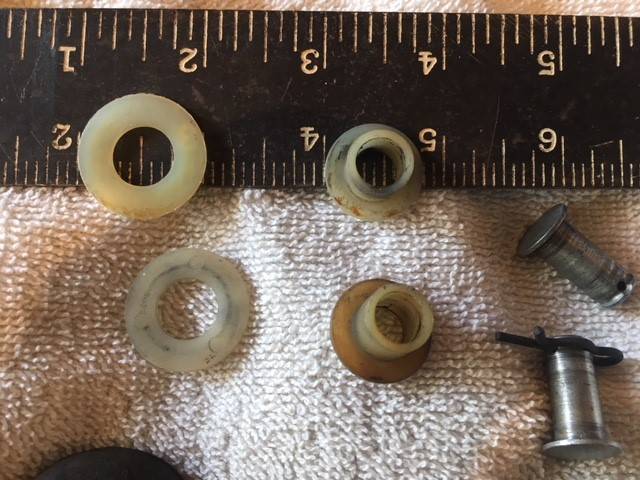

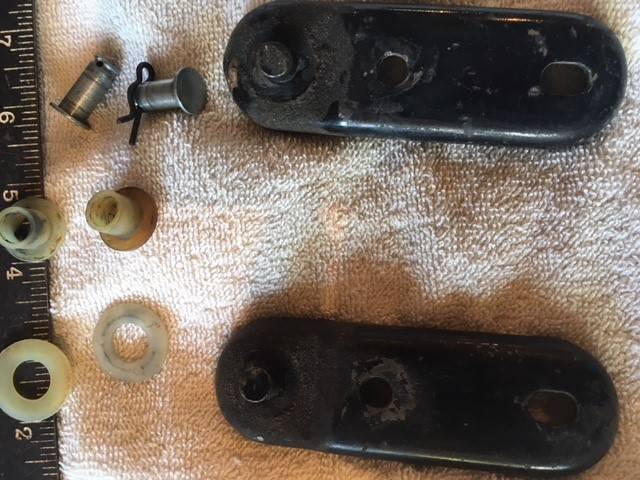

    Here's the washers, brackets and pins.
    BTW, welcome!



  9. Jeff Ferrante

    Jeff Ferrante Member

    Messages:
    24
    Likes Received:
    16
    Joined:
    May 8, 2020
    Thank you all, That should get me in the right direction.

    • Like Like x 1
  10. DetMatt1

    DetMatt1 Well-Known Member

    Messages:
    6,273
    Likes Received:
    1650
    Joined:
    May 13, 2009
    Location:
    Metro Detroit

    • Like Like x 1
  11. RJHJR

    RJHJR Well-Known Member

    Messages:
    103
    Likes Received:
    50
    Joined:
    Oct 14, 2013
    I double checked; the washers go on the stud on the brackets at the housing end of the ram cylinder.

  12. RJHJR

    RJHJR Well-Known Member

    Messages:
    103
    Likes Received:
    50
    Joined:
    Oct 14, 2013

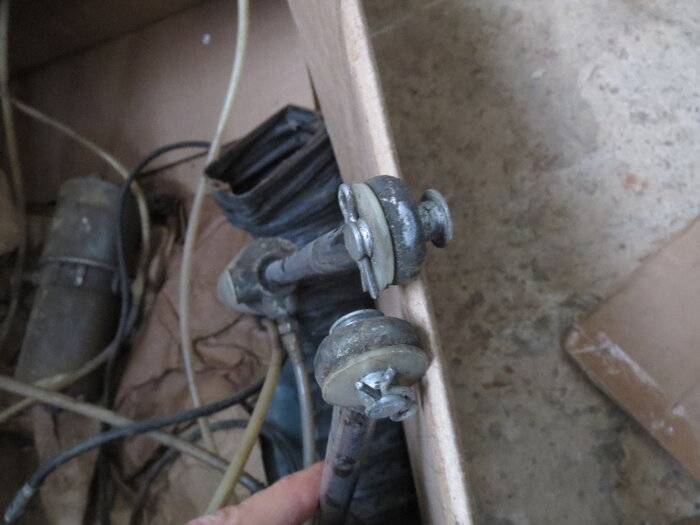

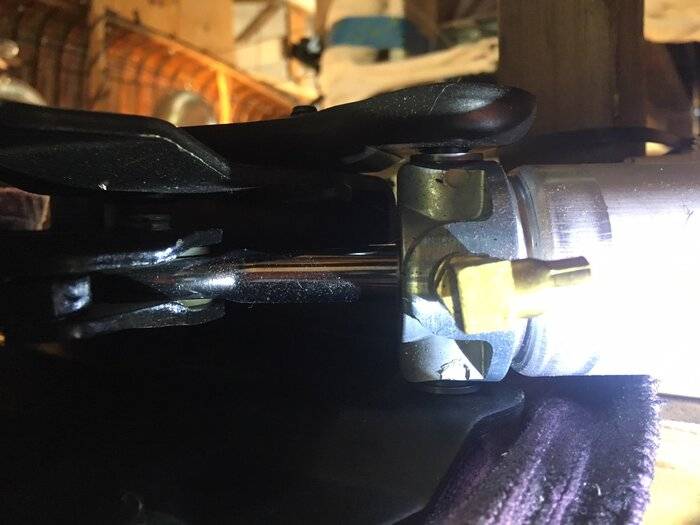

    Its hard to see but there's actually washers on both pivots of the operable ram.
    The black ones in the side of the ram housing came with the cylinder. The white opaque ones go between the ram end of the cylinder and the frame.


  13. RJHJR

    RJHJR Well-Known Member

    Messages:
    103
    Likes Received:
    50
    Joined:
    Oct 14, 2013
  14. doubleyellow

    doubleyellow Well-Known Member

    Messages:
    267
    Likes Received:
    89
    Joined:
    Aug 3, 2015
    Location:
    Metro Detroit
    Hate to add more to your project, but it's based on experience:

    Be sure to check your convertible motor electrical harness all the way into the fuse block. It wasn't noticeable at first glance, but due to the high current, the fuse block was melted/burnt at the connections. A Mopar guy that was an electrical expert pointed it out to me. I had to get all new harnesses.

    So in other words, the hydraulics are critical, but electrical system for the top is equally important, so check it while you are at it.

    Good luck. Power tops rock.

    • Like Like x 1
    • Agree Agree x 1
  15. DetMatt1

    DetMatt1 Well-Known Member

    Messages:
    6,273
    Likes Received:
    1650
    Joined:
    May 13, 2009
    Location:
    Metro Detroit
    Just so y’all know I just sold all the parts.

    • Like Like x 1
  16. Jeff Ferrante

    Jeff Ferrante Member

    Messages:
    24
    Likes Received:
    16
    Joined:
    May 8, 2020
    Thanks for the heads up, I will

  17. Jeff Ferrante

    Jeff Ferrante Member

    Messages:
    24
    Likes Received:
    16
    Joined:
    May 8, 2020
    I just got the car home a little while ago, I will check things out later. Thanks for all the pictures and advice

  18. Jeff Ferrante

    Jeff Ferrante Member

    Messages:
    24
    Likes Received:
    16
    Joined:
    May 8, 2020
  19. BuckeyeCuda

    BuckeyeCuda Active Member

    Messages:
    35
    Likes Received:
    12
    Joined:
    Feb 9, 2019
    Location:
    Akron, Ohio
    I have a 64 Fury convertible with a different problem: One of the bolts (?) that are on the folding arms on the passenger side was broken through when I got the car. Haven't tackled it yet, but figure that I need to drill it out (after heating it while avoiding burning the top) and then either use a new swaged bolt or a carriage bolt with nylon washers to allow it to pivot.

    Anyone had a problem like this? (sorry to intrude on this thread, but I don't see too many threads on convertibles).....

  20. 340challconvert

    340challconvert Well-Known Member

    Messages:
    3,619
    Likes Received:
    2052
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ

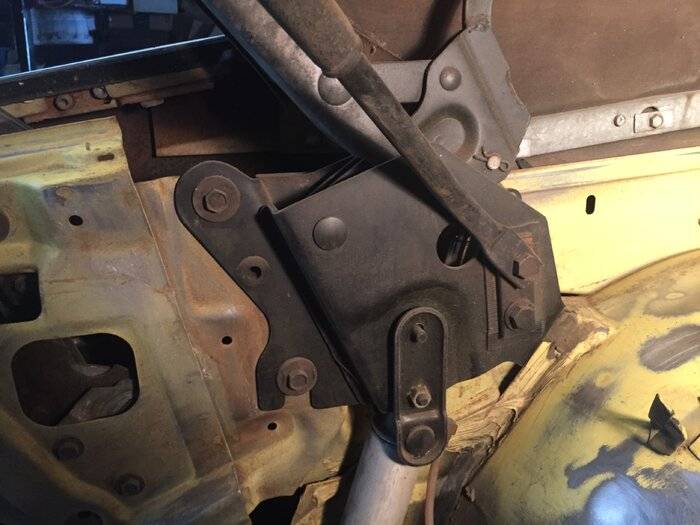

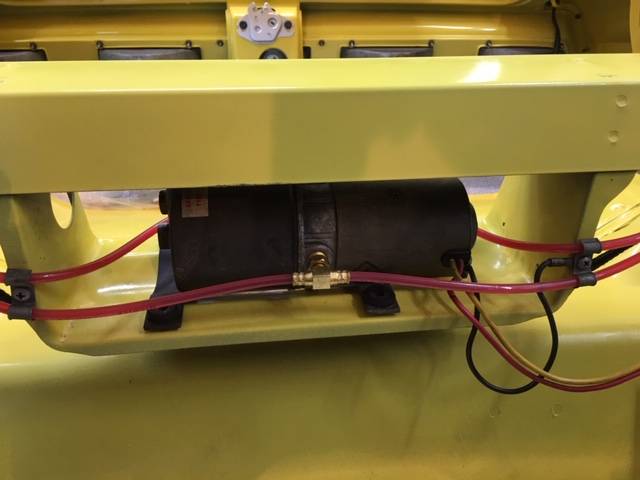

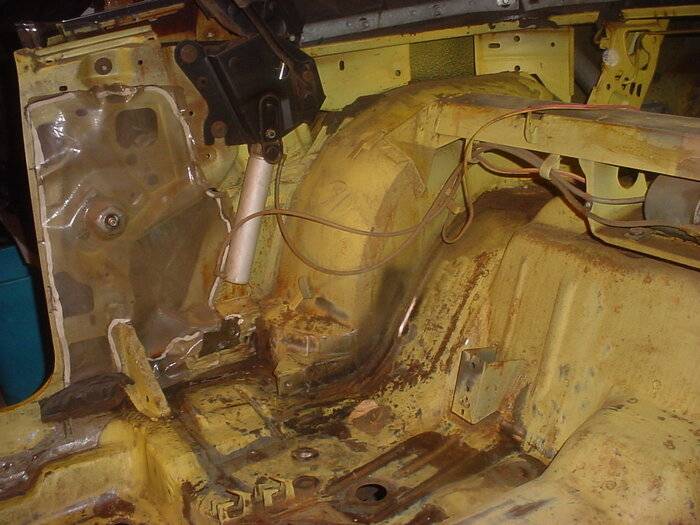

    Have some close up pics as I removed my interior. Hope they help.

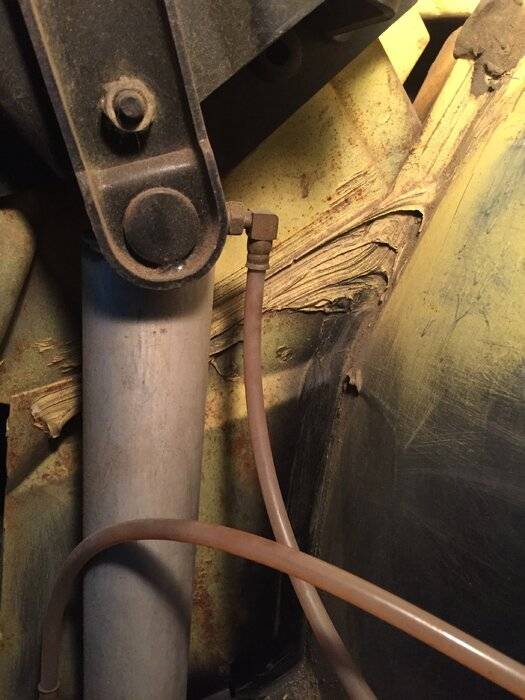

    power top lines.jpg

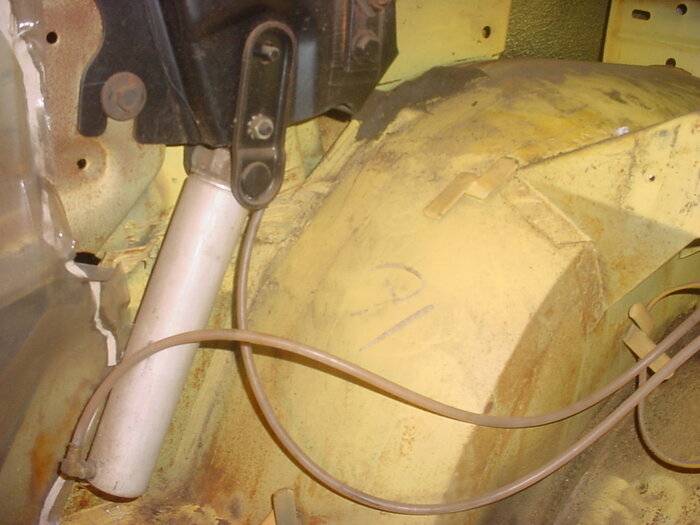

    rt rear inner quarter AL.JPG

    rt rear in quarter w plastic.JPG
