Power Brake Booster Pedal to Linkage for E body 1970 Cuda

NormaJ70Barracuda

New Member
Joined
Sep 22, 2011
Messages
3
Reaction score
0

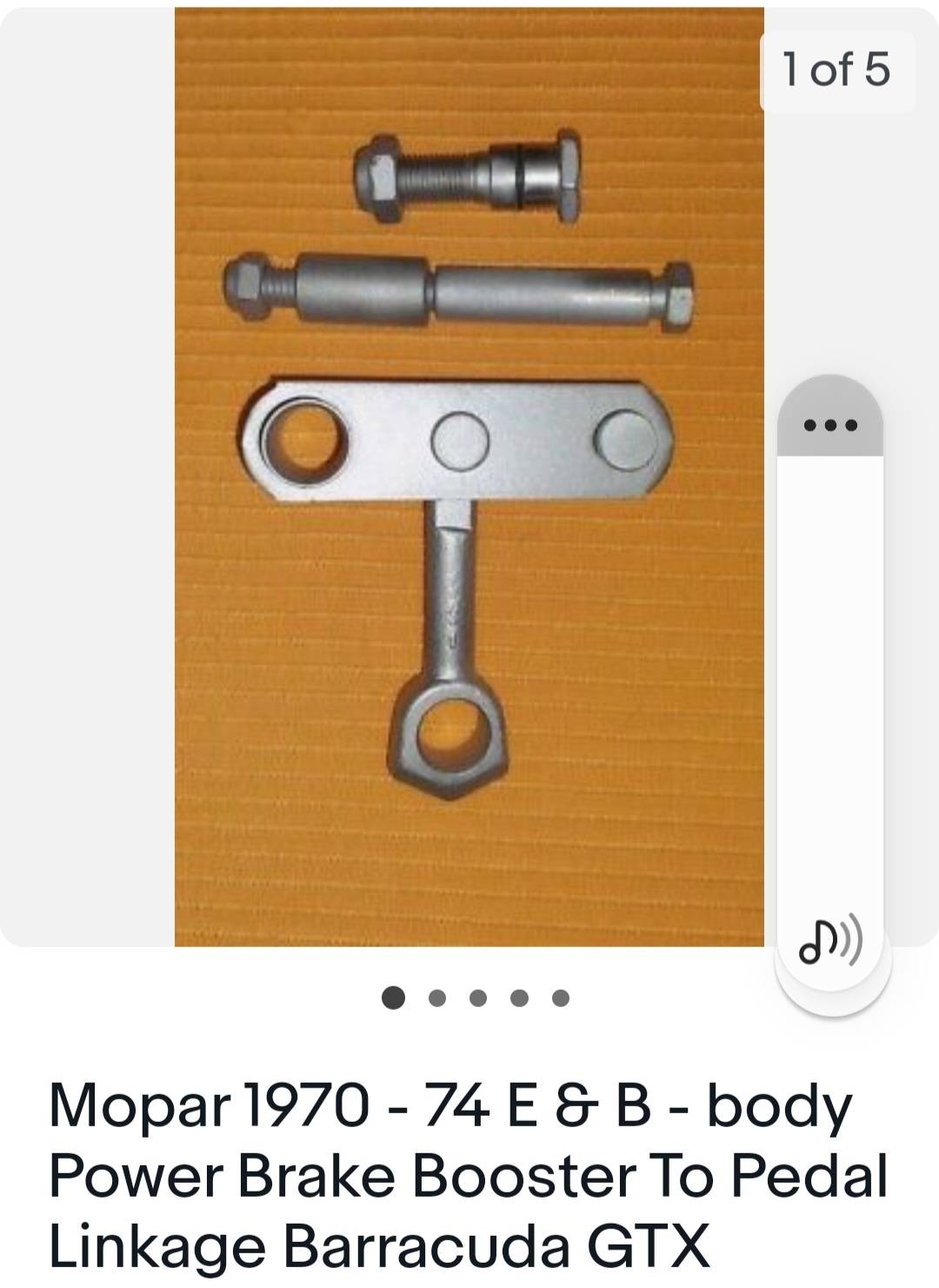

We are in the process of installing a Power Brake Booster on my 70 Cuda and I'm trying to locate the correct Pedal to Linkage for my E Body. Can anyone help and let me know if this is the right set up I need.
Thanks NJ


EW1BH27

Well-Known Member
Joined
Dec 31, 2021
Messages
493
Reaction score
226
Location
Canada

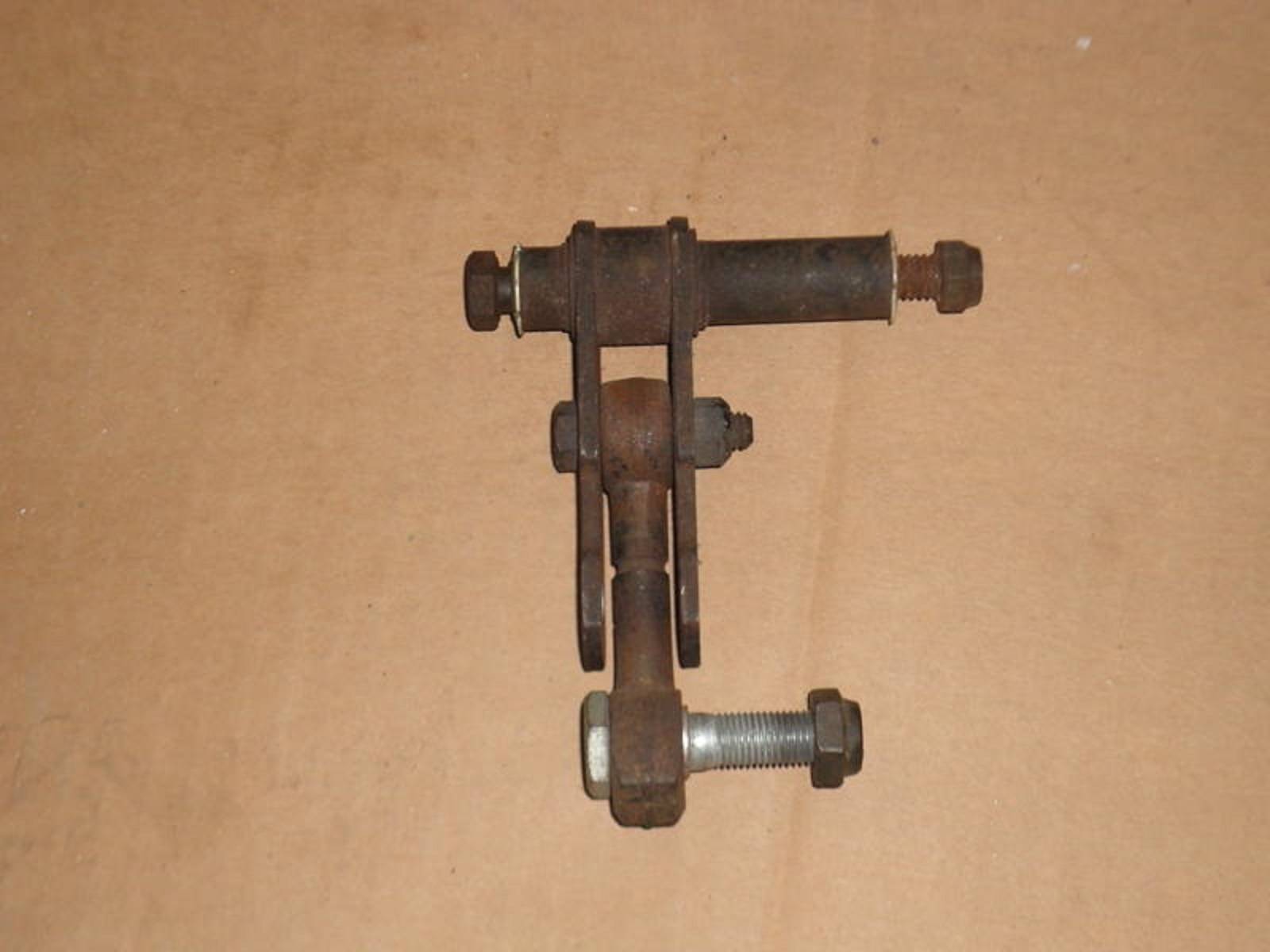

Here's another picture


Attachments

  • BoosterLink2.jpg
    71.7 KB · Views: 214

Jason Repucci

Well-Known Member
Joined
Nov 11, 2013
Messages
81
Reaction score
3
Location
Sacramento, California

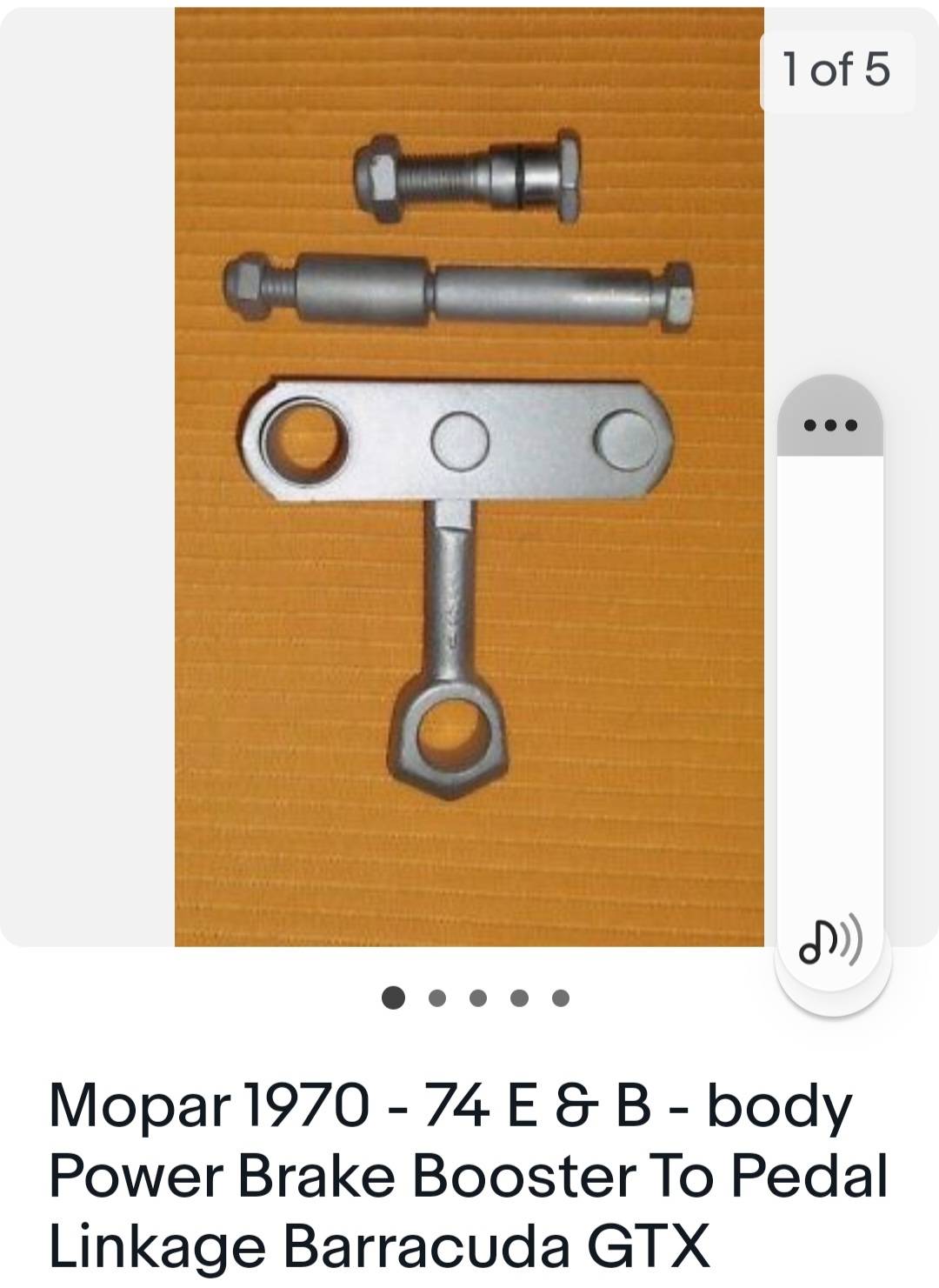

View attachment 96503We are in the process of installing a Power Brake Booster on my 70 Cuda and I'm trying to locate the correct Pedal to Linkage for my E Body. Can anyone help and let me know if this is the right set up I need.
Thanks NJ

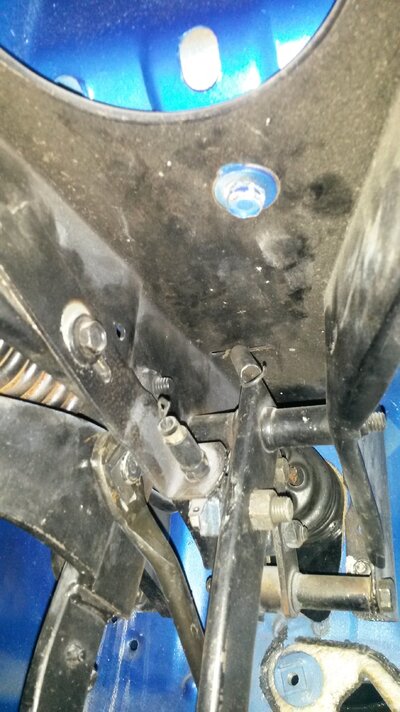

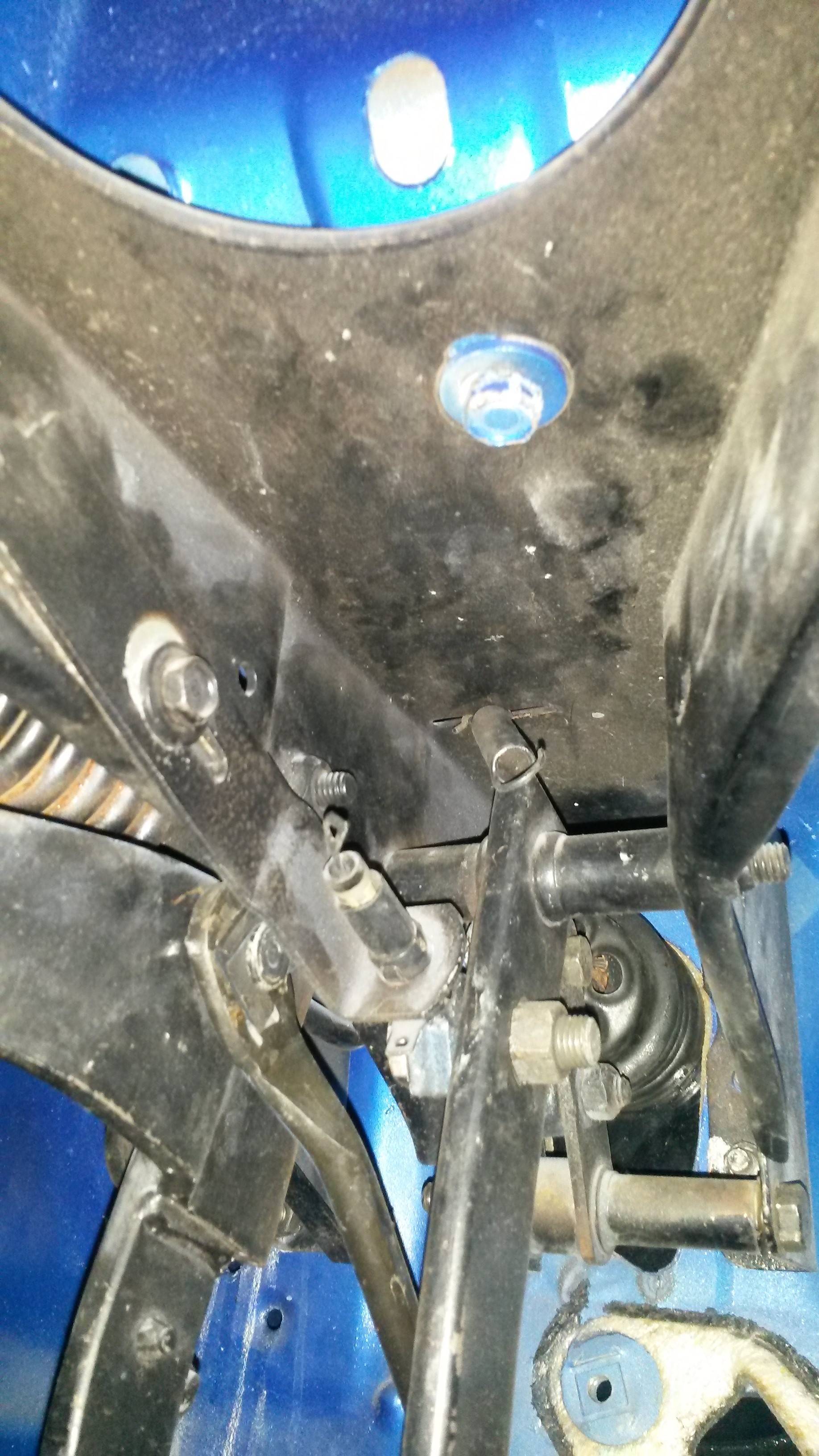

How about a photo of how it looks installed? I too would appreciate that view.
Pictures are hard to get when installed.

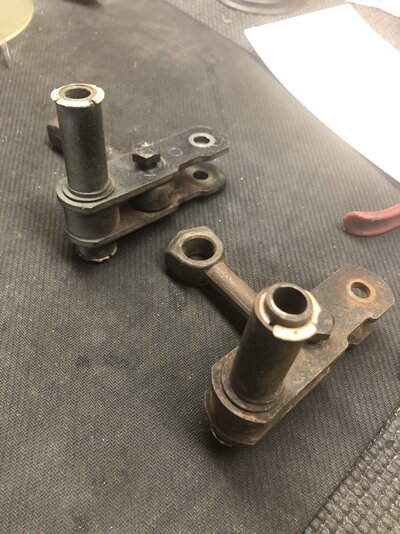

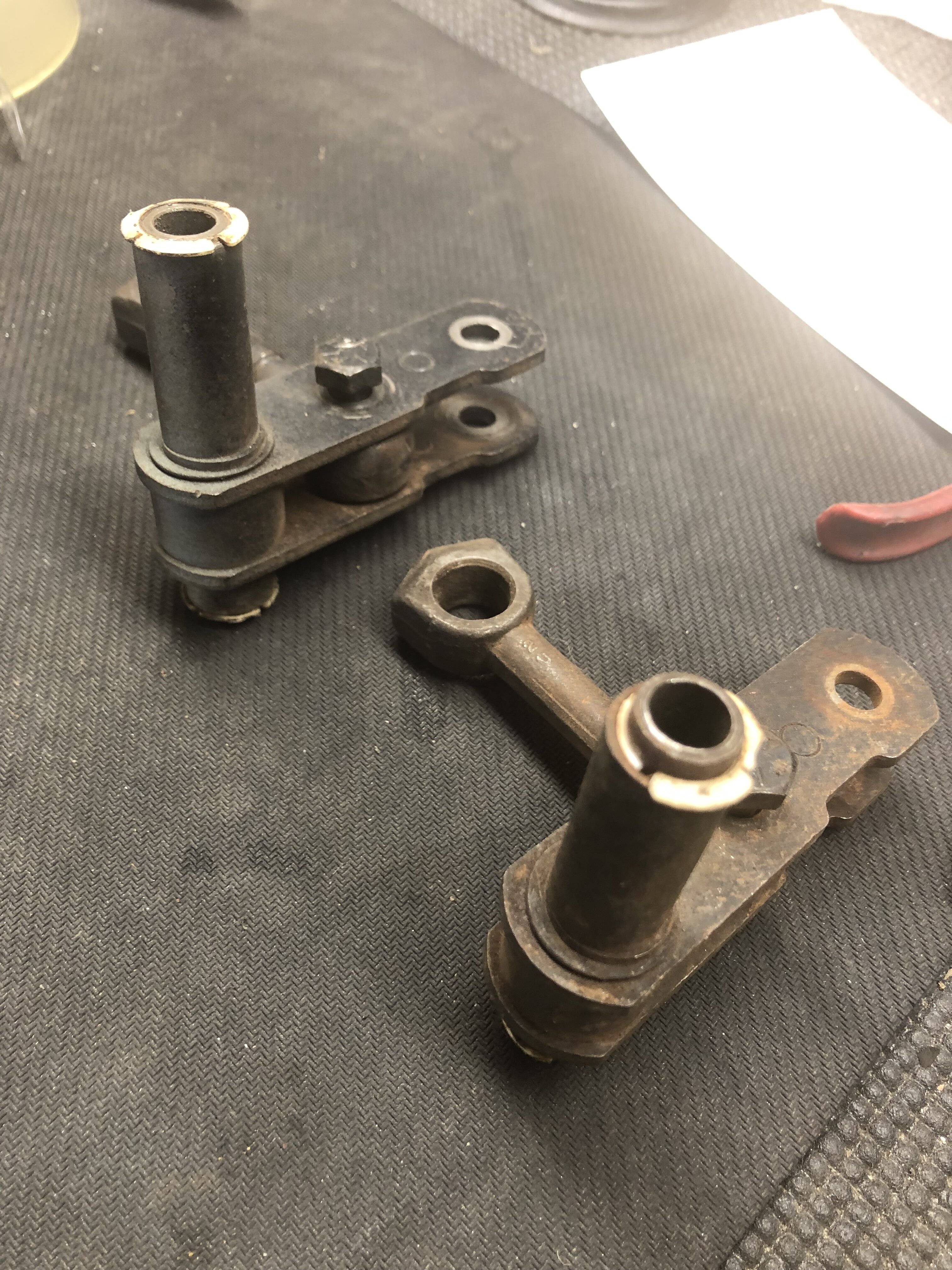

Center: arm goes to the brake pedal

Lower(wide shank): mounts to the pedal assembly… all pedal assemblies have the mounting holes

Top: is where the rear booster diaphragm mounts


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
556
Reaction score
442
Pictures and diagrams of power brake pedal linkage. Note: The spring in the second photo is not required and is not in the factory 1970 Plymouth Service Manual diagrams.

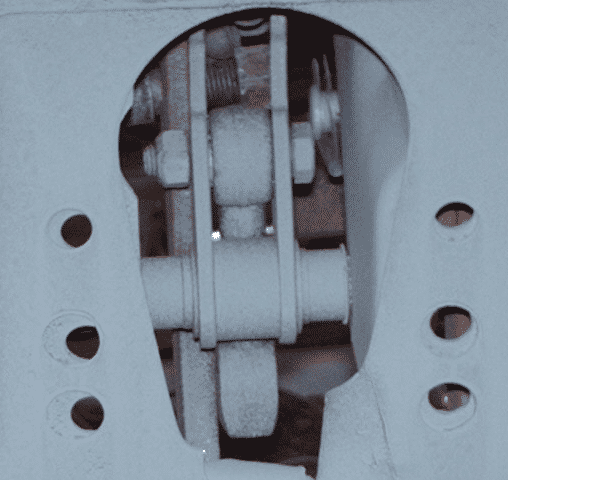

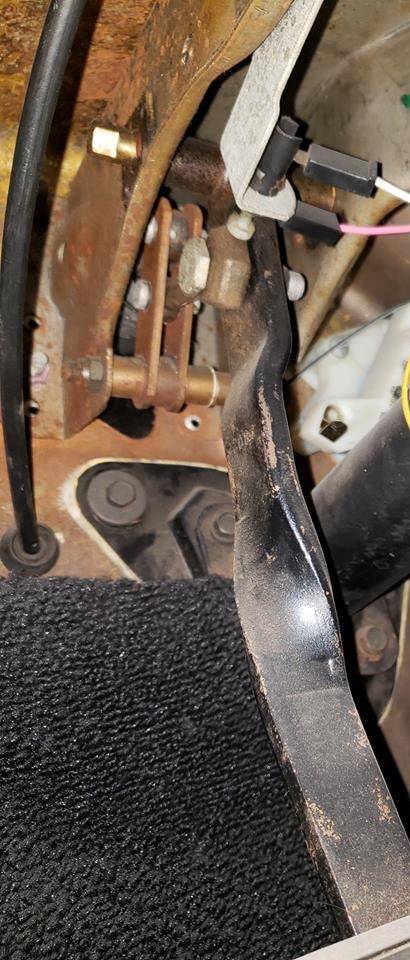

E-Body Power Brake Pedal Linkage.jpg

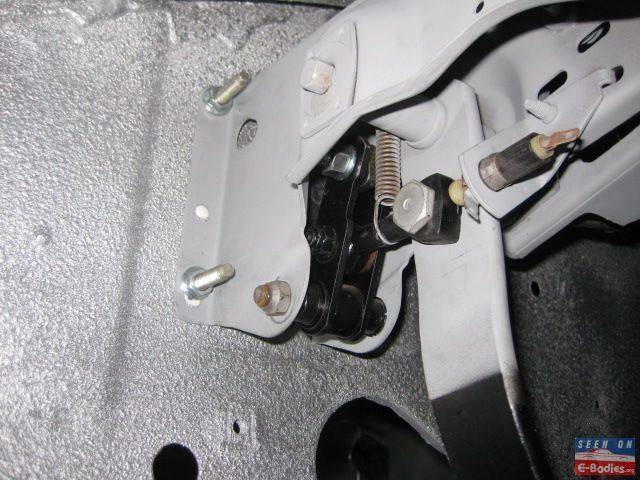

Power Brake Linkage 1970 Only with Spring.JPG

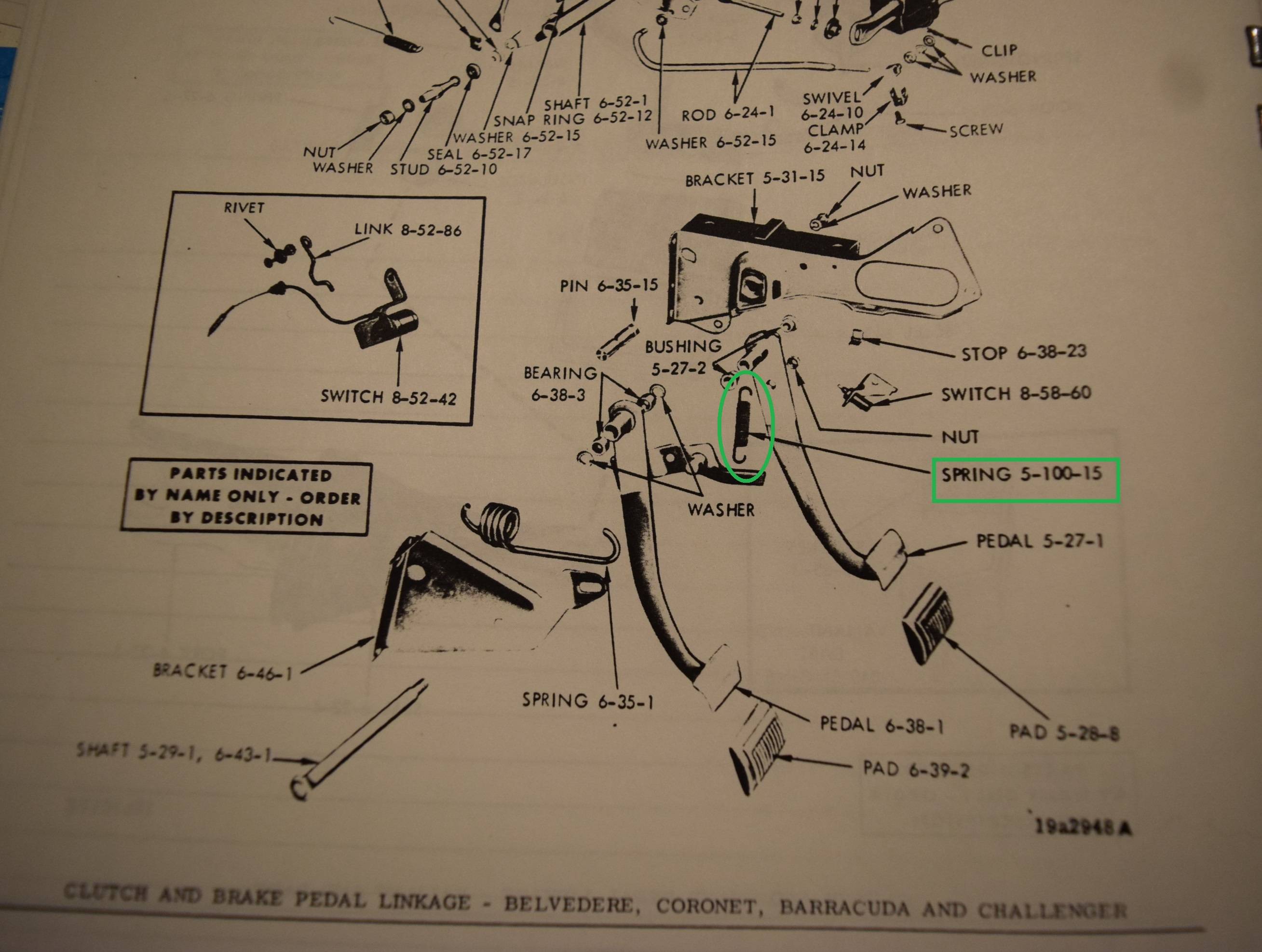

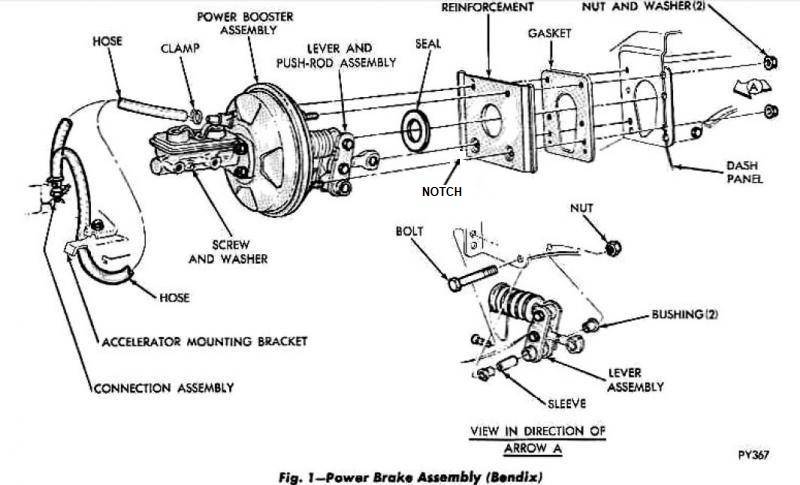

1970 Factory Plymouth Power Brakes Diagram.jpg
Power Brake Booster and Pedal Linkage.JPG

Last edited:

benguin

Active Member
Joined
Jun 18, 2021
Messages
39
Reaction score
27
Location
Central Illinois 61704
Might not be in the Service Manual as it's not a core part of the power brake unit, and is mostly to provide positive disengagement of the brake light. Is this even present on '72 and beyond cars?

I did fin
