Where does this fuse pull power from...

Electrical and Ignition

  1. 67440NewYorker

    67440NewYorker Member

    Messages:
    8
    Likes Received:
    4
    Joined:
    Sep 8, 2019
    Location:
    Michigan

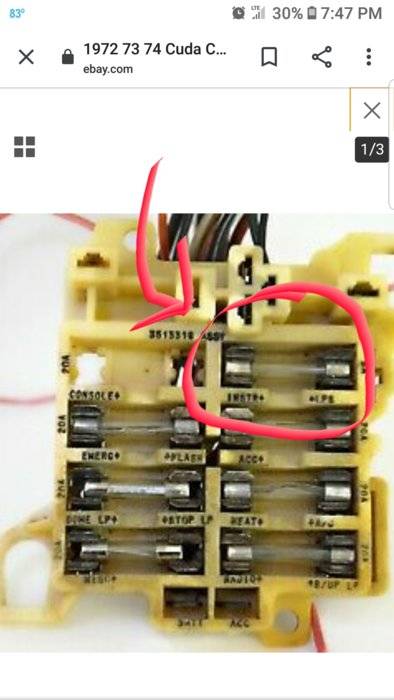

    Just a quick photo i uploaded from the interwebs. But where does this fuse pull power from. Jw before I pull the instrument cluster out...again. I do know there is a light brown wire on one side and 2 orange wires on the other side of that fuse also. Thats about as far as I got tonight. Dinner was ready lol

    Last edited: Sep 11, 2019 at 7:02 PM
  2. moparlee

    moparlee Well-Known Member

    Messages:
    1,370
    Likes Received:
    585
    Joined:
    Jul 25, 2011
    Location:
    Mid Michigan
    • Like Like x 1
  3. moparleo

    moparleo Well-Known Member

    Messages:
    4,908
    Likes Received:
    644
    Joined:
    Oct 17, 2011
    Location:
    So. Cal. Riverside area Moreno Valley
  4. 67440NewYorker

    67440NewYorker Member

    Messages:
    8
    Likes Received:
    4
    Joined:
    Sep 8, 2019
    Location:
    Michigan
  5. aussiemark

    aussiemark Well-Known Member

    Messages:
    1,129
    Likes Received:
    482
    Joined:
    Nov 29, 2014
    Location:
    Perth Western Australia
    Orange wire from ignition switch, orange wire from radio plug and tan wire is from panel dimmer switch.

    • Like Like x 1
  6. 67440NewYorker

    67440NewYorker Member

    Messages:
    8
    Likes Received:
    4
    Joined:
    Sep 8, 2019
    Location:
    Michigan
    Awesome thank you for that info! I will check those spots out

  7. 67440NewYorker

    67440NewYorker Member

    Messages:
    8
    Likes Received:
    4
    Joined:
    Sep 8, 2019
    Location:
    Michigan
    Found out the problem tonight. The Interior panel dimmer switch wasnt getting the proper connection. Now the lights work great! Thanks for the info guys. Only took about 15 minutes to get the situation resolved!
