A01 and new american autowire upgrade harness. I did not install the new harness, so I don't know what goes where do to the change in wire colors.

[k2steve]

A01 and new american autowire upgrade harness 510289, anyone figure out where to wire in the A01? there is a pic of what I have of the A01. The wire color codes are different.



[pschlosser]

wuts an A01?



[k2steve]

wuts an A01?

wuts an A01?

A01 light package. Makes it easy to find the ignition switch in the dark and see the switches on the far left of the dash.



[Vaanth]

A01 and new american autowire upgrade harness 510289, anyone figure out where to wire in the A01? there is a pic of what I have of the A01. The wire color codes are different.

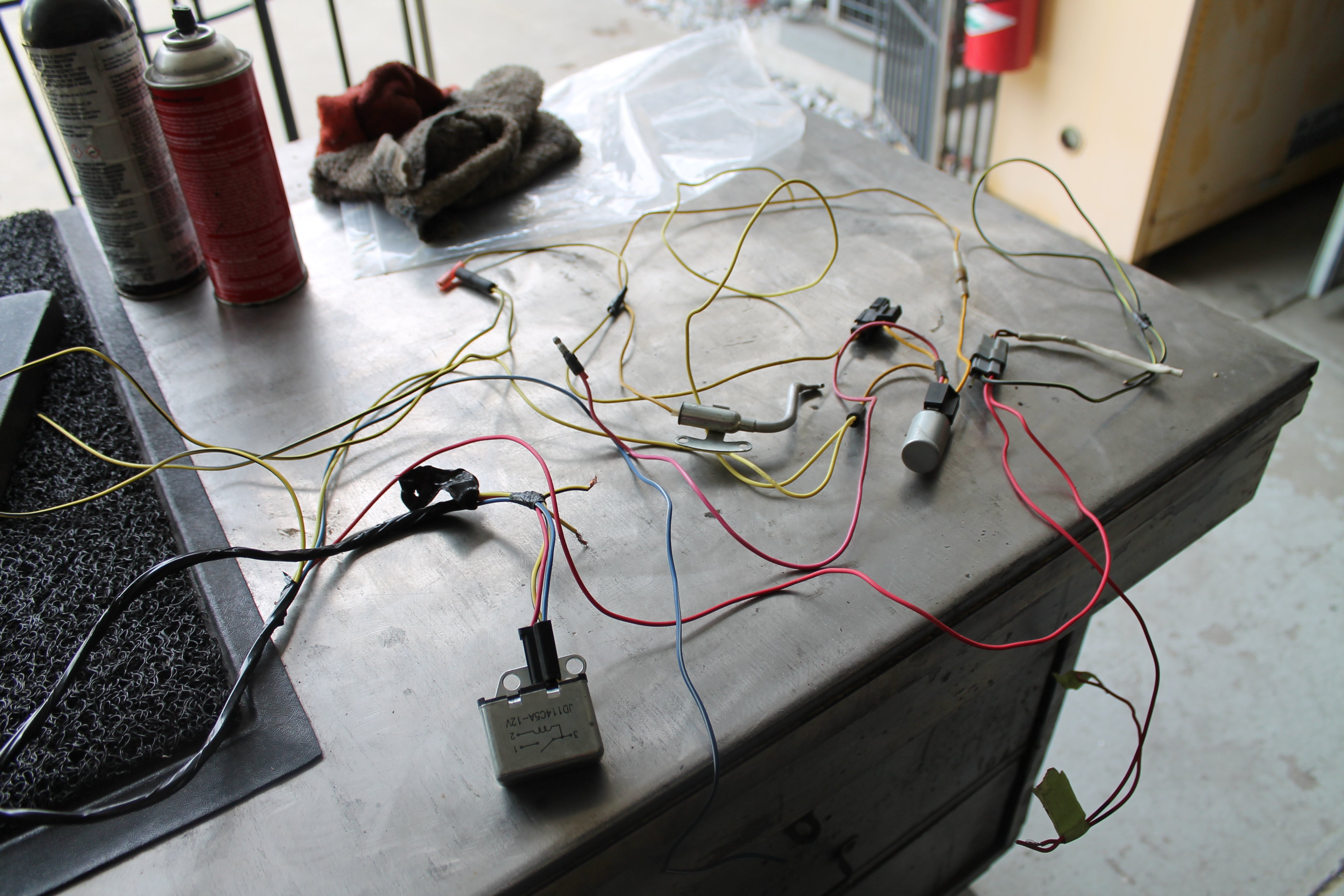

View attachment 156825

Sales code A01, Light Group, includes the time delay relay and ignition switch illumination, among other items.

The wiring of the time delay relay, referring to the pictured relay, mating socket, and wiring is as follows:

• The pink wire with bullet connector plugs into a +12 volt constant power plug mold, originally red.
• The yellow wire with single white connector connects to the mating connector for the ignition switch lamp wire, as it is now in the picture
• The other yellow wire, that is joined with the previous yellow wire, leads to the spade junction plug, then to the red connector to connect to the switch title lamp. The other part of the spade junction plug connects to the consolette wire if an SE model with overhead consolette.
• The yellow wire with black tracer, which leads to the the Y-split, then leads to the door jamb switches connectors.

The following abbreviated diagram shows the wiring connections:

---

The A01 Light Group, or package, includes other items, depending on year and model, such as the following:

• Time delay ignition key switch illumination.
• Glove box lamp.
• Ash tray lamp.
• Trunk lamp.
• Map and courtesy light.
• Fender mounted turn signal indicators.

---



[k2steve]

Sales code A01, Light Group, includes the time delay relay and ignition switch illumination, among other items.

The wiring of the time delay relay, referring to the pictured relay, mating socket, and wiring is as follows:

• The pink wire with bullet connector plugs into a +12 volt constant power plug mold, originally red.
• The yellow wire with single white connector connects to the mating connector for the ignition switch lamp wire, as it is now in the picture
• The other yellow wire, that is joined with the previous yellow wire, leads to the spade junction plug, then to the red connector to connect to the switch title lamp. The other part of the spade junction plug connects to the consolette wire if an SE model with overhead consolette.
• The yellow wire with black tracer, which leads to the the Y-split, then leads to the door jamb switches connectors.

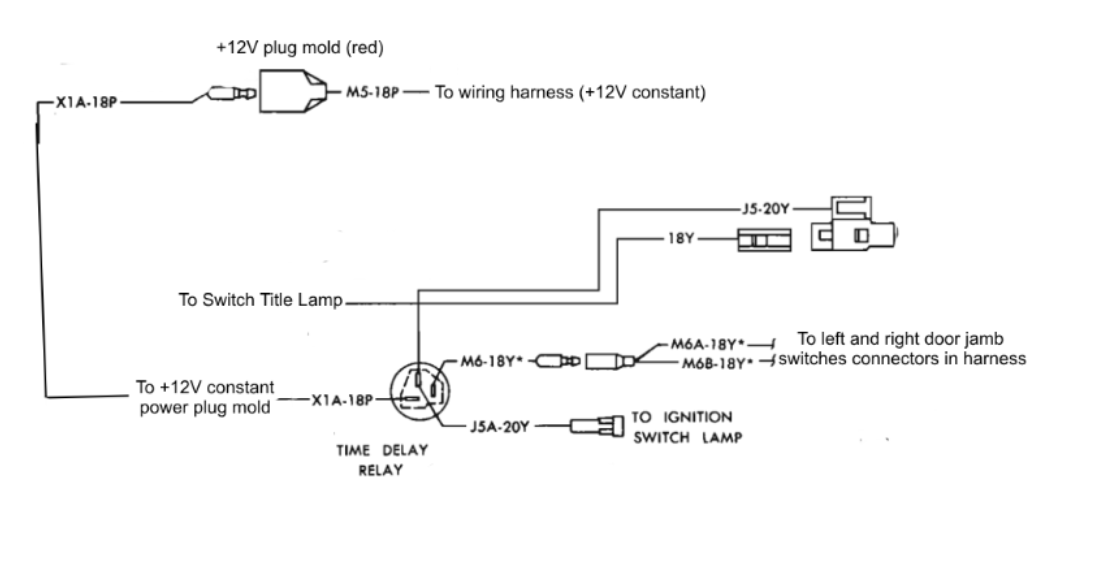

The following abbreviated diagram shows the wiring connections:
View attachment 156827

---

The A01 Light Group, or package, includes other items, depending on year and model, such as the following:

• Time delay ignition key switch illumination.
• Glove box lamp.
• Ash tray lamp.
• Trunk lamp.
• Map and courtesy light.
• Fender mounted turn signal indicators.

---



[k2steve]

Sales code A01, Light Group, includes the time delay relay and ignition switch illumination, among other items.

The wiring of the time delay relay, referring to the pictured relay, mating socket, and wiring is as follows:

• The pink wire with bullet connector plugs into a +12 volt constant power plug mold, originally red.
• The yellow wire with single white connector connects to the mating connector for the ignition switch lamp wire, as it is now in the picture
• The other yellow wire, that is joined with the previous yellow wire, leads to the spade junction plug, then to the red connector to connect to the switch title lamp. The other part of the spade junction plug connects to the consolette wire if an SE model with overhead consolette.
• The yellow wire with black tracer, which leads to the the Y-split, then leads to the door jamb switches connectors.

The following abbreviated diagram shows the wiring connections:
View attachment 156827

---

The A01 Light Group, or package, includes other items, depending on year and model, such as the following:

• Time delay ignition key switch illumination.
• Glove box lamp.
• Ash tray lamp.
• Trunk lamp.
• Map and courtesy light.
• Fender mounted turn signal indicators.

---

Perfect Vaanth. I don't want the buzzer just the light stuff. No diode to wire in.
