Door handle linkage

Khuotakharma

Well-Known Member
Joined
Feb 15, 2017
Messages
104
Reaction score
15

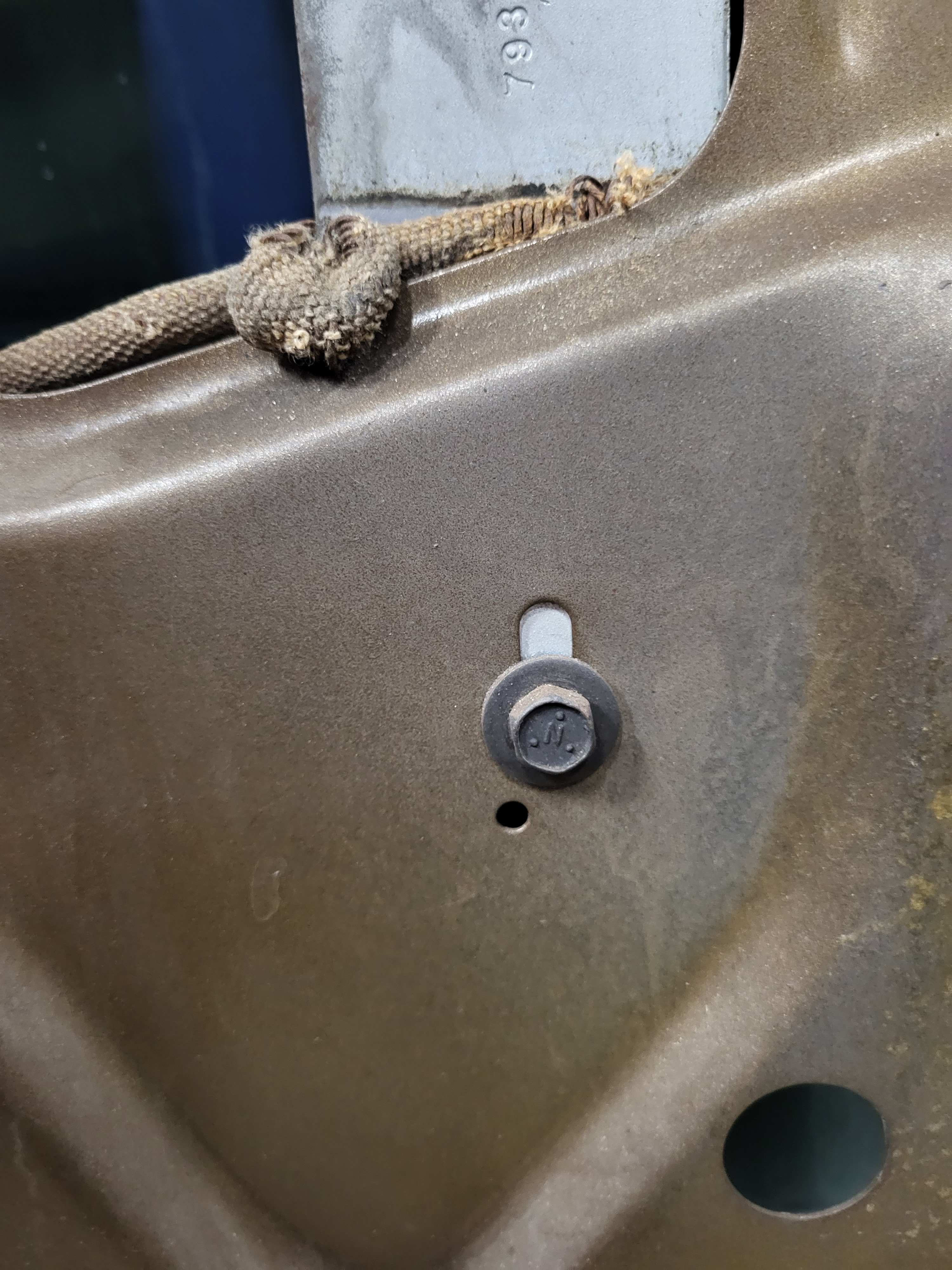

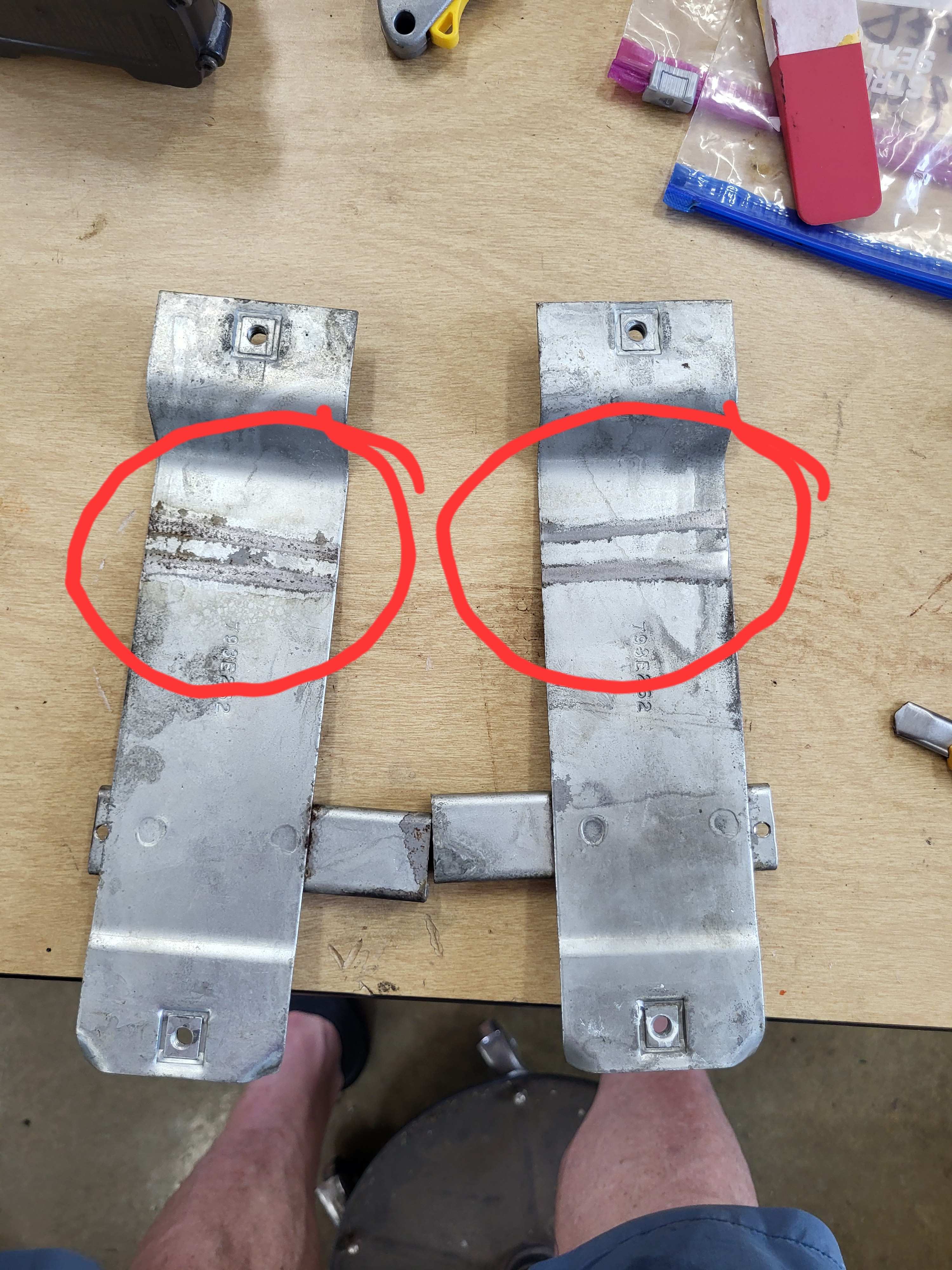

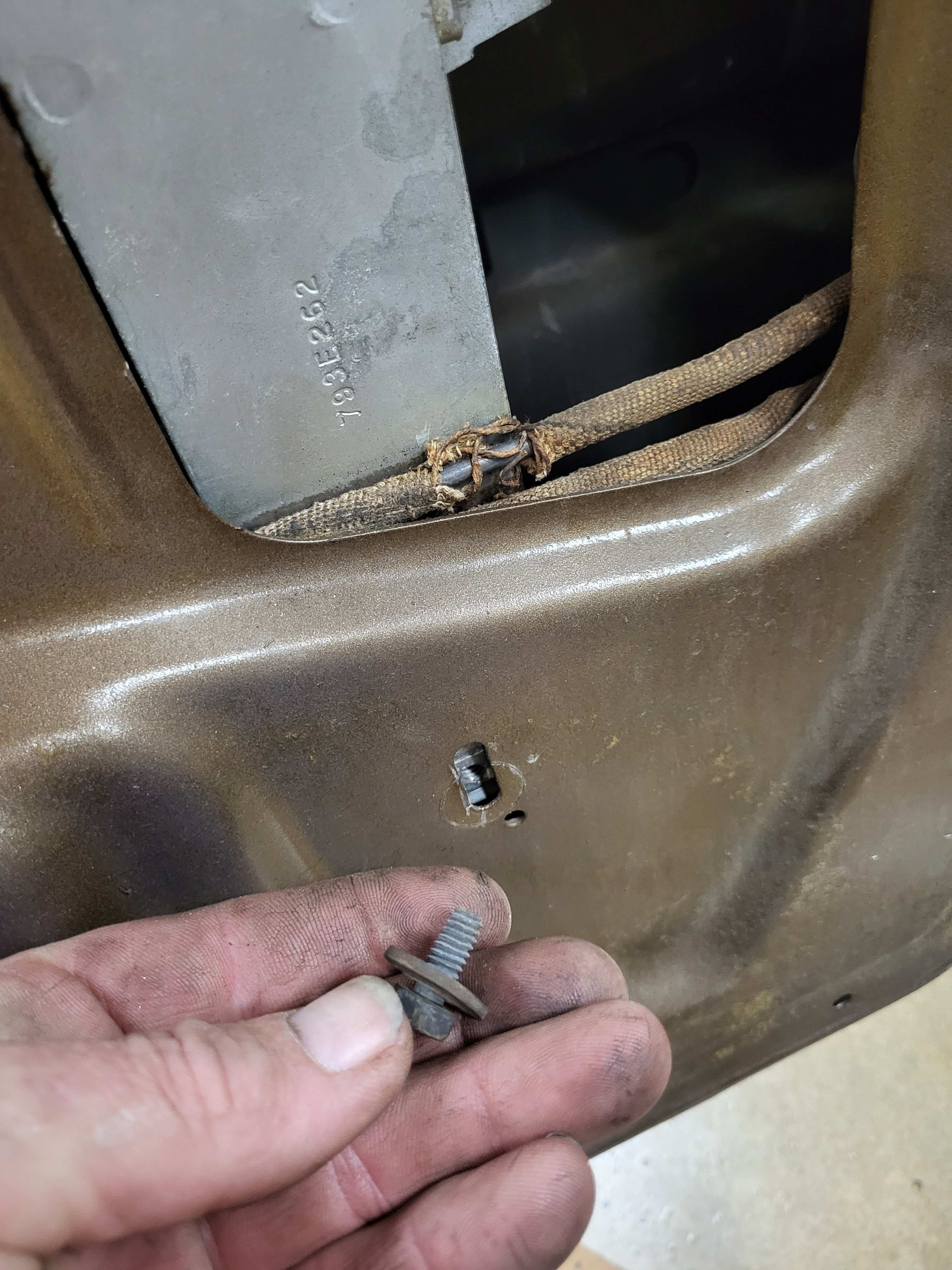

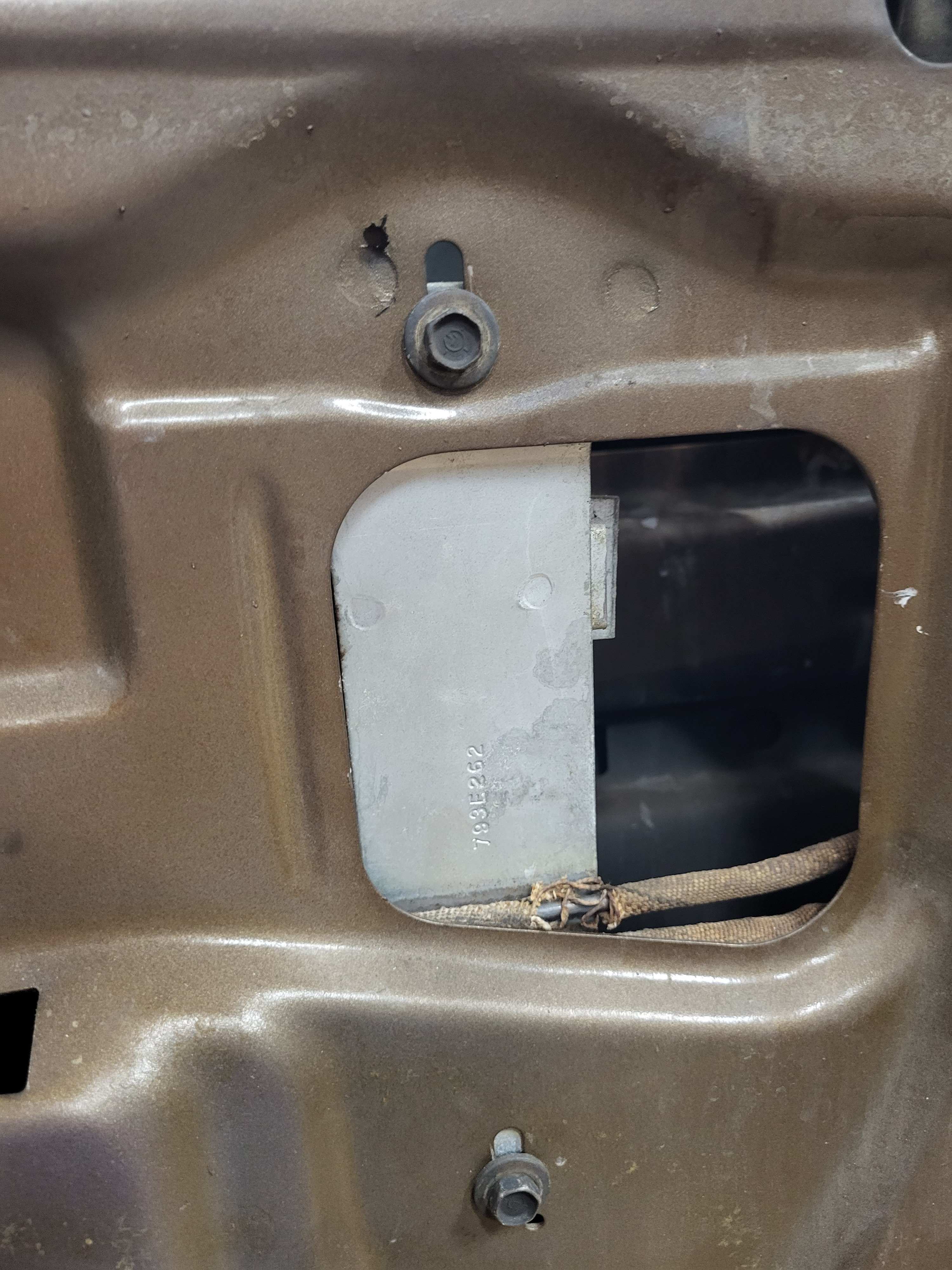

Hello e buddies......reassembling my doors on my 73 challenger. Door handle rods were originally installed between the door shell and the roller bracket. You can see the wear marks on the bracket. The one rod is trapped between the bracket and shell caution friction and tearing the sleeve. Same way on driver and passenger side. Is this correct or should the rods be behind that bracket (further toward inside
Of door shell)?

Thanks









MOPARMITCH

Well-Known Member
Joined
May 6, 2013
Messages
536
Reaction score
89
Location
Friendship,Maryland
Hello e buddies......reassembling my doors on my 73 challenger. Door handle rods were originally installed between the door shell and the roller bracket. You can see the wear marks on the bracket. The one rod is trapped between the bracket and shell caution friction and tearing the sleeve. Same way on driver and passenger side. Is this correct or should the rods be behind that bracket (further toward inside
Of door shell)?

Thanks

View attachment 126223

View attachment 126224

View attachment 126225

View attachment 126226
I do believe they are correctly installed between the bracket and the door. I just disassembled the doors on my 70 Cuda. Car had never been apart before, and mine are the same way....


Khuotakharma

Well-Known Member
Joined
Feb 15, 2017
Messages
104
Reaction score
15
I believe you're right. I honestly don't think mine had ever been apart. Still had the factory linkage sleeve in tact. They do work behind the bracket, so I'm debating which way I'll go. I'd like to keep it factory but that one rod is pinched pretty tight.

Thanks for the reply


MOPARMITCH

Well-Known Member
Joined
May 6, 2013
Messages
536
Reaction score
89
Location
Friendship,Maryland
I believe you're right. I honestly don't think mine had ever been apart. Still had the factory linkage sleeve in tact. They do work behind the bracket, so I'm debating which way I'll go. I'd like to keep it factory but that one rod is pinched pretty tight.

Thanks for the reply
I would keep it as original. If you think it is too tight, you can always bend the bracket away slightly. Should not affect the window operation....


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
636
Reaction score
518

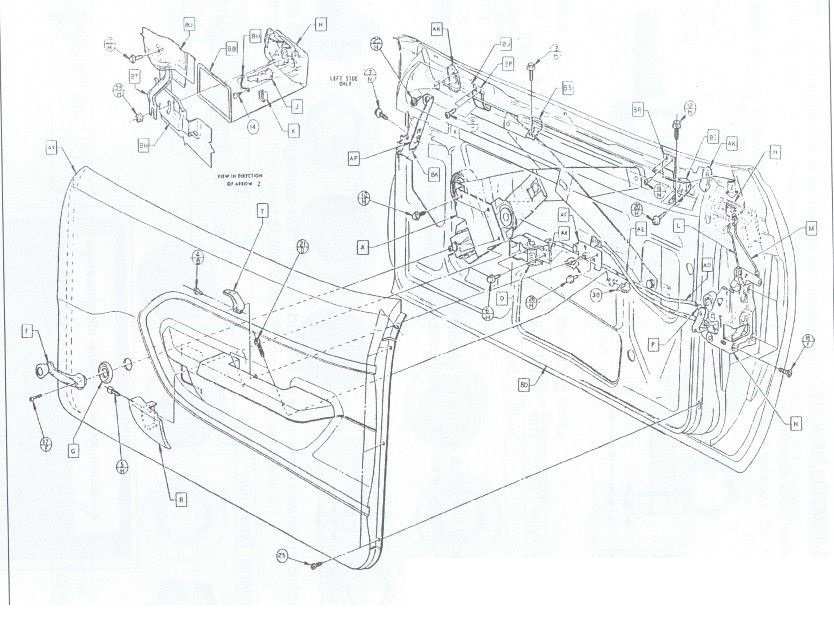

Here is the diagram for a Barracuda. Clearly shows the linkage rods between the door and brackets just like you thought.
door windowdiagram1 and latch.jpg

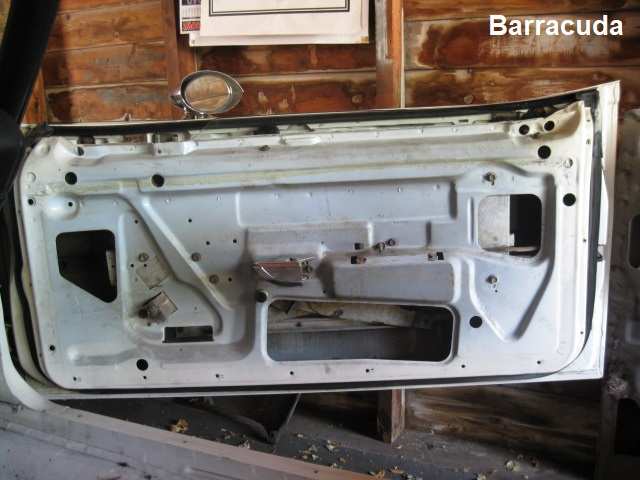

Door Window Crank Location BARRACUDA.jpg

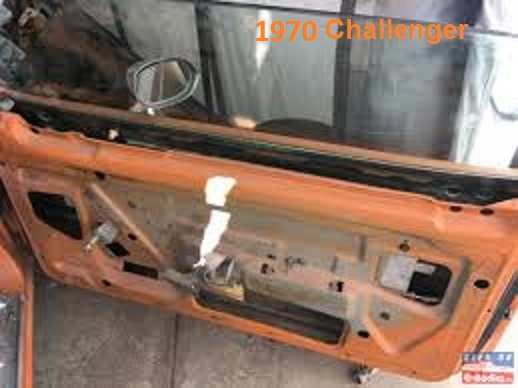

Door Window Crank Location CHALLENGER.jpg


EW1BH27

Well-Known Member
Joined
Dec 31, 2021
Messages
511
Reaction score
236
Location
Canada
LOL, the "Barracuda" door above is my car in my garage.


Khuotakharma

Well-Known Member
Joined
Feb 15, 2017
Messages
104
Reaction score
15
Thanks for the pictures. I'm going to leave them as factory. I'll just relieve the bracket a little. 👍
