flasher relay

[djais1801]

Where is the flasher relay located under the dash? The FSM says its on the brake pedal bracket....I don't have one on the bracket. Can someone send me a pic?



[Rapidfire]

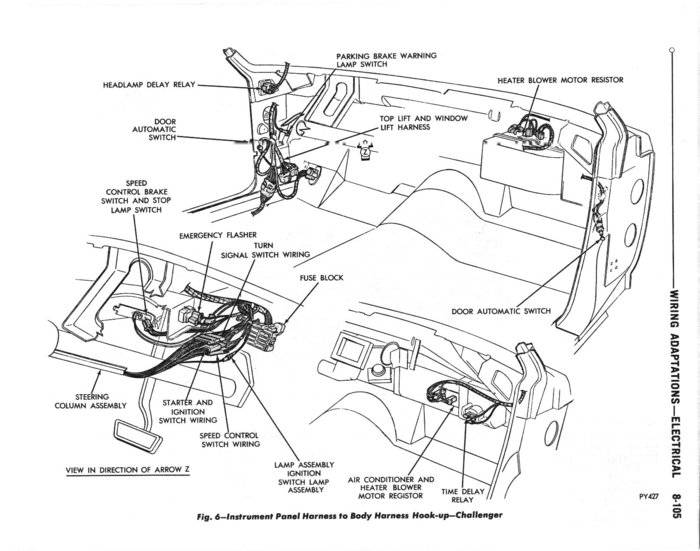

This should get you close!



[Rich G.]

4 way flasher is on the fuse block and the directional flasher is usually behind the ash tray



[djais1801]

4 way flasher is on the fuse block and the directional flasher is usually behind the ash tray

so if my turn signals work but my hazards do not, which should i look to replace



[Rich G.]

The one in the fuse box. They are both the same part but 2 separate functions



[djais1801]

The one in the fuse box. They are both the same part but 2 separate functions

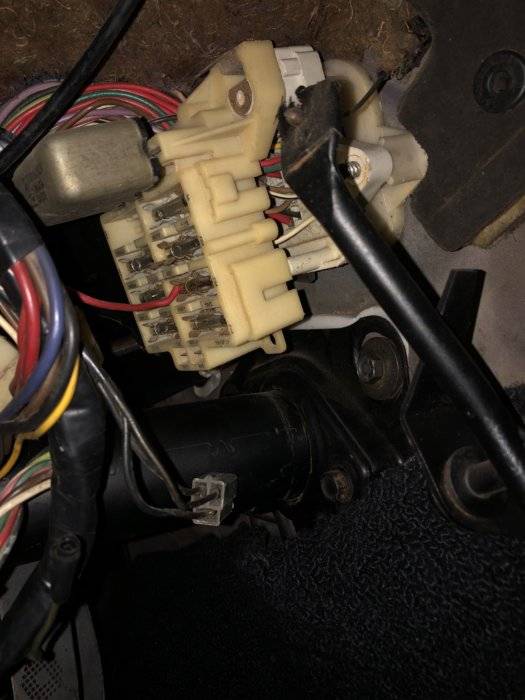

Here’s what I have...looks like it’s missing altogether



[moparlee]

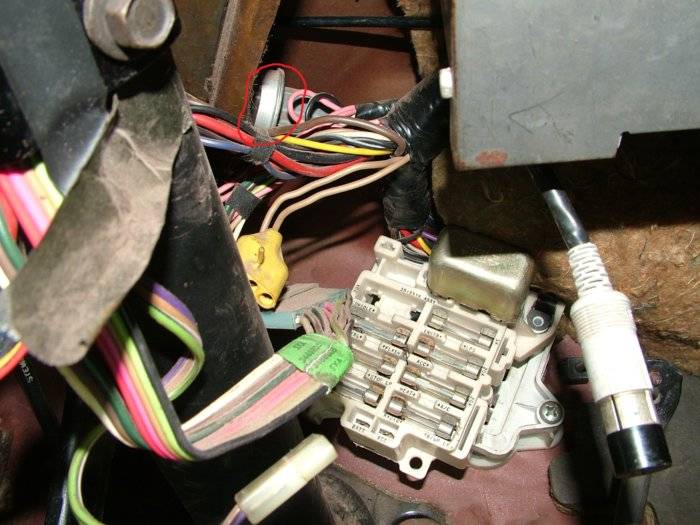

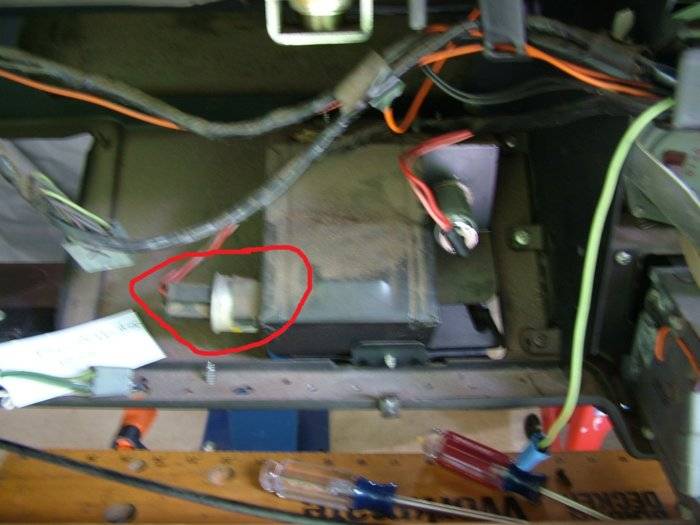

Here is where the two flashers are located. Circled in red on the brake/clutch support and on the side of the ash tray.



[Rich G.]

I guess depending on what year you’re working on. Good picture. I believe the one on the pedal bracket if the 4 ways. Just checked my car, the flasher is not on the fuse panel like I thought. My bad, must have been my other car I was thinking of. Oops



[Steve340]

The unit on the fuse box is the horn relay.
