Passing gear throw from under or over to carb?

wantonebadebody

Well-Known Member
Joined
Apr 29, 2009
Messages
124
Reaction score
36

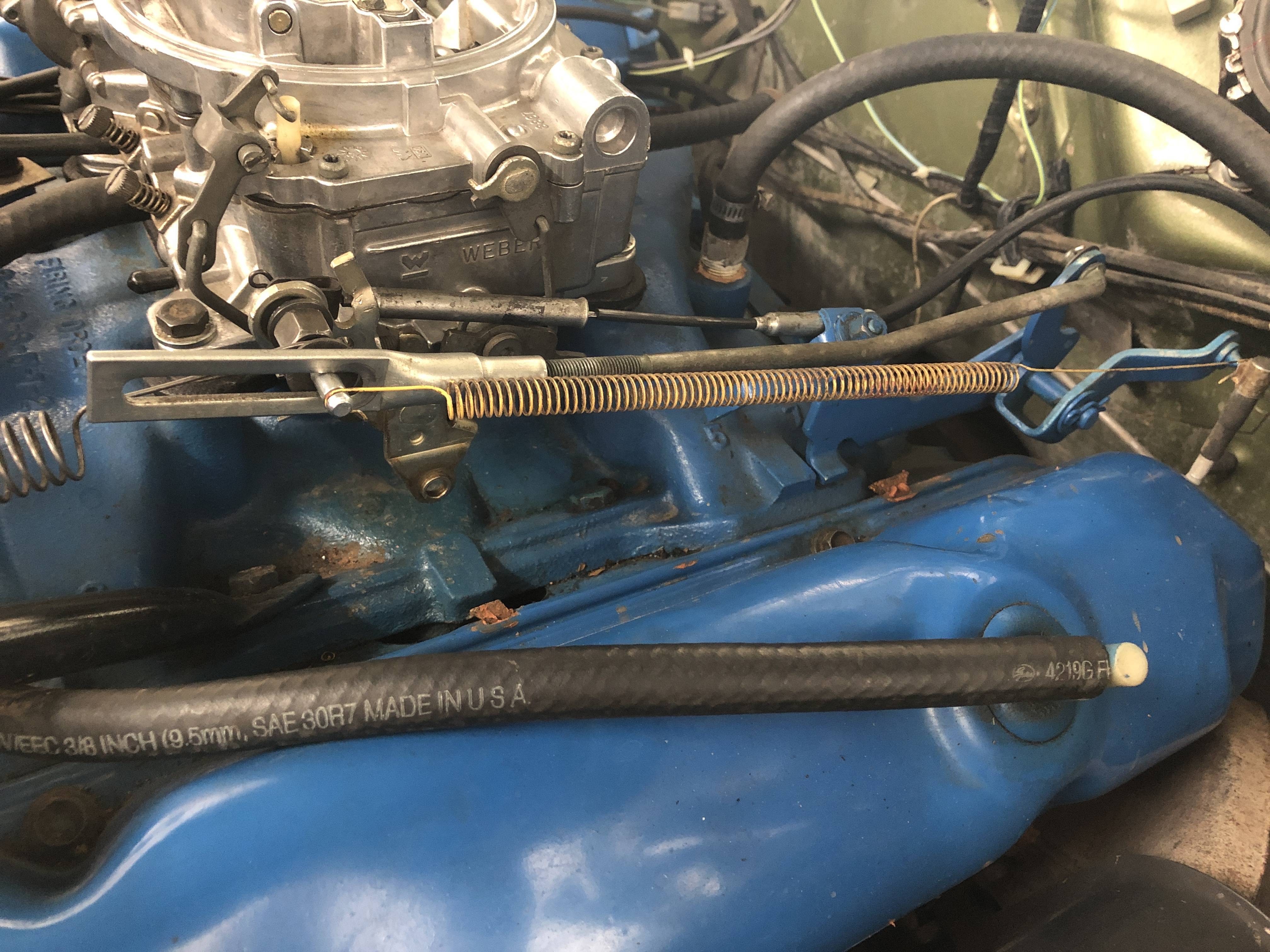

I would call this from under



moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
6,926
Reaction score
1,709
Location
So. Cal. Riverside area Moreno Valley

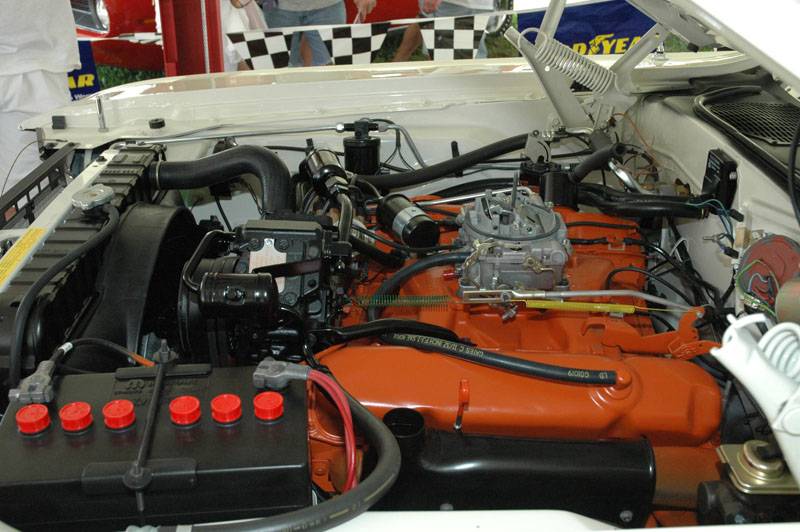

FSM for all V-8 except 426 Hemi. You have your rod flipped over.It installs from the other side.

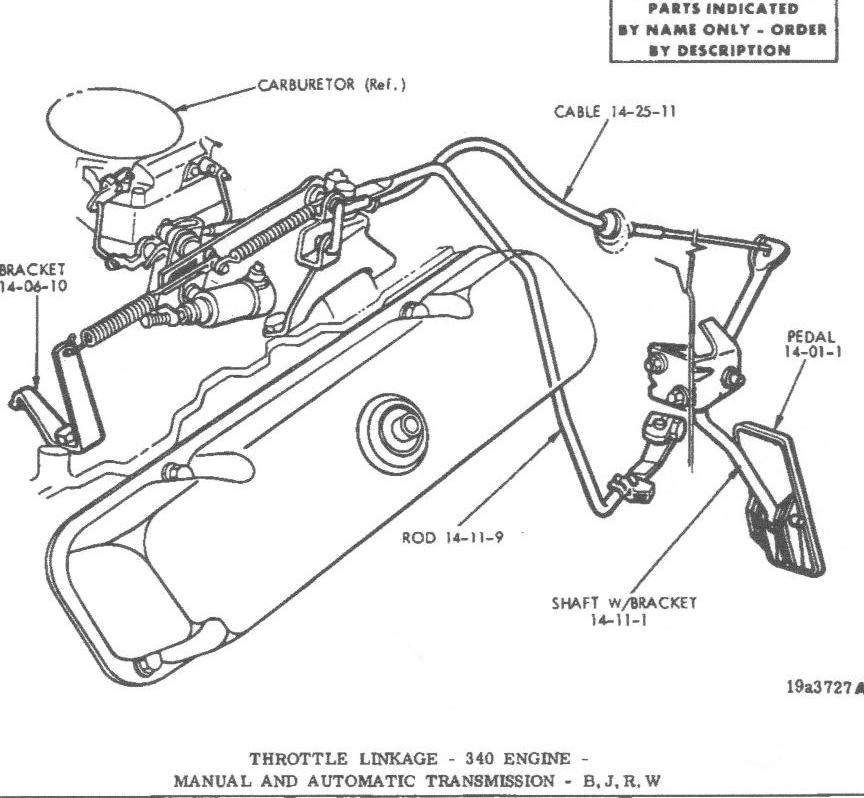

340 THROTTLE LINKAGE.jpg


Attachments

  • THROTTLE ROD ADJUSTMENT 8 CYL SINGLE SECTION ROD.pdf
    532.1 KB · Views: 162
  • THROTTLE ROD ADJUSTMENT 8 CYL 3 SECTION ROD.pdf
    459.1 KB · Views: 166
Last edited:

challenger6pak

Well-Known Member
Joined
Feb 27, 2011
Messages
4,035
Reaction score
894

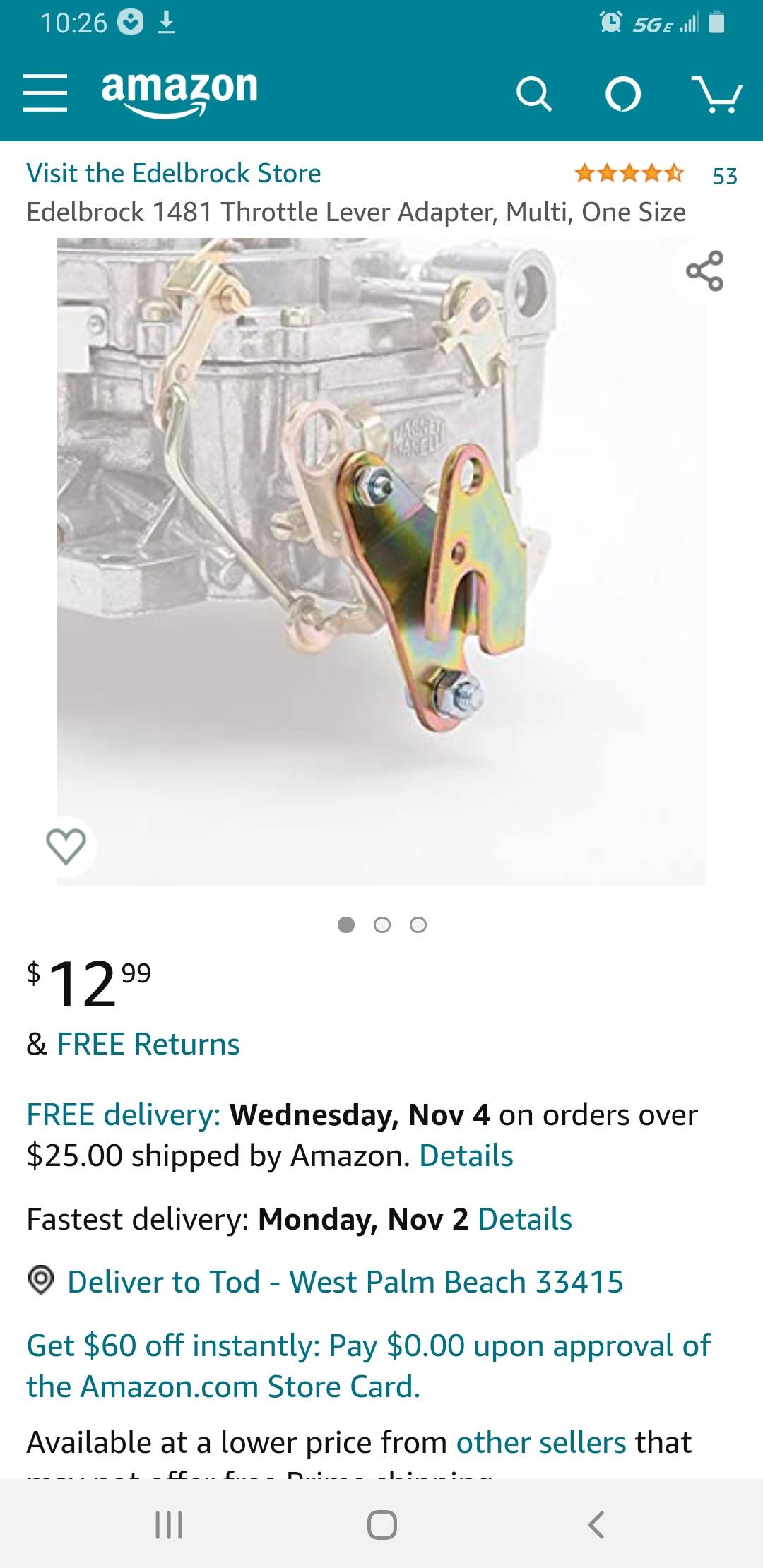

This is an Edelbock carb built with GM style linkage. It is not a Mopar AFB or AVS. It does not have holes to properly fit the Mopar kickdown linkage without the adapter.


oldkimmer

Well-Known Member
Joined
Dec 28, 2008
Messages
244
Reaction score
66
I agree, it needs the adaptor. Is that the right top kd rod? Kim
