Shift console bulb.

[Khuotakharma]

Hello friends! Just wondering if anybody out there can tell me where to find the shift console bulb. Can't find it anywhere in the manual. Thank you



[Khuotakharma]

Hello friends! Just wondering if anybody out there can tell me where to find the shift console bulb. Can't find it anywhere in the manual. Thank you



[Khuotakharma]

OK. So it looks like I don't have one. If you do, maybe you could send me a pic of what it looks like. I'd like to add one in. Thanks.



[moparlee]

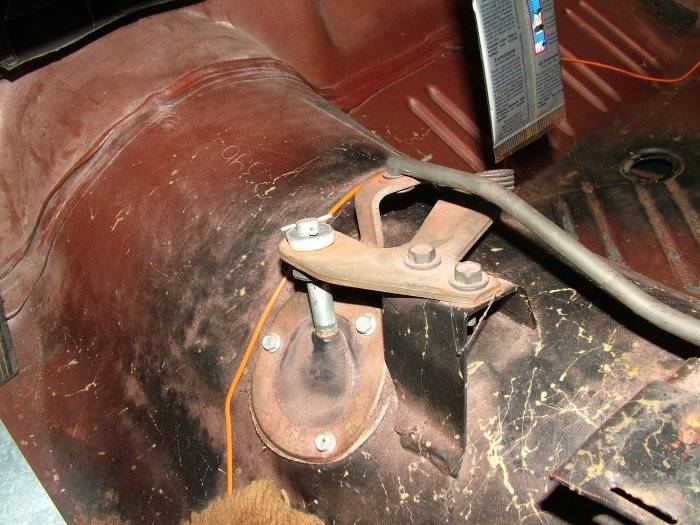

First, I assume you have an auto shifter. Are you saying your car doesn't have the shifter/console light or are you saying you can't find it your car? Here is a pic of the orange wire going to the shifter. Remove your console and carpet and you will find the orange wire and the bulb under the shifter. In the FSM manual wiring diagrams it's shown on page 8-157 and 8-173. The bulb is a #57.
