Windshield Removal

Body Shop

  1. 1969VADart

    1969VADart Well-Known Member

    Messages:
    73
    Likes Received:
    10
    Joined:
    Apr 15, 2017
    Location:
    Fredericksburg, VA
    I am beginning the process of disassembling my car. I am getting ready to take the windshield out to make it easier to get to the dash. I am wondering if anyone has any advice or tips on the best way to free the glass from the windshield seal to pull it up? Thanks.

  2. quapman

    quapman Well-Known Member

    Messages:
    470
    Likes Received:
    105
    Joined:
    Dec 28, 2008
    Utility knife, a few sharp blades and lots of patience. Cut from both sides and meet in the middle. Some time in the sun doesn't hurt either.

  3. PST

    PST Well-Known Member

    Messages:
    82
    Likes Received:
    5
    Joined:
    Jan 4, 2012
    Are planning to re use the gasket or replace? I would replace and used the method above. Use a razor blade/utility knife and cut around the gasket edge to expose the glass. You will need to people for removal.

    Thanks
    James

  4. quapman

    quapman Well-Known Member

    Messages:
    470
    Likes Received:
    105
    Joined:
    Dec 28, 2008
    You can't re-use a windshield gasket in an E body. In fact, it's not really a gasket, but a strip of butyl(?) sealer. I usually use "Windo-Weld" since it's pretty easy to find at the local parts store.

  5. 1969VADart

    1969VADart Well-Known Member

    Messages:
    73
    Likes Received:
    10
    Joined:
    Apr 15, 2017
    Location:
    Fredericksburg, VA
    I won't be reusing any of it. I will be installing all new glass eventually anyway. It appears that there is only sealer on the inside of the glass anyway. Was thinking there would be a way to pry the glass up. Of course, I don't want to break the glass either. Thanks.

  6. Steve340

    Steve340 Well-Known Member

    Messages:
    116
    Likes Received:
    22
    Joined:
    Sep 19, 2016
    No there will be no way to pry the glass up if you could the windscreen would have blown out by now.
    Pros use a cutting wire you need to follow quapmans advice.
    If you really want the glass it may pay to get a professional involved as the modern urethane sealers are very tough.
    Failing that the glass is probably worthless so just smash it out.

  7. 1969VADart

    1969VADart Well-Known Member

    Messages:
    73
    Likes Received:
    10
    Joined:
    Apr 15, 2017
    Location:
    Fredericksburg, VA
    I would like to avoid the smashing it out route at all costs so I don't end up with glass everywhere. But I guess we will see. Thanks.

  8. Adam

    Adam Well-Known Member

    Messages:
    659
    Likes Received:
    111
    Joined:
    Dec 25, 2012
    Location:
    Calif.
    Remove inner window trim and A-pillar trim. I use steel "music wire" small like .020 ( https://www.walmart.com/ip/Precisio...20-dia-1lb-music-wire937-long/19278751?action ) . Poke a hole thru the butyl and feed it thru. Wrap each end around a dowel and have another person on the other side; pull the wire along the glass until you have gone all the way around. The petrified Butyl will be tough!

    Do not pry on the glass! Also, if the sunshade green band across the top of the windshield has turned brown you should get new glass, imo.

    1969VADart likes this.
  9. KATSAAR

    KATSAAR Well-Known Member

    Messages:
    163
    Likes Received:
    11
    Joined:
    Nov 25, 2011
    yup, piano or guitar string.
    2 small pairs of vise grips to hold the wire.
    one guy in the car, one guy outside the car.
    start sawing.

  10. Canuck74

    Canuck74 Well-Known Member

    Messages:
    65
    Likes Received:
    10
    Joined:
    Nov 17, 2014
    I used wire and a pry tool. Broke my front window, back window came out fine. I think I pried a little too hard, and didn't make sure the wire had cut through properly on the front. I would do it on a warmish day so the butyl is easier to go through, but not so hot that it remelts together.

  11. tklockwood

    tklockwood Well-Known Member

    Messages:
    56
    Likes Received:
    4
    Joined:
    Dec 17, 2014
    Location:
    Corcoran, MN
    I recently removed mine. I used a tool specifically for that task. It is a handle with a right angle blade that slips under the edge of the glass into the seal. It also has about a 6-8" steel cable coming out from near the bottom by the blade that has a T Handle on the end of it. You hold the main handle with one hand and pull the handle on the end of the cable to force the blade around the glass, cutting the seal in the process. Worked a treat. Probably took me about 10 minutes to get it out. I got a little impatient toward the end and rushed it so I did crack the windshield, but it came out in one piece. No mess...

  12. 1969VADart

    1969VADart Well-Known Member

    Messages:
    73
    Likes Received:
    10
    Joined:
    Apr 15, 2017
    Location:
    Fredericksburg, VA
    Where did you come about finding said tool?

  13. tklockwood

    tklockwood Well-Known Member

    Messages:
    56
    Likes Received:
    4
    Joined:
    Dec 17, 2014
    Location:
    Corcoran, MN

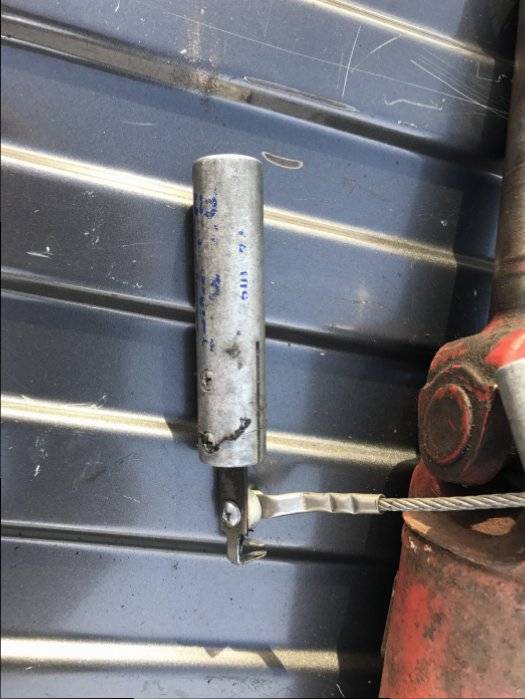

    2017-04-21 17.51.22.jpg

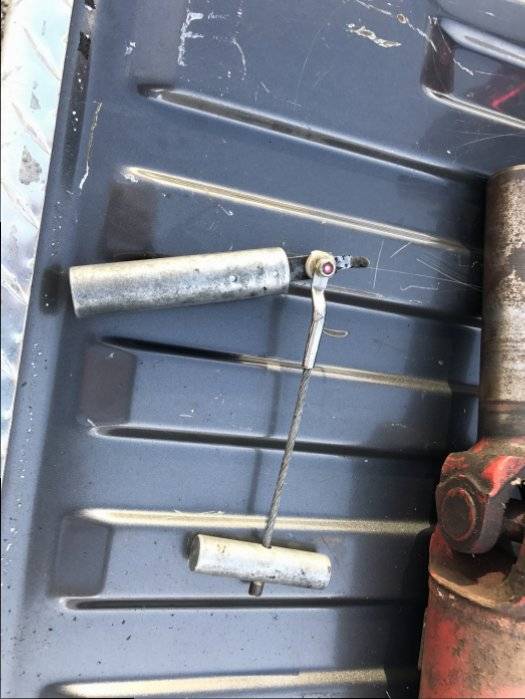

    2017-04-21 17.51.14.jpg

    I honestly don't know. This is the tool in question. I have had it for so long that I do not recall where I got it. It really does work super sweet at removing "glued in" windows. I don't know if the pictures will help you know what you were looking for if you went out to try to buy one. I guess if you can't find one like it I could probably be convinced to loan it to you as long as you paid the shipping both ways and promised to send it back. It really does make a tough job a lot easier.

    Tom

    1969VADart likes this.
  14. 1969VADart

    1969VADart Well-Known Member

    Messages:
    73
    Likes Received:
    10
    Joined:
    Apr 15, 2017
    Location:
    Fredericksburg, VA
    That is an awesome offer. Let me see if I can find one before I ask for that kind of help.

  15. tklockwood

    tklockwood Well-Known Member

    Messages:
    56
    Likes Received:
    4
    Joined:
    Dec 17, 2014
    Location:
    Corcoran, MN
  16. tklockwood

    tklockwood Well-Known Member

    Messages:
    56
    Likes Received:
    4
    Joined:
    Dec 17, 2014
    Location:
    Corcoran, MN
  17. 1969VADart

    1969VADart Well-Known Member

    Messages:
    73
    Likes Received:
    10
    Joined:
    Apr 15, 2017
    Location:
    Fredericksburg, VA
  18. quapman

    quapman Well-Known Member

    Messages:
    470
    Likes Received:
    105
    Joined:
    Dec 28, 2008
    I have one somewhere. I think I got it from Horrible Freight. After cracking two windshields and snapping off the blade on a 3rd, I don't use it any more.

  19. 1969VADart

    1969VADart Well-Known Member

    Messages:
    73
    Likes Received:
    10
    Joined:
    Apr 15, 2017
    Location:
    Fredericksburg, VA
    I found the one from Advance Auto. Going to give it a try and see what happens. Thanks to everyone for the input.

  20. paharamia

    paharamia Well-Known Member

    Messages:
    1,113
    Likes Received:
    381
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    Hope the tool works for you. I am in the process of removing the original but cracked windshield from my Challenger. I am using heavy duty picture hanging wire. I cut a piece and attached two short screw drivers to the wire, one at each end. I used a sheet rock knife to slice the sealer all around the windshield to make cutting the seal easier. Poked an access hole in the sealer at a corner and snaked the wire in, then attached the wire to the 2nd screw driver. Used a sawing motion and pulled the wire slowly through the length of the windshield. Only removed the outside trim. Had to be careful of the wire snagging the edges of the inside trim. Had to change the wire 3 times and went slow. Worked well. Have done a number of windshields this way over the years. Inexpensive wire cost me 3 bucks from Home Depot.
