Convertible Dash Wiring - Advice

Electrical and Ignition

  1. doubleyellow

    doubleyellow Well-Known Member

    Messages:
    151
    Likes Received:
    13
    Joined:
    Aug 3, 2015
    Location:
    Metro Detroit
    2 questions on convertible harness connections in dash:

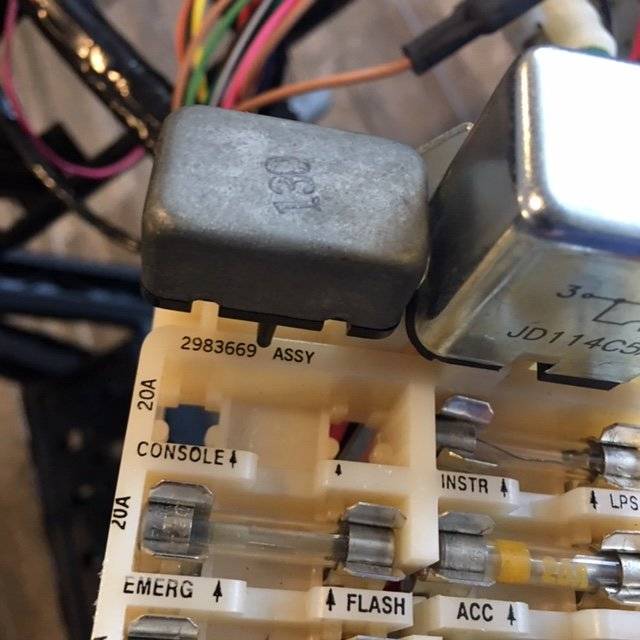

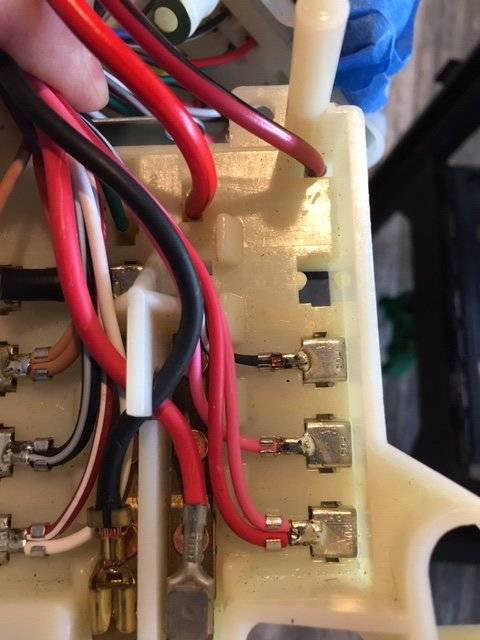

    1. Do I have the Red and Red/Tracer in the right spots of the fuse block?

    2. Does the other end Red/Tracer wire connect to Amp Gauge in Rallye Cluster?

    Again, I'm trying to go by the old wiring diagrams in the manual, but need to be sure so as not to fry the car.

    Thanks IMG_0527.JPG IMG_0528.JPG IMG_0530.JPG

  2. Slotts

    Slotts Active Member

    Messages:
    29
    Likes Received:
    23
    Joined:
    Feb 12, 2011
    Sorry, I missed this one, yesterday.

    1. Yes, you have the wiring located in the right positions. Red with black tracer is in the upper right hand corner when looking at the back or terminal insertion locations.

    2. The solid red convertible ring connects to the R side of the alternator gauge. I believe this was done to not have that much of a load go across the alternator gauge. The main feed to the R on the alternator gauge is actually straight from the battery via the starter relay and in on bulkhead terminal 16. The Red with black tracer from the circuit breaker feed to the center input terminal of the up/down switch.

    If you find that your top switch is not re-centering to the off position, or may be tripping the circuit breaker while the top is moving, causing stops and starts between the full travel up or down, I do restore those. :thumbsup:

    Jim

  3. doubleyellow

    doubleyellow Well-Known Member

    Messages:
    151
    Likes Received:
    13
    Joined:
    Aug 3, 2015
    Location:
    Metro Detroit
    Awesome, thanks Slotts
