Standard Gauge Cluster Ammeter to Volt Meter conversion video

JunkYardFind

Active Member
Joined
Feb 1, 2021
Messages
27
Reaction score
10
Location
Huntington Beach, California

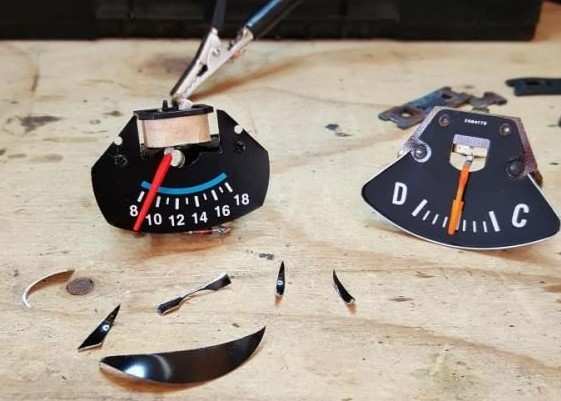

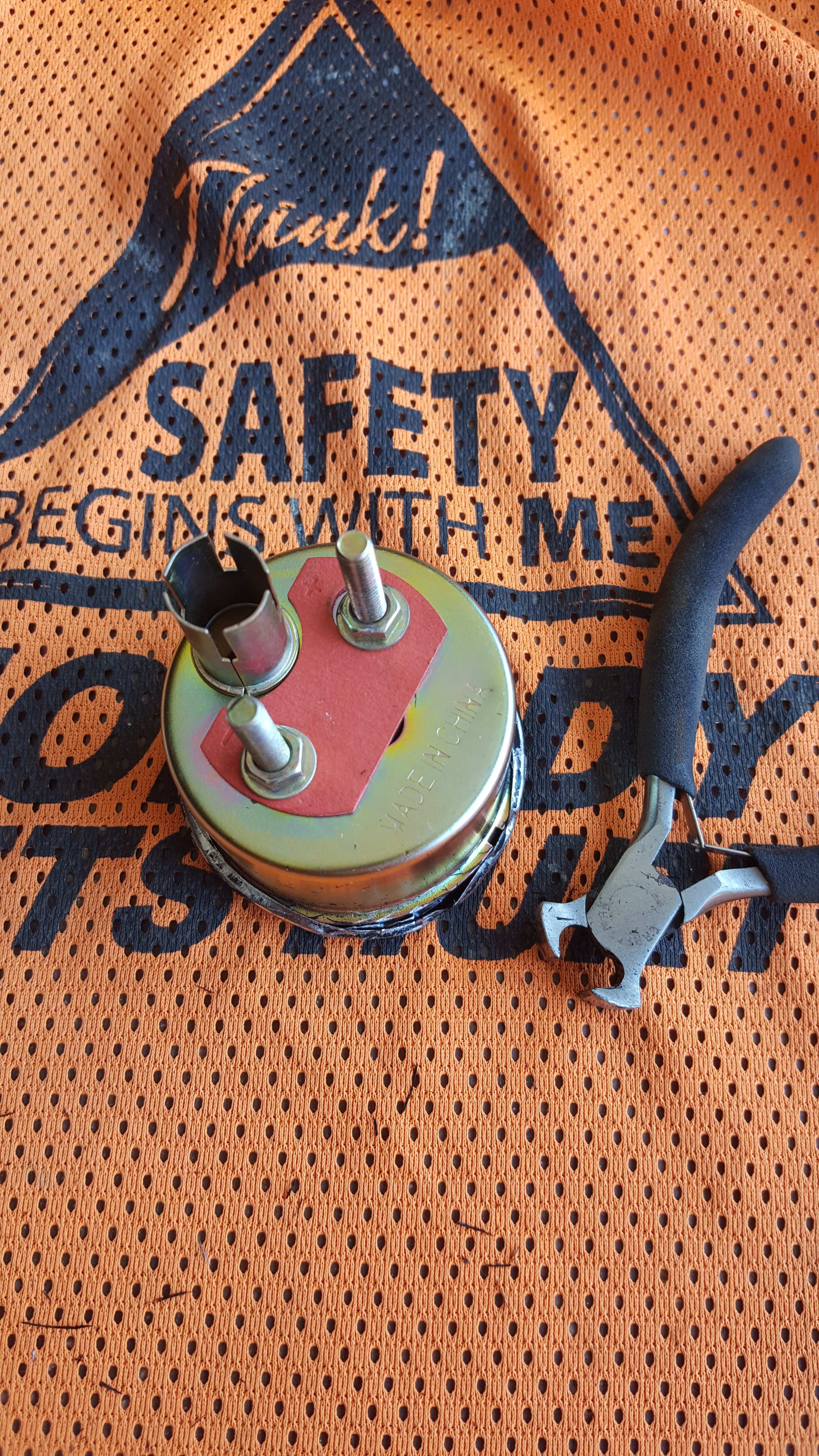

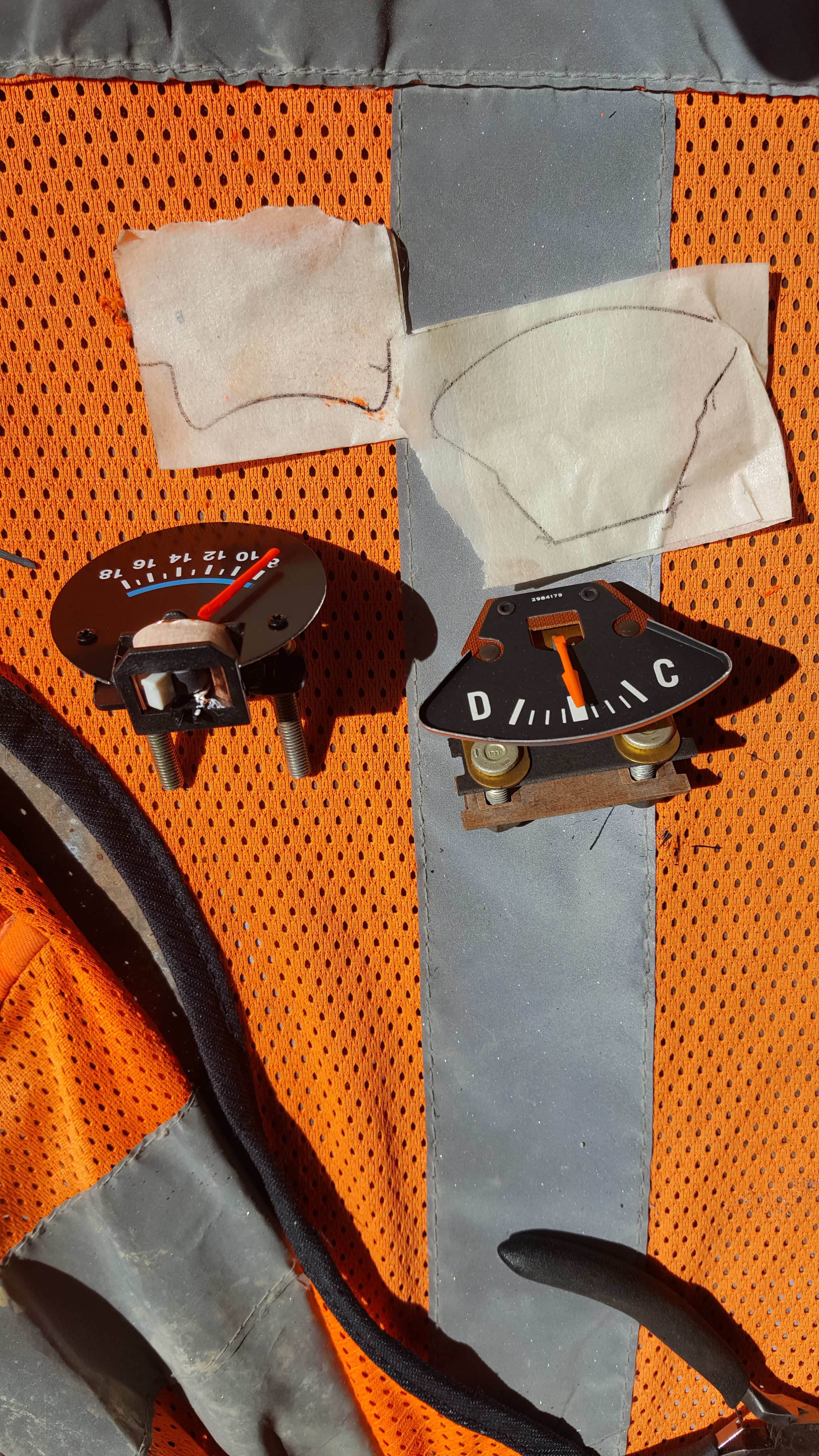

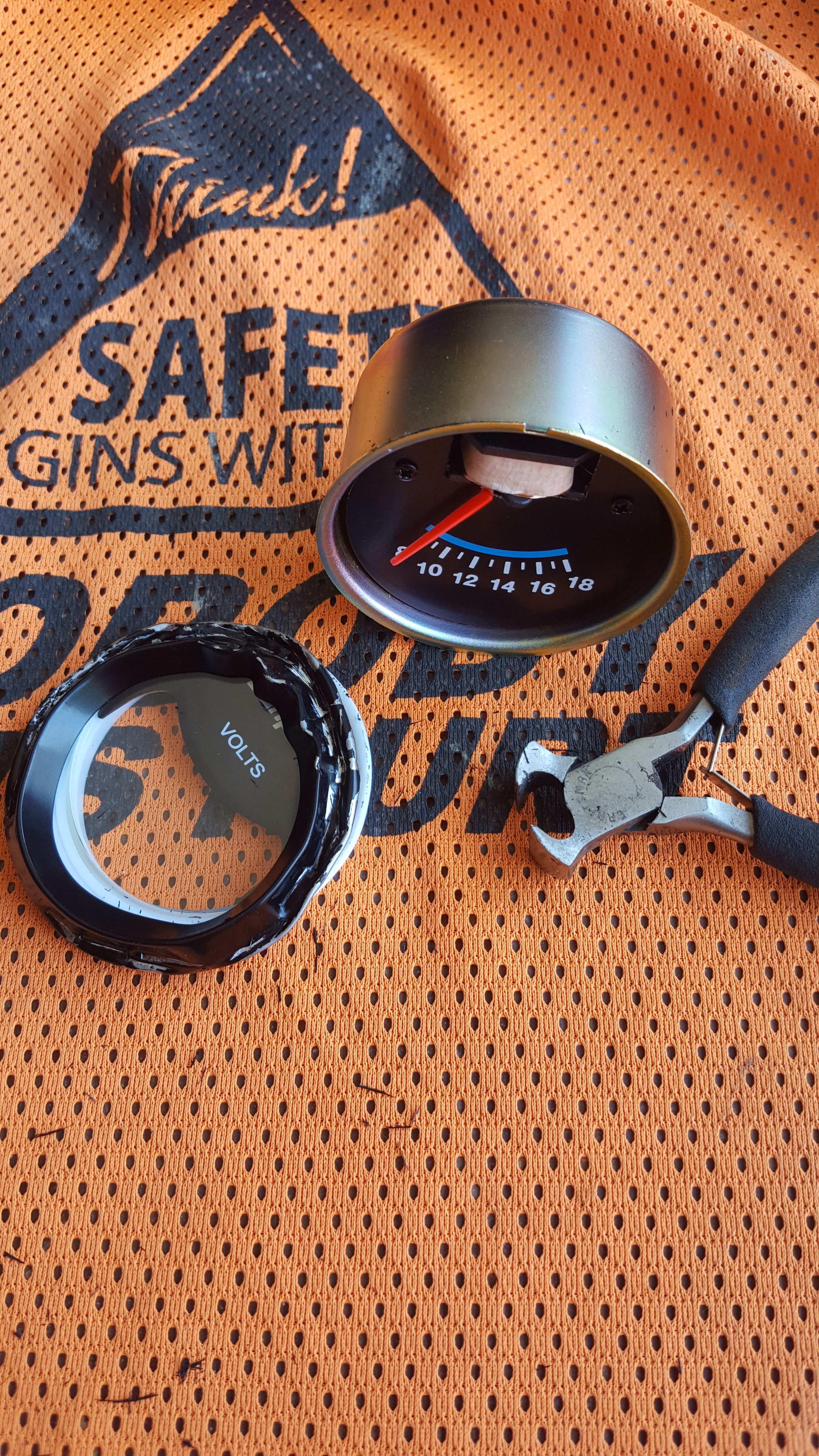

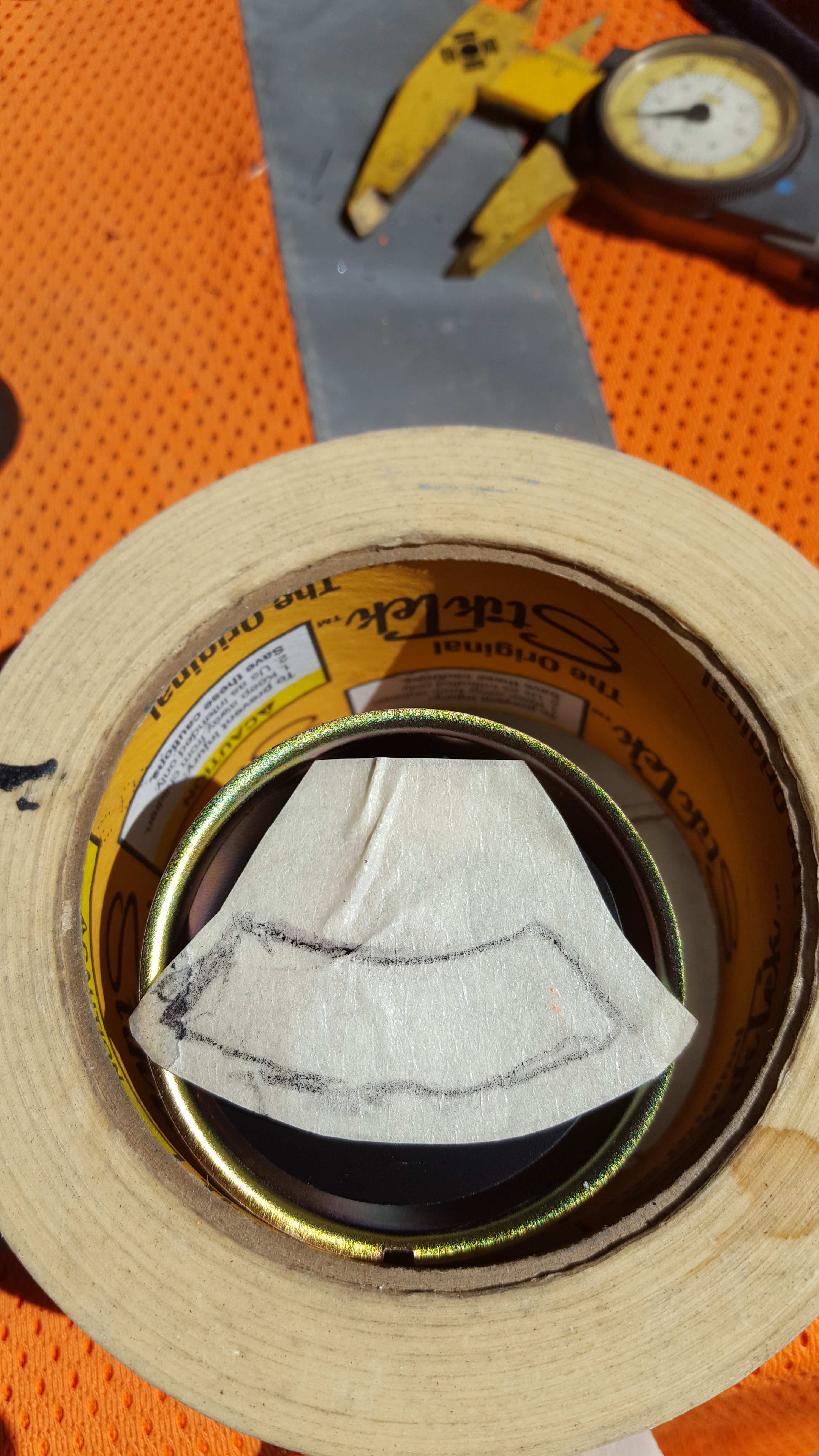

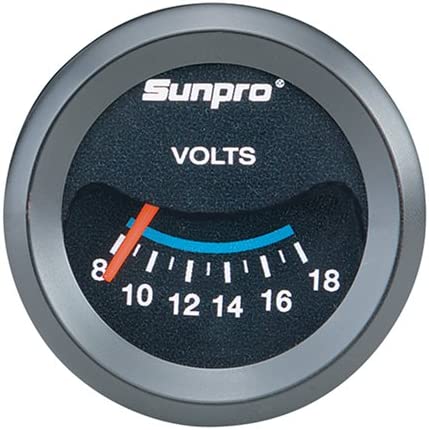

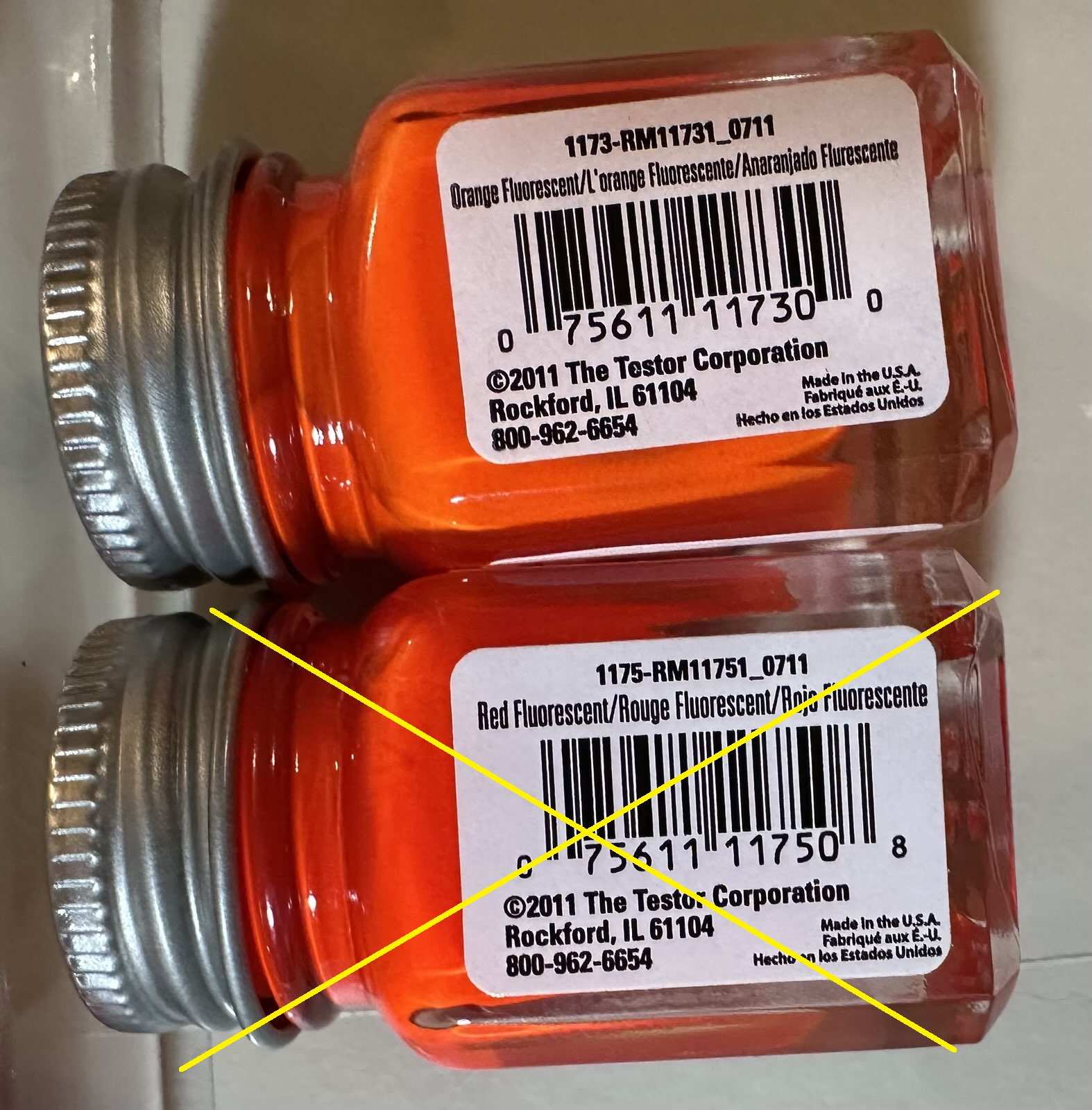

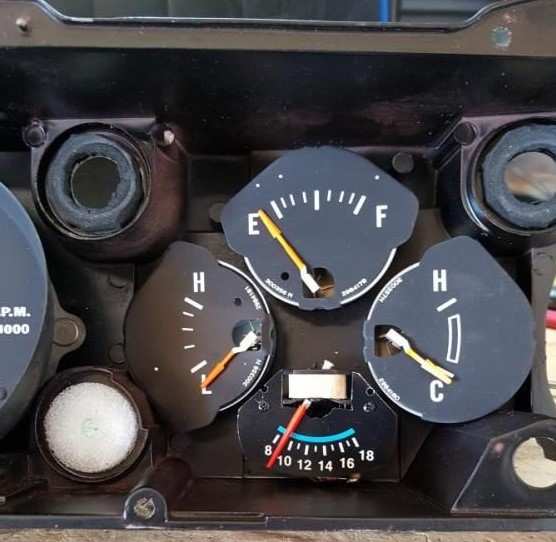

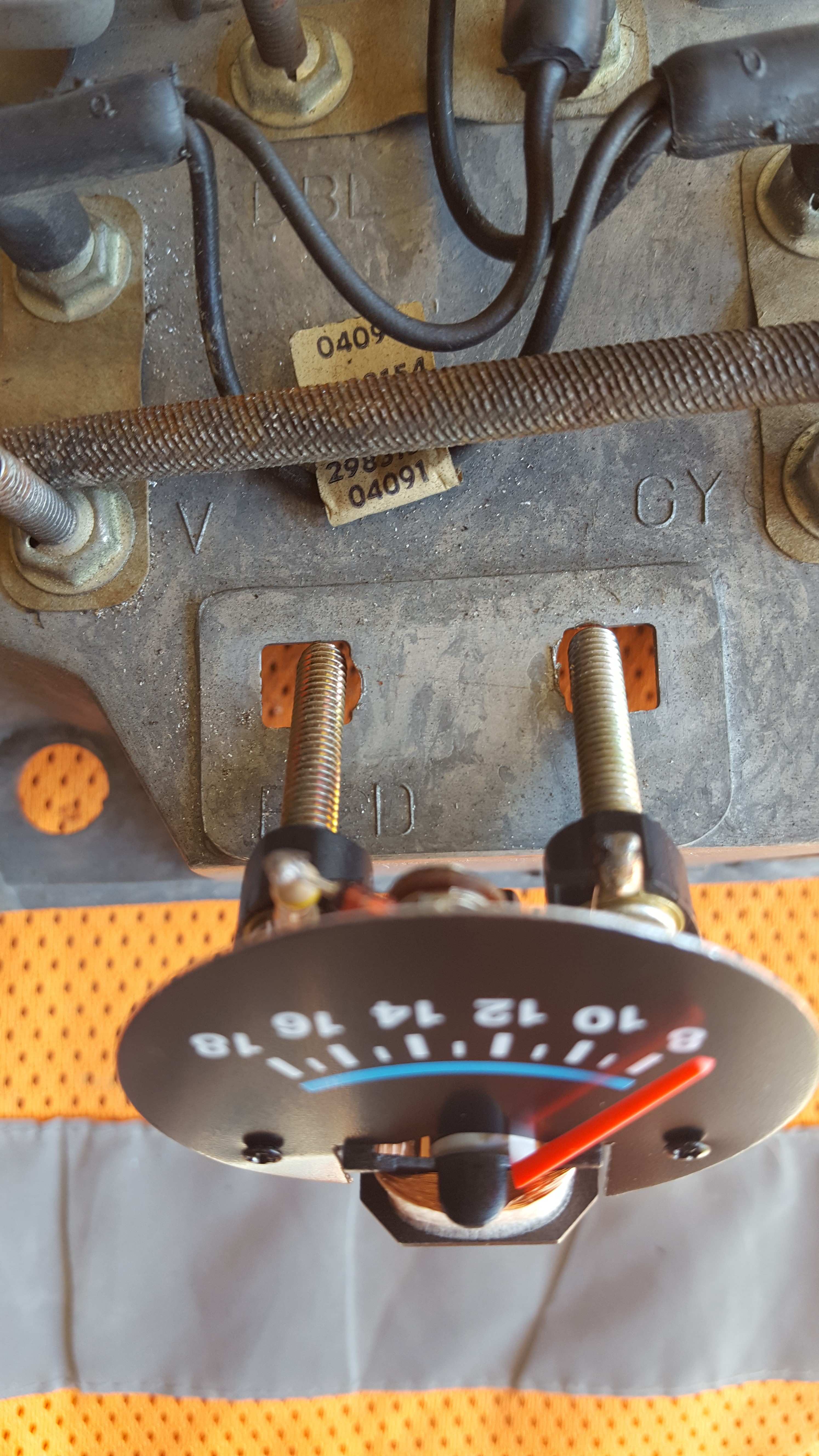

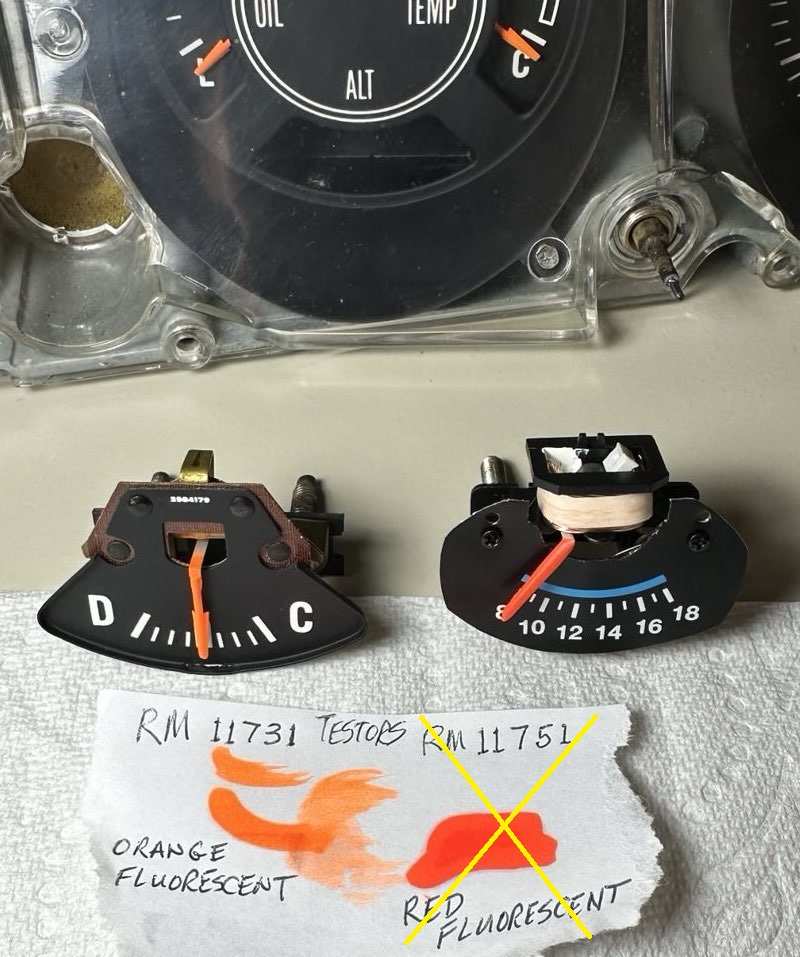

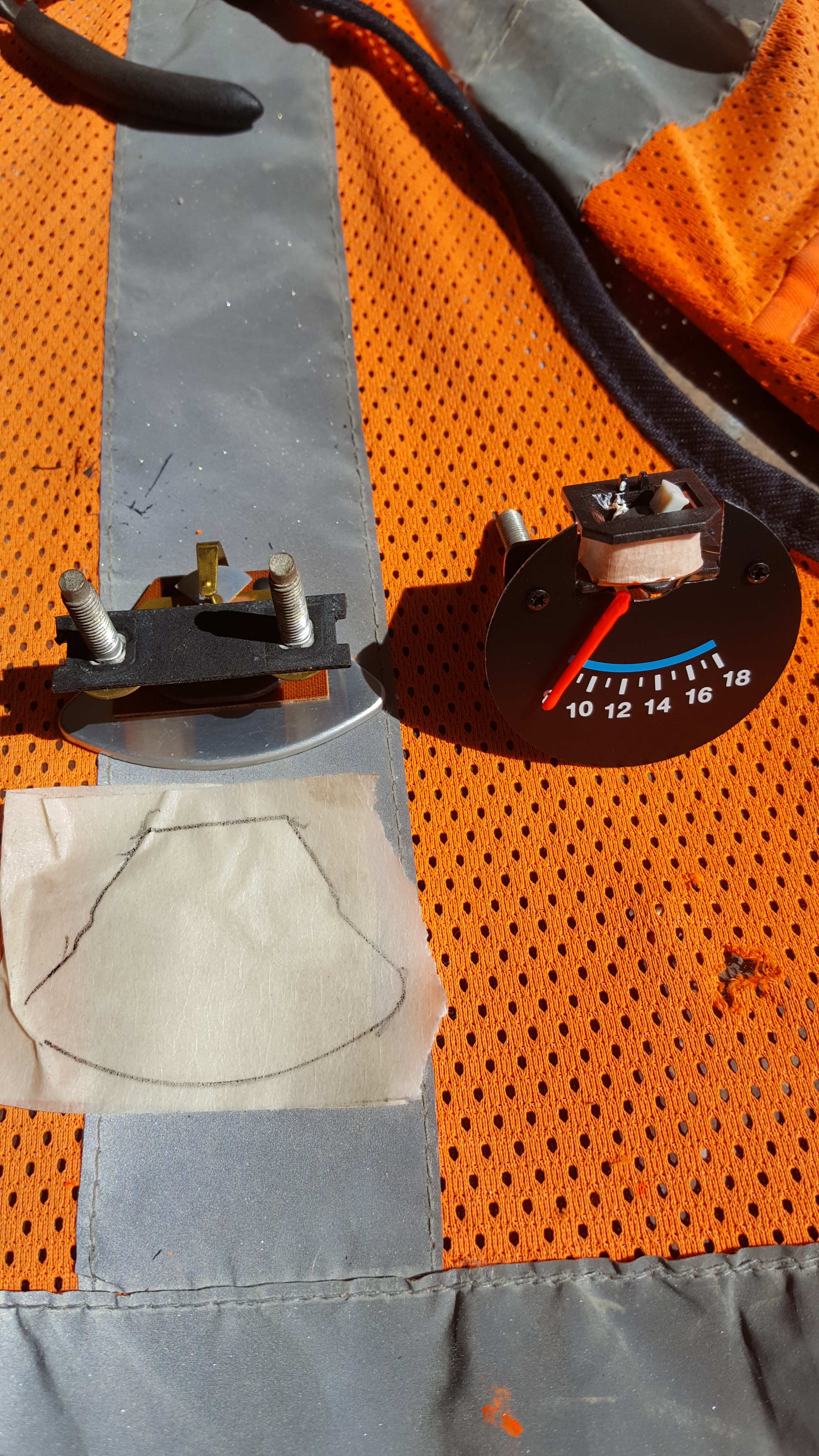

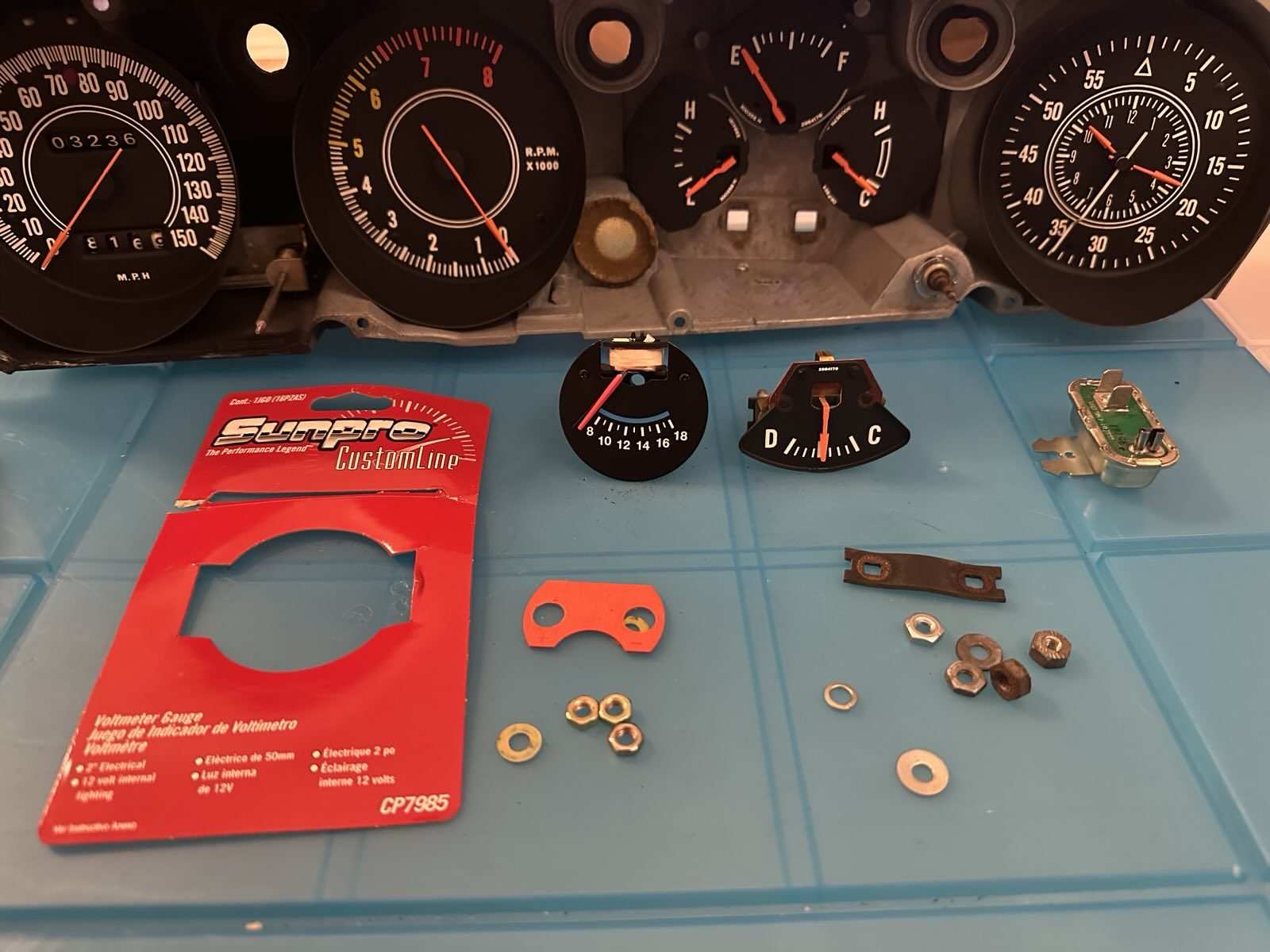

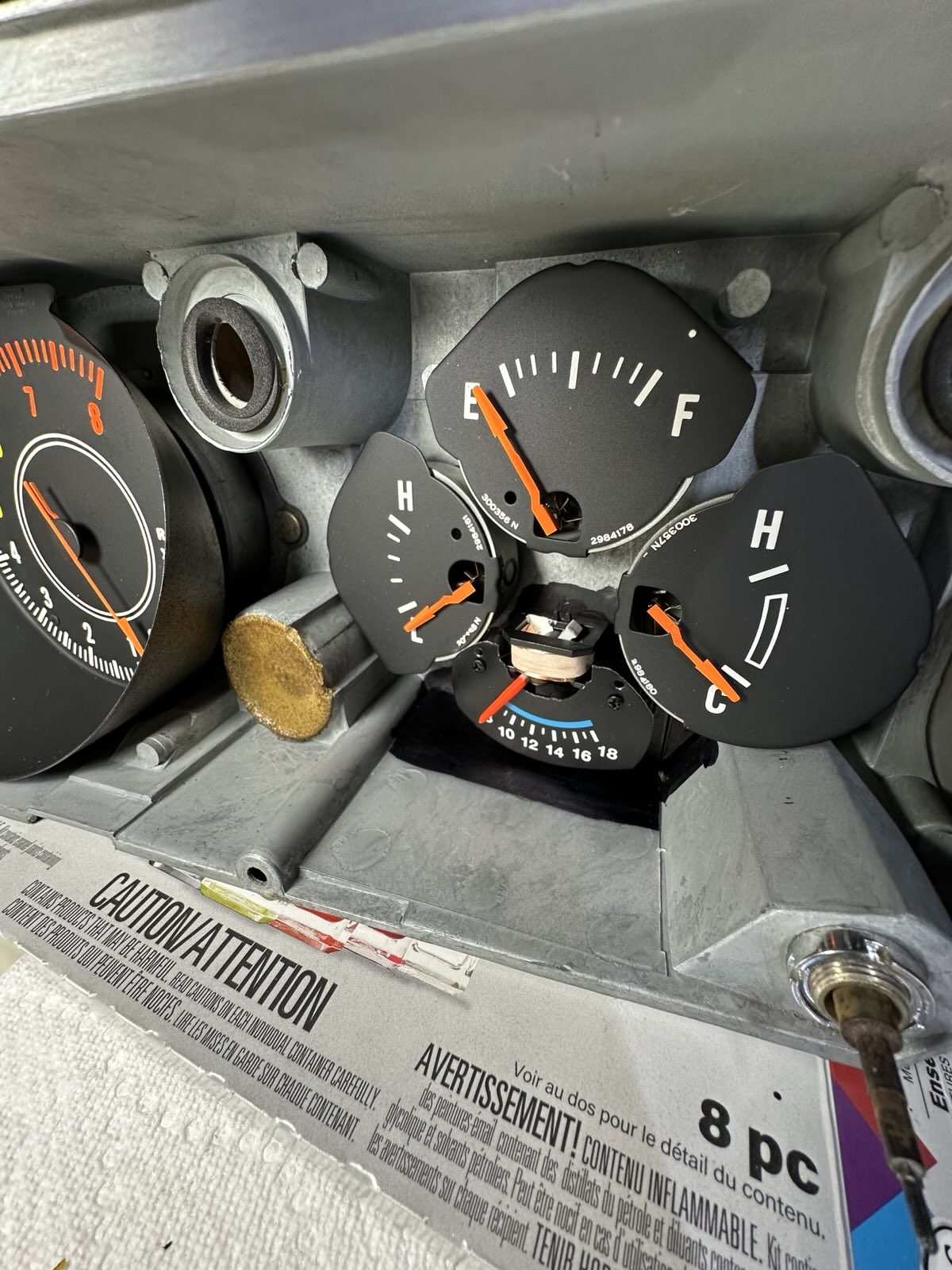

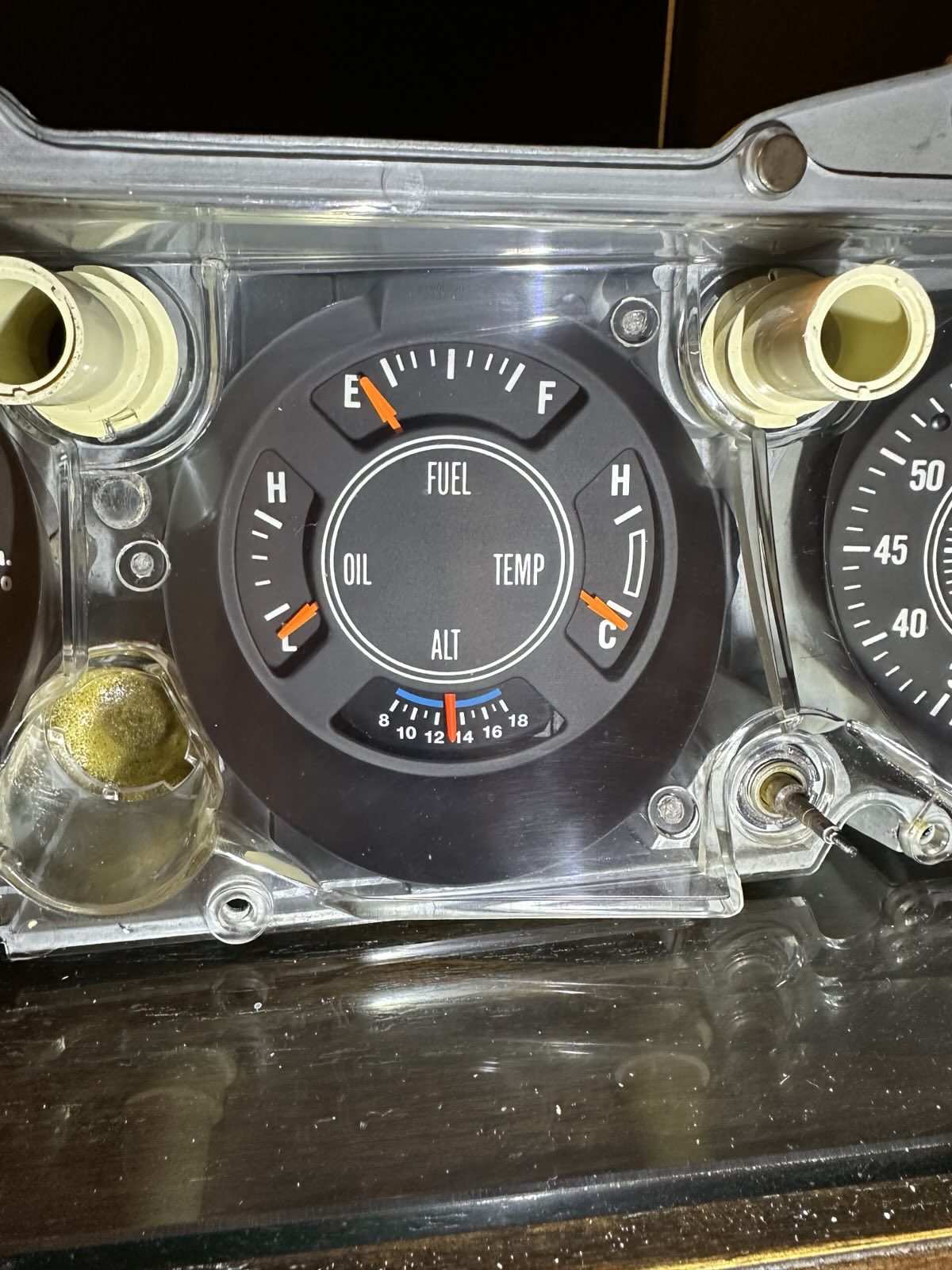

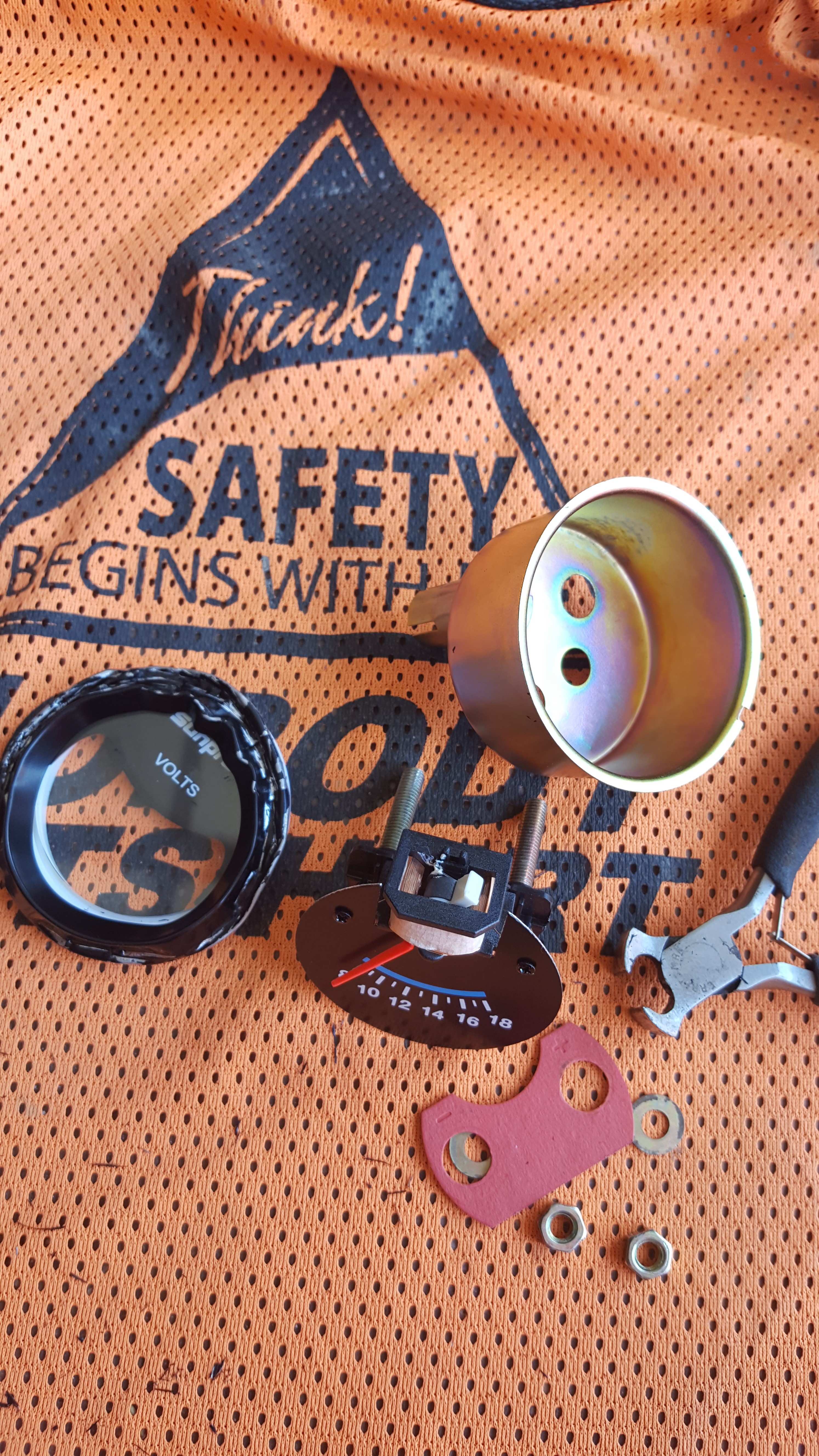

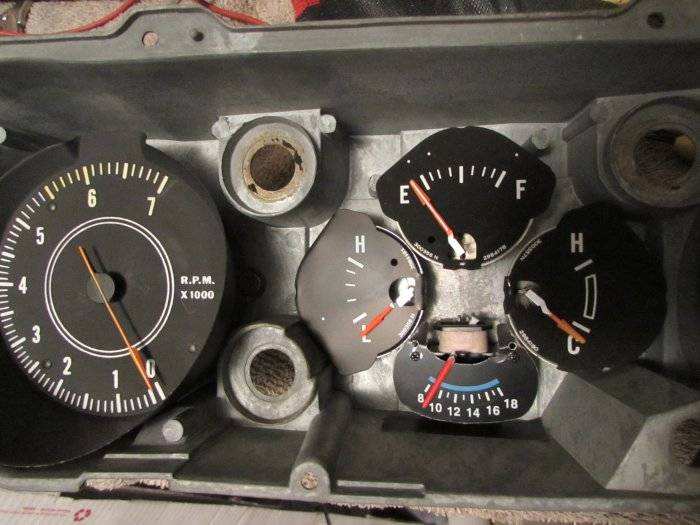

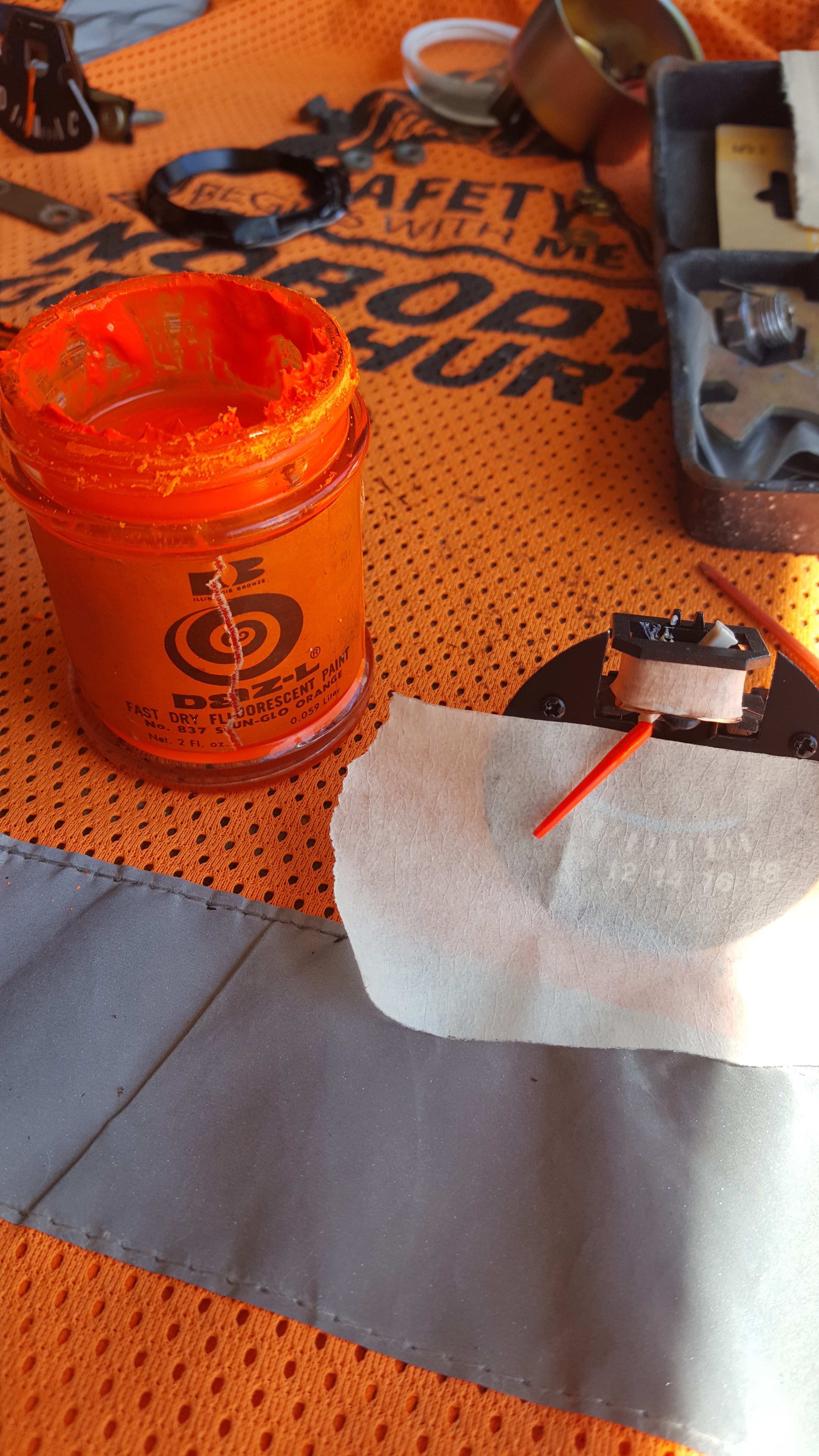

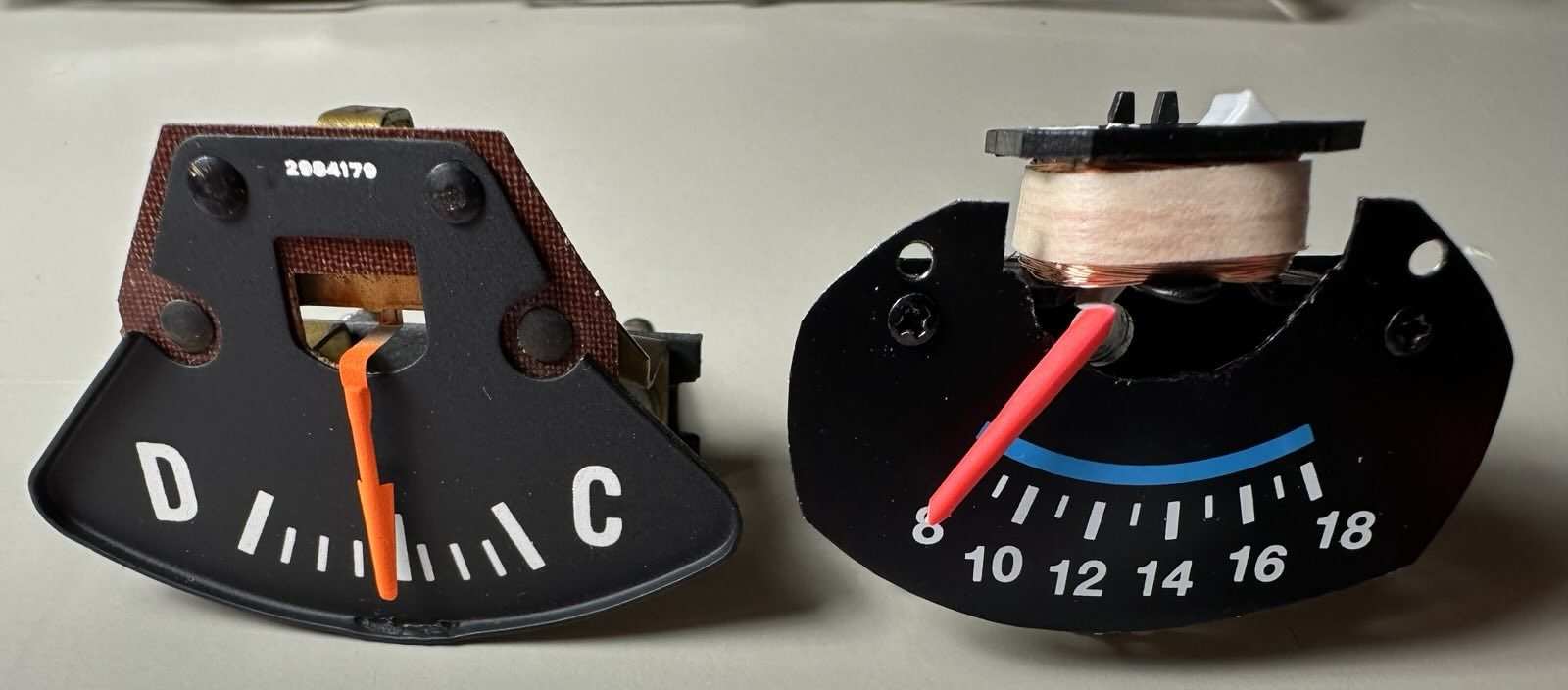

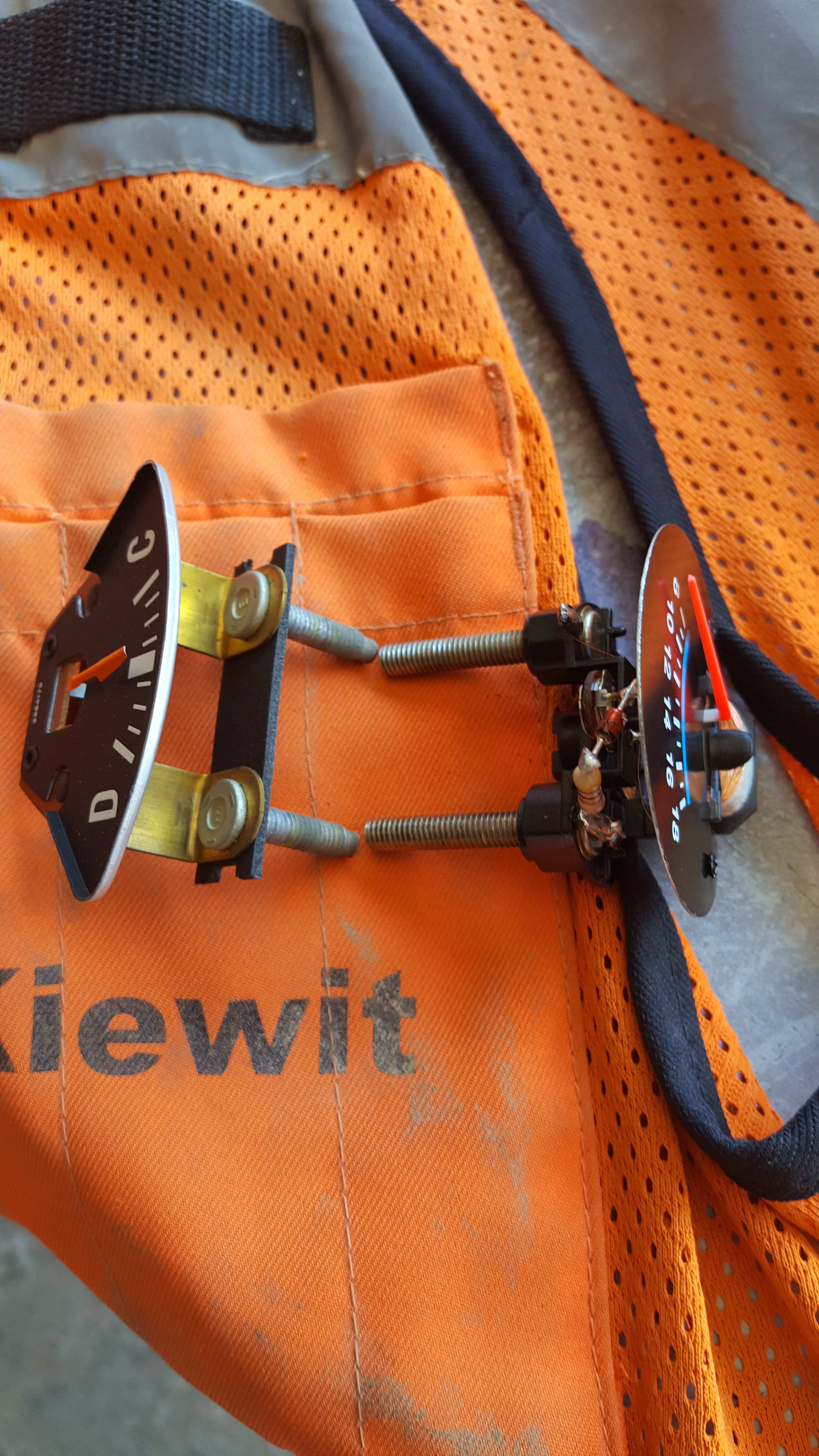

Finally finished the video that shows my Ammeter conversion to a Volt meter! It's pretty cool, the conversion turned out great! Check it out here on our JunkYard TV YouTube channel ....


72RoadRunnerGTX

Well-Known Member
Joined
Jan 8, 2013
Messages
192
Reaction score
113
Location
Shoreline. Washington
Nicely produced video but there are some serious points of contention stated here. I fear you are only perpetuating the “Ticking Time Bomb” Mopar ammeter myth. I see a perfectly good ammeter being cannibalized for an instrument providing far less useful information about charging system real time health. Not seeing any signs of any heat damage to the main ammeter bus, connection studs or insulators from loose or poor connections. All of the vehicle loads-alternator output does NOT flow through the ammeter as originally designed, only the battery charging/discharging current should be registered. With a fully charged healthy battery, heathy charging system, no added aftermarket loads connected directly to the battery, there will be little to zero current flowing through the ammeter and related connections. Ammeters don’t cause problems, poor/loose connections, over tightened stud nuts, excessive moisture exposure and general lack of understanding of the function of the ammeter cause problems at the ammeter connections.

A lot of folks like to refer to the “Mad Electrical article” when doing or promoting an ammeter by-pass, voltmeter conversion. I would suggest another read through, note it was specially addressing the late seventies Dodge truck “plastic” ammeter melting issue. The passenger car ammeters from the sixties and seventies a not constructed with plastic framing, they will handle a great deal of current with clean connections and a little care. While some of their opening assertions are flat out wrong, there are other “by-pass” suggestions in the article there I agree with, bulkhead Packard connectors in the charging circuit for example. Address the Molex connections at the ignition switch as well. In my experience, do that before by-passing a perfectly good ammeter.
